Product Introduction

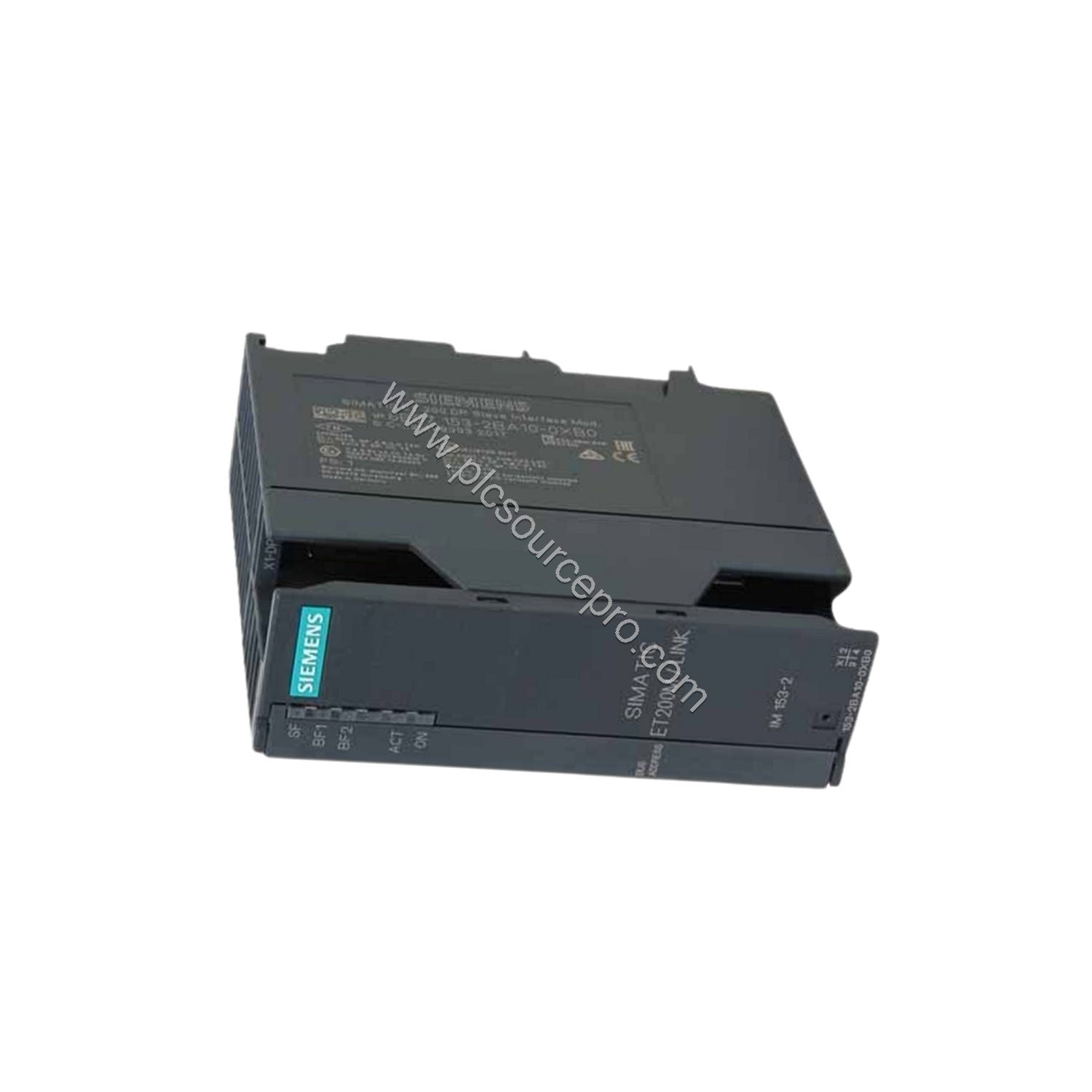

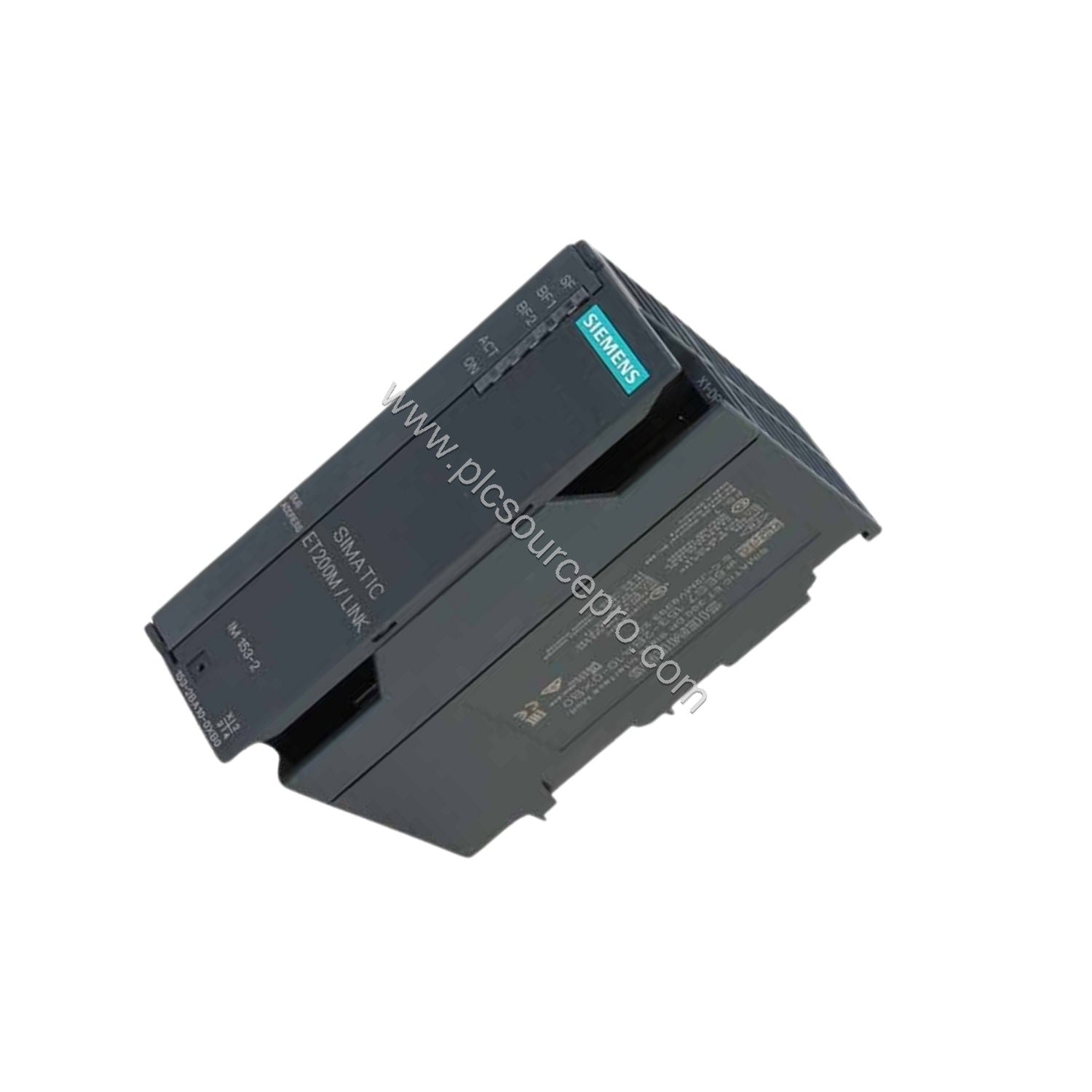

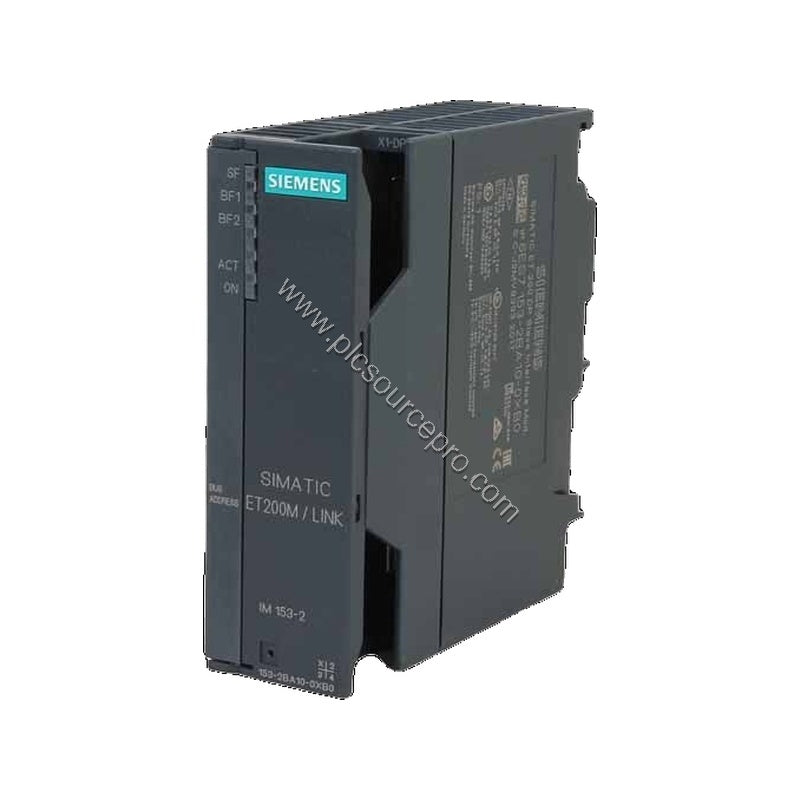

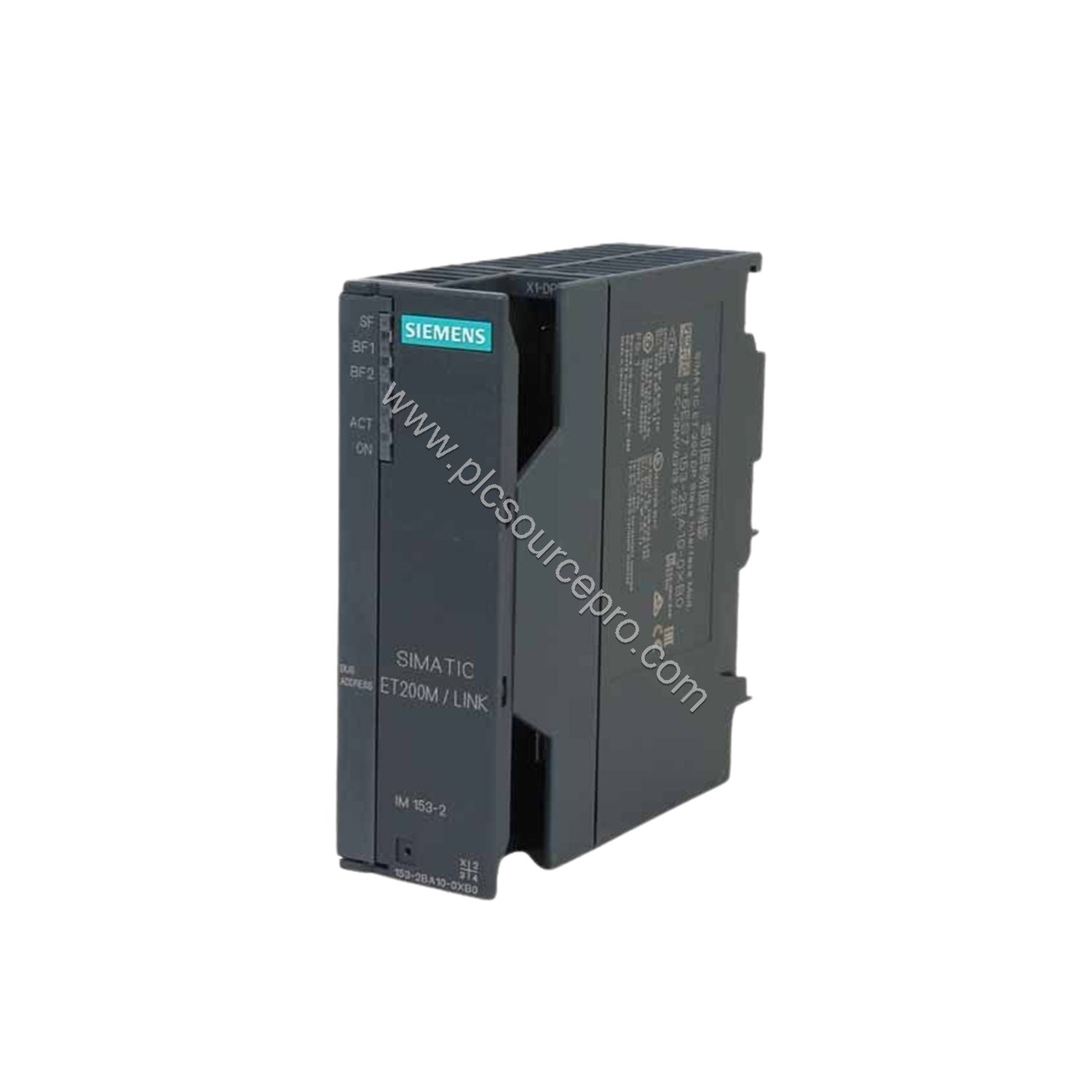

The Siemens 6ES7153-2BA10-0XB0 IM 153-2 DP HF is a high-feature interface module for the ET 200M distributed I/O system. Designed to connect up to 12 S7-300 modules, this industrial automation module provides redundancy capability and timestamping suitable for isochronous mode. With firmware version V6.0.0 and support for up to 32 signals per slot, the 6ES7153-2BA10-0XB0 delivers reliable performance in demanding manufacturing environments. Its PROFIBUS DP interface ensures seamless integration with existing control networks.
Technical Specifications
Critical parameters of the Siemens 6ES7153-2BA10-0XB0 include:
-
Supply voltage: 24 V DC (20.4–28.8 V range)
-
Current consumption (max): 650 mA at 24 V DC
-
Backplane bus output current (5 V DC): 1.5 A
-
Power loss: 5.5 W typical
-
Addressing volume: 244 bytes input / 244 bytes output
-
Time stamping accuracy: 1 ms (up to 8 modules); 10 ms (up to 12 modules)
-
Transmission rate (PROFIBUS DP): 12 Mbit/s
-
IP degree of protection: IP20
-
Ambient temperature range: 0 °C to 60 °C (horizontal installation)
-
Dimensions (W×H×D): 40 mm × 125 mm × 117 mm
-
Weight: approx. 360 g
Industry Applications
The Siemens 6ES7153-2BA10-0XB0 excels in applications demanding high availability and precise event logging. For example, in automated production lines, its redundancy capability minimizes downtime by allowing seamless switchover during a controller failure. The timestamping feature supports accurate sequence-of-events recording at 1 ms resolution, critical for quality assurance in pharmaceutical or automotive processes. By using this module, plants reduce unplanned outages and improve overall equipment effectiveness (OEE), delivering a strong return on investment.
Compatibility & Integration
The Siemens 6ES7153-2BA10-0XB0 communicates via PROFIBUS DP according to EN 50170. It supports SYNC and FREEZE capabilities, direct data exchange (slave-to-slave), and automatic baud rate detection. The module works with STEP 7, COM PROFIBUS, or third-party tools via GSD file SI05801E.GSG. It connects to S7-300 modules via the ET 200M backplane, and up to 12 modules per DP slave interface are allowed. For extended functionality, it also supports HART auxiliary variables and 64-channel modules.
Selection Guide & Purchasing Advice
When selecting the Siemens 6ES7153-2BA10-0XB0, verify that your system uses PROFIBUS DP and requires redundancy or high-resolution timestamping. Ensure the power supply provides 24 V DC with a minimum 2.5 A external protection. For optimal performance, use this module with S7-300 I/O modules compatible with ET 200M. PLC Source PRO (available at ubest101.myshopify.com) offers genuine Siemens parts with fast shipping. Contact our technical team to confirm compatibility with your specific configuration.
