Product Overview

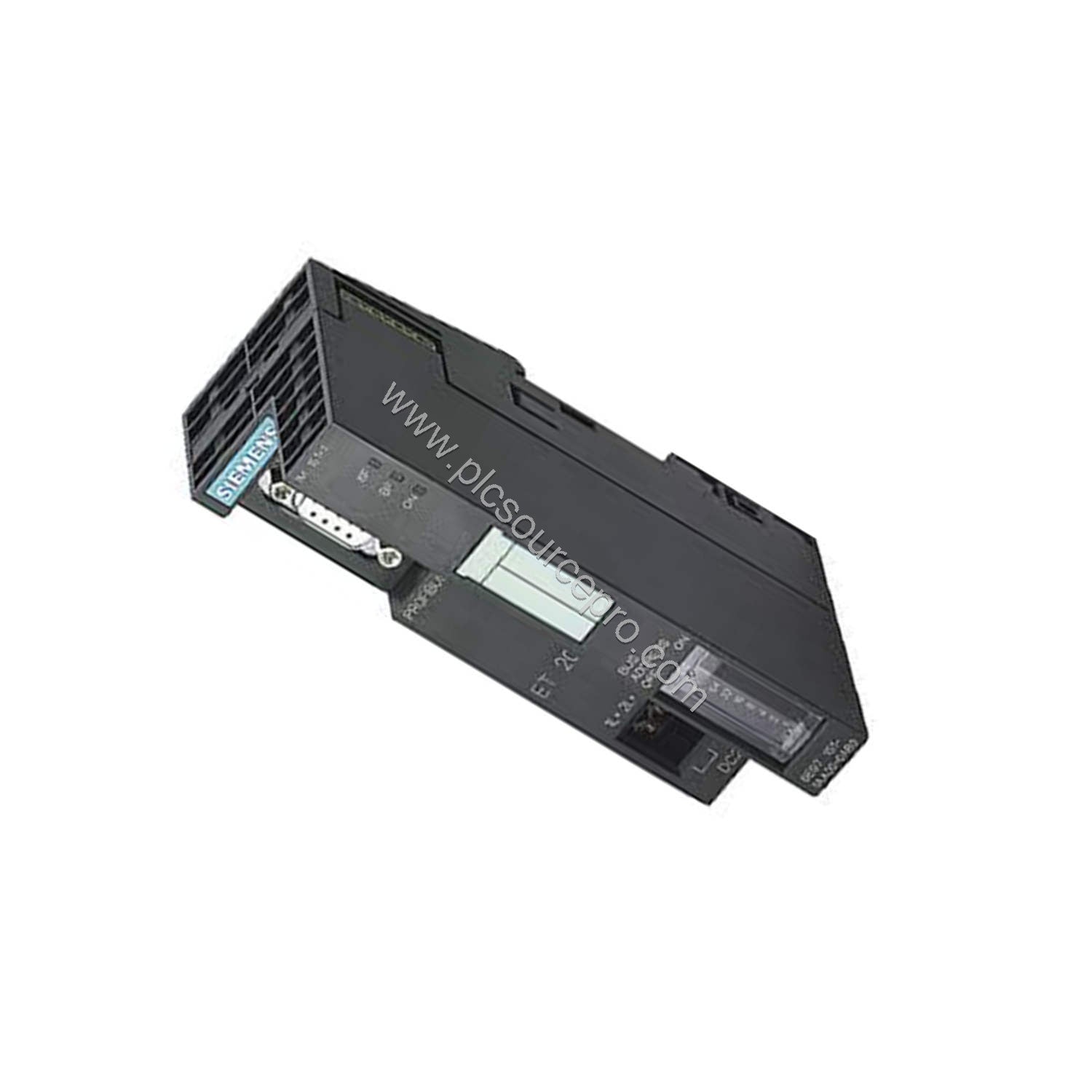

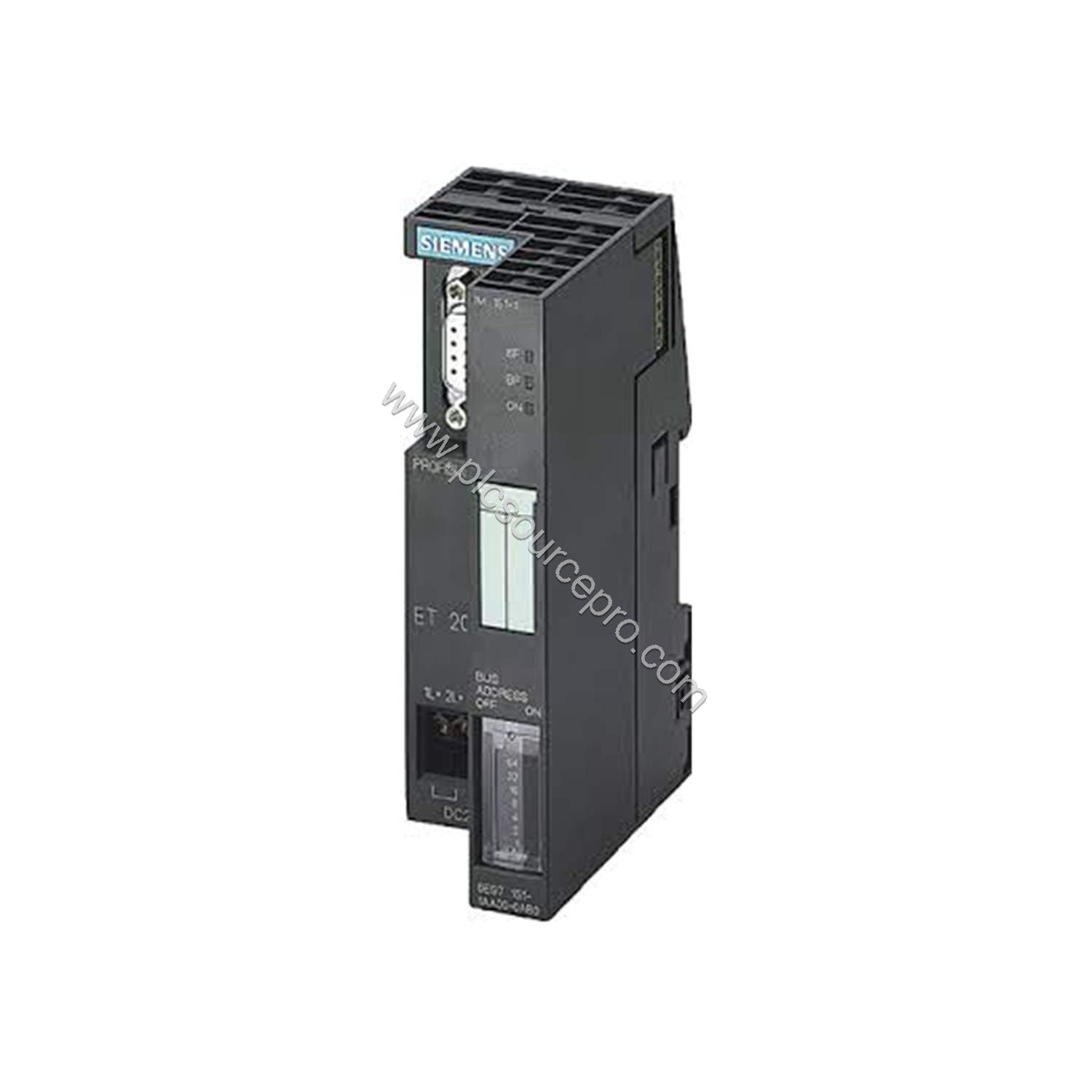

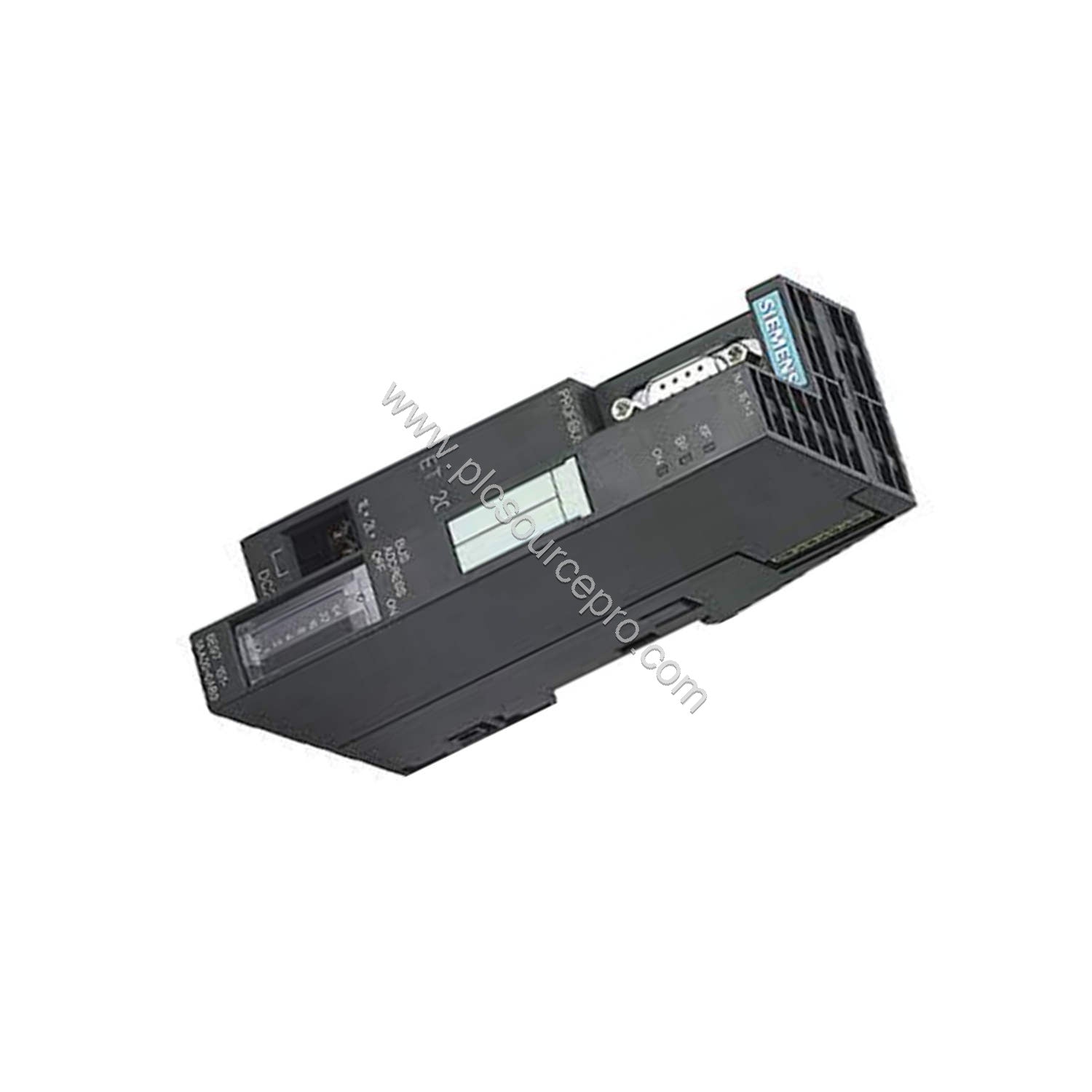

When modernizing a distributed I/O network, the Siemens 6ES7151-1AA05-0AB0 PROFIBUS DP interface module provides a straightforward upgrade path. This interface module replaces older models with higher data throughput and expanded connectivity. It serves as the central communication hub, managing data exchange between a PROFIBUS DP master and up to 63 I/O modules. Designed for the I/O Modules series, the Siemens 6ES7151-1AA05-0AB0 handles a data volume of 244 bytes and supports cable runs up to 1200 meters, making it ideal for large plant floor layouts.
Technical Specifications Breakdown
| Parameter |
Value |
| Data Volume |
244 bytes |
| Communication Mode |
PROFIBUS DP |
| Number of Supported I/O Modules |
63 |
| Maximum Cable Length |
1200 meters |
| Ambient Temperature Range |
0 to 40 degrees Celsius |
| Operating Humidity |
Up to 80% RH (non-condensing) |
| Storage Humidity |
Up to 80% RH (non-condensing) |
| Maximum Operating Altitude |
1000 meters above sea level |
| Weight |
0.31 lbs (0.14 kg) |
| UPC |
662643400878 |
The Siemens 6ES7151-1AA05-0AB0 supports a robust 244-byte data volume, allowing efficient cyclic data exchange. Its PROFIBUS DP communication mode ensures deterministic, real-time control. With support for up to 63 remote I/O modules, you can expand your system without additional master stations. The 1200-meter cable length accommodates wide-area installations.
Industry Applications
This interface module excels in manufacturing lines where reliable, high-speed data transfer is critical. For example, an automotive assembly plant uses the Siemens 6ES7151-1AA05-0AB0 to coordinate input sensors and output actuators across multiple stations, reducing cabling complexity. In a water treatment facility, the module connects remote I/O nodes spread over long distances, maintaining communication under 80% humidity and temperatures up to 40°C.
Compatibility and Integration
The Siemens 6ES7151-1AA05-0AB0 integrates directly into Siemens ET 200M distributed I/O systems. It is compatible with PROFIBUS DP masters, such as SIMATIC S7-300/400 CPUs equipped with a DP port. Use standard PROFIBUS cables and connectors. The module fits into a single-wide slot and does not require additional power supply beyond the backplane bus.
Selection Guide
Before purchasing, verify that your master controller supports PROFIBUS DP and that the data volume (244 bytes) fits your application. Ensure the ambient temperature stays between 0 and 40°C and altitude below 1000 meters. For assistance, contact PLC Source PRO (store link: ubest101.myshopify.com) where you can find this genuine Siemens 6ES7151-1AA05-0AB0 interface module along with other automation spares.
