Product Overview

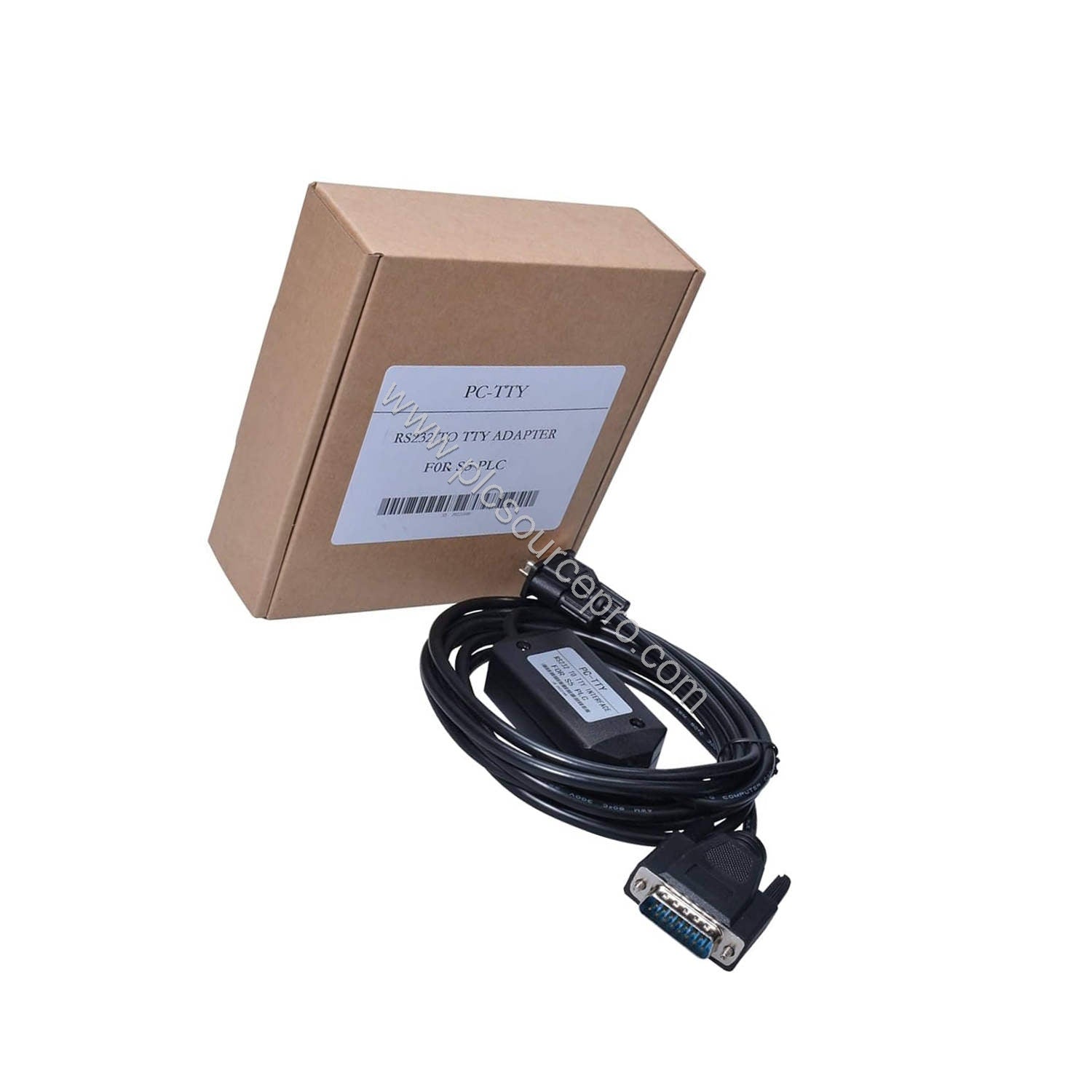

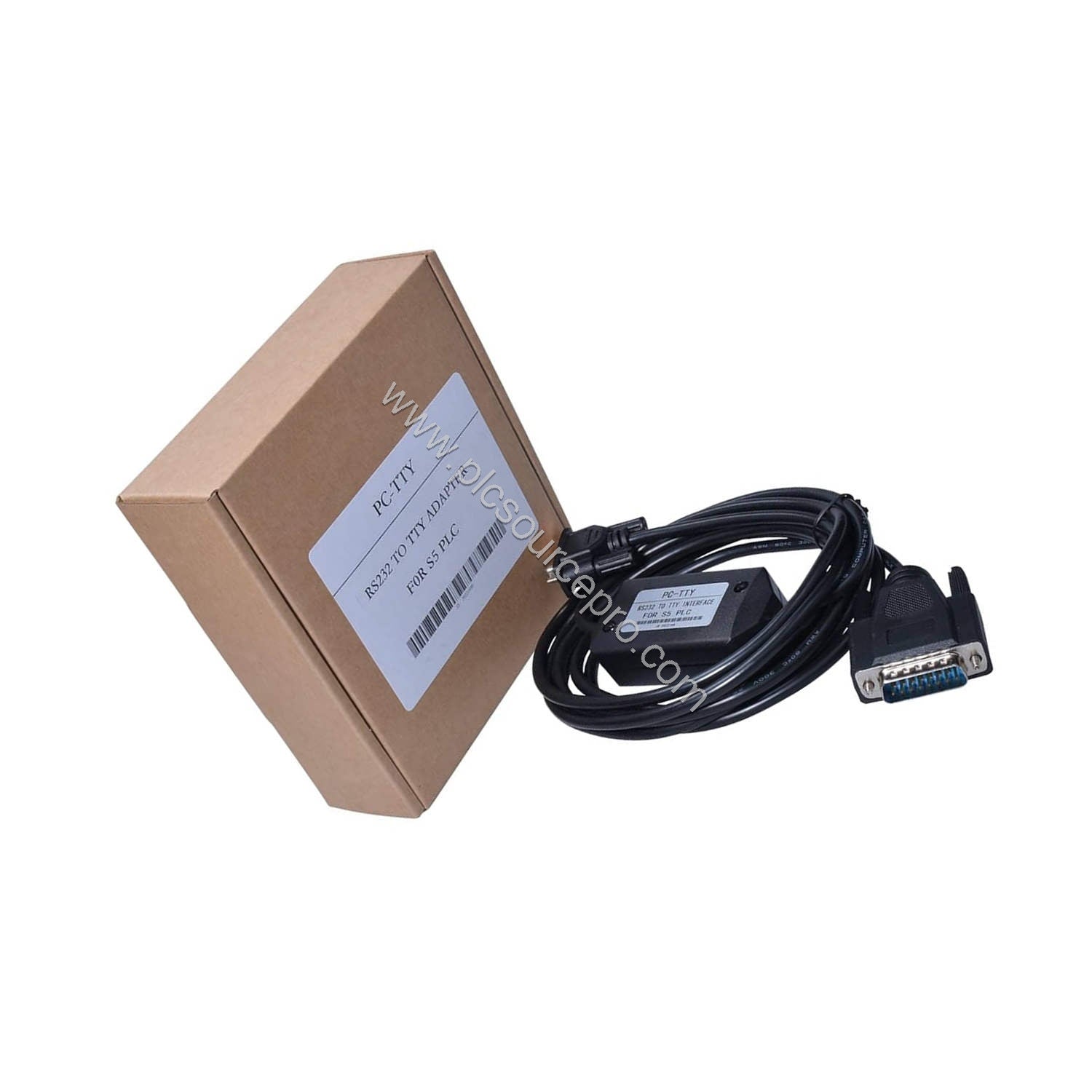

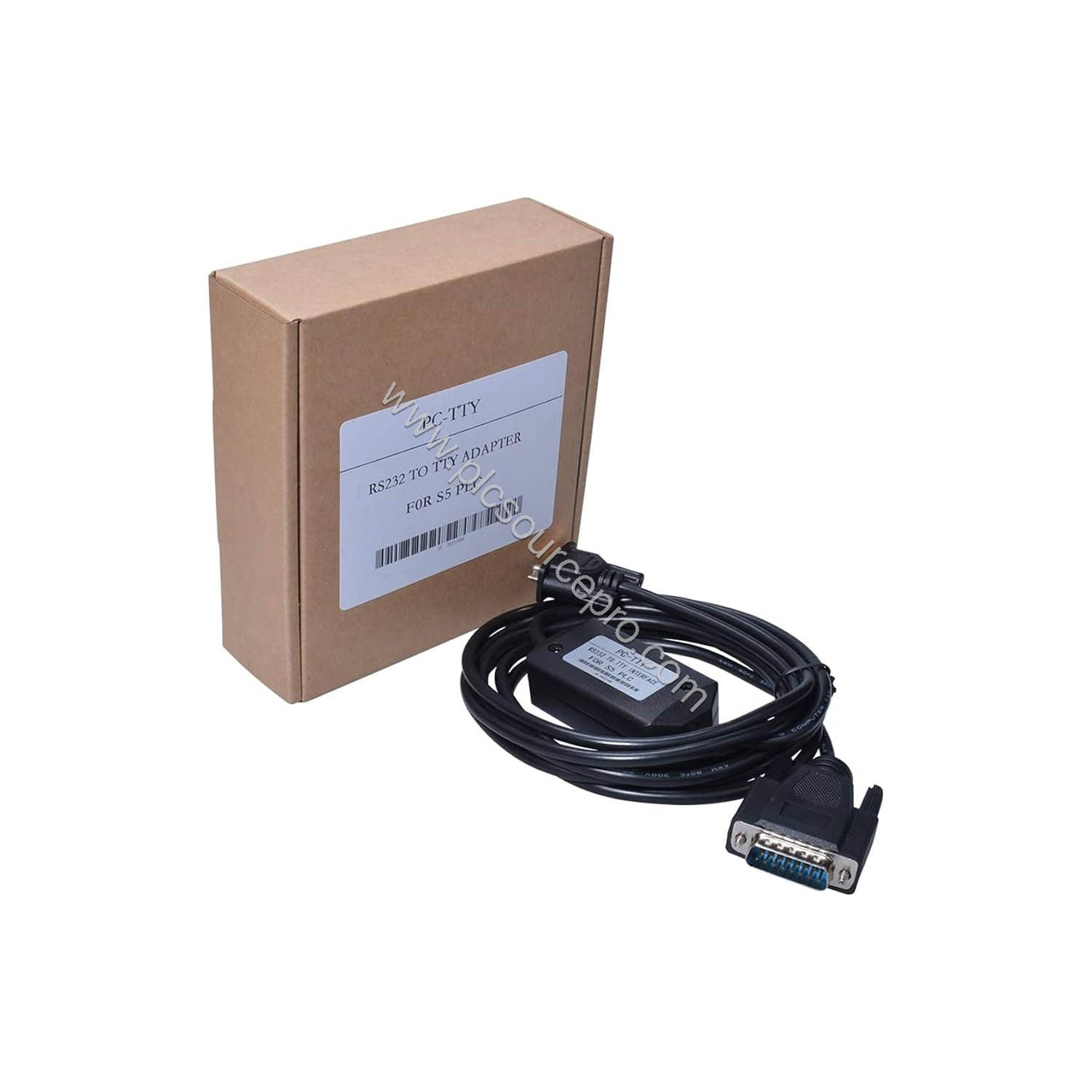

When communication failures disrupt industrial automation, the Siemens 6ES5734-1BD20 SIMATIC S5 programming cable ensures stable and reliable connection between a PLC and a PC. This plug-in programming cable features a 15-pin connector on the PLC end and a 25-pin connector on the PC end, with a length of 3.2 meters. It enables seamless data transfer for programming, monitoring, and control tasks within SIMATIC S5-based automation systems.
Technical Specifications
| Specification |
Value |
| Part Number |
6ES5734-1BD20 |
| Manufacturer |
Siemens 6ES5734-1BD20 |
| Category |
Computer |
| Subcategory |
Communication Cable/Adaptor |
| Product Line |
SIMATIC S5 |
| Description |
Plug-in Programming Cable |
| Connector Type |
AG 15-pole to PC 25-pole |
| Cable Length |
3.2 meters |
These specifications guarantee compatibility and performance in demanding industrial environments.
Real-World Applications
-
Factory Automation: Use the Siemens 6ES5734-1BD20 to program and monitor SIMATIC S5 PLCs on production lines, ensuring minimal downtime during setup changes.
-
Process Control: Connect to control systems for real-time data logging and troubleshooting, reducing system downtime and improving overall efficiency.
-
Legacy System Support: Ideal for maintaining older installations where reliable programming access is critical to avoid costly replacements.
Installation Guide
Installation of the Siemens 6ES5734-1BD20 is straightforward. Simply plug the 15-pin connector into the PLC's programming port and the 25-pin connector into the PC's serial port. Ensure both connectors are firmly seated to avoid intermittent connections. The 3.2-meter length provides flexibility for positioning the PC within a safe distance from the control cabinet. Avoid sharp bends or excessive tension to preserve cable integrity.
Reliability and Longevity
The Siemens 6ES5734-1BD20 is built with high-quality materials that resist temperature fluctuations, moisture, and mechanical stress common in industrial settings. Its robust construction reduces the need for frequent replacements, delivering long-term cost savings and maintaining system availability. Regular inspection of the cable and connectors for signs of wear further extends its service life.
Selection and Purchasing Guide
Before purchasing, verify that your PLC uses a 15-pin programming port and your PC has a 25-pin serial port (or use an appropriate adapter). The Siemens 6ES5734-1BD20 is specifically designed for SIMATIC S5 CPUs. For genuine parts and expert support, trust PLC Source PRO. For additional details or to place an order, visit ubest101.myshopify.com.
