Product Overview

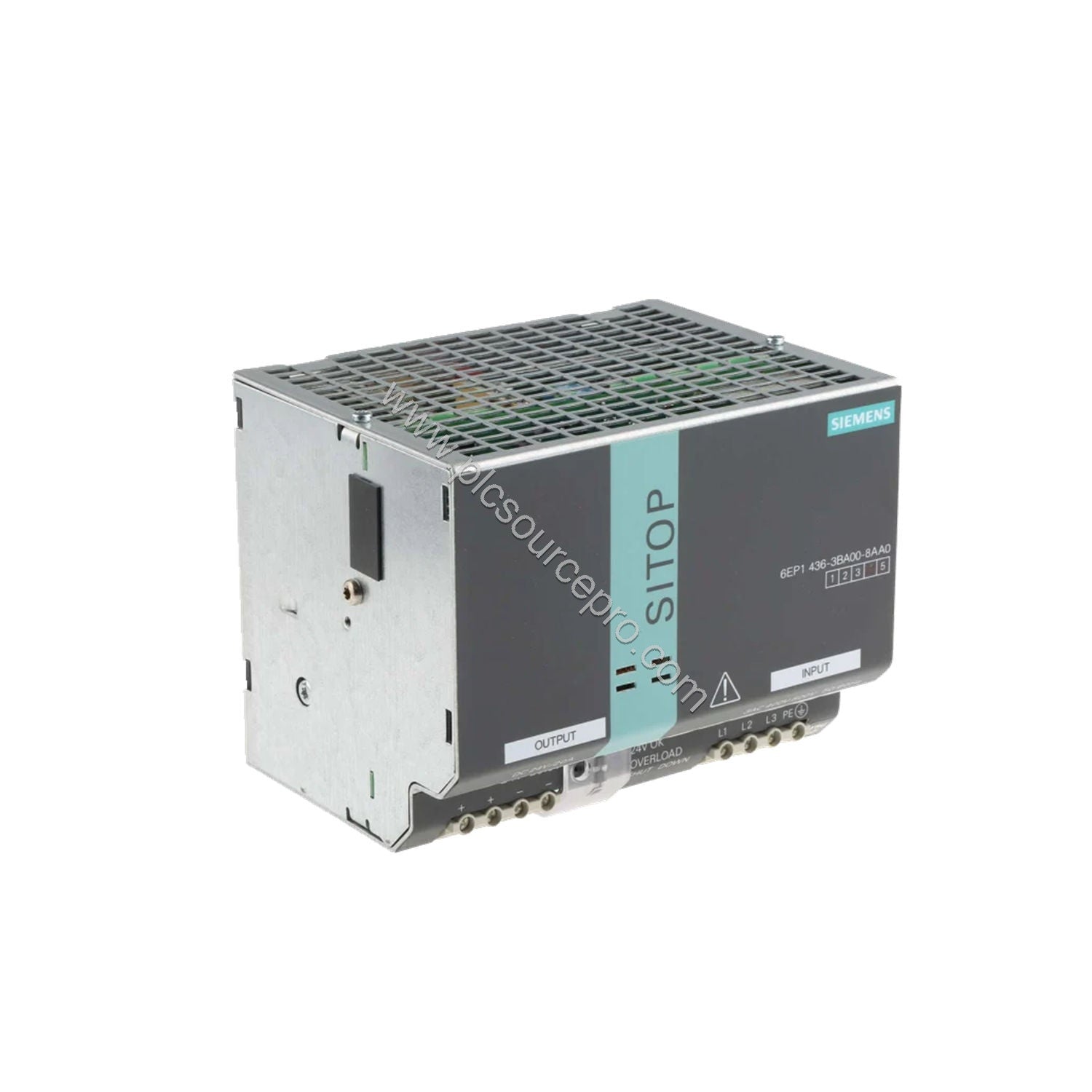

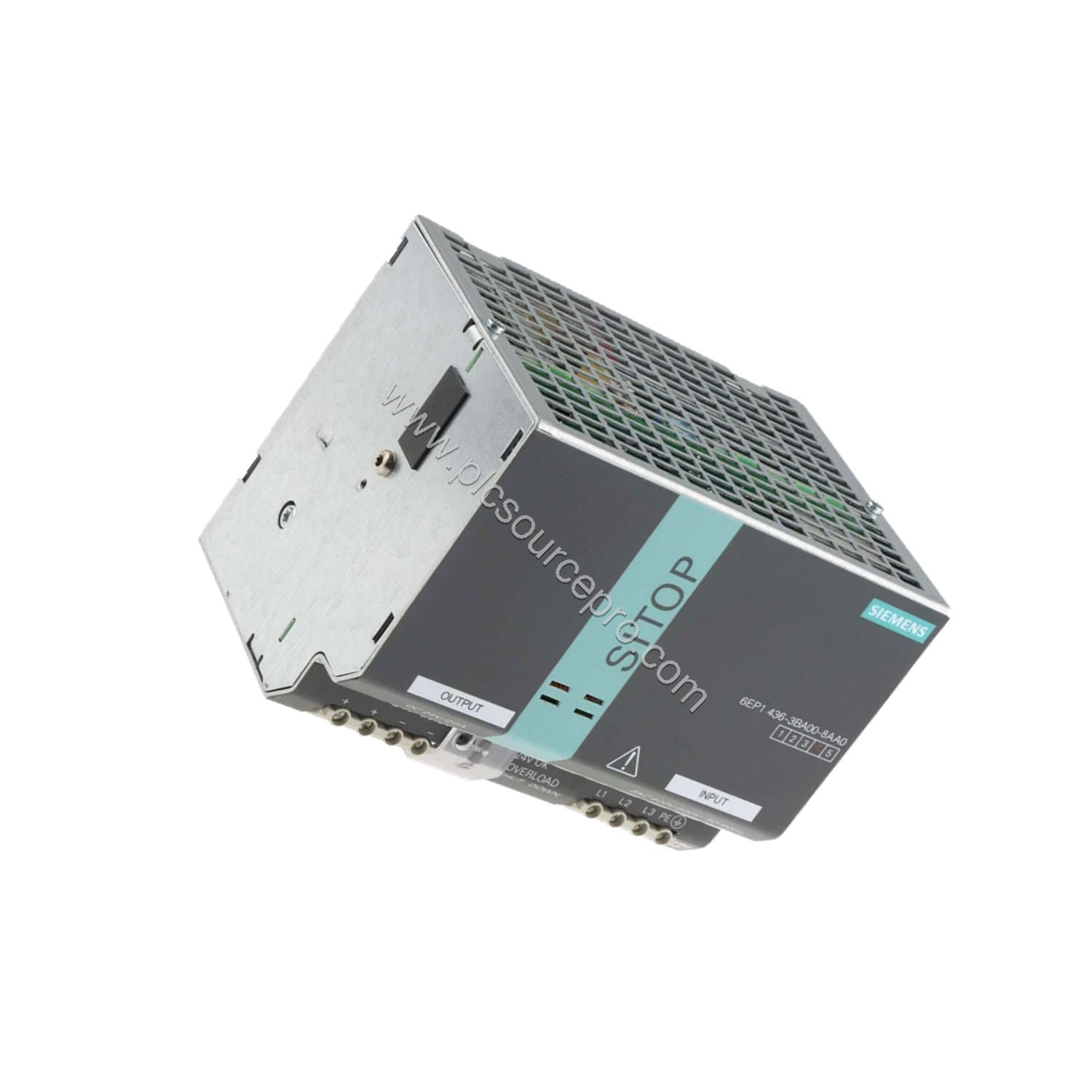

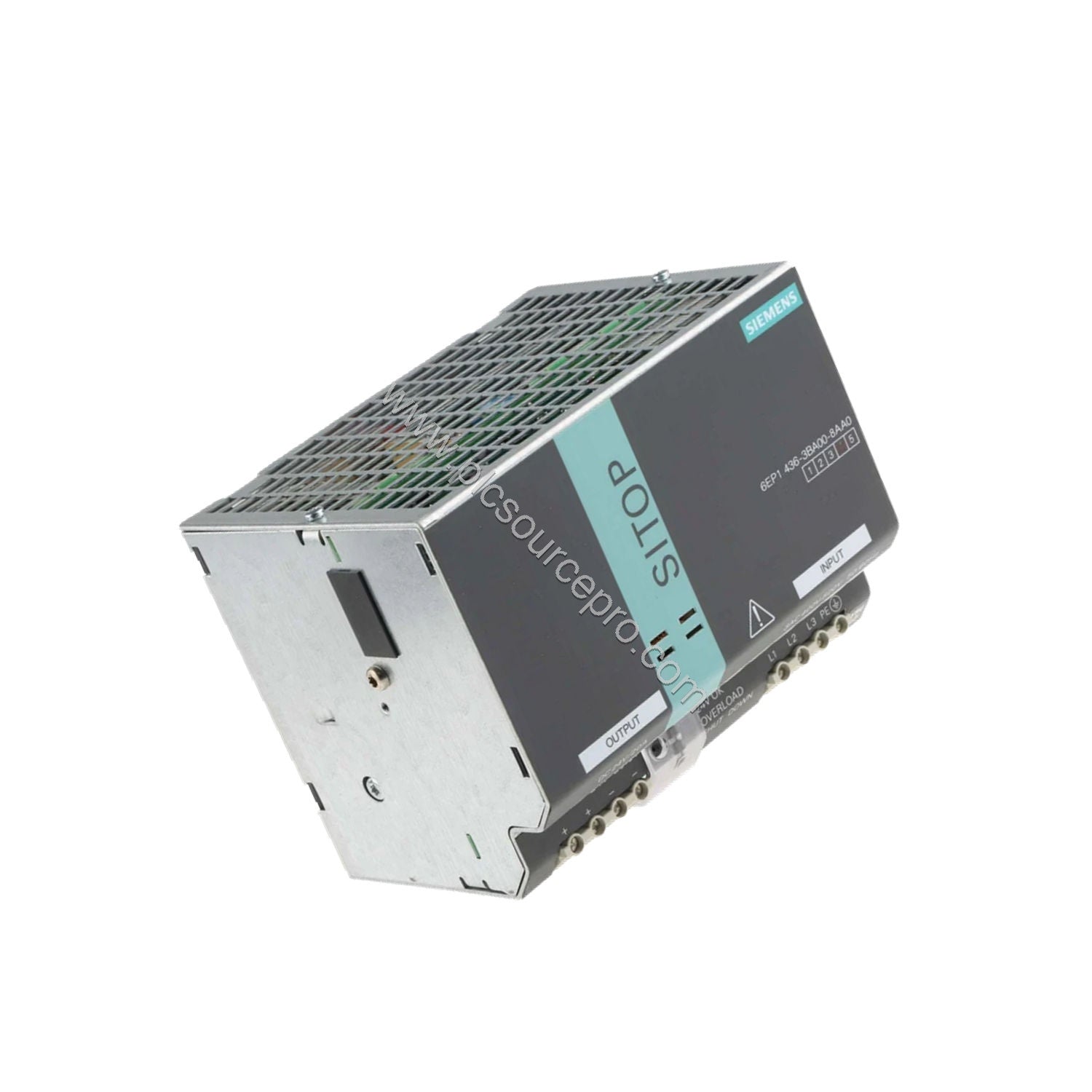

The Siemens 6EP1436-3BA00 is a SITOP modular stabilized power supply designed for demanding industrial environments. With a three-phase AC input (400-500 V) and a regulated 24 VDC output rated at 20 A, it delivers reliable power to critical automation systems. Its robust protection mechanisms, including overvoltage, overload, and short-circuit protection, minimize downtime and equipment damage. This module is ideal for applications requiring stable DC power with high efficiency and long service life.
Technical Specifications Breakdown
The Siemens 6EP1436-3BA00 offers comprehensive technical performance. Key parameters include:
-
Input voltage range: 3-phase AC 400-500 V (initial 320 V, full-scale 550 V)
-
Output voltage: 24 VDC (adjustable 24-28.8 V via potentiometer)
-
Output current: 20 A (0-20 A, derating above 60°C)
-
Efficiency: 90% typical, minimizing power loss (53 W typical at rated load)
-
Overload protection: Short-circuit proof with constant current (approx. 23 A) or latching shutdown
-
MTBF: 711,213 hours at 40°C, ensuring long-term reliability
These parameters ensure stable operation under varying load and input conditions, reducing risk of failure in automated systems.
Industry Applications
The Siemens 6EP1436-3BA00 is well-suited for industrial control panels, PLC systems, and process automation. Its wide input range and robust output make it ideal for factory floors, machine tools, and conveyor systems. For example, in a packaging line where multiple sensors and actuators require regulated 24 VDC, this power supply provides clean, isolated DC voltage with ripple under 100 mV. Its short-circuit protection prevents cascade failures, aligning with our failure mode analysis angle: this module preemptively handles common electrical faults.
Installation & Setup Guidance
Mount the Siemens 6EP1436-3BA00 on a DIN rail EN 60715 35x7.5/15. Ensure proper spacing: 50 mm top and bottom, 0 mm left and right for ventilation. Use screw terminals for input (L1, L2, L3, PE: 0.2-4 mm²) and output (+, -: 0.33-4 mm²). Connect a 3-pole miniature circuit breaker (6-16 A, characteristic C) on the input side. The output voltage is adjustable via potentiometer; set to desired level before powering loads. The green LED indicates 24 V OK; yellow and red LEDs signal overload and latching shutdown.
Maintenance & Reliability
With an MTBF of over 711,000 hours, the Siemens 6EP1436-3BA00 requires minimal maintenance. Periodically inspect input and output connections for tightness. Ensure ambient temperature stays within 0-70°C (derating above 60°C). The unit is IP20 rated, so protect from dust and moisture. Its galvanic isolation and compliance with EN 60950-1 and EN 50178 ensure safety and longevity. Routine checks of the signaling module (6EP1961-3BA10) can verify proper operation.
Selection Guide & Purchasing Advice
When selecting the Siemens 6EP1436-3BA00, confirm your input voltage matches 400-500 V 3-phase and load current does not exceed 20 A. For redundancy, up to two units can be paralleled for increased power. Compatible accessories include the buffer module and signaling module (6EP1961-3BA10). For reliable sourcing, consider PLC Source PRO (ubest101.myshopify.com) as a trusted supplier of genuine industrial automation parts.
