Product Overview

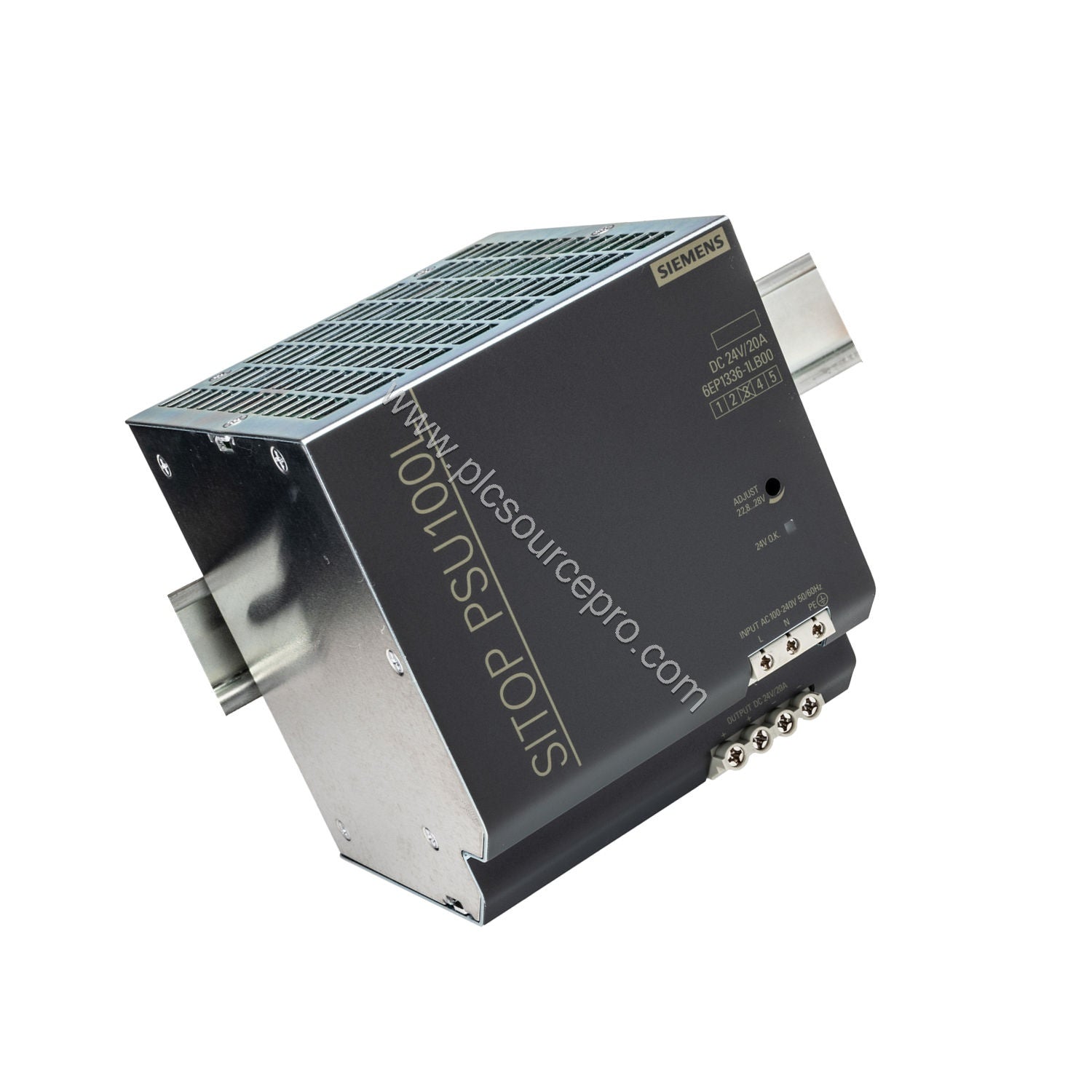

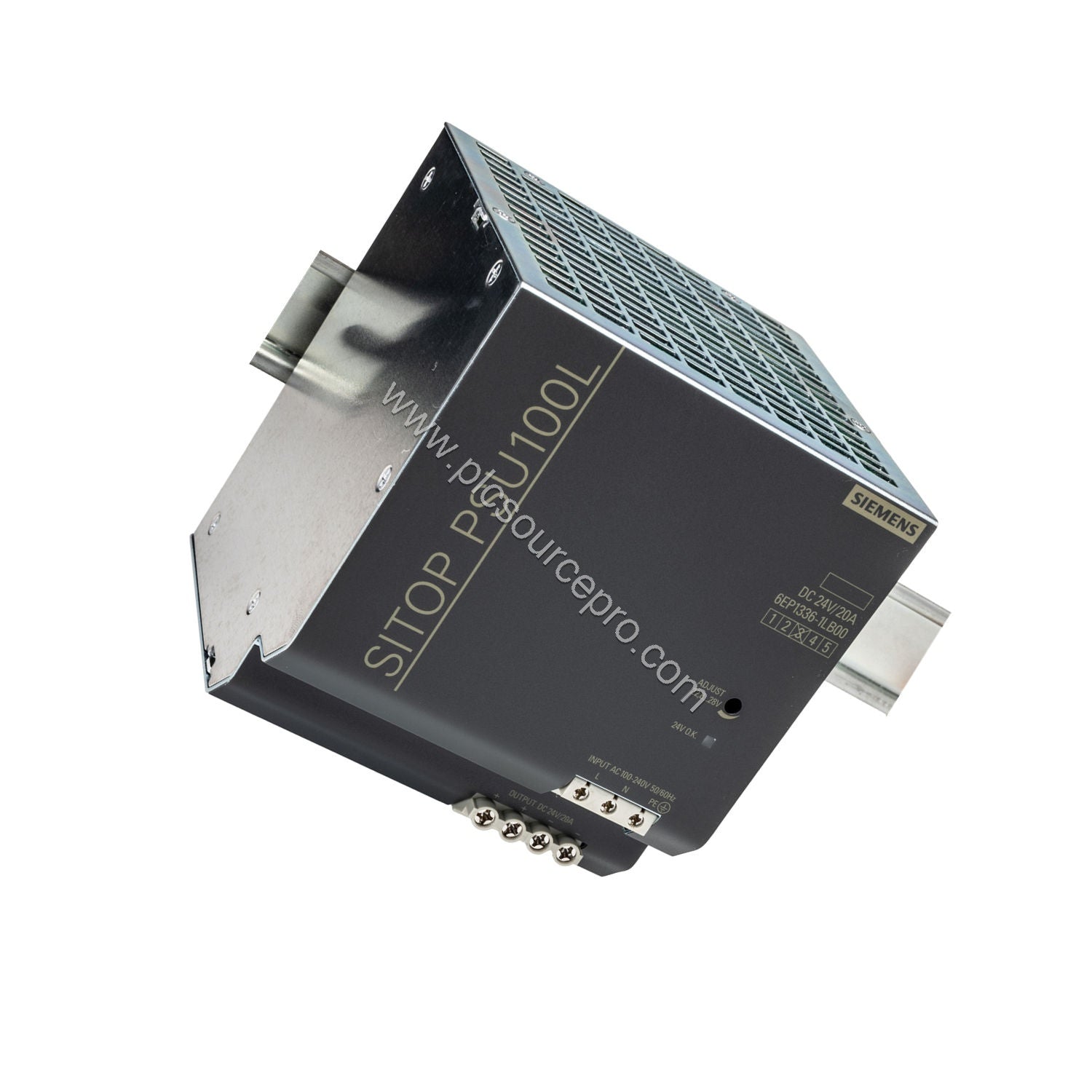

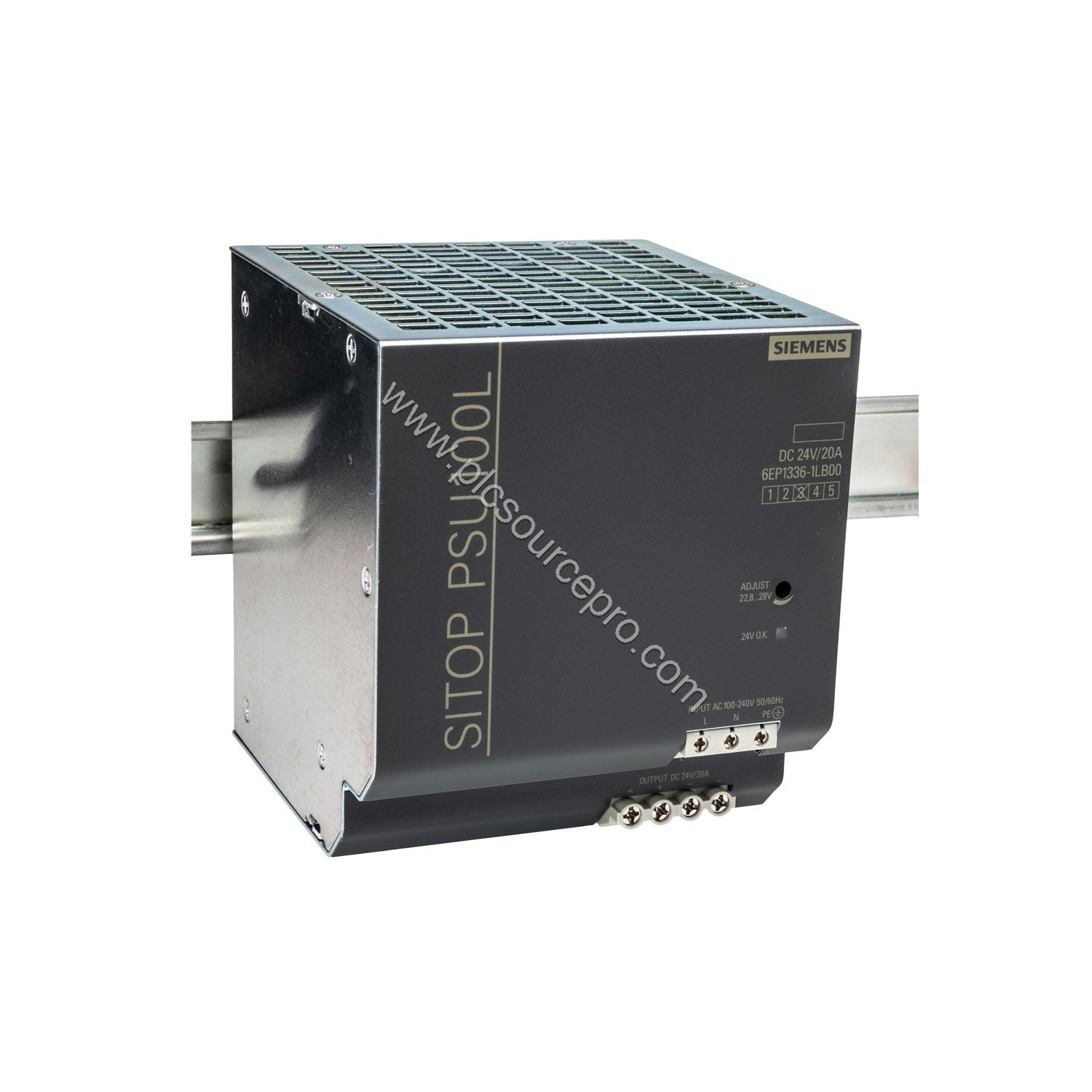

The Siemens 6EP1336-1LB00 SITOP PSU100L is a stabilized industrial power supply designed for demanding automation environments. With a 24 V DC / 20 A output and wide-range AC/DC input (100-240 V AC or 100-240 V DC), this module delivers consistent, isolated power to critical control systems. Its 92% efficiency reduces energy costs, while the adjustable output voltage (22.8–26.4 V) and comprehensive protection features ensure reliable operation even under load fluctuations or short circuits.
Technical Specifications
Below are the key parameters derived directly from the product datasheet for the Siemens 6EP1336-1LB00:
| Parameter |
Value |
| Input Voltage (AC) |
85–264 V (rated 100–240 V) |
| Input Voltage (DC) |
88–370 V |
| Output Voltage |
24 V DC (adjustable 22.8–26.4 V) |
| Output Current (rated) |
20 A |
| Efficiency |
92% |
| Power Loss (typical) |
45 W |
| Line Frequency |
47–63 Hz |
| Inrush Current Limiting |
Max 45 A at 25 °C |
| Buffering Time at Vin=93/187 V |
Min 20 ms |
| Protection Class |
IP20, Class I |
| Dimensions (WxHxD) |
110 x 125 x 125 mm |
| Net Weight |
1.8 kg |
The Siemens 6EP1336-1LB00 uses a potentiometer for easy output voltage setting and offers a green LED for 24 V OK indication. Its short-circuit protection follows a constant current characteristic, with an enduring short-circuit current of 24 A typical.
Industry Applications
This power supply is ideal for control cabinets in manufacturing, process automation, and machine building. For example, in a 24 V DC sensor/actuator network, the Siemens 6EP1336-1LB00 ensures stable voltage even during line brownouts, thanks to its 20 ms buffering. Its wide temperature range (-25 °C to +70 °C) suits outdoor or heated enclosures. The ability to parallel up to two units increases system redundancy—a key benefit for cost-sensitive ROI scenarios.
Installation & Setup Guidance
Mount the Siemens 6EP1336-1LB00 onto a DIN rail EN 60715 35x7.5/15 using the snap-on mechanism. Allow 50 mm clearance above and below for convection cooling. Use screw-type terminals for input (L, N, PE: 0.5–2.5 mm²) and output (+, -: two terminals each). Set output voltage via the potentiometer before connecting loads. For extended power, parallel two identical units; no external diodes needed—the product supports bridging.
Selection Guide & Purchasing Advice
Before ordering, verify that your system requires 24 V DC at up to 20 A and accepts universal AC/DC input. Check the ambient temperature range: derating at 2.5%/K above 45 °C. For circuit protection, use a miniature circuit breaker from 10 A characteristic C. The Siemens 6EP1336-1LB00 is stocked by PLC Source PRO (ubest101). Contact our team for bulk pricing or to confirm compatibility with your existing control infrastructure.
Troubleshooting & Common Issues
If the green LED fails to illuminate, verify input AC/DC voltage within range (85–264 V AC / 88–370 V DC) and check the feeder fuse (T 10 A/250 V). For output instability, ensure load does not exceed 20 A—overload triggers constant current limit at ~24 A. If noise appears, confirm proper grounding and that the unit is not near high-EMI sources; the Siemens 6EP1336-1LB00 meets EN 55022 Class B for emissions.
