Product Overview

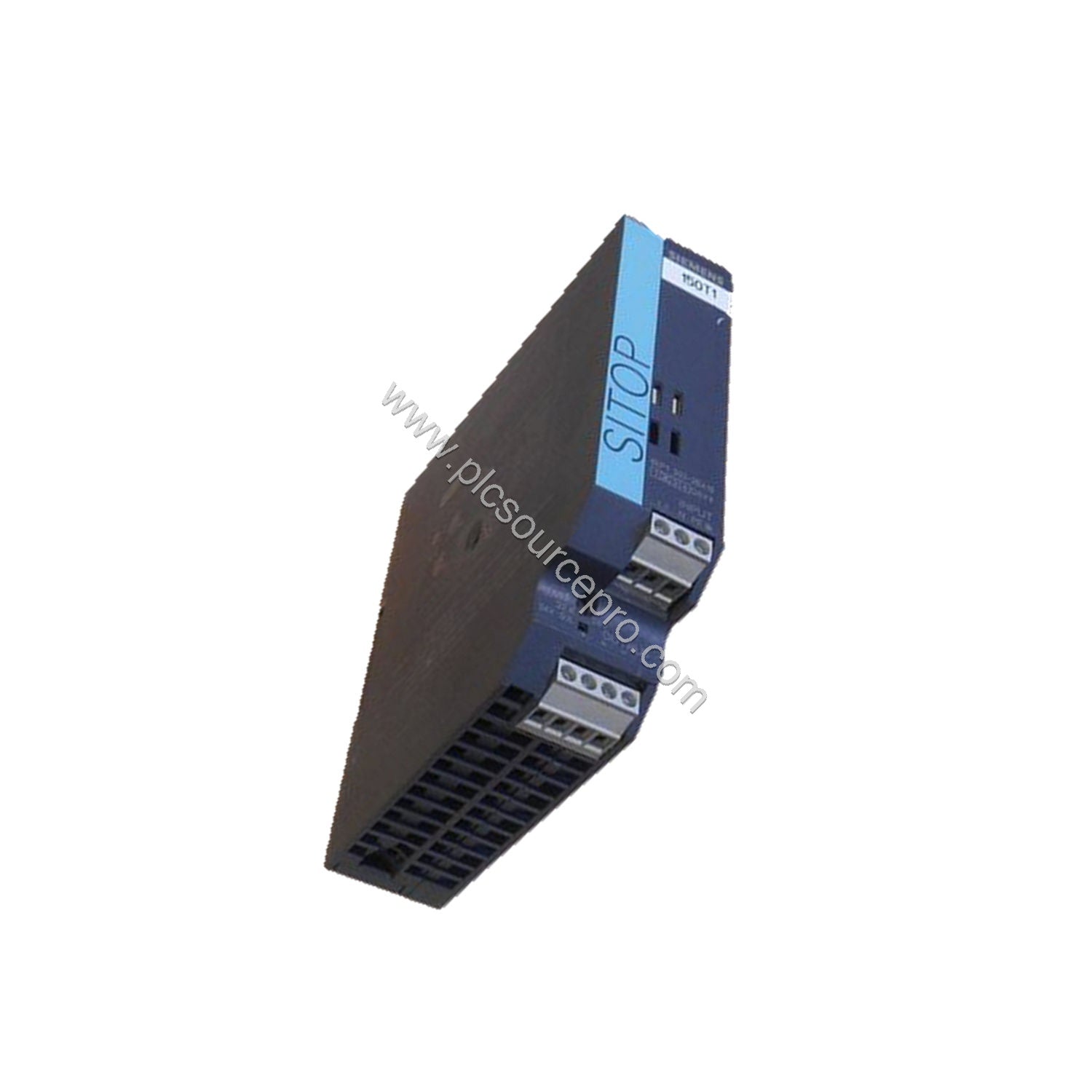

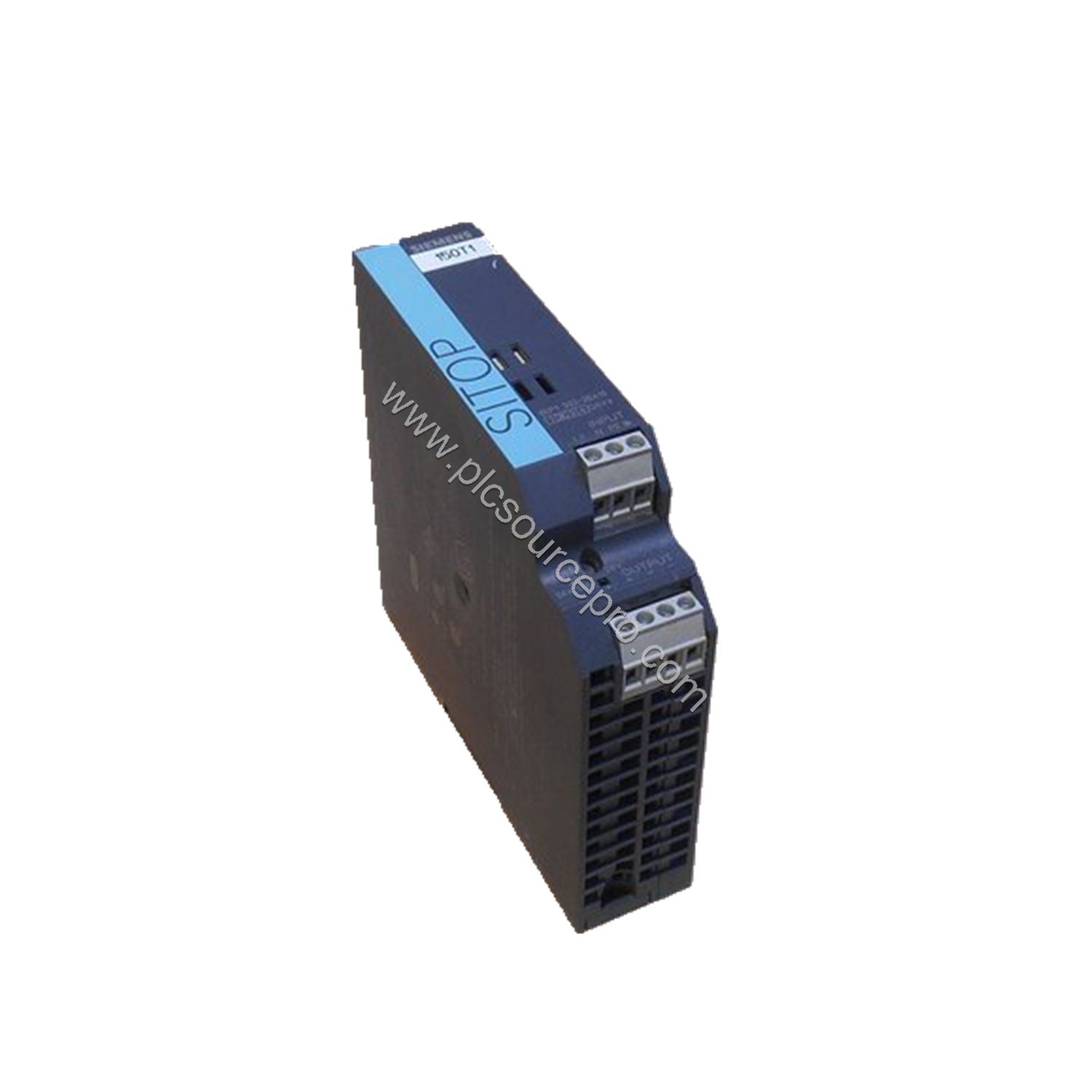

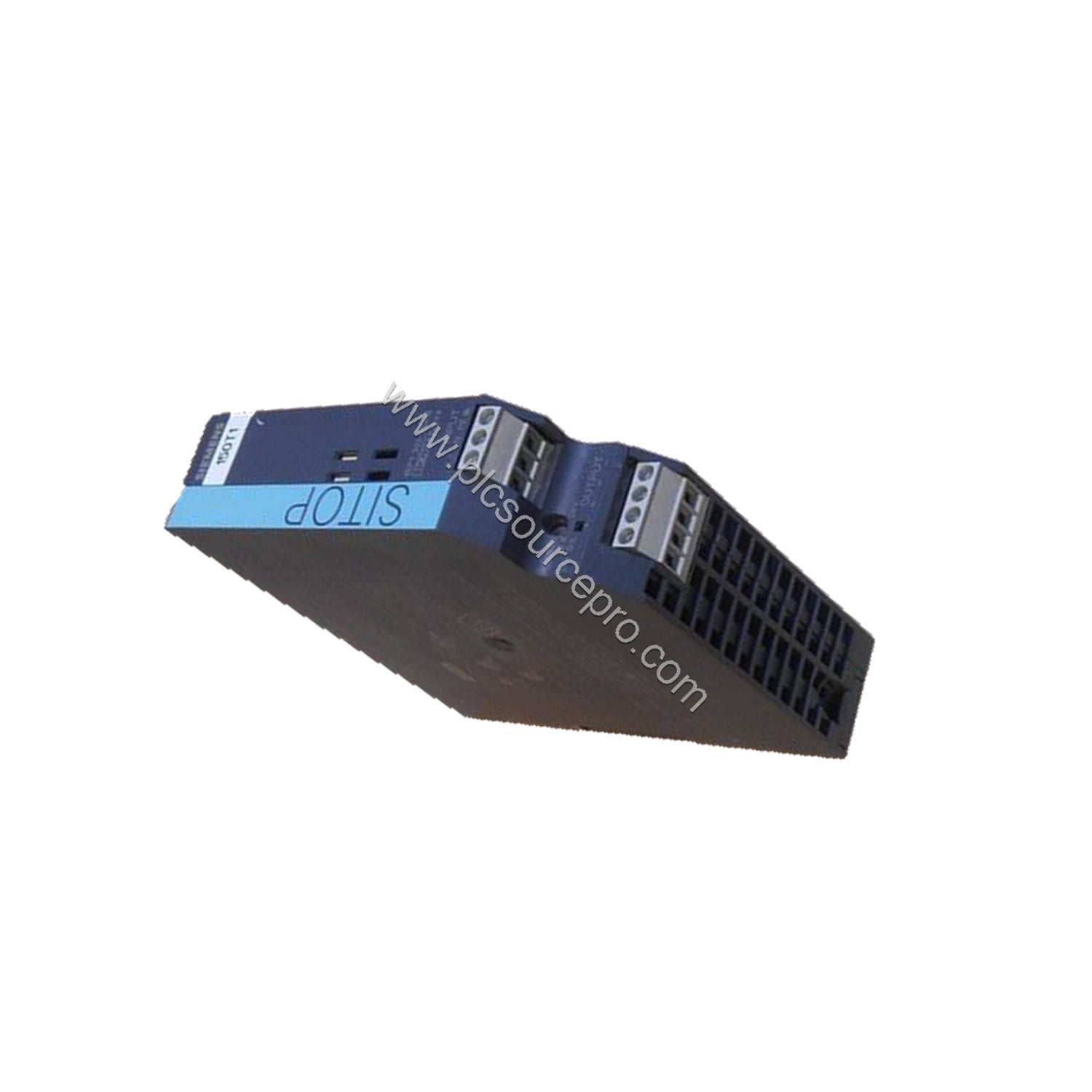

Industrial automation systems demand reliable power to avoid unexpected downtime. The Siemens 6EP1332-2BA10 stabilized power supply addresses common power-related failures with precise voltage regulation and robust protection. Designed for single-phase AC systems, this module ensures stable DC 24V output at 2.5A nominal current, making it a critical component in PLC and DCS installations.
Technical Specifications
Key parameters of the Siemens 6EP1332-2BA10 include:
- Nominal input voltage: AC 120/230 V, reconnectable
- Input voltage range: AC 85-132 V and 170-264 V
- Efficiency: approx. 85%
- Nominal output voltage: DC 24 V (adjustable 22.8-28 V)
- Total tolerance: ±3%, residual ripple < 150 mVss
- Nominal output current: 2.5 A (3 A up to +45°C)
- Ambient temperature: 0 to +60°C
- Protection class I, degree of protection IP20
- Isolation: SELV to EN 60950
- RFI specification: class B to EN 55022
- Certifications: CE, UL/cUL, GL, ATEX
Industry Applications
In control cabinets, the Siemens 6EP1332-2BA10 prevents voltage sags that could disrupt PLC operations. Its wide input range handles fluctuations common in factories, while the low residual ripple ensures clean power for sensitive sensors. For example, in a packaging line, this power supply maintains consistent DC voltage to programmable controllers, reducing fault occurrences.
Installation and Setup
Mount the Siemens 6EP1332-2BA10 on a DIN rail in a well-ventilated enclosure. Ensure the AC supply matches the configured input (120V or 230V). Use appropriate circuit protection upstream. The IP20 rating requires installation in a clean, dry environment. Connect DC output loads within the rated current, respecting the 3A derating above 45°C.
Maintenance and Reliability
To maximize the Siemens 6EP1332-2BA10 lifespan, periodically inspect for dust buildup and ensure ambient temperature remains below 60°C. The unit's high efficiency (85%) reduces heat generation, but proper airflow is essential. Check output voltage adjustment if system loads change. The SELV isolation provides operator safety even in harsh industrial settings.
Buying Guide
When purchasing a replacement or new power supply, verify the input voltage configuration and output current requirements for your system. The Siemens 6EP1332-2BA10 is available from PLC Source PRO, your trusted supplier of industrial automation parts. For more information, contact our team at ubest101.
