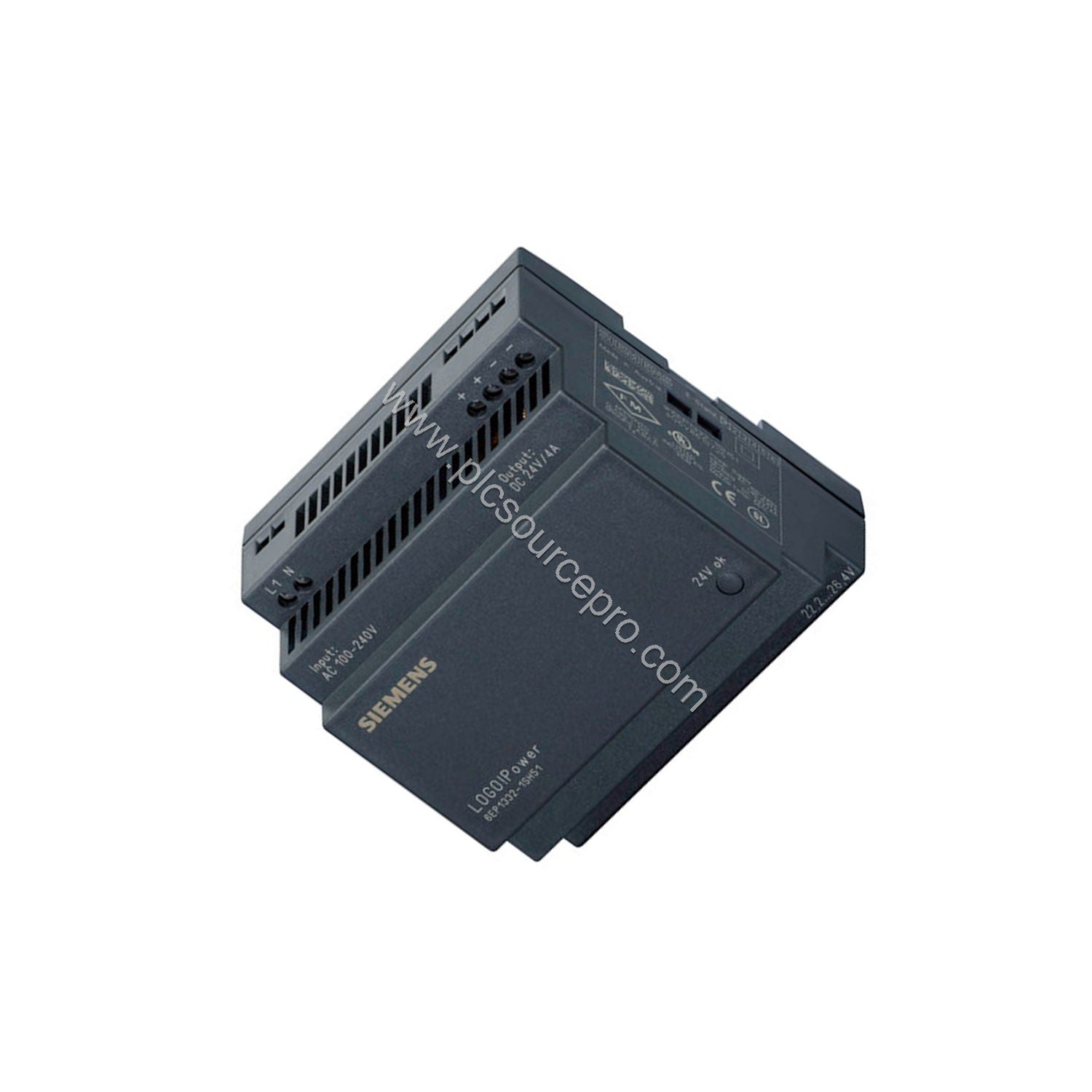

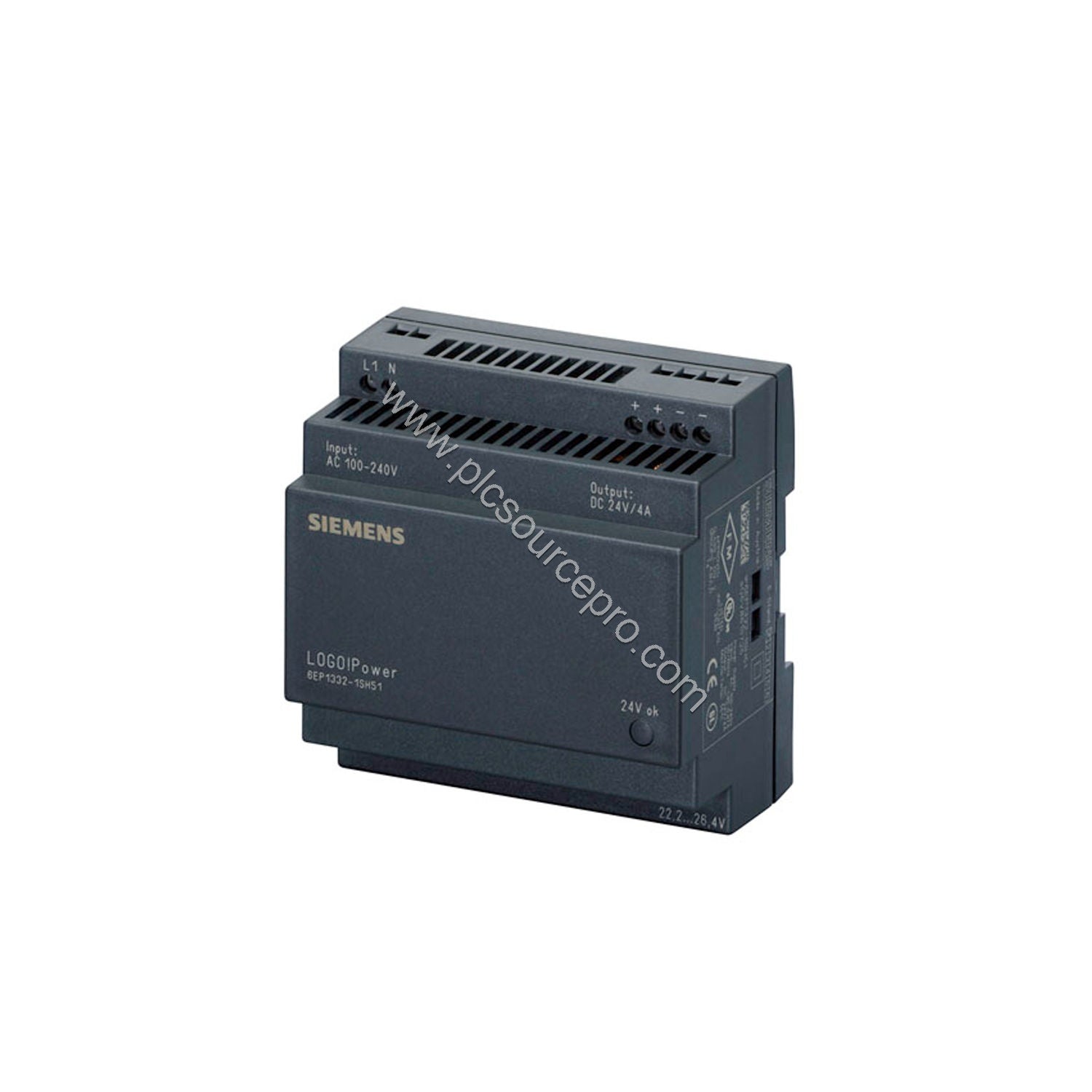

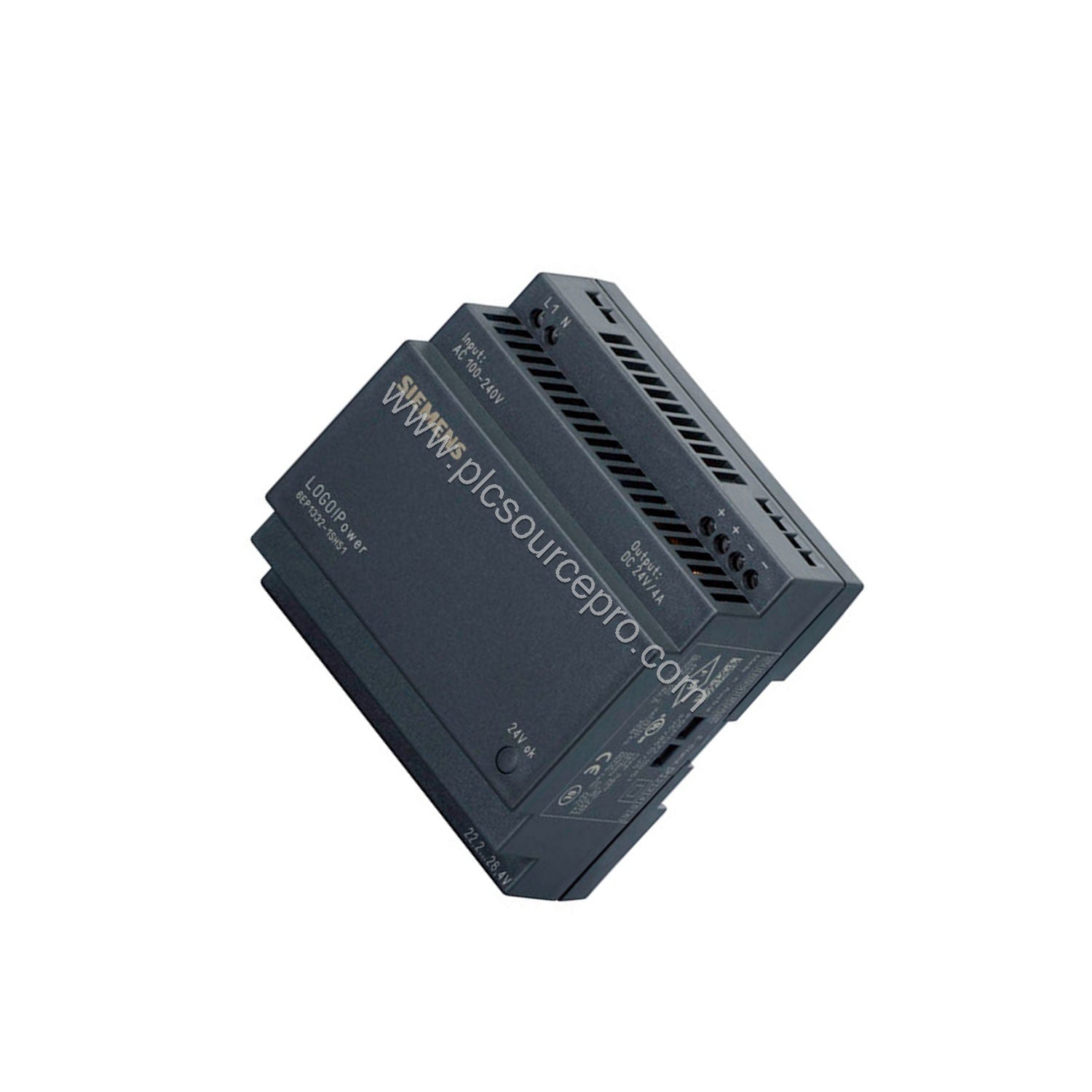

Product Overview: Siemens 6EP1332-1SH52 LOGO!POWER 24V/4A Stabilized Power Supply
When reliable 24V DC power is critical for your industrial control system, the Siemens 6EP1332-1SH52 delivers. Part of the LOGO!POWER family, this stabilized power supply provides a regulated, isolated 24V DC output at 4A. With a wide input range of 100-240V AC or 110-300V DC, it adapts to global power grids. The Siemens 6EP1332-1SH52 stands out with its high efficiency (89% typical) and low power loss (12W at full load), reducing energy costs and heat dissipation.
Technical Specifications Breakdown
Leveraging the detailed specs of the Siemens 6EP1332-1SH52, we highlight key parameters that ensure stable operation:
-
Input Voltage: AC 85-264V (nominal 100-240V) or DC 110-300V – flexible for worldwide use.
-
Output Voltage: 24V DC adjustable from 22.2 to 26.4V, with ±3% total tolerance.
-
Rated Current: 4A continuous, with active power delivery of 96W.
-
Efficiency: 89% typical at rated load, minimizing energy waste.
-
Protection: Short-circuit proof, current limiting at 5.2A, and enduring short-circuit current up to 7.9A.
-
Operating Temperature: -20 to +70°C, suitable for harsh industrial environments.
These features ensure the Siemens 6EP1332-1SH52 maintains output stability even with input fluctuations or load changes.
Real-World Applications and ROI Benefits
The Siemens 6EP1332-1SH52 is ideal for powering PLCs, sensors, actuators, and control panels in factory automation, building management, and process control. For example, in a production line, this power supply can drive multiple 24V sensors and I/O modules, reducing the need for separate units. Its high efficiency translates into lower energy bills over time, while the wide input range eliminates the need for voltage conversion equipment. The ability to parallel two units for enhanced performance (2 units) allows scalability without redesign.
Maintenance and Reliability
With no moving parts and robust protection circuits, the Siemens 6EP1332-1SH52 requires minimal maintenance. Its IP20 enclosure (IP20) protects against solid objects. Operate within the -20 to +70°C range to maximize lifespan. Check input connections periodically, as the screw terminals (screw connection) ensure secure wiring. The unit's low idle power loss (2W maximum) means it can remain powered without significant energy waste.
Selection Guide and Purchasing Advice
Before purchasing the Siemens 6EP1332-1SH52, verify your system's voltage and current needs. This unit provides 24V DC at 4A, sufficient for many small to medium control cabinets. Ensure your mounting solution: it supports DIN rail mounting (DIN rail mount: Yes) but not wall mounting. For bulk orders or technical questions, contact PLC Source PRO. Our product specialists can help you select the right power supply for your application. Visit our store at ubest101.myshopify.com for more automation spares.
