Product Overview

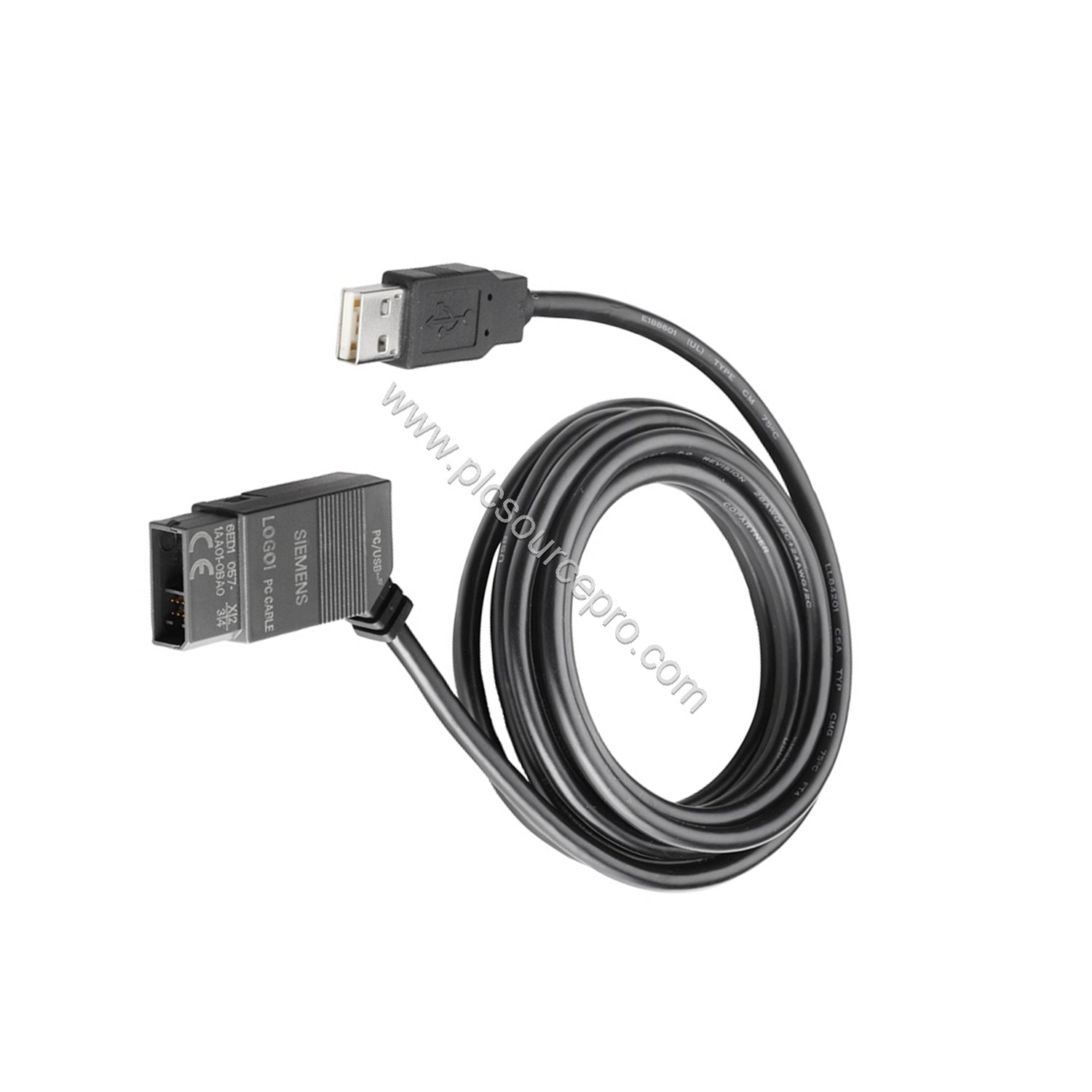

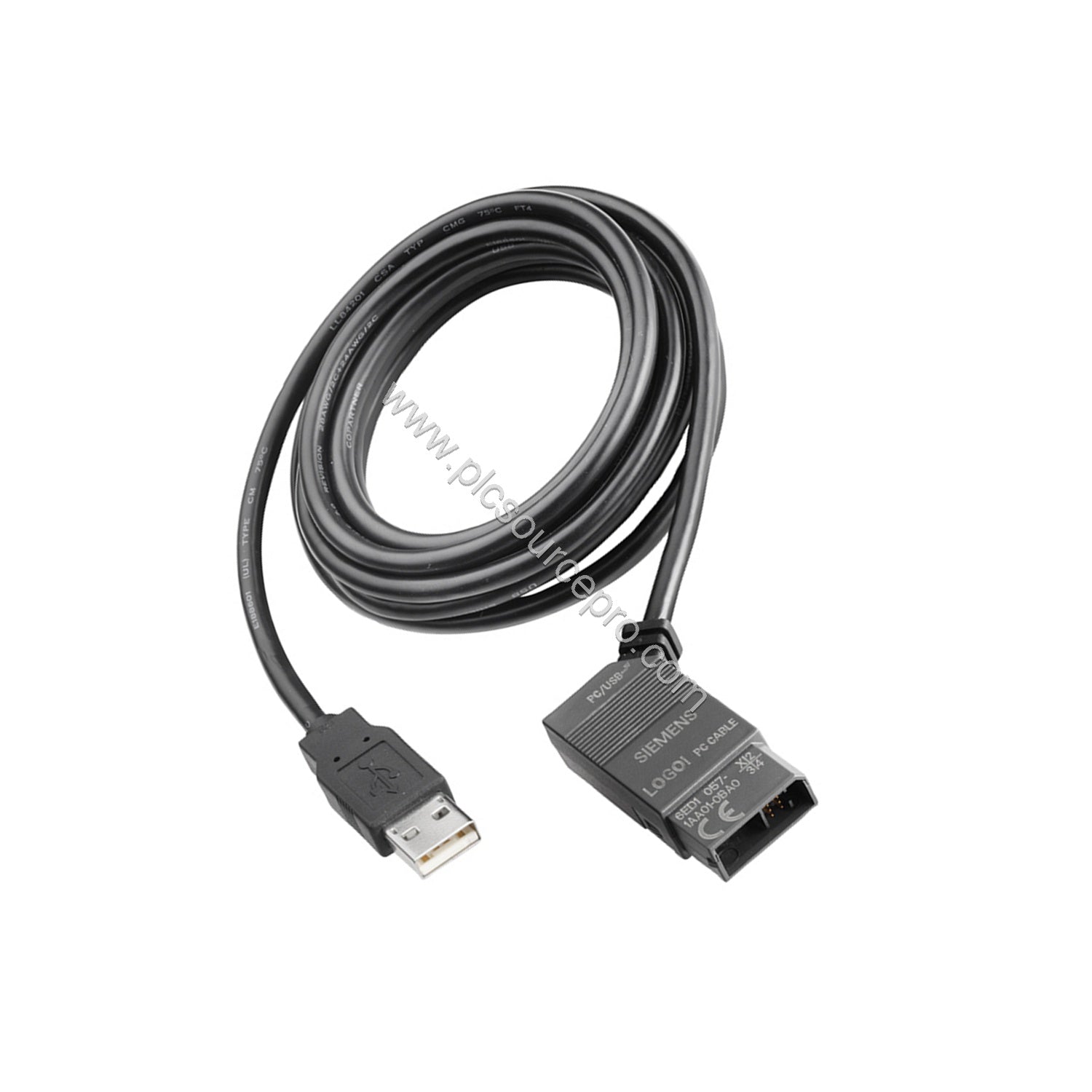

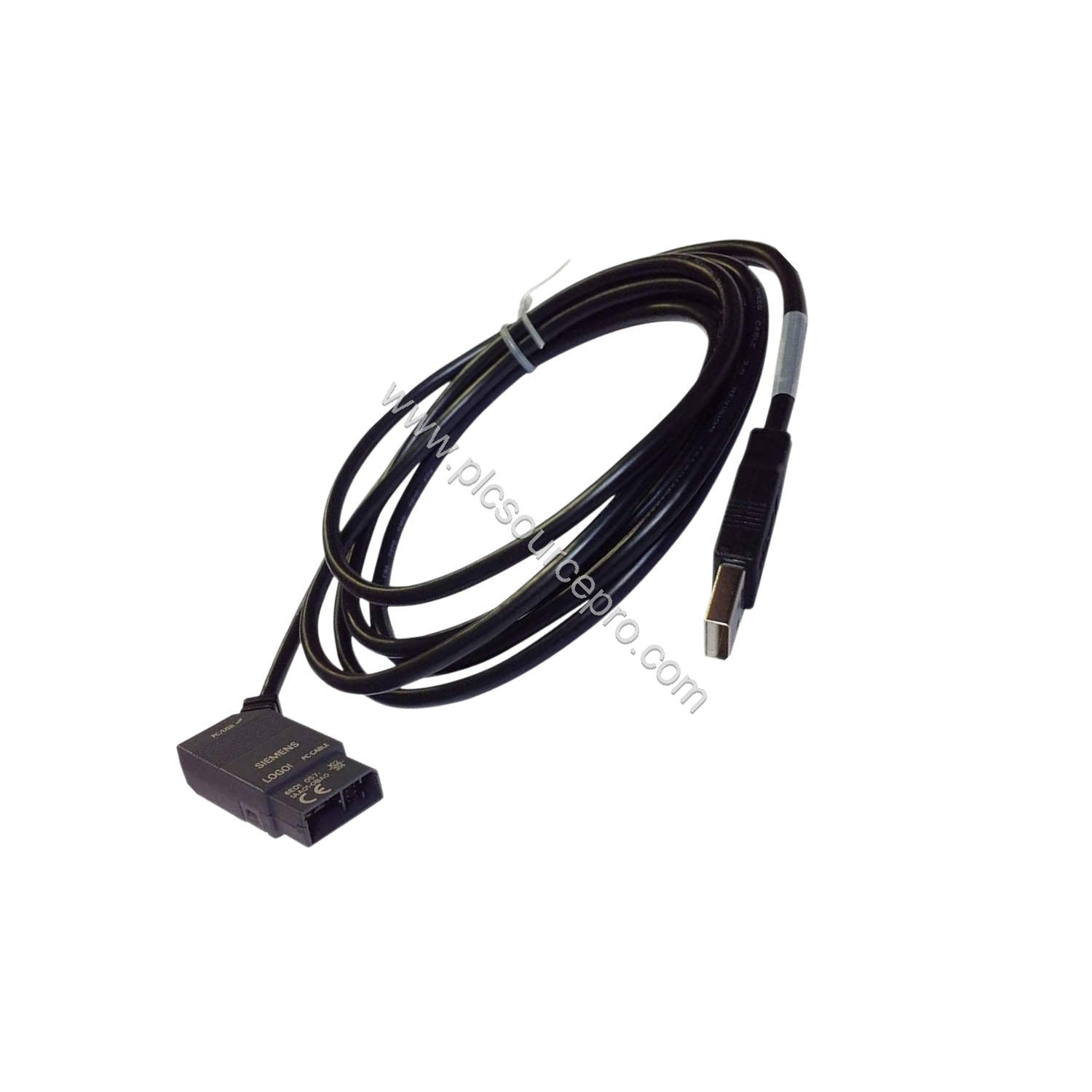

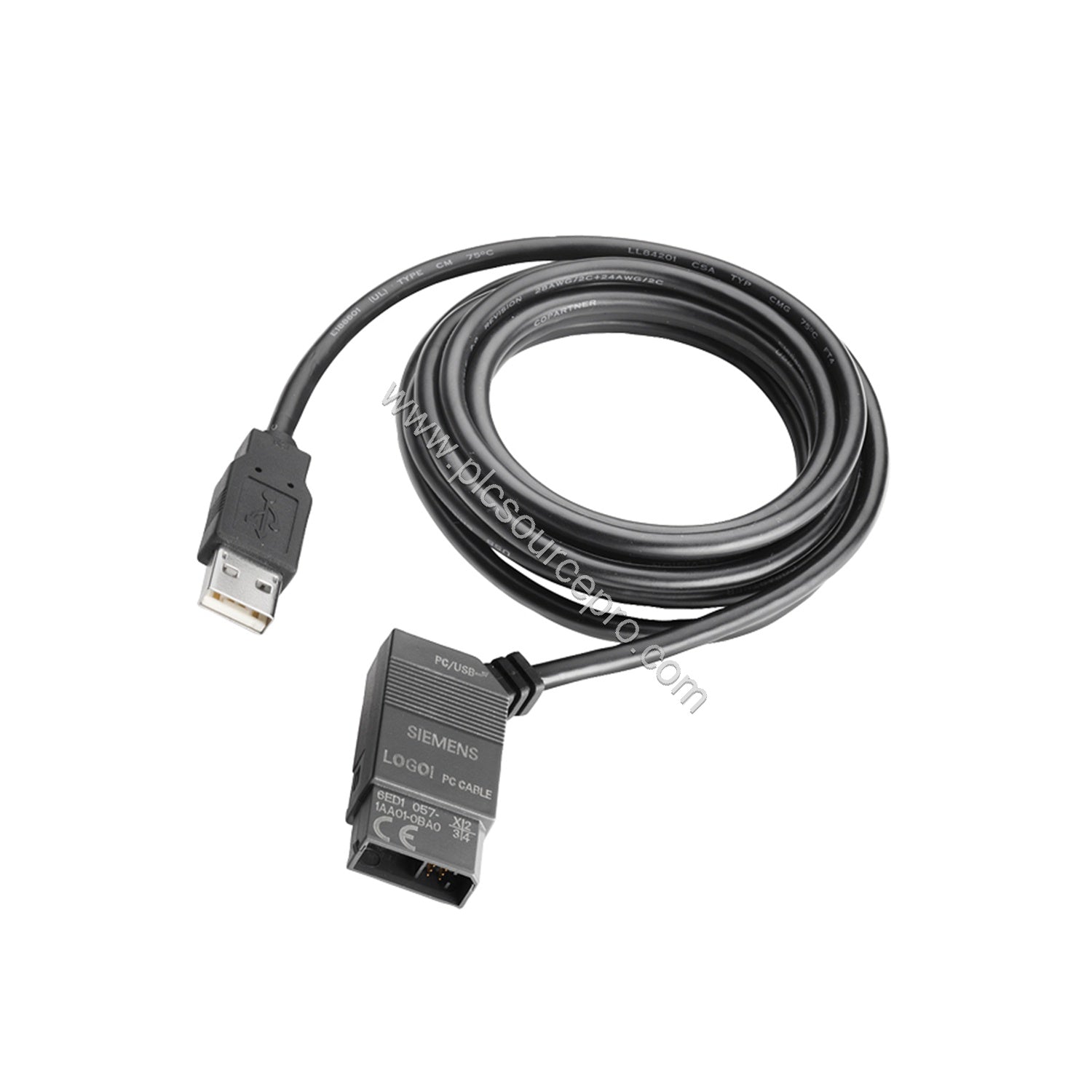

The Siemens 6ED1057-1AA00-0BA0 Industrial Automation Module is a dedicated programming cable designed for seamless communication between a PC and Siemens LOGO! logic modules. This DB9 RS232 cable enables efficient transfer of control programs, making it an essential accessory for system setup, maintenance, and upgrades. Part of the 6ED Series, this cable ensures reliable data transmission and straightforward operation.
Key Specifications
-
Manufacturer Part Number: 6ED1057-1AA00-0BA0
-
Brand: Siemens
-
Series: 6ED Series
-
For Use With: Logic Module (Siemens LOGO!)
-
Cable Length: 3 m
-
Connection: DB9 RS232
-
Accessory Type: Cable
-
UPC Code: 4025515050117
Industry Applications
The Siemens 6ED1057-1AA00-0BA0 is widely used in industrial automation settings where LOGO! controllers manage small-scale processes. Typical applications include conveyor control, lighting systems, pump stations, and building automation. Whether replacing an existing cable or upgrading to a dedicated programming interface, this cable ensures accurate program downloads and diagnostics without communication errors.
Setup Guide
Using the Siemens 6ED1057-1AA00-0BA0 is straightforward: connect the DB9 RS232 end to your PC (ensure the system has a native RS232 port or a reliable USB-to-RS232 adapter) and the other end to the LOGO! module. Use Siemens LOGO!Soft Comfort software to manage program uploads and downloads. No special drivers are required for the cable itself; the LOGO! software handles the communication protocol.
Selection Guide
Before purchasing the Siemens 6ED1057-1AA00-0BA0, verify your PC has an available DB9 RS232 port. If your computer lacks this port, consider a quality USB-to-RS232 adapter. The 3m cable length provides ample reach for typical workstation setups. For reliable sourcing, PLC Source PRO (accessible via ubest101.myshopify.com) offers authentic Siemens parts with verified stock.
Troubleshooting & Common Issues
If communication fails, first confirm the cable is firmly seated on both ends. Check that the LOGO! module is powered and in the correct mode for programming. If using a USB adapter, ensure it supports RS232 levels compatible with LOGO! modules. The Siemens 6ED1057-1AA00-0BA0 cable is designed for straightforward operation, and most issues stem from port configuration rather than cable defects.
