Product Introduction

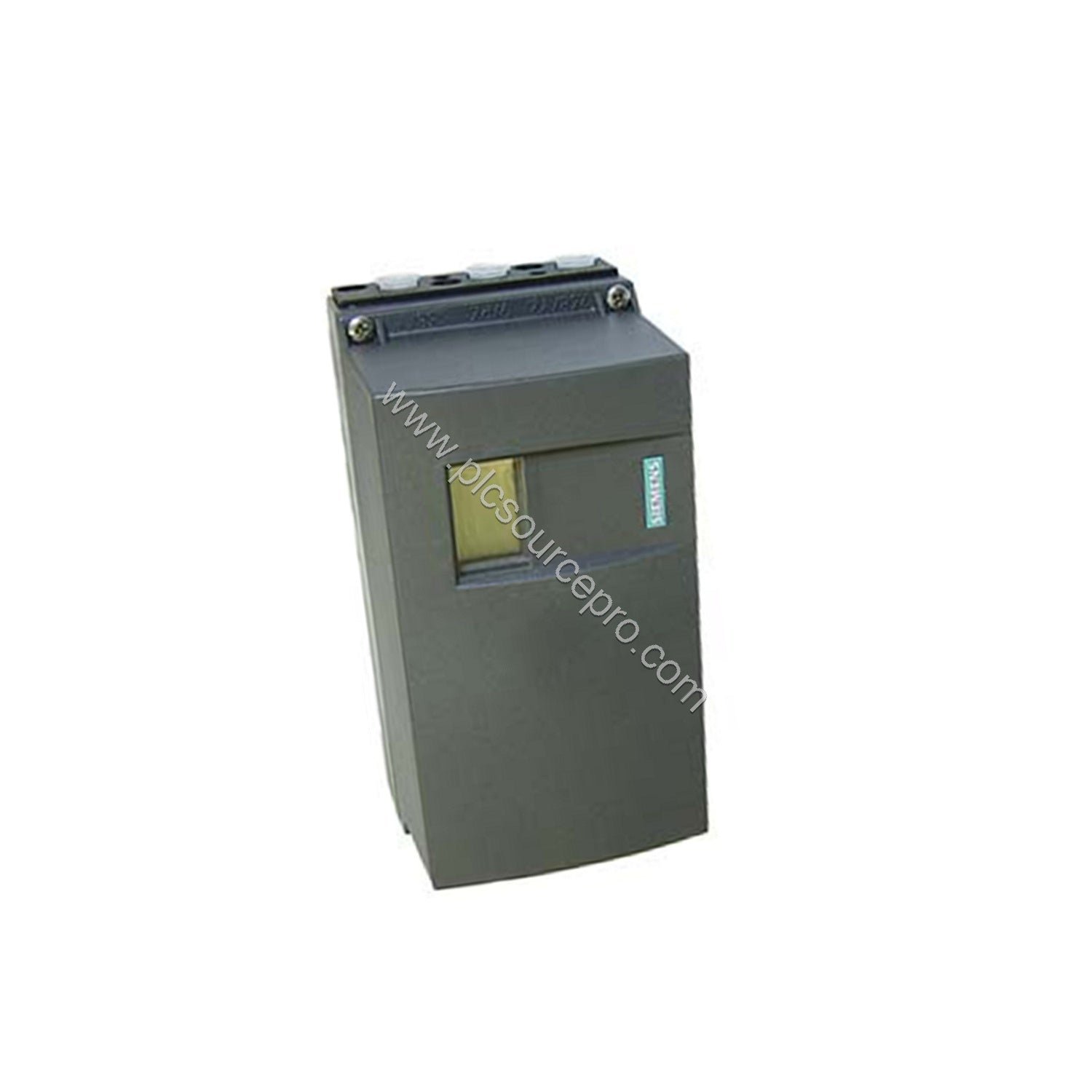

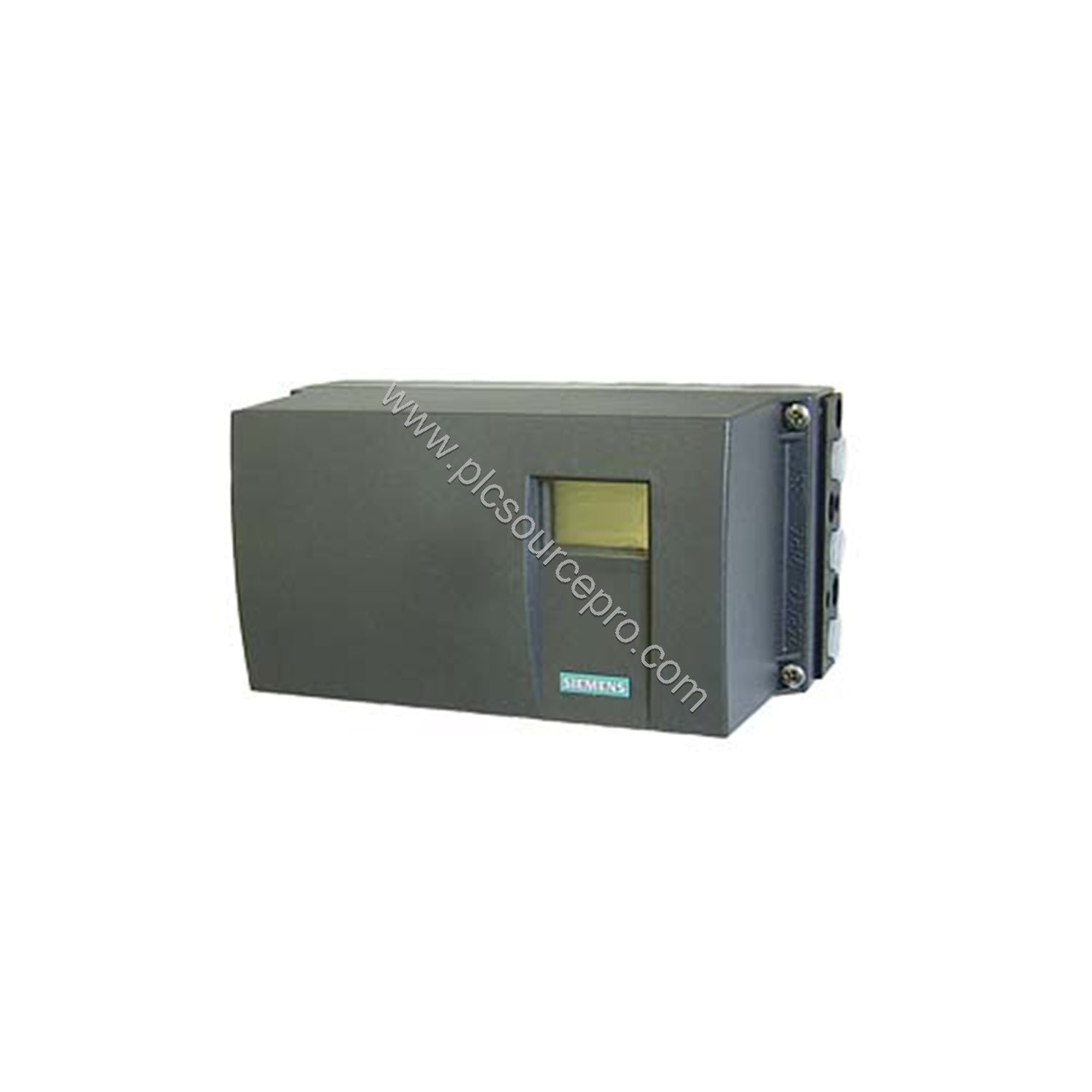

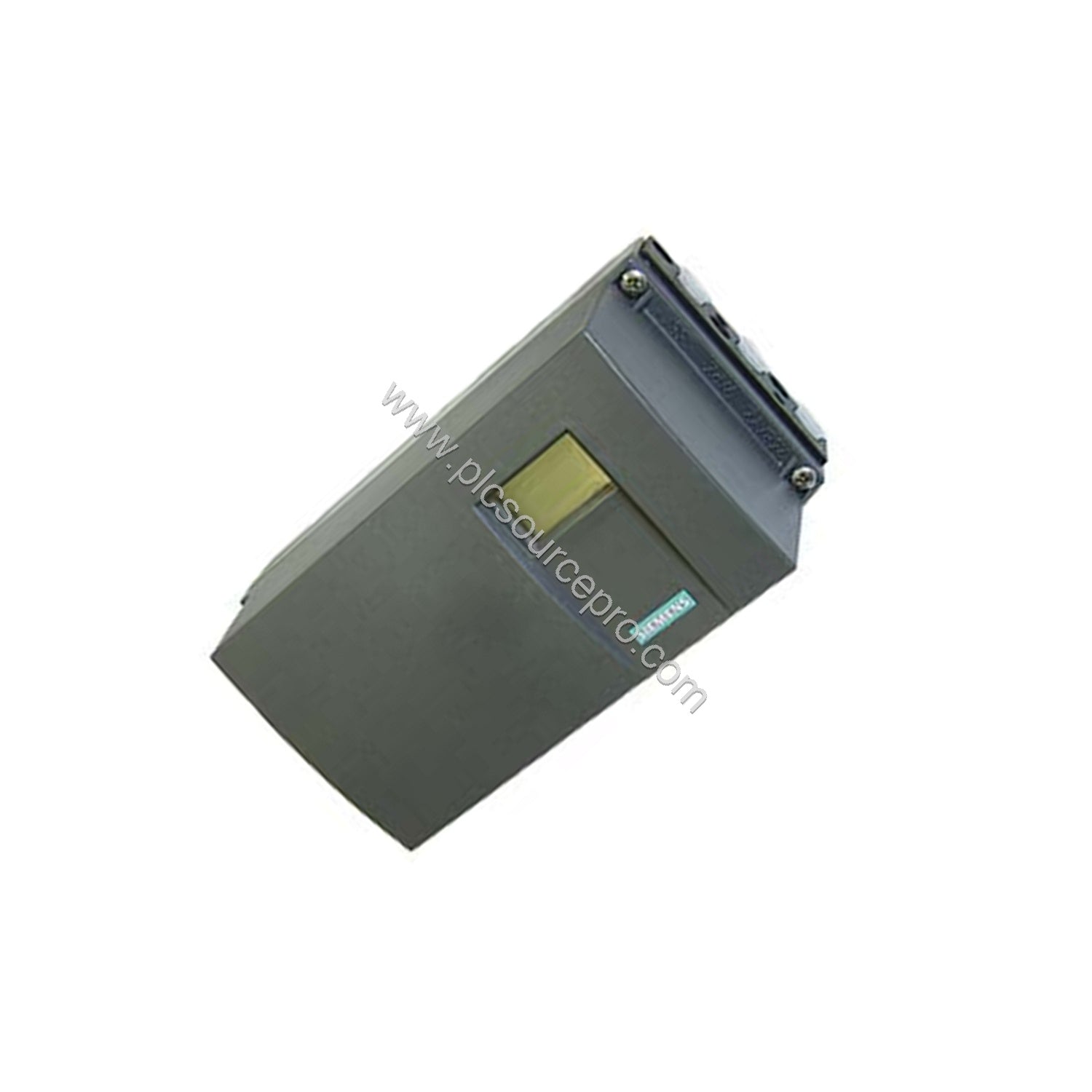

When valve position feedback drifts due to mechanical wear in traditional positioners, the Siemens 6DR5010-0NG00-0AA0 provides a reliable solution with its non-contacting (wear-free) position detection (NCS). This smart electropneumatic positioner from the SIPART PS2 series is designed for pneumatic linear and part-turn actuators, accepting a 4-20mA input signal. Built with a polycarbonate enclosure, it delivers robust performance in industrial environments without requiring explosion protection.
Technical Specifications Breakdown
The Siemens 6DR5010-0NG00-0AA0 includes the following key parameters:
| Parameter |
Value |
| Version |
2-wire (4-20 mA) Without HART |
| Actuator Type |
Single-acting |
| Enclosure Material |
Makrolon (polycarbonate) |
| Explosion Protection |
Without / nEx |
| Connection Thread (Electrical/Pneumatic) |
M20x1.5 / G 1/4 |
| Limit Monitor |
Without |
| Option Modules |
Without |
| Brief Instructions |
German/English/Chinese |
| Mounted Pressure Gauge Block |
Without |
| Packaging Dimensions (L x W x H) |
256 x 164 x 144 mm |
| Net Weight |
0.900 kg |
The non-contacting position detection eliminates wear points, ensuring long-term accuracy and reduced maintenance. The 4-20mA input allows direct integration with most PLC/DCS systems.
Industry Applications
The Siemens 6DR5010-0NG00-0AA0 is ideally suited for precise valve control in process industries. Typical use cases include:
- Chemical plants requiring reliable position feedback for control valves in non-hazardous areas.
- Pharmaceutical manufacturing where clean, wear-free operation minimizes contamination risk.
- Power generation facilities using pneumatic actuators for steam or water control loops.
In each scenario, the single-acting design with fail-safe depressurization enhances safety by moving the actuator to a predefined position on power loss.
Maintenance & Reliability
A key advantage of the Siemens 6DR5010-0NG00-0AA0 is its non-contacting position sensing, which eliminates common failure modes like potentiometer wear or linkage drift. The polycarbonate enclosure resists corrosion and impacts, reducing inspection intervals. For optimal reliability, verify that the pneumatic supply is clean and dry, and periodically check the M20x1.5/G¼ connections for tightness. The absence of limit monitors and option modules simplifies the design, lowering potential failure points.
Selection Guide & Purchasing Advice
Before purchasing the Siemens 6DR5010-0NG00-0AA0, confirm your system requirements:
- Actuator compatibility: This model is designed for single-acting actuators only.
- Input signal: Must be 4-20 mA without HART communication.
- Environmental rating: Suitable for non-explosive atmospheres.
- Accessories: Consider adding a pressure gauge block or booster if needed (not included).
For genuine Siemens spares and fast shipping, source from a trusted partner like ubest101. Our inventory is verified, and we offer competitive pricing on industrial automation parts including PLC, DCS, and positioners.
