Product Introduction

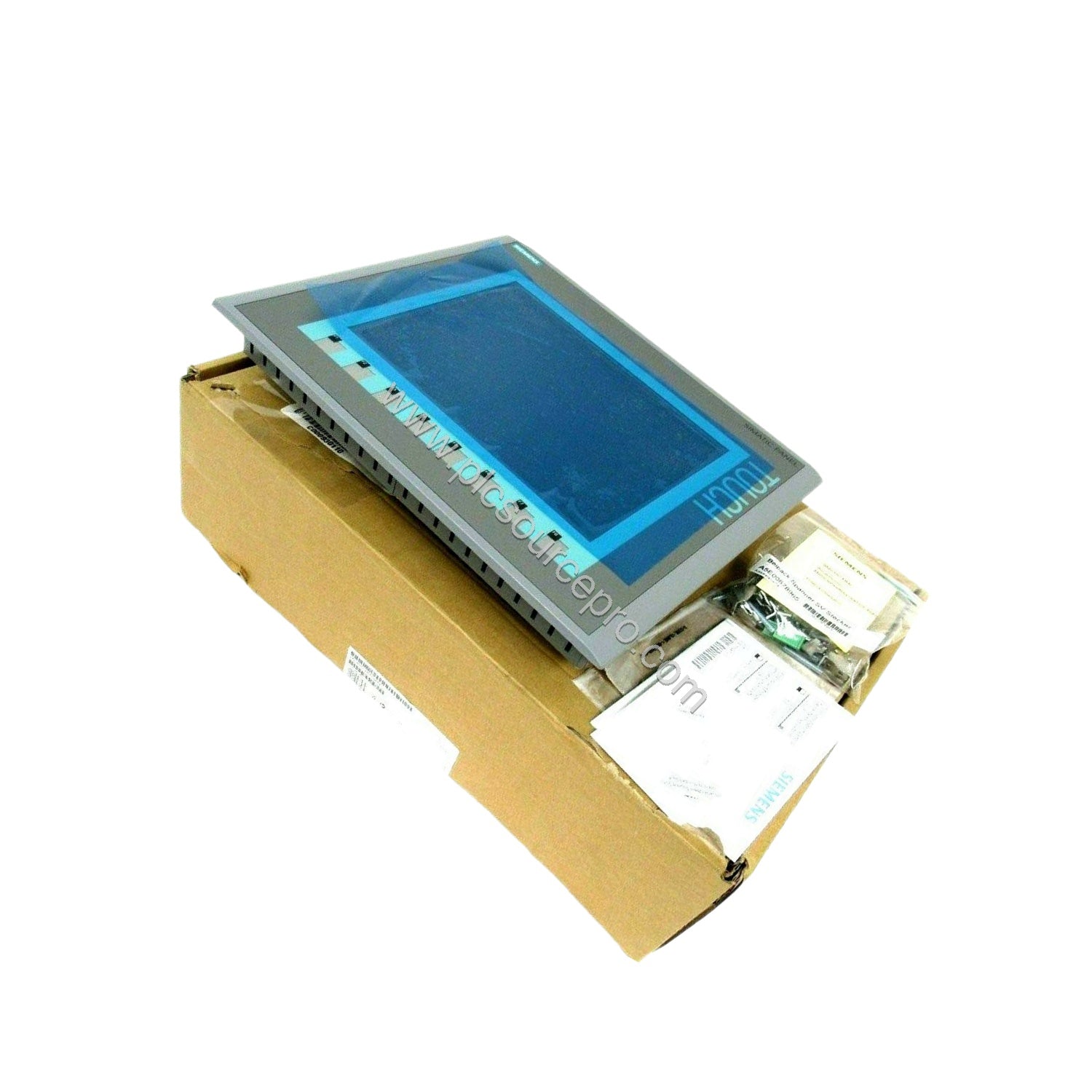

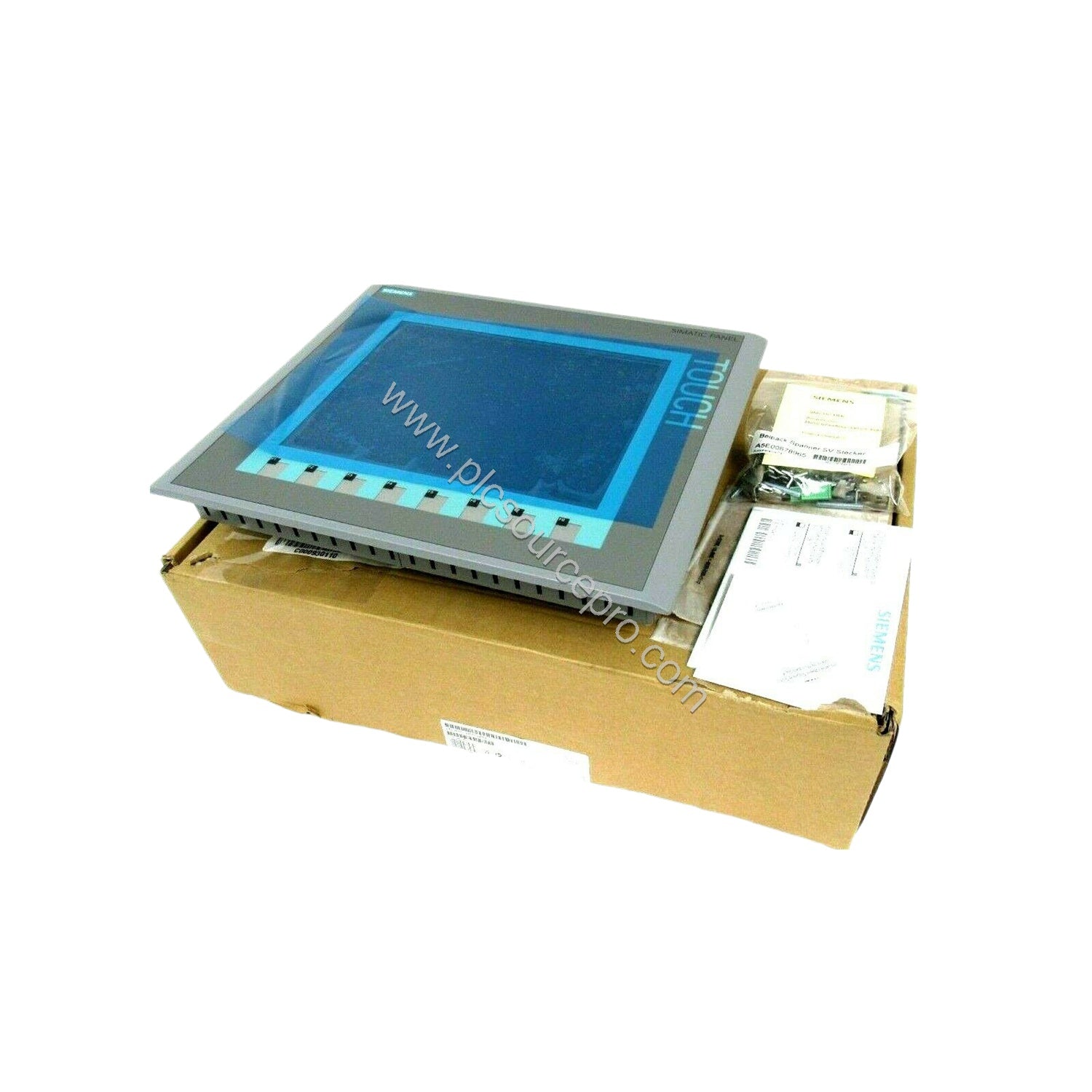

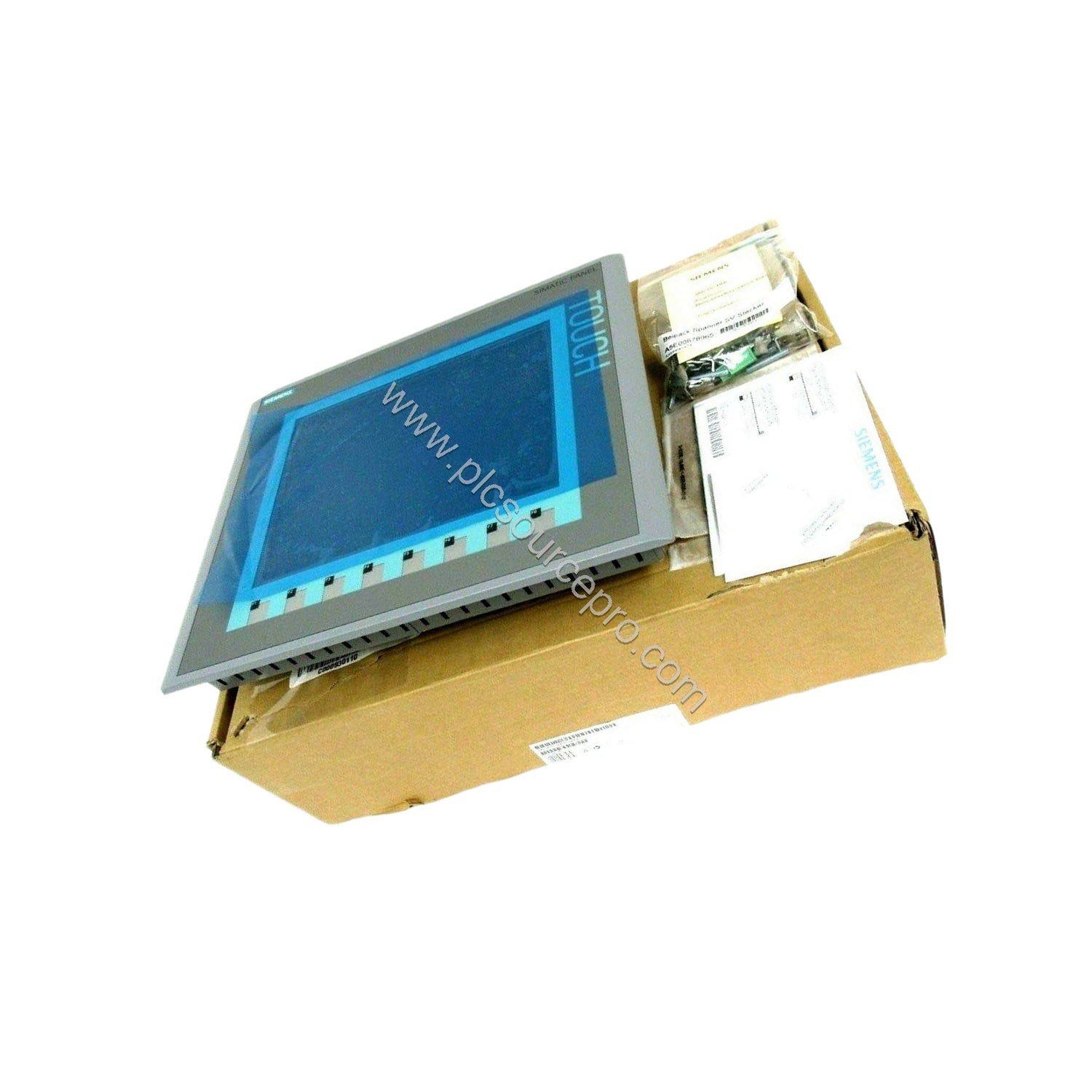

With an MTBF of 50000 hours at 25°C, the Siemens 6AV6647-0AF11-3AX0 delivers exceptional reliability for demanding industrial environments. This SIMATIC HMI KTP1000 Basic Color PN is a key-touch operated basic panel featuring a 10.4-inch TFT display with 256 colors and 640x480 pixel resolution. Its PROFINET interface enables seamless integration into modern automation networks, making the Siemens 6AV6647-0AF11-3AX0 a cost-effective choice for reducing total cost of ownership through extended service life and minimized downtime.
Technical Specifications Breakdown
Below are critical specifications of the Siemens 6AV6647-0AF11-3AX0 that contribute to its long-term value:
-
Display: TFT, 10.4 in diagonal (211.2 mm x 158.4 mm), 256 colors
-
Resolution: 640 x 480 pixels
-
Rated Voltage (DC): 24 V (range 19.2 V to 28.8 V)
-
Current Consumption: 0.6 A (rated)
-
Active Power Input: 15 W typical
-
Processor: RISC 32-bit
-
User Data Memory: 2 Mbyte Flash/RAM
-
MTBF: 50000 h (at 25°C)
-
Weight: 3.049 kg
These specifications ensure reliable operation in control and monitoring applications, directly supporting the ROI angle by reducing energy consumption and maintenance needs.
Industry Applications
The Siemens 6AV6647-0AF11-3AX0 excels in machine control, process monitoring, and data visualization tasks. For example:
-
Manufacturing Lines: Provides intuitive operator interface for assembly machines, reducing training time and errors.
-
Packaging Systems: Handles high-speed data updates with its 32-bit RISC processor and PROFINET connectivity.
-
Building Automation: Operates reliably in ambient temperatures from 0°C to 50°C and storage from -20°C to 60°C, ensuring consistent performance.
Maintenance & Reliability
Designed for low-maintenance operation, the Siemens 6AV6647-0AF11-3AX0 features a robust IP65 front panel (IP20 rear) offering dust and water jet protection. With an MTBF of 50000 hours, the need for frequent replacements is eliminated, directly reducing lifecycle costs. The unit supports ambient humidity up to 90% and meets multiple certifications including CE, cULus, and marine approvals, confirming its durability in harsh industrial conditions.
Compatibility & Integration
The Siemens 6AV6647-0AF11-3AX0 is equipped with a PROFINET interface supporting IO controller, RT, and IRT. It communicates via TCP/IP, DHCP, SNMP, DCP, LLDP, and web services. Integration with controllers such as S7-1200, S7-1500, S7-300/400, and even Allen Bradley (EtherNet/IP) or Modicon (Modbus TCP/IP) is straightforward. The HMI can be configured with WinCC Basic (TIA Portal) or STEP 7 Basic V10.5, providing flexibility for existing system upgrades.
Selection Guide & Purchasing Advice
Before purchasing the Siemens 6AV6647-0AF11-3AX0, confirm your system voltage (24 V DC) and display requirements (10.4-inch TFT). Ensure the enclosure supports IP65 front panel mounting. For a reliable supply of genuine Siemens automation parts, trusted suppliers like ubest101 maintain stock and provide fast shipping. Verify that your software version (WinCC flexible 2008 SP2 or later) supports this model to ensure a seamless integration.
