Product Overview

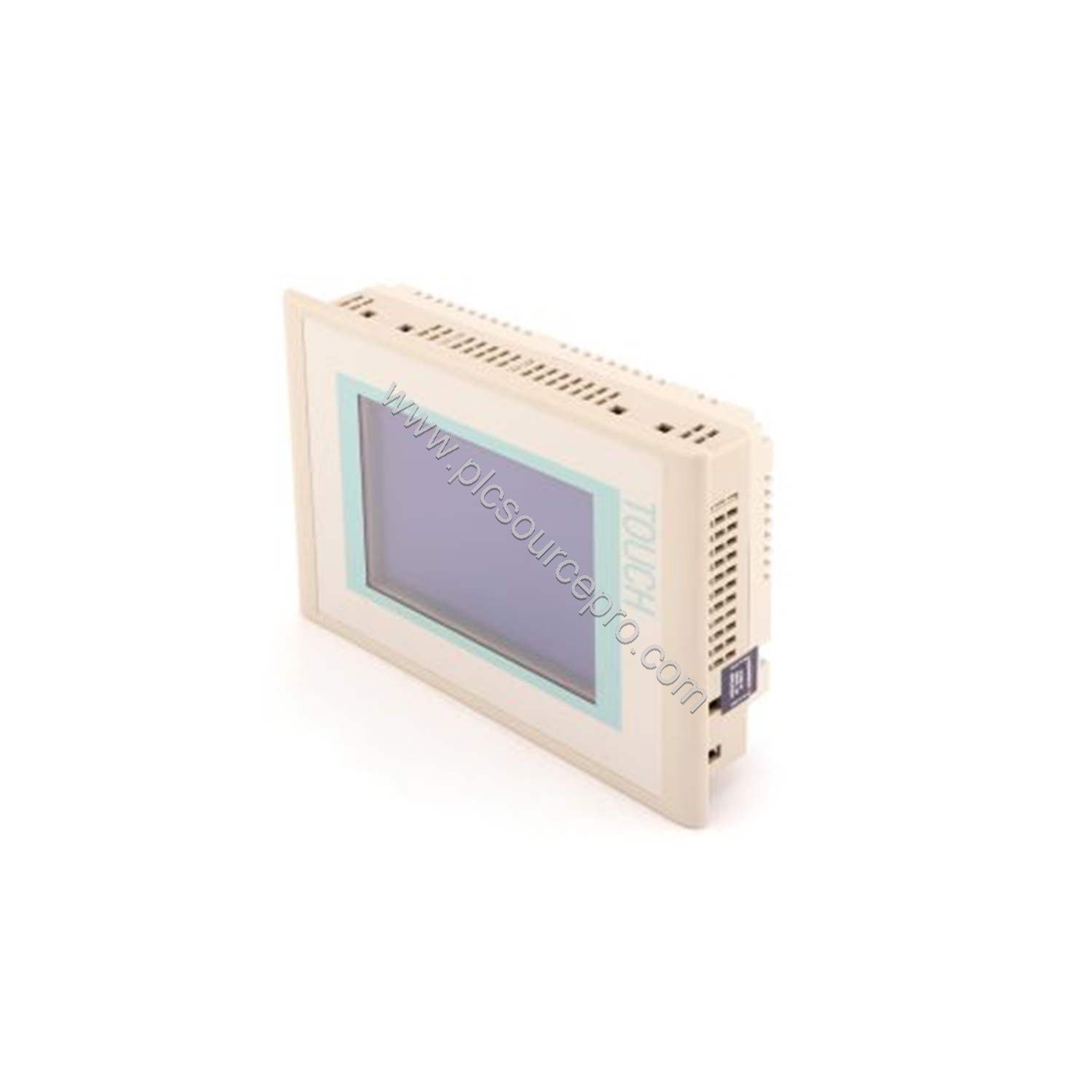

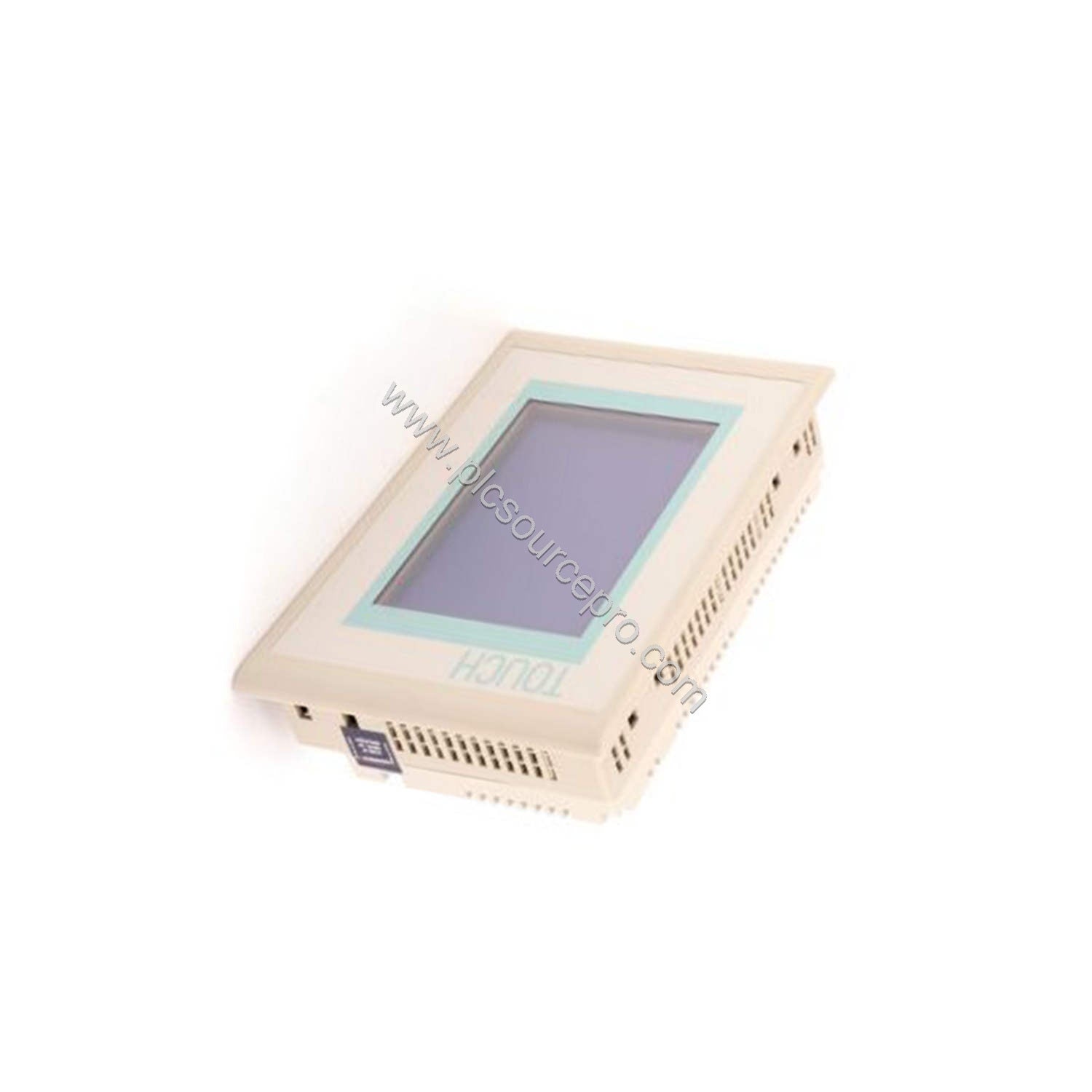

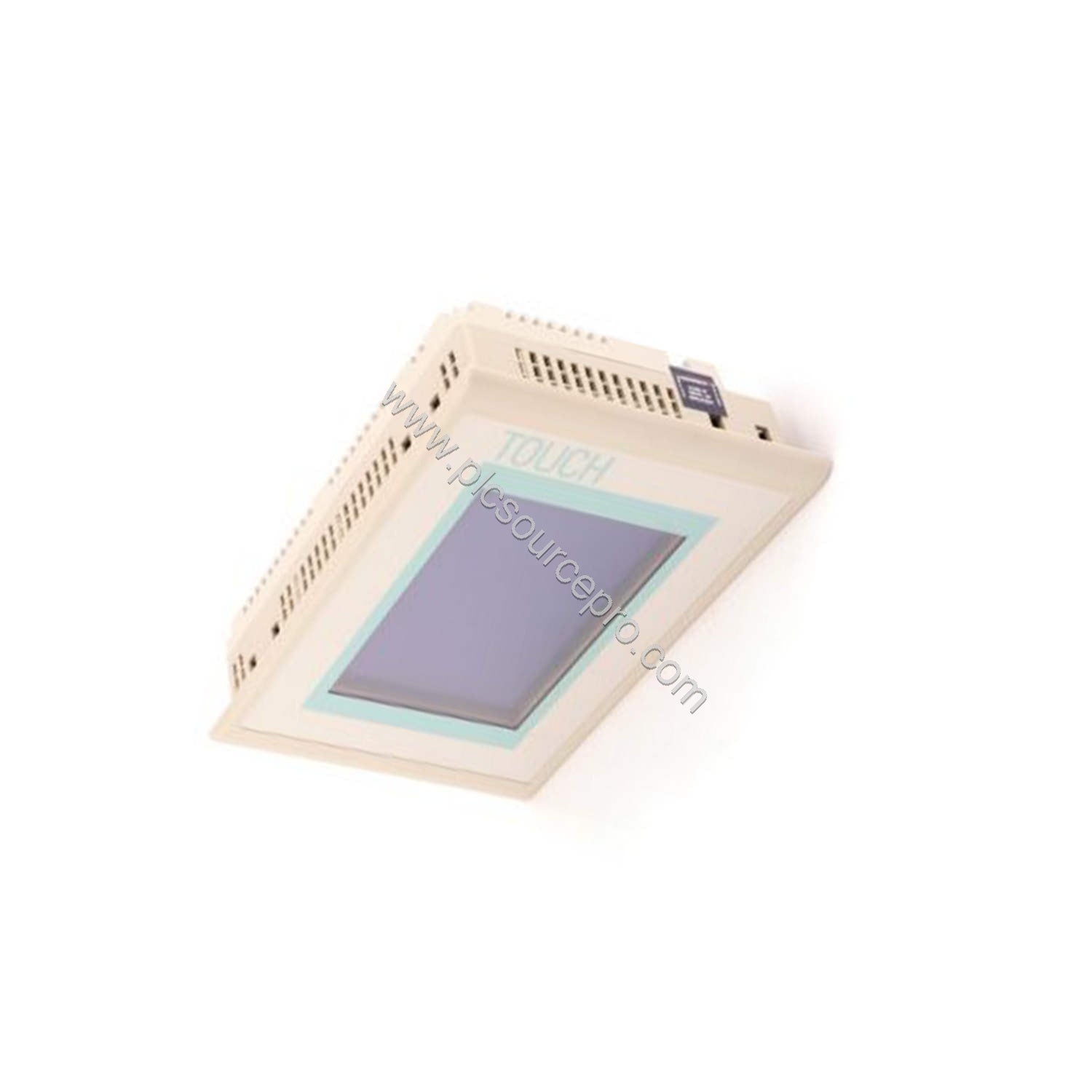

When legacy operator panels no longer meet modern connectivity demands, the Siemens 6AV6642-0BA01-1AX1 provides a robust upgrade path. This SIMATIC TP 177B 6" PN/DP touchscreen HMI combines a 5.7-inch STN color display (320x240 pixels, 256 colors) with versatile communication options. Designed for industrial environments, it operates on 24 VDC and supports PROFINET IO, PROFIBUS, MPI, and Ethernet. Part of the Siemens SIMATIC family, the 6AV6642-0BA01-1AX1 replaces older text-based panels by delivering an intuitive graphical interface with a resistive touchscreen. At PLC Source PRO, we recommend this module for modernizing control rooms and production lines.
Technical Specifications
Below are key parameters of the Siemens 6AV6642-0BA01-1AX1 derived from official documentation:
-
Display: 5.7" STN color, 320×240 pixels, backlight MTBF 50,000 hours at 25°C.
-
Processor: ARM 200 MHz, Flash/RAM memory with 2,048 kbyte user data storage.
-
Interfaces: 1x RS485, 1x RS422, 1x Ethernet (RJ45, up to 12 Mbit/s), 1x USB (up to 1 GB), optional RS232.
-
Protocols: PROFINET IO, PROFIBUS, MP, TCP/IP, Sm@rtServer, EtherNet/IP, MODBUS.
-
Certifications: CE, UL, cULus, ATEX Zone 2/22, FM Class I Div. 2, marine approvals (GL, ABS, BV, DNV, LRS).
-
Power: 24 VDC, 0.24 A rated current, inrush I²t 0.5 A²·s.
-
Environmental: Operating 0…50°C, storage -20…60°C, IP65 front, IP20 rear.
These specs ensure the 6AV6642-0BA01-1AX1 delivers reliable HMI performance in demanding conditions.
Industry Applications
The Siemens 6AV6642-0BA01-1AX1 excels in upgrading older control systems. Typical use cases include:
-
Discrete Manufacturing: Replace legacy text panels on packaging machines with a 6-inch color touchscreen for faster diagnostics and recipe changes.
-
Process Control: In chemical plants requiring ATEX Zone 2 compliance, this HMI provides safe operator access with PROFINET integration to Siemens S7-300/400 PLCs.
-
Marine & Offshore: With GL, ABS, BV, DNV, and LRS approvals, the module is ideal for ship bridge systems or offshore platform monitoring.
Compatible Systems & Integration
The 6AV6642-0BA01-1AX1 supports multiple controller connections via its built-in interfaces. It communicates with Siemens S7-200/300/400/1200, S5 (PROFIBUS DP), Allen-Bradley (DF1/DF485), Mitsubishi (FX), Modicon (Modbus), and OMRON. The panel also integrates with non-Siemens drivers. Configuration is done using WinCC flexible (Compact/Standard/Advanced) or WinCC Comfort/Advanced/Professional under TIA Portal. For legacy systems, this HMI allows a gradual migration without replacing existing PLCs.
Selection Guide & Buying Advice
Before purchasing the Siemens 6AV6642-0BA01-1AX1, verify your application voltage (24 VDC) and required communication ports. The module supports MMC/SD cards up to 128 MB/512 MB for recipe storage and transfer. At PLC Source PRO (visit ubest101), we stock this HMI as a direct replacement for older TP 177B units. Ensure your software version supports the E-status 016 requirement for card slot functionality. Contact our team if you need assistance with migration planning.
