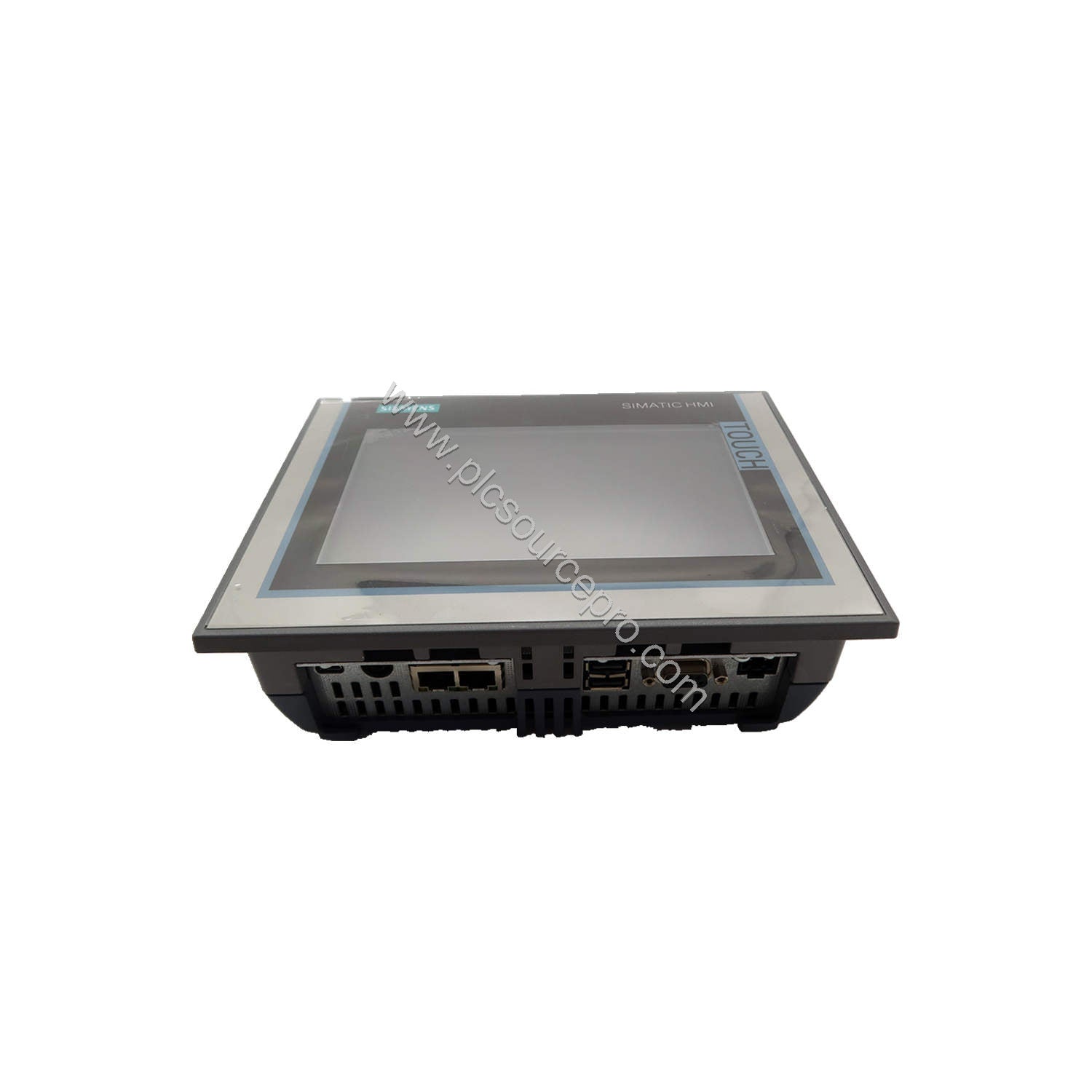

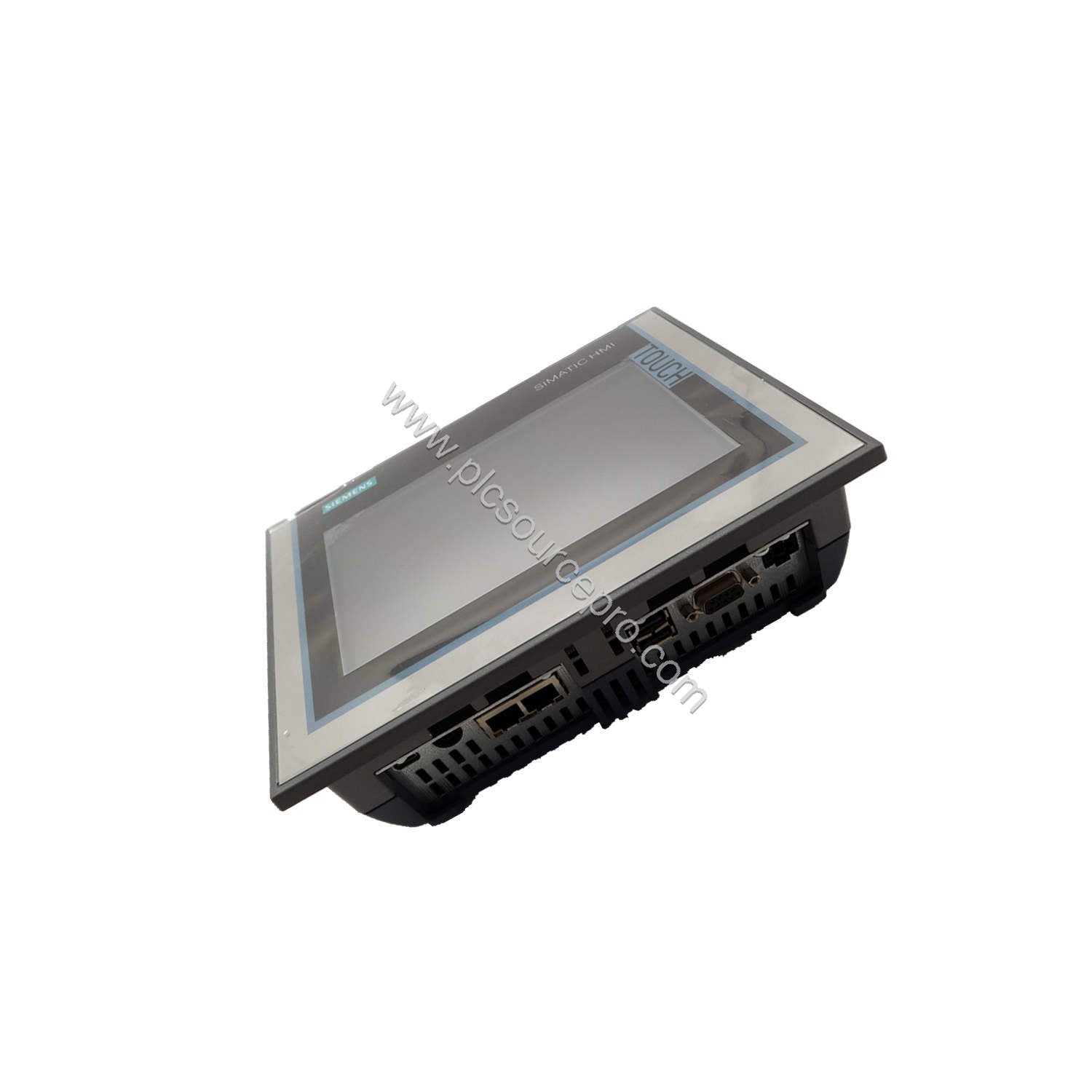

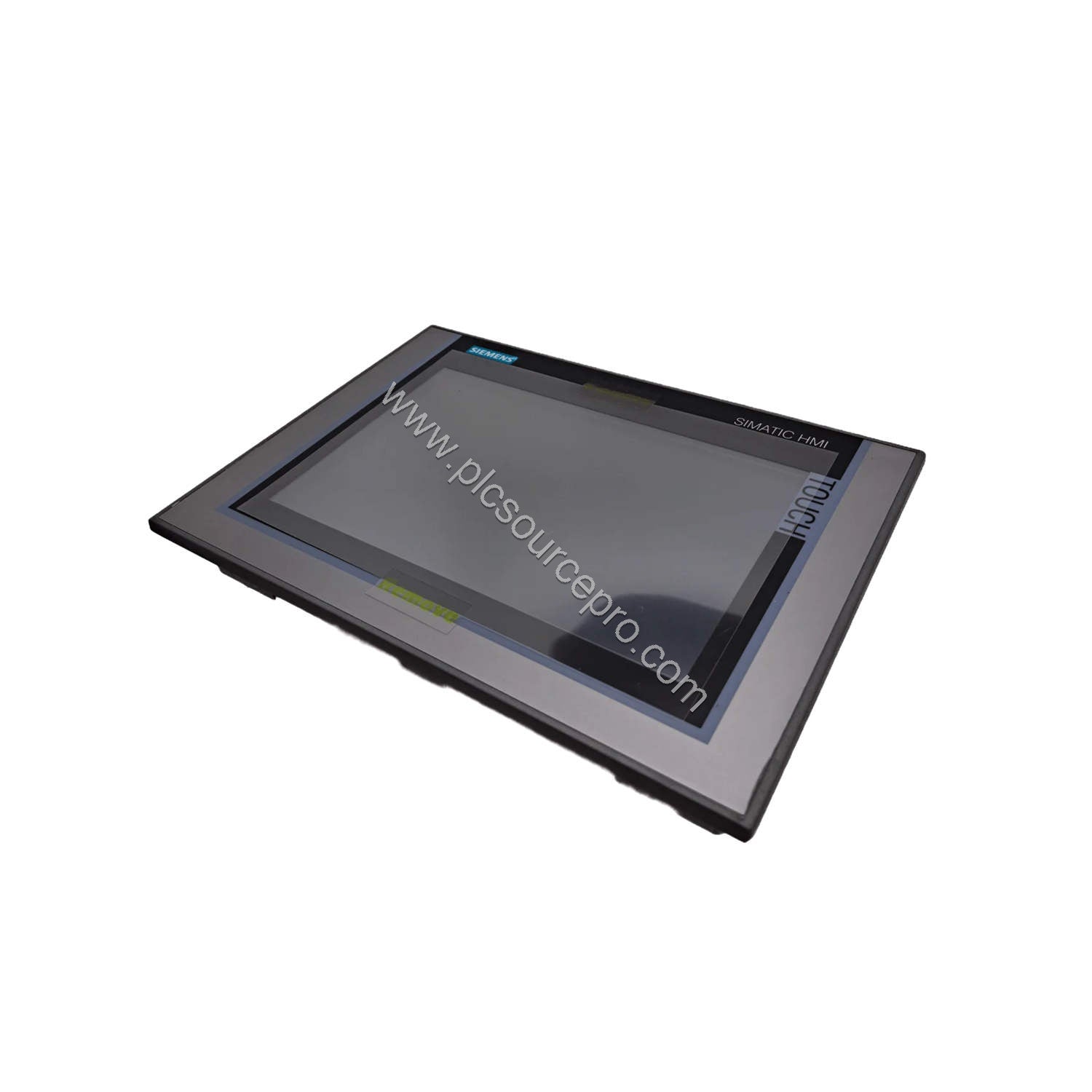

Product Overview: The Siemens 6AV2124-1GC01-0AX0
When your industrial environment demands reliable operator control with high visual clarity, the Siemens 6AV2124-1GC01-0AX0 delivers. Part of the SIMATIC HMI KP700 Comfort series, this panel combines key operation with a 7-inch widescreen TFT display offering 16 million colors. Its robust design includes a PROFINET interface, MPI/PROFIBUS DP interface, and 12 MB configuration memory, running Windows CE 6.0. Configurable from WinCC Comfort V11 onward, this HMI is built for long-term performance in demanding applications.
Technical Specifications: Siemens 6AV2124-1GC01-0AX0 Key Parameters
-
Display: 7" widescreen TFT, 800x480 pixels
-
Colors: 16,777,216
-
Backlight MTBF: 80,000 hours at 25°C (dimmable 0-100%)
-
Function Keys: 24 with LEDs
-
Supply Voltage: 24 V DC (19.2-28.8 V range)
-
Power Consumption: 12 W typ.
-
Processor: X86
-
User Memory: 12 Mbyte
-
Interfaces: 1 Industrial Ethernet (2-port switch), 1 RS485/422, 2 USB 2.0, 2 SD card slots
-
Protocols: PROFINET, PROFIBUS, EtherNet/IP, MPI, MODBUS, OPC UA
-
Protection: IP65 front, IP20 rear; ATEX Zone 2/22, cULus Class I Div 2
-
Weight: 2.2 kg (without packaging), 2.8 kg (with packaging)
Real-World Applications: Where the Siemens 6AV2124-1GC01-0AX0 Excels
This panel is ideal for machine builder applications requiring tactile feedback through physical keys. In packaging lines, the Siemens 6AV2124-1GC01-0AX0 provides direct access to start/stop and parameter adjustments via dedicated function keys. In process industries, its robust IP65 front and ATEX approvals make it suitable for Zone 2/22 environments. The wide connectivity allows seamless integration with Siemens S7-1200/1500/300/400 controllers as well as Allen‑Bradley and Mitsubishi systems. The long backlight life reduces replacement frequency, lowering total cost of ownership.
Compatibility & Integration: Siemens 6AV2124-1GC01-0AX0 Connectivity
The Siemens 6AV2124-1GC01-0AX0 supports multiple industrial protocols out of the box. With built-in PROFINET and MPI/PROFIBUS DP, it communicates directly with Siemens SIMATIC controllers. EtherNet/IP capability enables integration with Allen‑Bradley PLCs, while MODBUS TCP/IP and OPC UA Client/Server ensure openness to third-party systems. The two USB ports and SD card slots facilitate easy recipe transfer and data logging. For legacy support, it includes RS485/422 interfaces. This flexibility makes the KP700 Comfort panel a future-proof investment.
Selection Guide: Buying the Siemens 6AV2124-1GC01-0AX0
Before ordering the Siemens 6AV2124-1GC01-0AX0, verify your power supply provides 24 V DC (19.2-28.8 V). Ensure your WinCC Comfort version is V11 or higher for configuration. Optional accessories include SIMATIC HMI SD memory cards (up to 2 GB) and USB memory sticks. For reliable sourcing and competitive pricing, choose PLC Source PRO—your trusted partner for industrial automation spares. We stock genuine Siemens parts with fast shipping. Need help selecting? Contact our team at ubest101 for expert advice.
