Product Overview

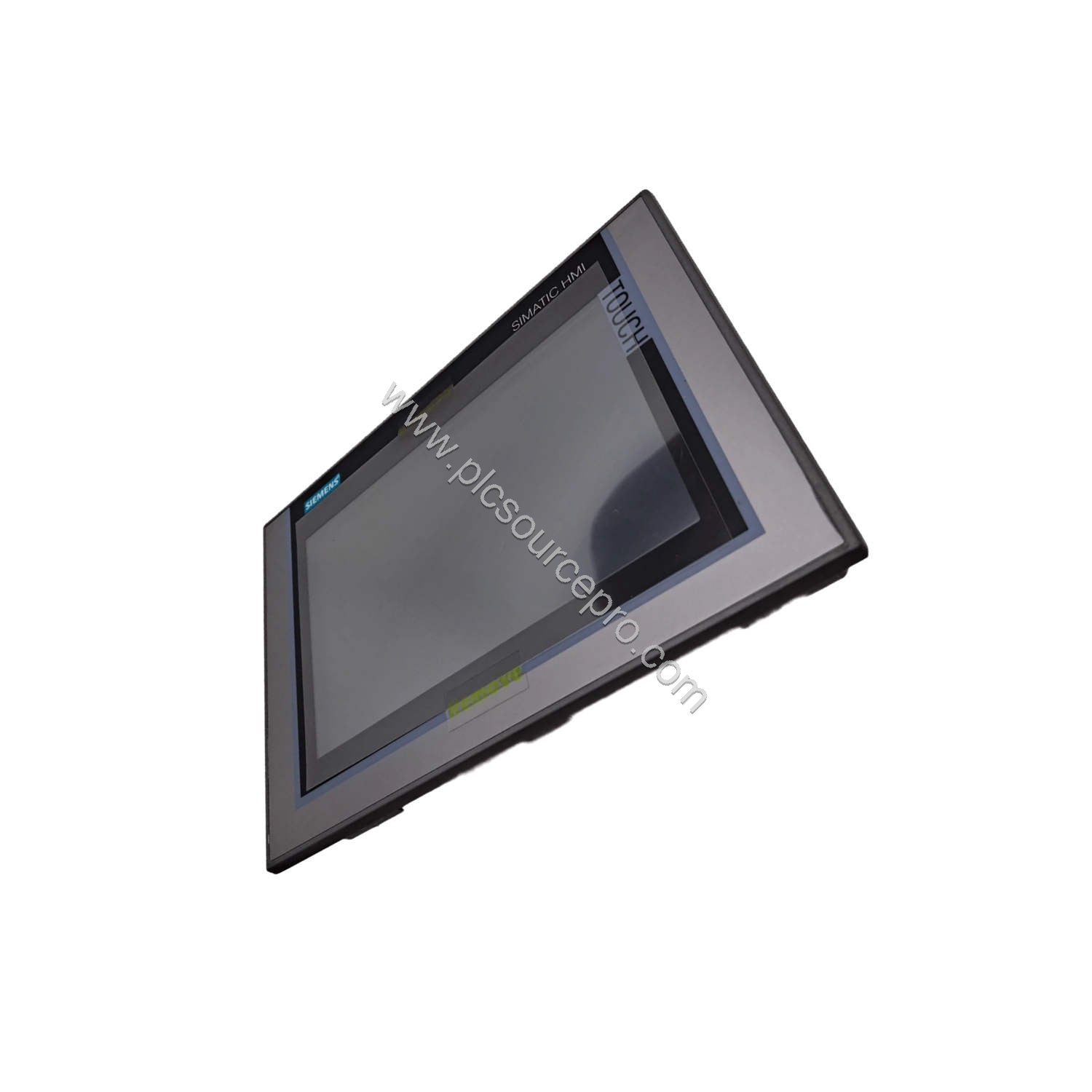

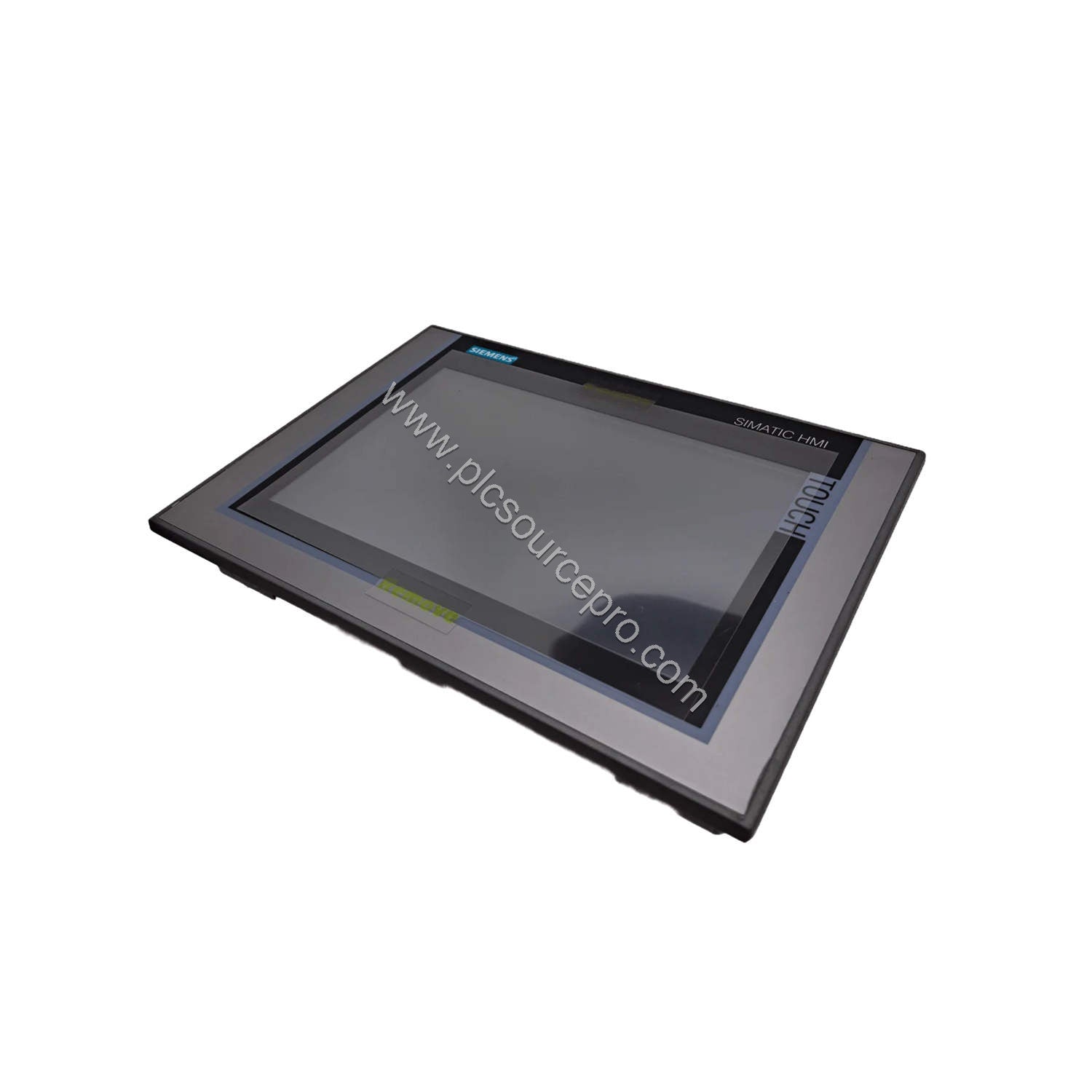

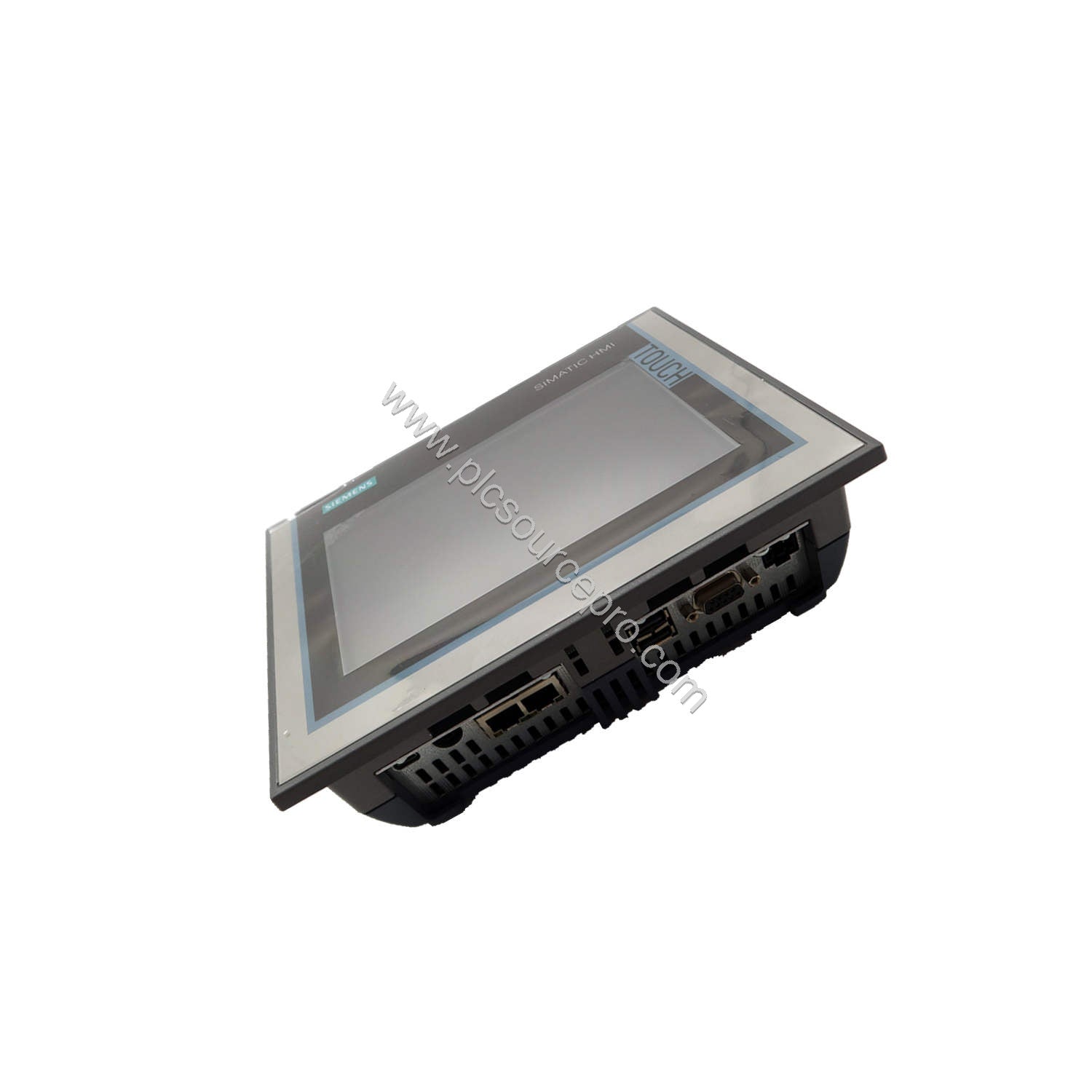

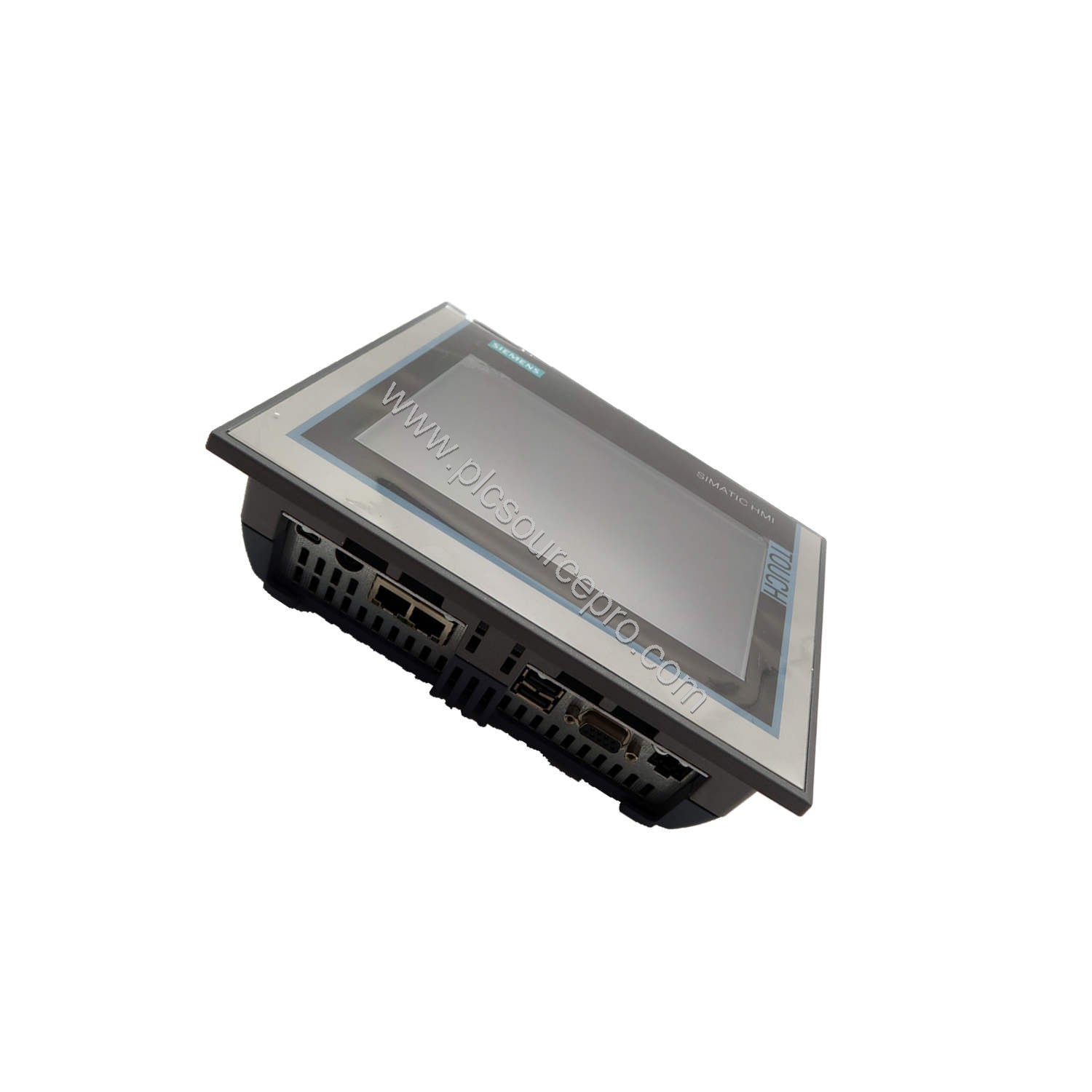

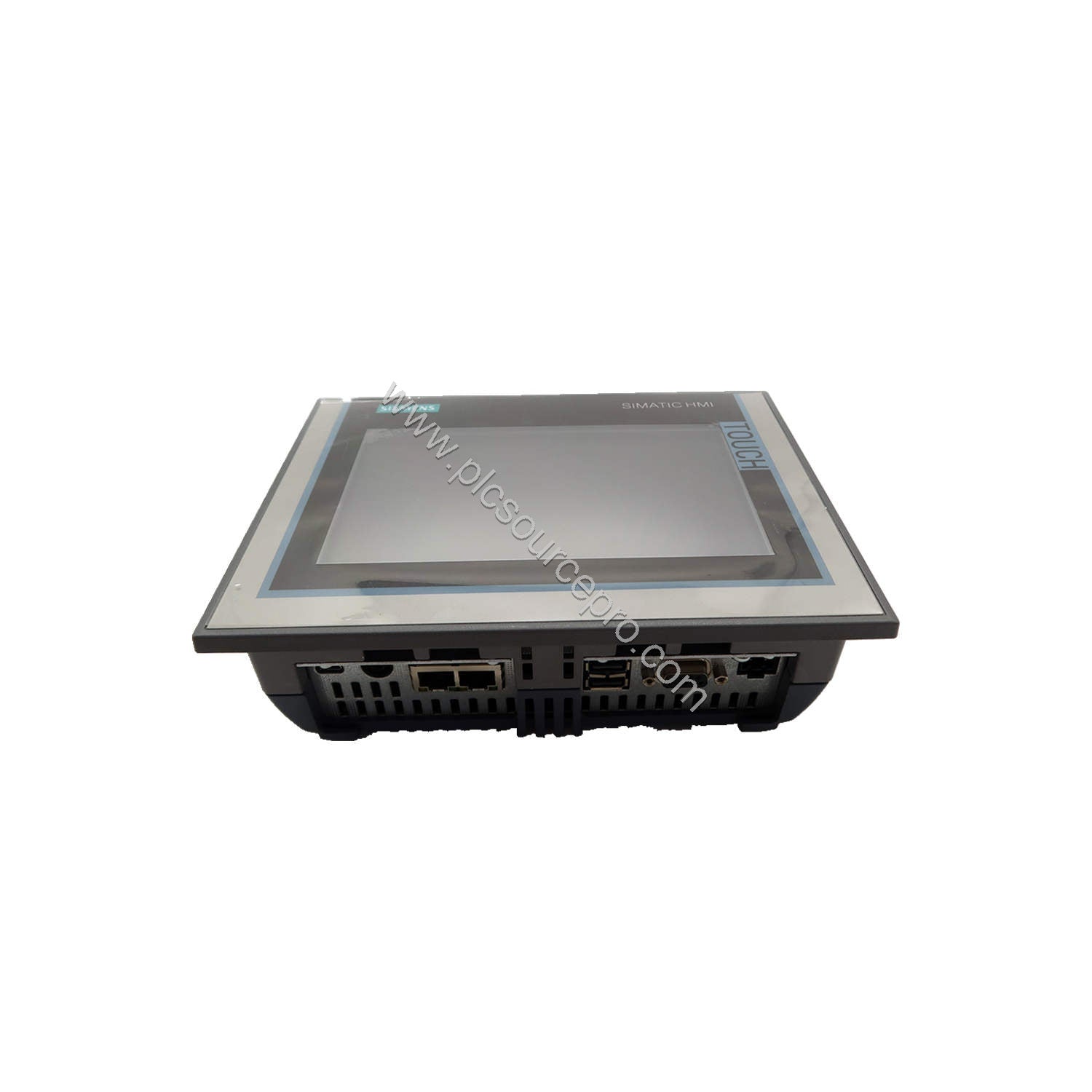

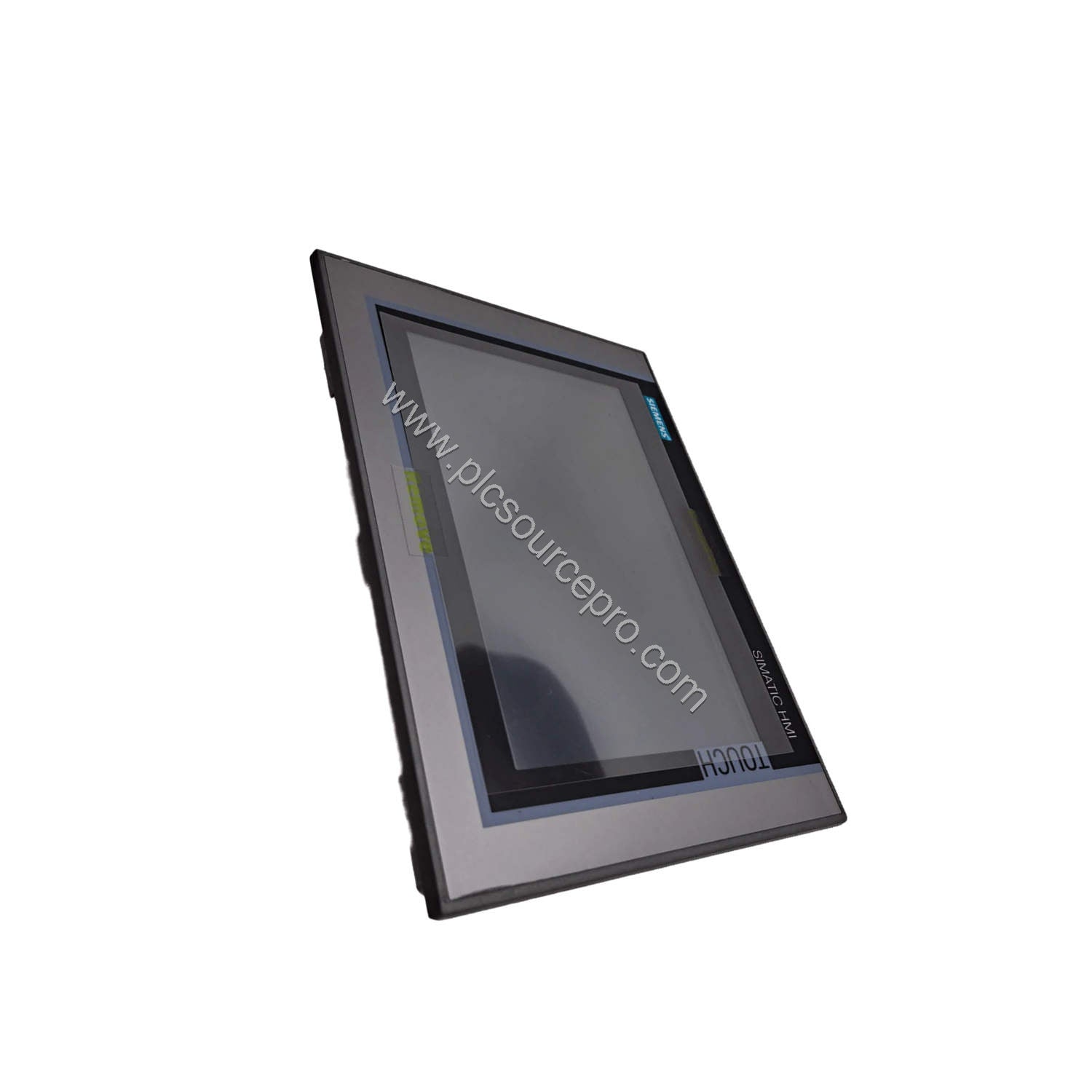

When upgrading older HMI panels, the Siemens 6AV2124-0QC02-0AX1 provides a modern replacement with enhanced display clarity and touch interaction. This SIMATIC TP1500 Comfort panel combines a 15.4-inch TFT display with 16 million colors and a resolution of 1280 x 800 pixels, ensuring sharp, vibrant visuals for complex industrial interfaces. It features an onscreen alphanumeric keyboard and zero physical function keys, streamlining data entry in demanding environments.
Technical Specifications
Below are the key specifications for the Siemens 6AV2124-0QC02-0AX1 as derived from the product database:
| Parameter |
Value |
| Screen Size |
15.4" |
| Display Type |
TFT, 16M Colors |
| Resolution |
1280 x 800 px |
| Rated Voltage Supply |
24 VDC |
| Rated Current Consumption |
1.7 A |
| Active Power Input (typ.) |
41 W |
| Processor Type |
X86 |
| User Data Memory |
24 Mbyte (Flash/RAM) |
| Weight |
7.00 lbs (3.18 kg) |
| Dimensions (Housing Front) |
415 mm x 310 mm |
| Mounting Cutout |
396 mm x 291 mm |
| Overall Depth |
75 mm |
Industry Applications
The Siemens 6AV2124-0QC02-0AX1 serves as a robust graphical interface for manufacturing lines, packaging machinery, and process control systems. Its 15.4-inch touchscreen with 16M colors enables operators to monitor complex processes with clear, high-resolution graphics. In upgrade scenarios, this panel can replace older SIMATIC HMIs, providing a modern interface without redesigning the control architecture. The 24 VDC supply and low current consumption make it compatible with standard industrial power systems.
Installation & Setup Guidance
Mount the Siemens 6AV2124-0QC02-0AX1 into a panel cutout of 396 mm x 291 mm. Ensure adequate clearance for the 75 mm overall depth and proper ventilation to maintain operating temperatures. Connect a 24 VDC power supply rated for at least 1.7 A. The onscreen keyboard eliminates the need for external input devices, simplifying installation. Refer to the hardware manual for detailed wiring of communication interfaces (not specified in the provided data).
Compatibility & Integration
As a SIMATIC HMI TP1500 Comfort panel, the 6AV2124-0QC02-0AX1 integrates seamlessly with Siemens automation systems via standard industrial protocols. It supports WinCC Comfort engineering software for project configuration. When upgrading older panels, verify that existing PLC communication settings match the panel's capabilities. The X86 processor and 24 MB user data memory provide ample performance for medium-complexity visualization tasks.
Selection Guide & Purchasing Advice
Before purchasing the Siemens 6AV2124-0QC02-0AX1, confirm that your application requires a 15.4-inch touchscreen with no physical function keys. Ensure your power supply provides stable 24 VDC at 1.7 A. For replacement projects, check the mounting cutout dimensions (396 x 291 mm) to ensure panel fit. At ubest101, we stock this genuine Siemens module with fast shipping. Contact us for volume pricing or technical inquiries.
