Product Overview

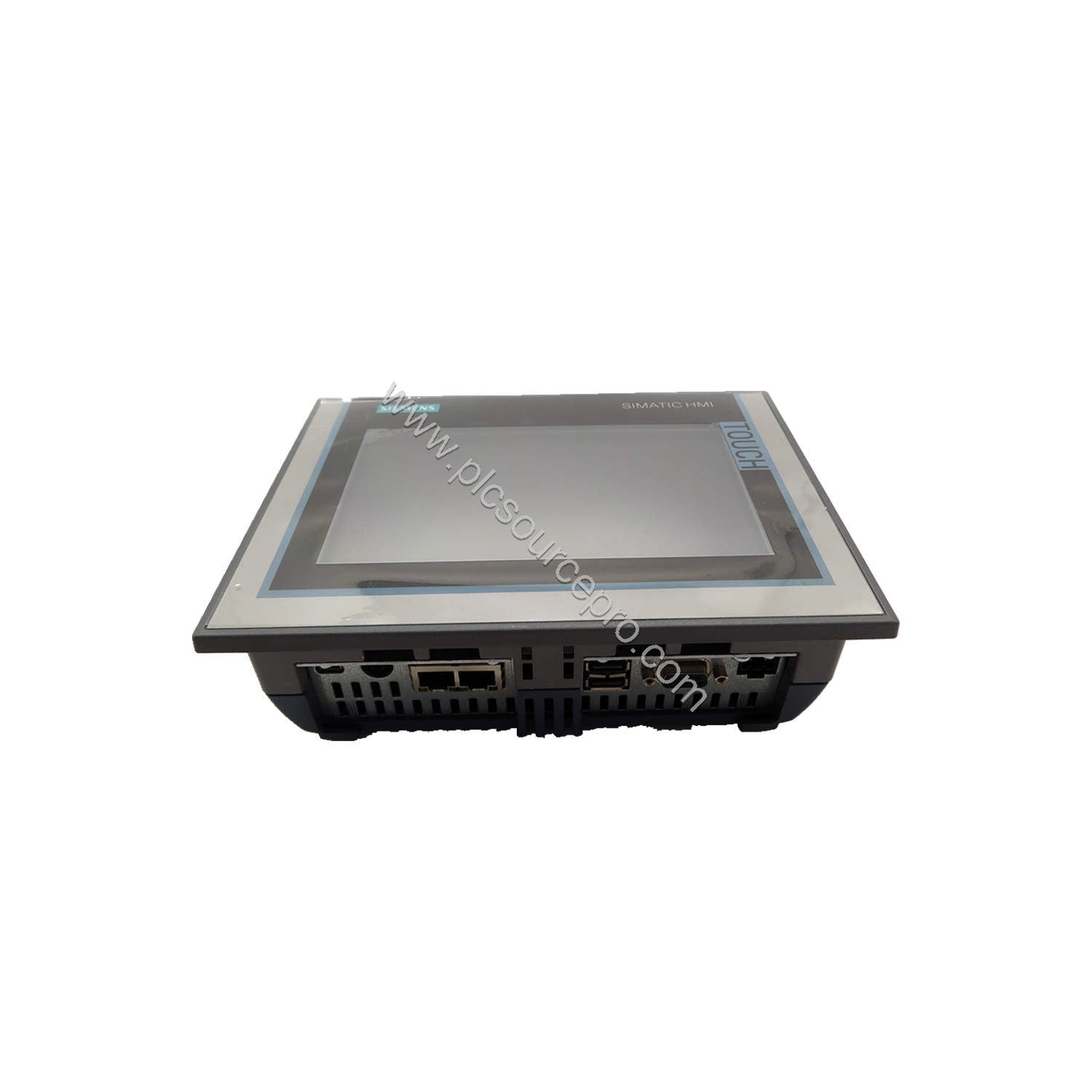

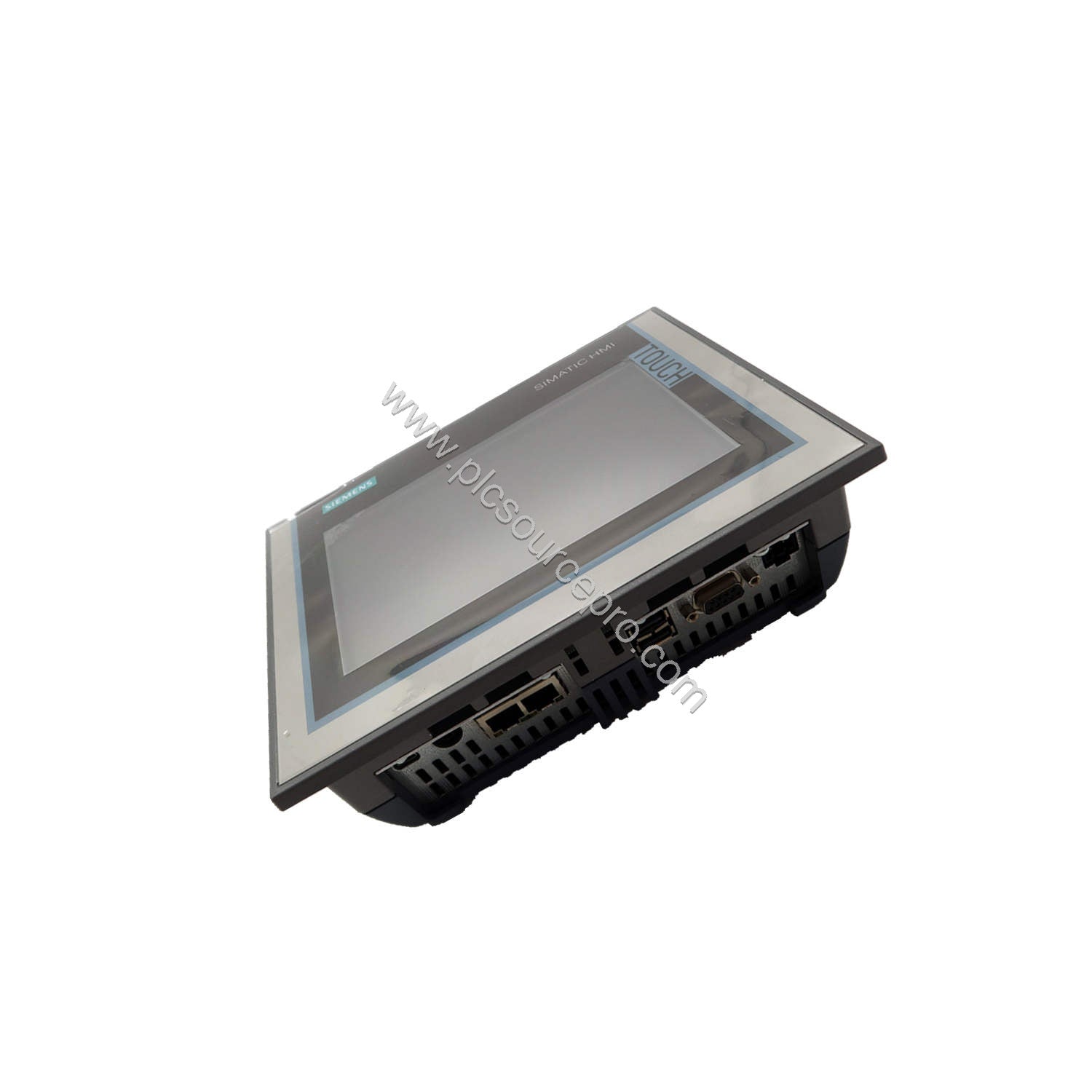

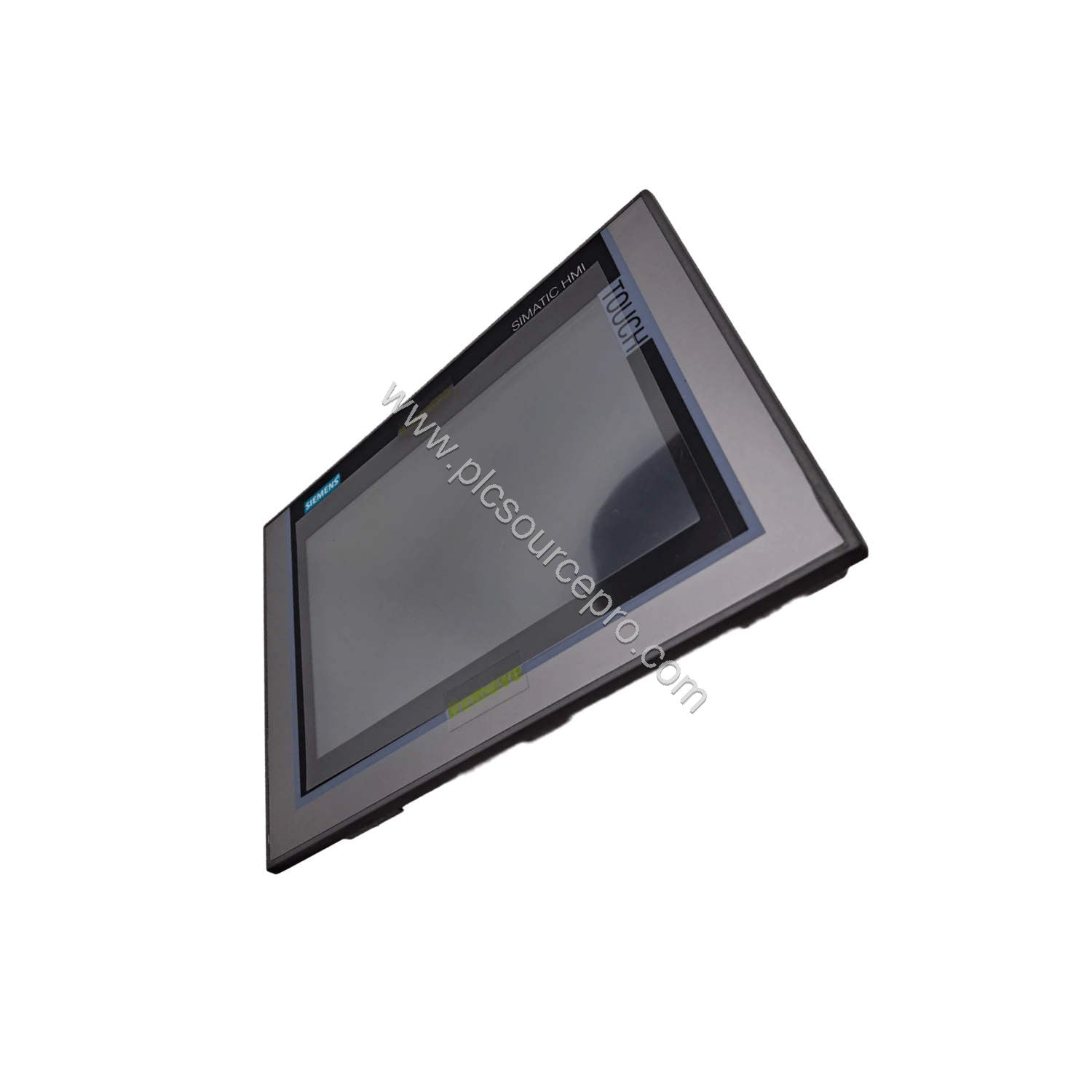

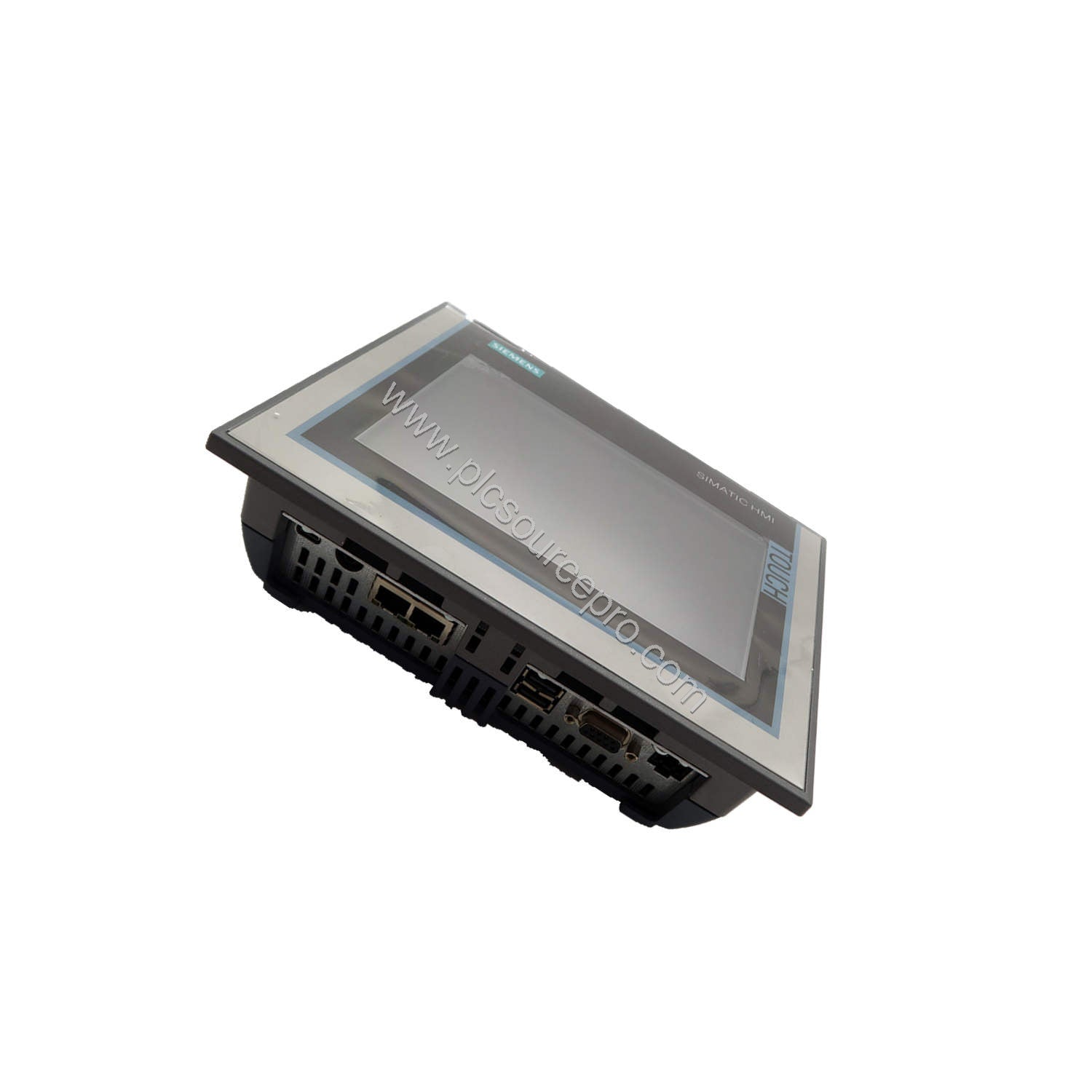

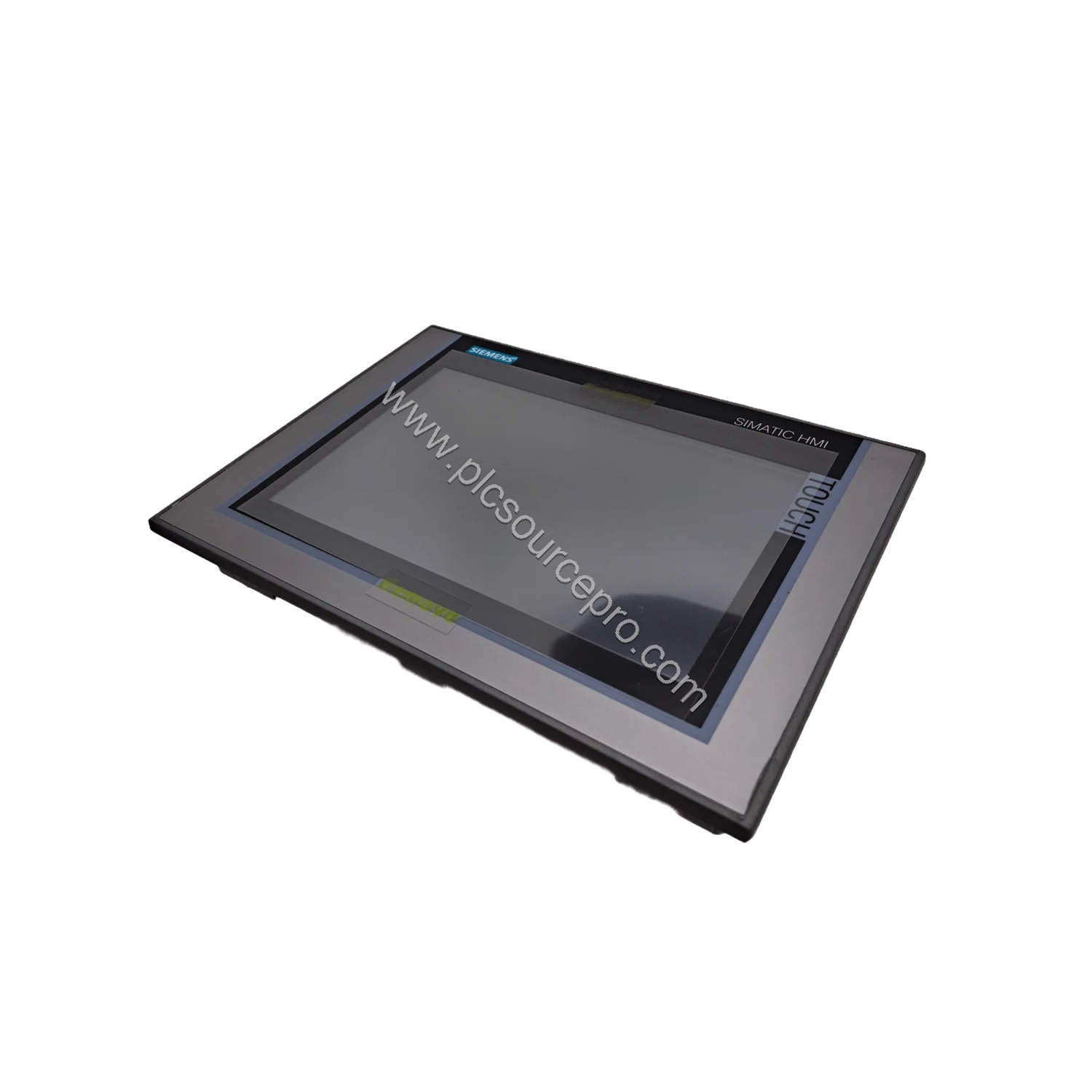

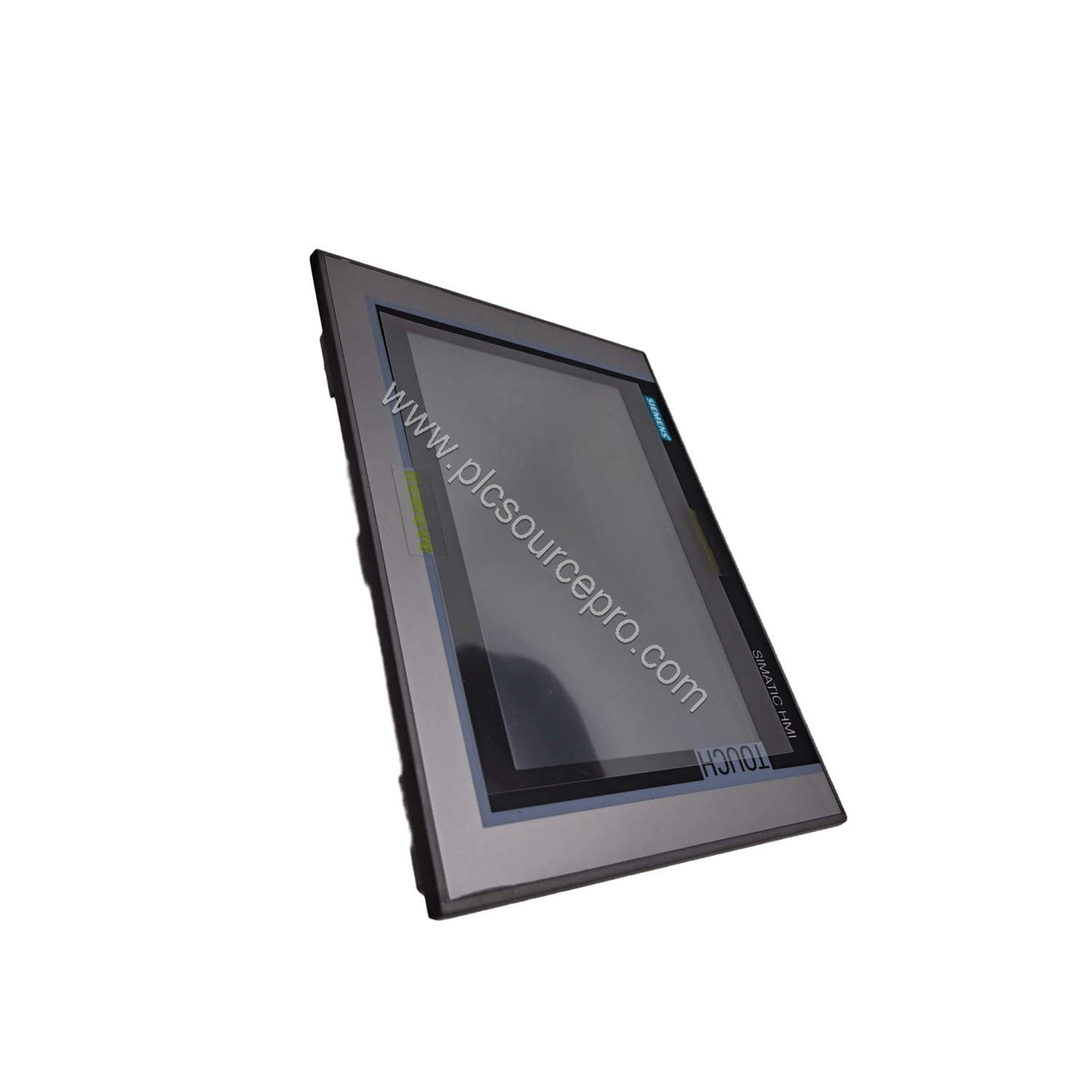

With an 80,000-hour MTBF backlight, the Siemens 6AV2124-0GC01-0AX0 SIMATIC HMI TP700 Comfort panel delivers long-term reliability for demanding industrial environments. This 7-inch widescreen TFT display supports 16 million colors and offers a robust set of connectivity options, making it an ideal operator interface for factory automation, process control, and machine building. The panel comes pre-installed with Windows CE 6.0 and is configurable from WinCC Comfort V11 onward.
Technical Specifications
| Parameter |
Value |
| Display |
7 in TFT, 800 x 480 pixels, 16,777,216 colors |
| Backlight MTBF |
80,000 h at 25 °C |
| Memory |
12 Mbyte for user data |
| Supply Voltage |
24 V DC (19.2 – 28.8 V) |
| Power Input |
12 W typical |
| Processor |
X86 |
| Interfaces |
1x Industrial Ethernet (2-port switch), 1x RS485/422, 2x USB 2.0, 2x SD card slots |
| Protocols |
PROFINET, PROFIBUS, MPI, EtherNet/IP, MODBUS, OPC UA |
| Protection |
IP65 front, IP20 rear |
| Operating Temperature |
0 – 50 °C (vertical installation) |
| Weight |
1.4 kg without packaging |
Industry Applications
Thanks to its wide range of communication protocols (PROFINET, PROFIBUS, EtherNet/IP, MODBUS) and support for multiple controller brands, the Siemens 6AV2124-0GC01-0AX0 fits seamlessly into process plants, packaging lines, and material handling systems. The rugged IP65 front and 12 W typical power consumption reduce wiring and enclosure costs, while the 16 million color display improves operator situational awareness, decreasing error rates.
Compatibility & Integration
The Siemens 6AV2124-0GC01-0AX0 integrates with S7-1200, S7-1500, S7-300/400, LOGO!, WinAC, SINUMERIK, SIMOTION, Allen‑Bradley (EtherNet/IP, DF1), Mitsubishi (MC TCP/IP, FX), Modicon (Modbus TCP/IP), and OMRON (LINK/Multilink). It also functions as an OPC UA client and server, enabling easy connection to higher‑level IT systems. Configuration is done via WinCC Comfort, Advanced, or Professional (TIA Portal) from V11.
Selection Guide & Purchasing Advice
Before purchasing, verify your mounting cutout requirements: 198 mm wide by 142 mm high, with an overall depth of 63 mm. The panel requires a 24 V DC power supply (19.2 – 28.8 V range) and is designed for vertical installation. For added safety, ensure your WinCC Comfort version is V11 or later. A reliable source for genuine Siemens 6AV2124-0GC01-0AX0 units is ubest101, where you can find certified spares backed by technical support.
