Product Overview

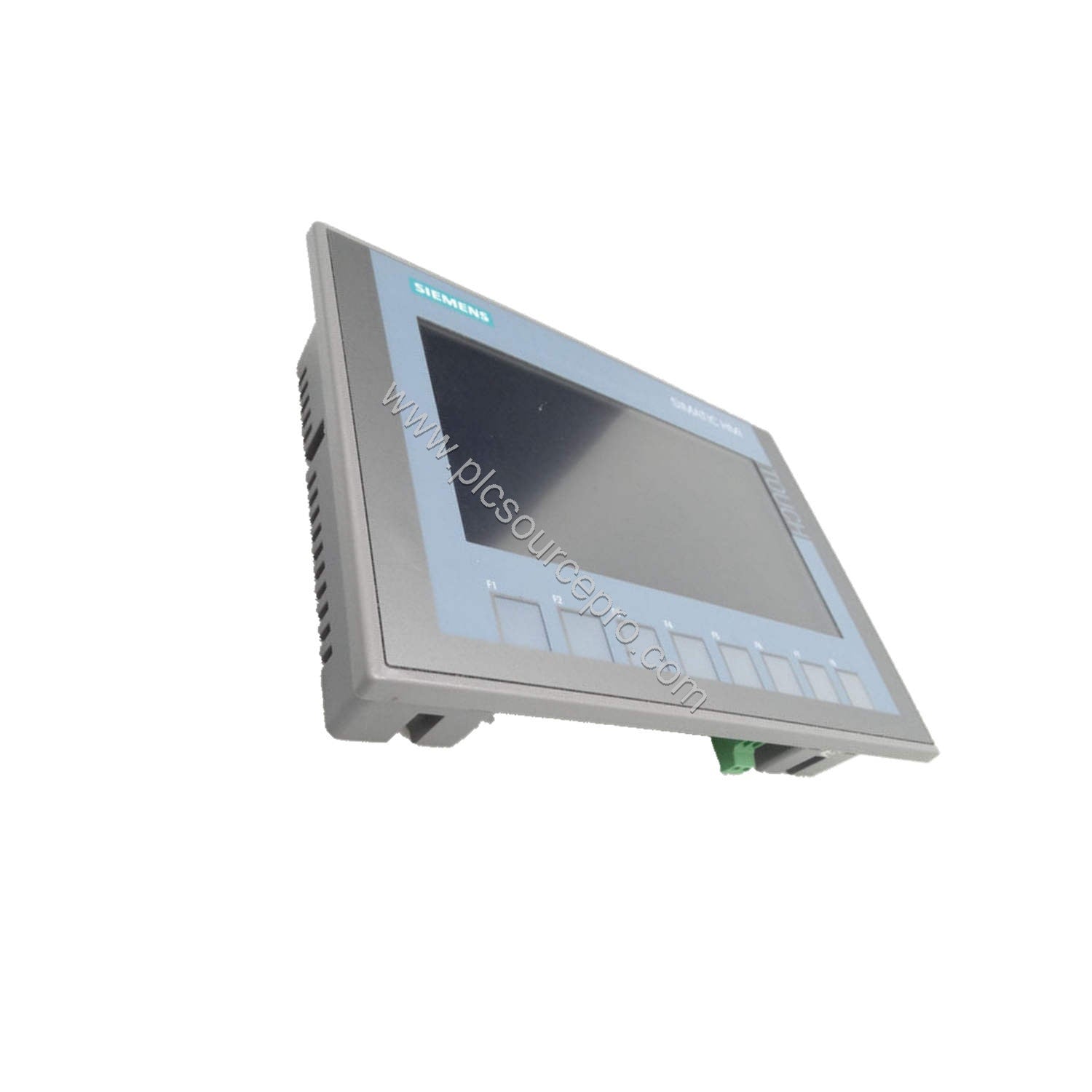

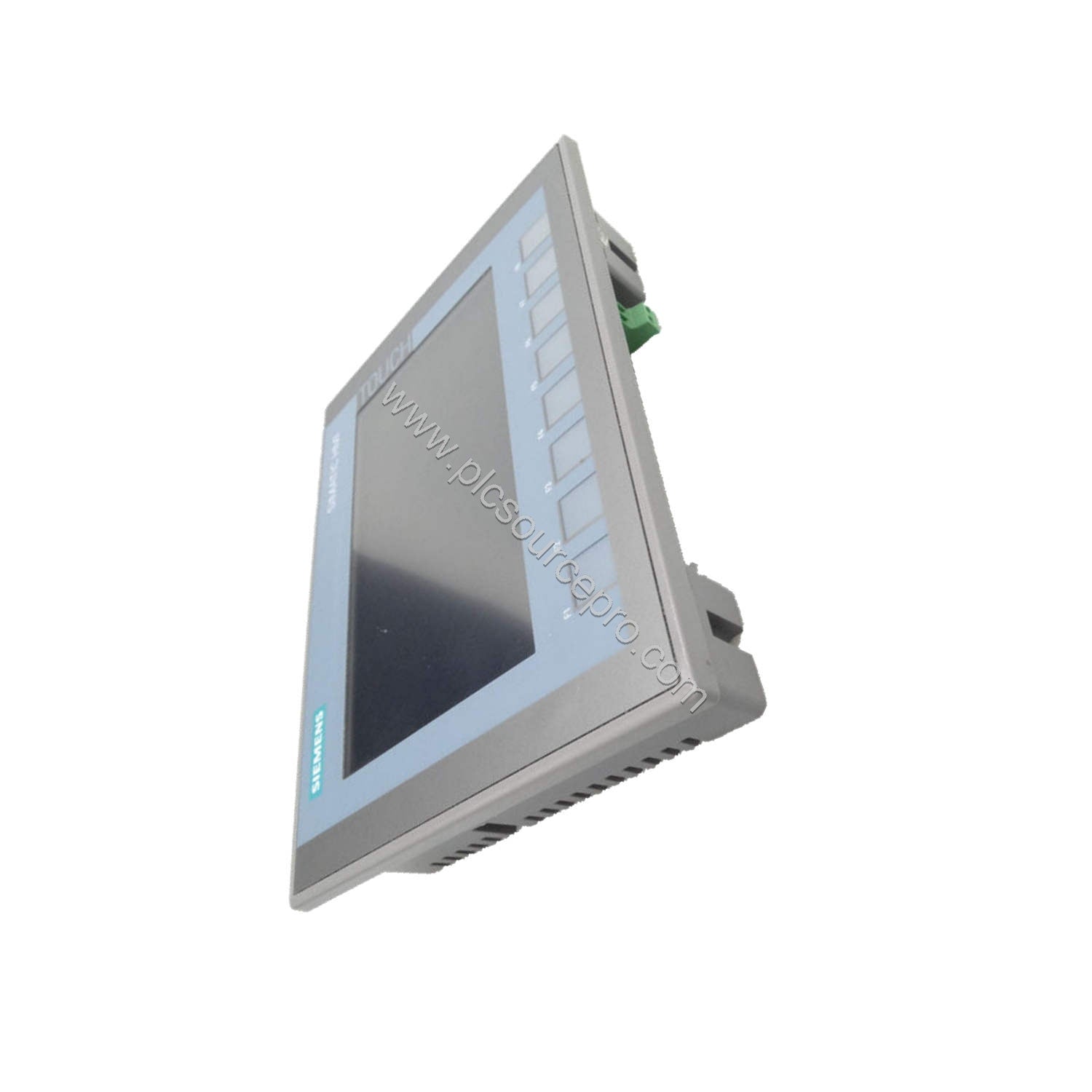

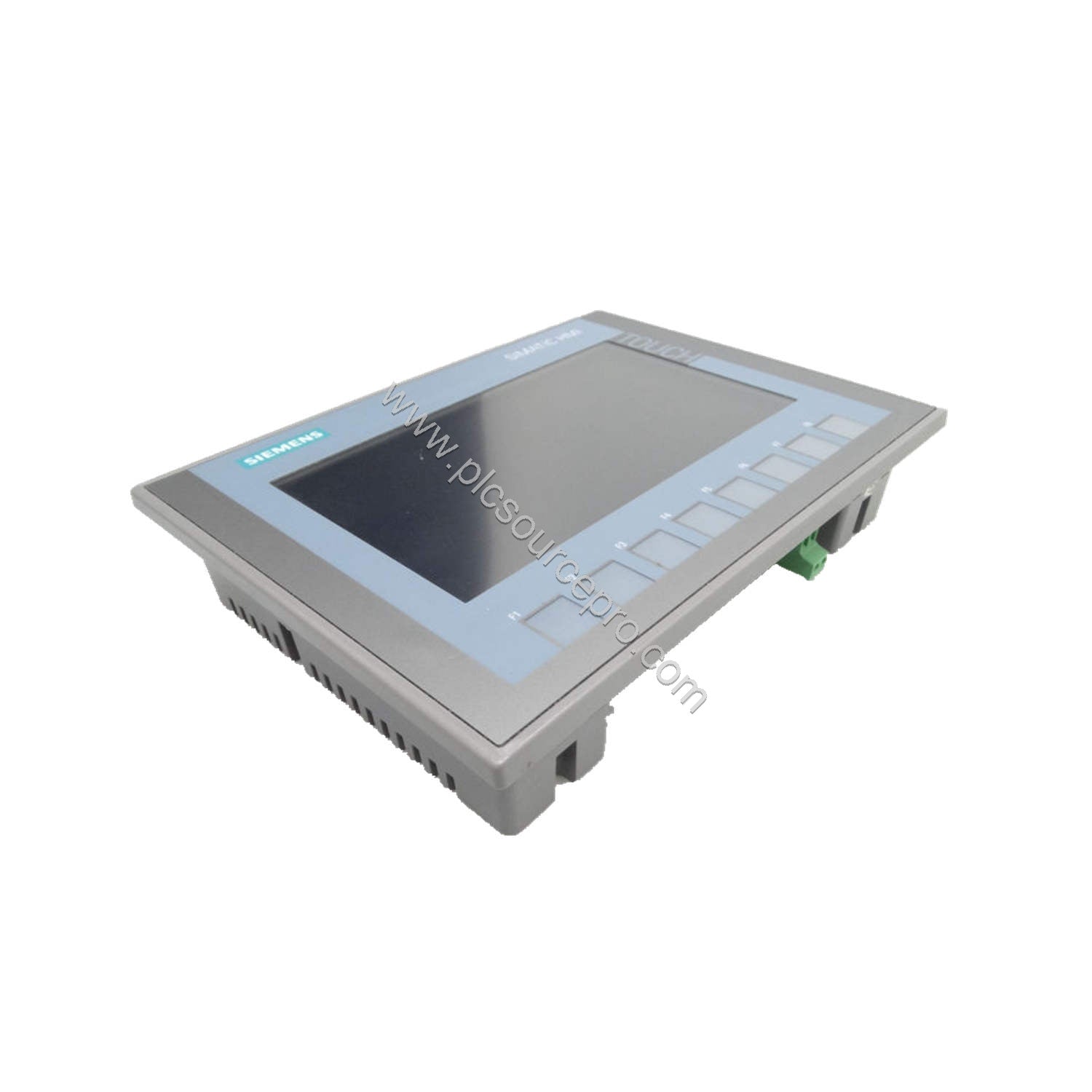

The Siemens 6AV2123-2JB03-0AX0 is a SIMATIC HMI KTP900 Basic color PN panel designed for modern industrial automation. It serves as a direct replacement for older HMI panels and offers enhanced connectivity with PROFINET and support for WinCC Basic V13 and STEP 7 Basic V13. This rugged operator interface features a 9-inch TFT display with 65536 colors, ensuring clear visualization in demanding environments.
Technical Specifications
| Parameter |
Value |
| Display Type |
TFT, LED backlight |
| Display Diagonal |
9 in |
| Resolution |
800 x 480 pixels |
| Color Depth |
65,536 colors |
| MTBF at 25 °C |
20,000 h |
| Power Supply Voltage (DC) |
24 V (19.2 V to 28.8 V) |
| Current Consumption (at 24 V) |
230 mA |
| Power Loss |
5.5 W |
| Processor |
ARM |
| User Memory (RAM) |
10 Mbyte |
| Front Panel Protection |
IP65 (front), IP20 (rear) |
| Weight (with packaging) |
1,393 g |
| Dimensions (W x H x D) |
267 mm x 182 mm x 39.4 mm |
Industry Applications
This Siemens 6AV2123-2JB03-0AX0 HMI fits perfectly in production lines, packaging machinery, and building automation. Its compact size and PROFINET IO enable seamless integration into existing Siemens TIA Portal environments. Upgrade from older panels like the TP 177B to gain faster commissioning and higher resolution.
Compatibility & Integration
The 6AV2123-2JB03-0AX0 communicates via PROFINET and supports EtherNet/IP, making it compatible with Allen-Bradley, Mitsubishi, and Omron controllers. It works with S7-1200 and S7-1500 PLCs without extra hardware. The built-in USB port (up to 16 GB) allows easy data logging and recipe transfers.
Selection Guide & Purchasing Advice
Before purchase, verify your project software version: the 6AV2123-2JB03-0AX0 ships with WinCC Basic V13/STEP 7 Basic V13 on CD. Ensure mounting cutout dimensions match (251 mm x 166 mm). For reliable supply and competitive pricing, consider ubest101 as a trusted source for genuine Siemens parts.
