Product Overview – Modernize with Siemens 6AV2123-2DB03-0AX0

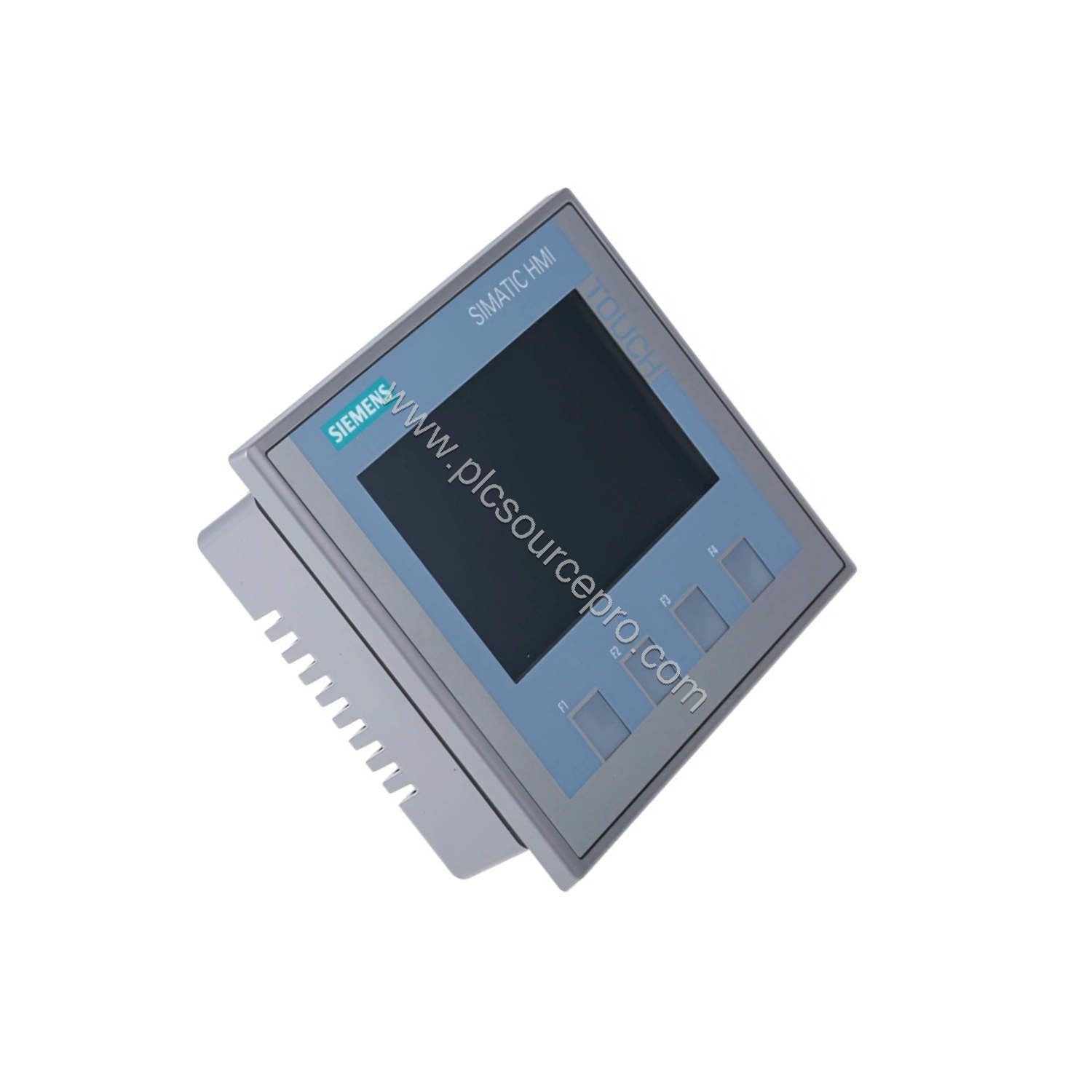

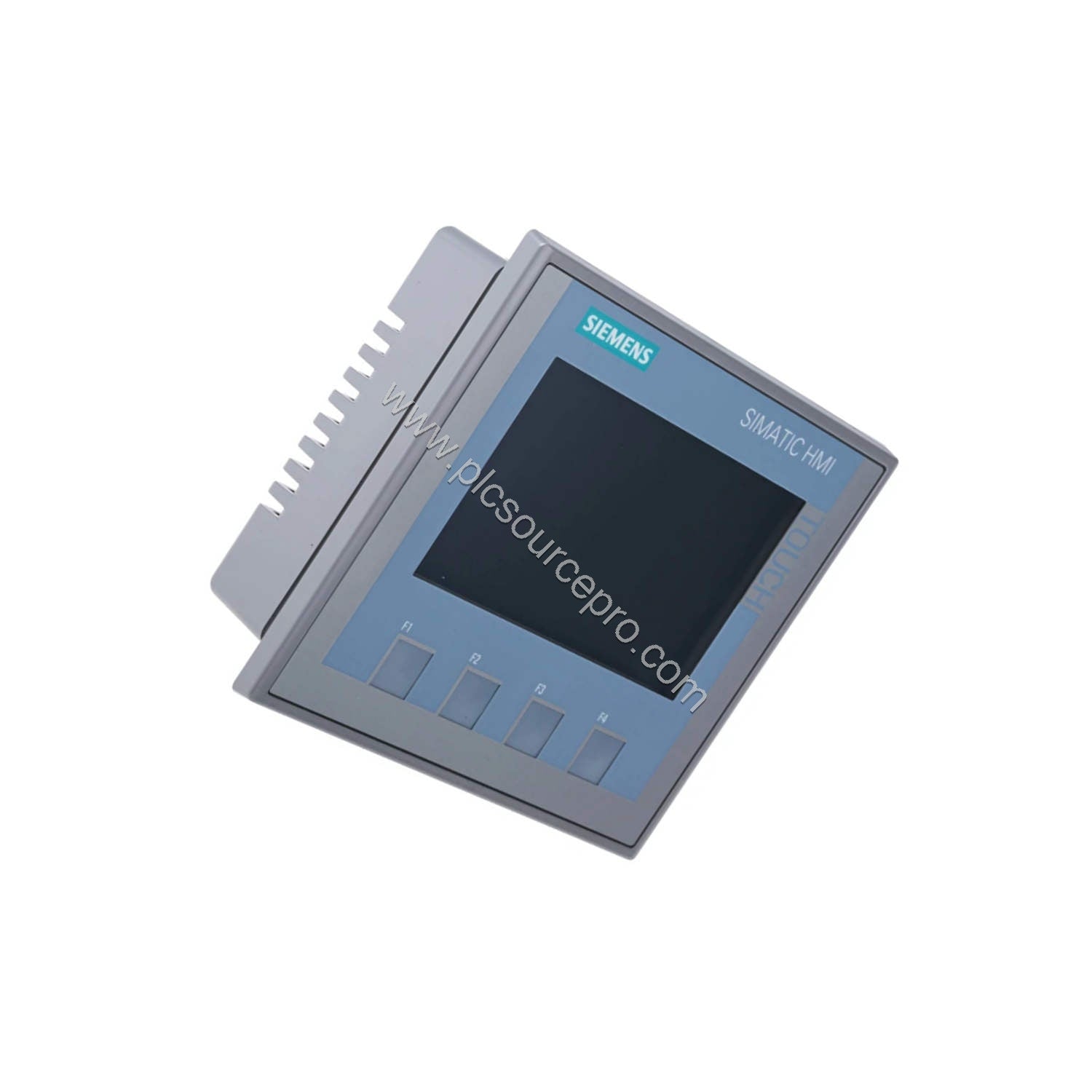

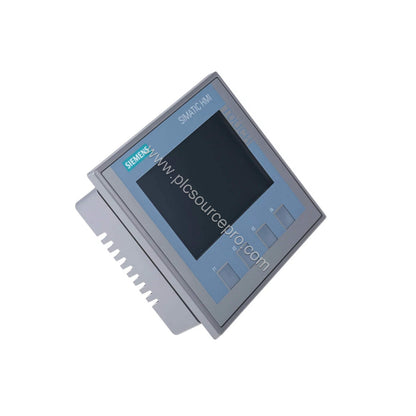

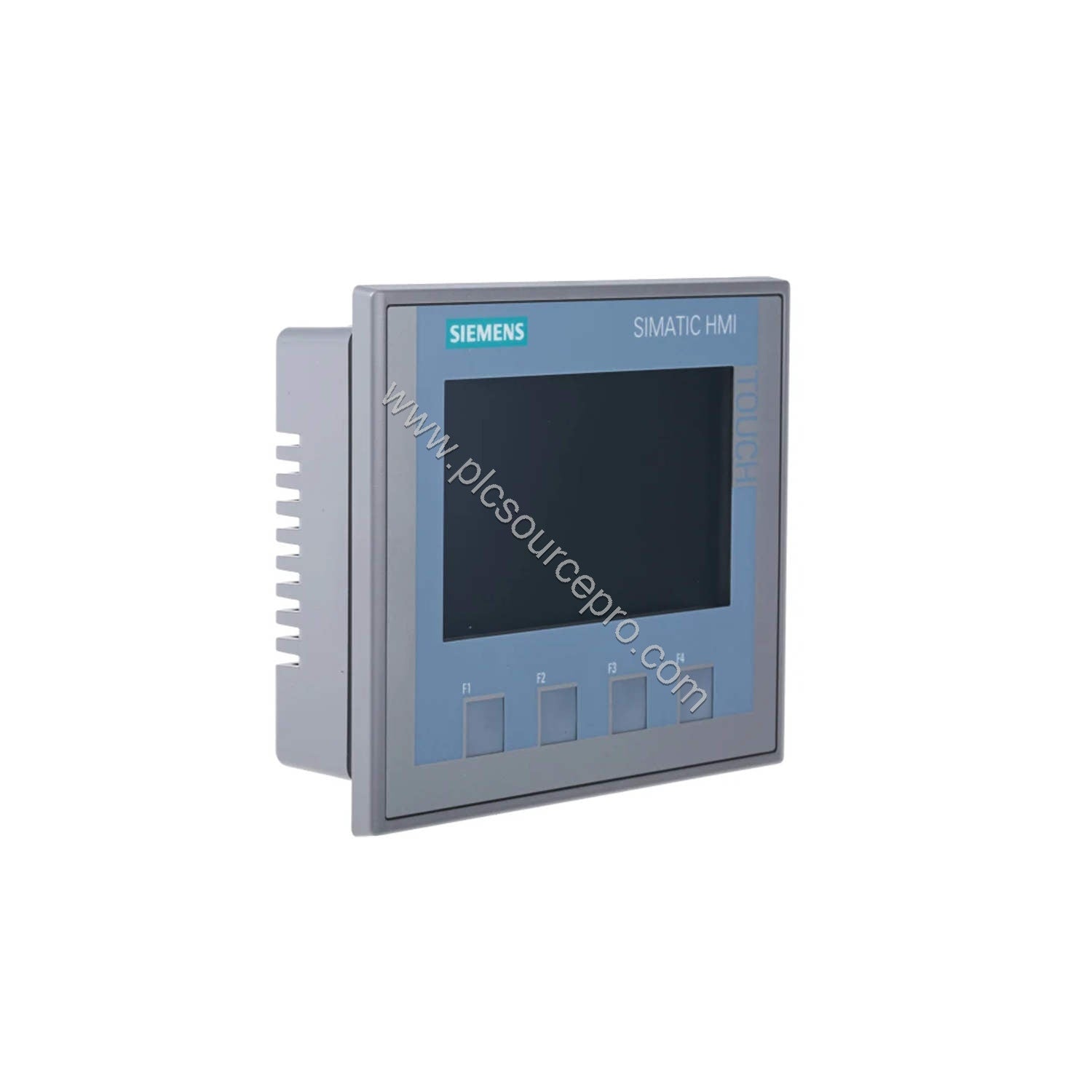

When aging operator panels limit your production line flexibility, the Siemens 6AV2123-2DB03-0AX0 SIMATIC HMI KTP400 Basic Panel delivers a direct drop-in upgrade with modern connectivity. This 4.3-inch TFT widescreen panel combines key and touch operation, offering 65,536 colors and a PROFINET interface. Designed to replace legacy HMI units, the Siemens 6AV2123-2DB03-0AX0 reduces downtime while enabling seamless integration into Siemens TIA Portal environments.
Technical Specifications
The Siemens 6AV2123-2DB03-0AX0 features an ARM processor, 10 MB user memory, and a 24 V DC supply with a typical power draw of only 3 W. Key parameters from the product database include:
-
Display: 4.3 in TFT widescreen, LED backlight (MTBF 20,000 h)
-
Resolution: 480 x 272 pixels, 65,536 colors
-
Interfaces: 1x Industrial Ethernet, 1x USB (up to 16 GB)
-
Protocols: PROFINET, EtherNet/IP, Modbus TCP/IP, TCP/IP
-
Ambient: 0 °C to 50 °C vertical, IP65 front / IP20 rear
-
Dimensions: 140 x 116 x 34.9 mm (WxHxD)
Industry Applications
The Siemens 6AV2123-2DB03-0AX0 excels in machine building, packaging, and material handling. For instance, replacing a monochrome panel on a conveyor system with this color touch panel reduces operator errors and speeds up recipe changes. Its 800 variables and 250 configurable images support complex production lines. The Siemens 6AV2123-2DB03-0AX0 also fits indoor automation cells where marine approvals (GL, ABS, BV, DNV, LRS, NK) add reliability for shipboard auxiliary systems.
Installation & Setup Guidance
Mount the Siemens 6AV2123-2DB03-0AX0 in vertical orientation with a 124 x 100 mm cutout. Use included clamps for panel mounting at up to 35° tilt without external ventilation. Connect a 24 V DC supply (19.2 to 28.8 V) observing polarity. Assign an IP address via PROFINET using the integrated Ethernet interface. Configure the panel using WinCC Basic V13 or higher within TIA Portal; the device supports STEP 7 Basic/Professional.
Compatibility & Integration
The Siemens 6AV2123-2DB03-0AX0 communicates natively with Siemens S7-1200/1500/200/300/400, LOGO!, WinAC, SINUMERIK, and SIMOTION. It also connects to Allen‑Bradley (EtherNet/IP), Mitsubishi (MC TCP/IP), and Modicon (Modbus TCP/IP). Upload/download occurs via Ethernet or USB memory. The panel supports 10 online languages and 32 project languages, easing multi-site deployments.
Selection Guide & Purchasing Advice
Before purchasing the Siemens 6AV2123-2DB03-0AX0, verify your existing panel cutout dimensions and power supply. This unit requires WinCC Basic (TIA Portal) V13 or later for configuration. It ships with open‑source software on CD – no additional licenses needed for basic HMI tasks. For a reliable supply, contact PLC Source PRO (operated by ubest101) to ensure genuine Siemens parts with fast delivery. Stock this module alongside USB sticks for recipe transfer.
