Product Introduction

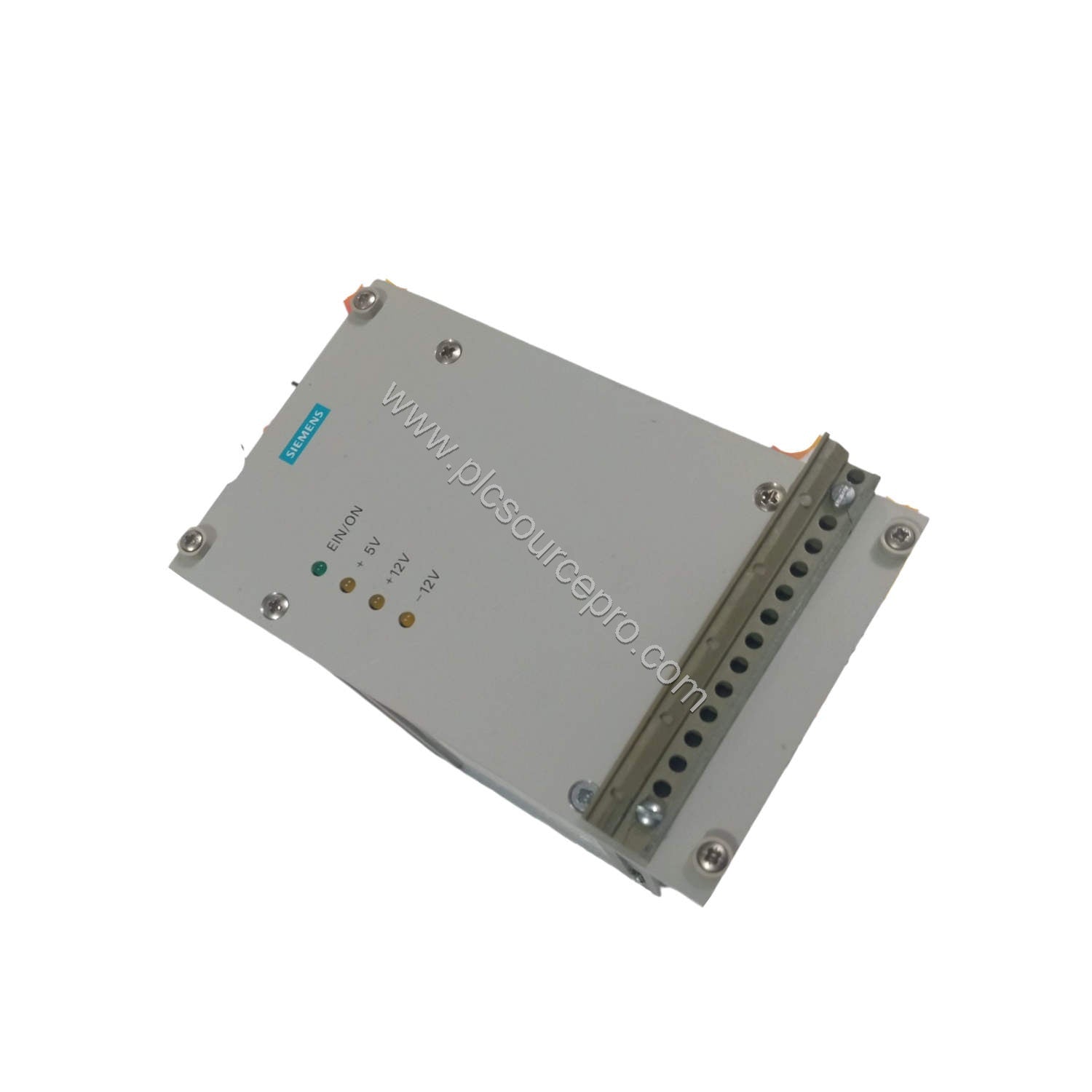

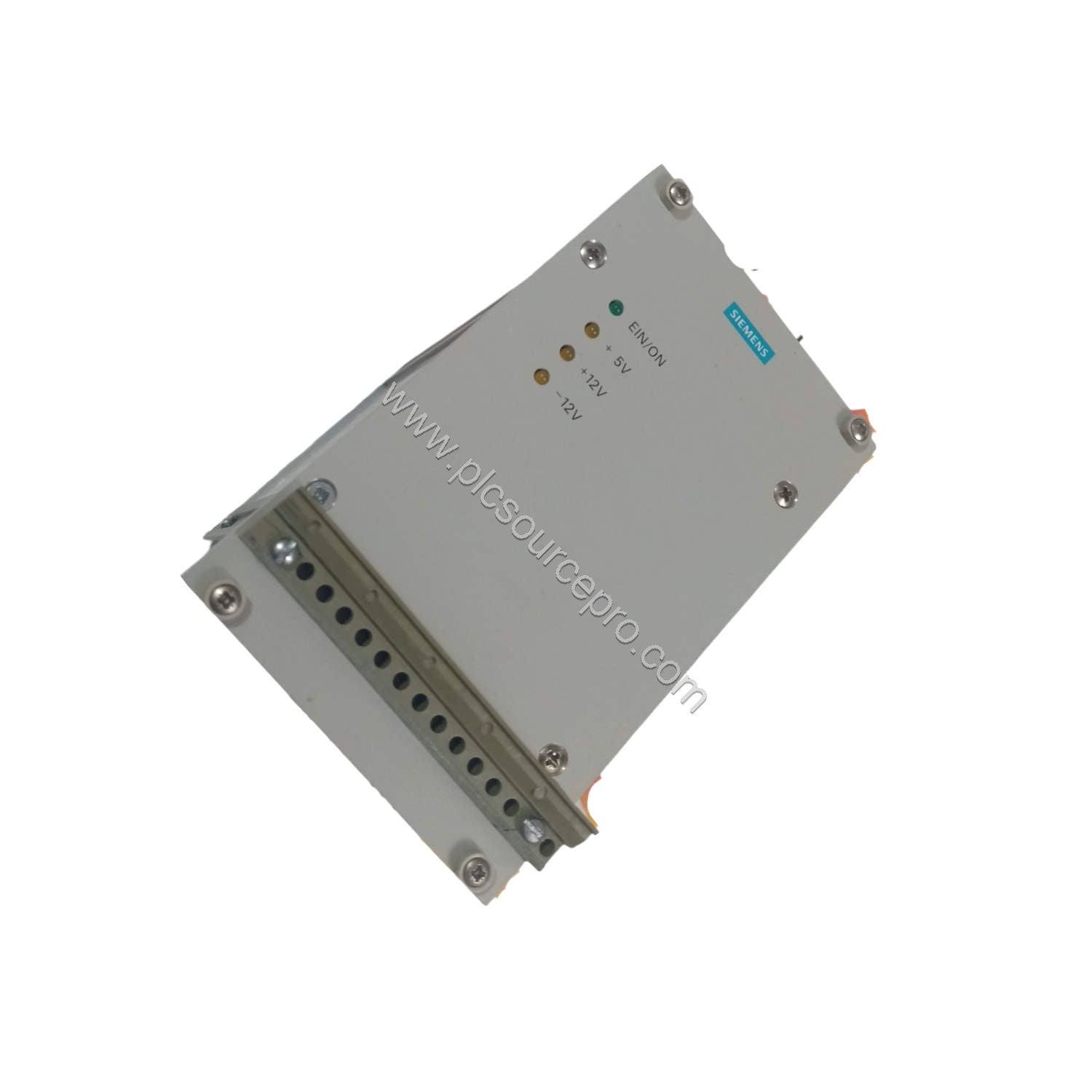

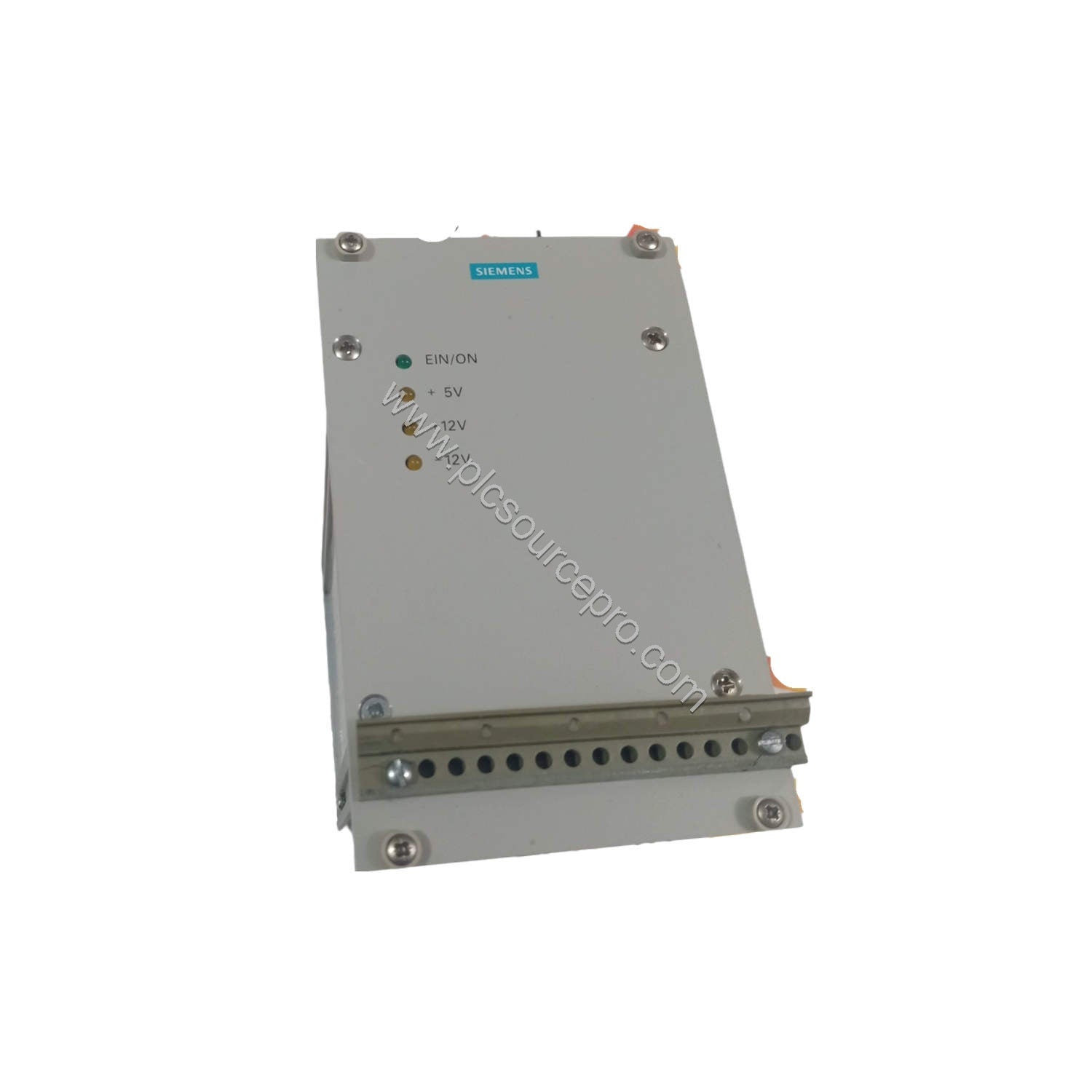

When your industrial system demands a reliable and versatile power source, the Siemens 6AR1306-0HC00-0AA0 power supply module delivers consistent performance. This Industrial Automation Module accepts 120 V AC or 230 V AC input and provides three output voltages: 5.1 V DC, 12 V DC, and -12 V DC. With a 3 kW rating (4 HP), it handles demanding loads while maintaining efficiency. Designed for seamless integration with Siemens SICOMP systems, this module ensures stable operation in critical applications.
Technical Specifications Breakdown
The Siemens 6AR1306-0HC00-0AA0 offers precise electrical parameters to meet diverse requirements. Its supported output currents are 12 A at 5.1 V, 5 A at 12 V, and 0.5 A at -12 V. The wide operating temperature range of -20°C to +60°C allows deployment in harsh environments, while the storage range extends from -40°C to +85°C. With up to 95% relative humidity tolerance (non-condensing) and a passive cooling system, this module requires minimal maintenance. It holds CE and UL/CSA certifications, confirming compliance with international safety standards.
Industry Applications
In automated manufacturing lines, the Siemens 6AR1306-0HC00-0AA0 powers control systems and sensors reliably. Its triple-output design simplifies wiring for devices needing multiple DC voltages. For process control in chemical plants, the module's wide temperature tolerance ensures uptime even near heat sources. Use it in retrofitting older SICOMP-based systems to extend equipment life and reduce downtime costs.
Installation & Setup Guidance
Mount the Siemens 6AR1306-0HC00-0AA0 on a DIN rail in a well-ventilated enclosure. Connect the AC input (120 V or 230 V) to the designated terminals. Wire the DC outputs (5.1 V, 12 V, -12 V) to your load, ensuring correct polarity. The passive cooling system requires no additional fans, but maintain at least 50 mm clearance around the module for airflow. Before powering on, verify all connections against the wiring diagram. Test output voltages with a multimeter to confirm proper operation.
Compatibility & Integration
The Siemens 6AR1306-0HC00-0AA0 is specifically designed for Siemens SICOMP systems, ensuring plug-and-play compatibility. It works with I/O modules and controllers in the same product line. For mixed-vendor setups, the standard AC input and isolated DC outputs allow easy integration into most industrial panels. No special communication protocols are required, simplifying replacement or upgrades.
Selection Guide & Purchasing Advice
Before purchasing the Siemens 6AR1306-0HC00-0AA0, verify your system's voltage requirements and physical space (compact 100x80x20 mm footprint). Ensure your existing DIN rail can support its 1.59 kg weight. At PLC Source PRO (ubest101.myshopify.com), we stock this module with fast shipping and technical support. Consider ordering spare units for critical installations to minimize downtime.
