Product Introduction

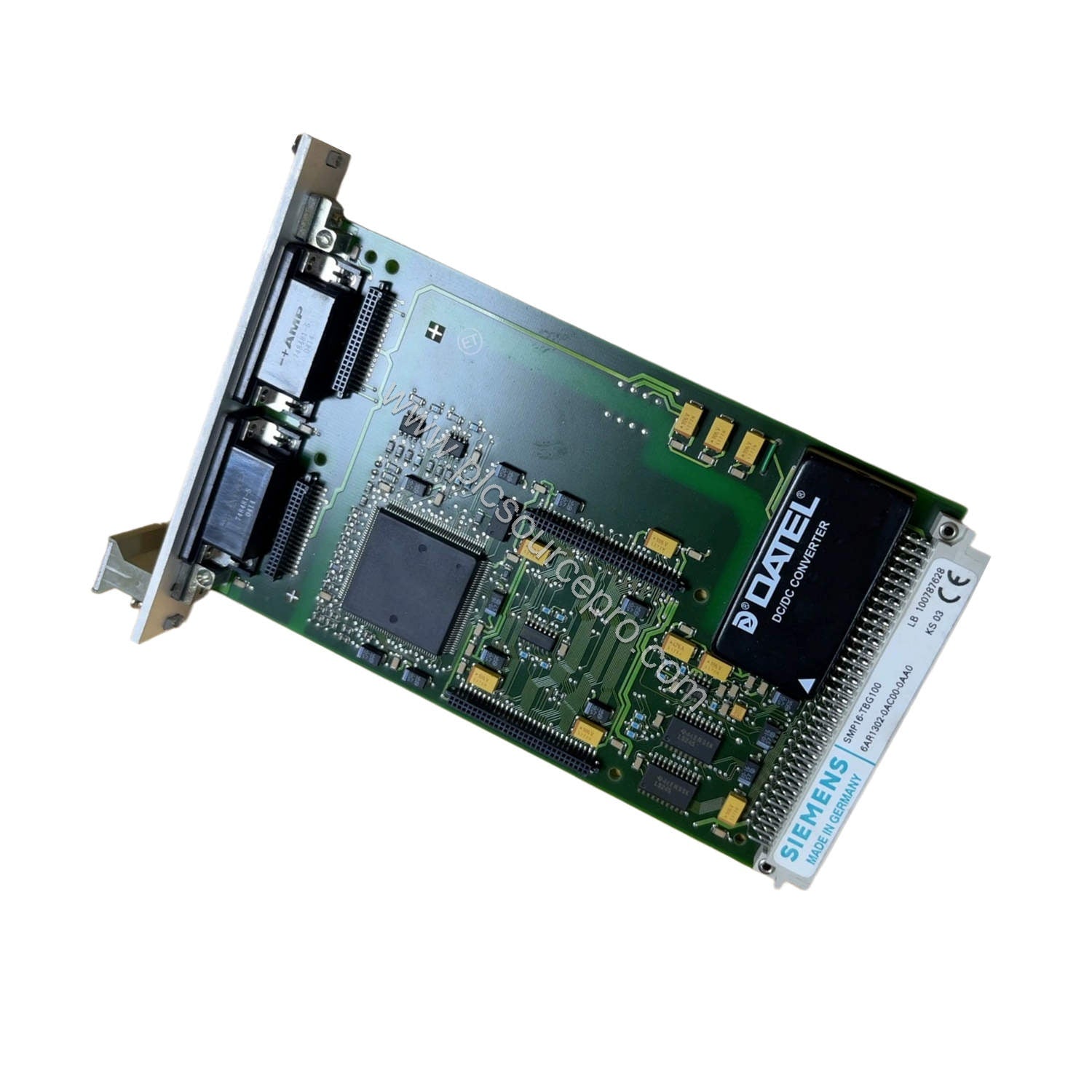

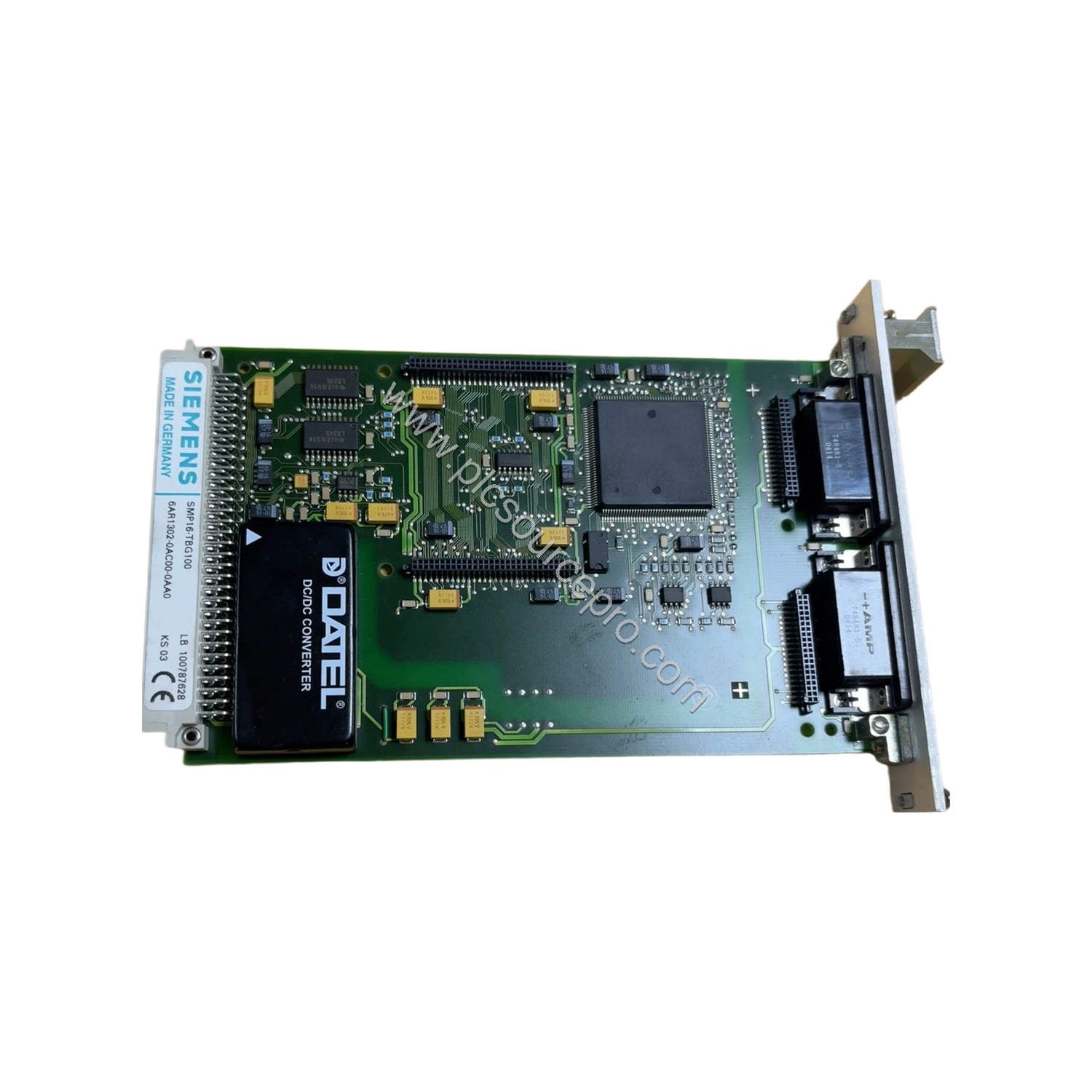

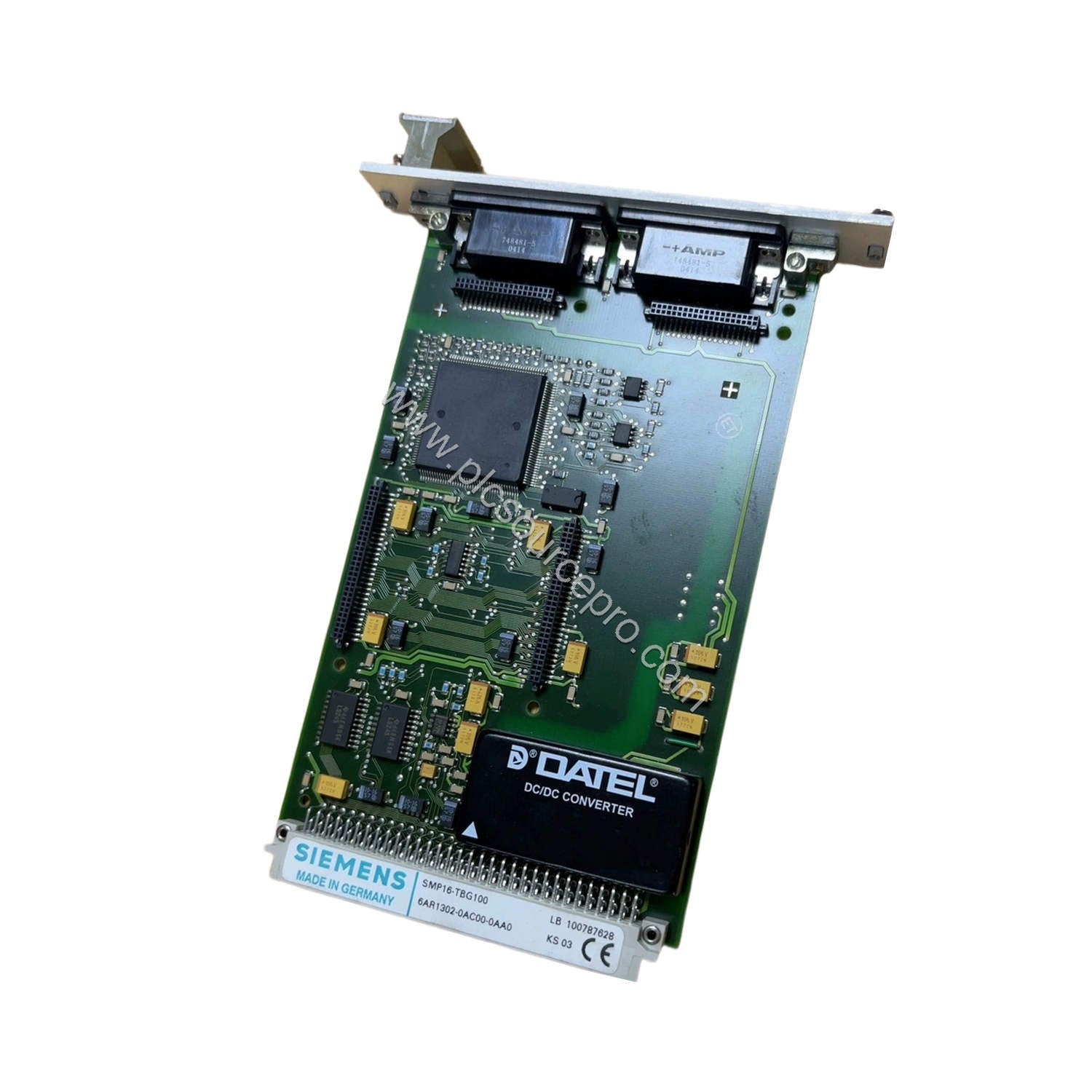

With an integrated DC/DC transformer and passive cooling, the Siemens 6AR1302-0AC00-0AA0 I/O Communications Module delivers reliable subrack housing for up to two I/O modules. Operating between -20°C and 60°C, this module ensures stable communication in demanding industrial environments, reducing the risk of failures due to temperature extremes or power fluctuations.
Technical Specifications
| Parameter |
Value |
| Manufacturer |
Siemens |
| Product Type |
I/O Communications Module |
| Product Line |
I/O Modules |
| Part Number |
6AR1302-0AC00-0AA0 |
| UPC |
662643026061 |
| Subrack Type |
For up to 2 I/O modules |
| Operating Temperature Range |
-20°C to 60°C |
| DC/DC Transformer |
Integrated |
| Protection Class |
IP20 |
| Material |
Metal Housing |
| Input Voltage |
24 V DC |
| Mounting Type |
Panel Mount |
| Compatibility |
Compatible with 2 I/O modules |
| Application |
Communication module subrack |
| Cooling Type |
Passive cooling |
| Bus Type |
Supports I/O communication modules |
Industry Applications
The Siemens 6AR1302-0AC00-0AA0 excels in factory automation and process control environments where reliable I/O communication is critical. In material handling systems, the module provides robust subrack support for two I/O modules, preventing communication failures through its passive cooling design and metal housing. Its wide operating temperature range makes it suitable for unenclosed areas near machinery.
Installation & Setup Guidance
Mount the Siemens 6AR1302-0AC00-0AA0 on a panel using the provided mounting points. Ensure the IP20-rated enclosure is in a clean, indoor environment free from excessive dust. Connect a 24 V DC power supply to the input terminals. The integrated DC/DC transformer simplifies power management—no external converter needed. Verify that the two I/O modules are securely inserted into the subrack slots before powering up.
Maintenance & Reliability
Inspect the module periodically for dust accumulation on the metal housing, which could impede passive cooling. Maintain ambient temperature within -20°C to 60°C to avoid thermal stress. The lack of moving parts reduces wear, extending service life. Regular visual checks of the DC/DC transformer and connections ensure continued reliability.
Compatibility & Integration
This subrack supports up to two I/O modules and is designed for use with Siemens communication bus systems. Integrate the 6AR1302-0AC00-0AA0 into existing automation architectures as a communication module subrack. The bus type specifically accommodates I/O communication modules, making it a direct replacement for similar subracks in Siemens-based systems.
