Product Overview

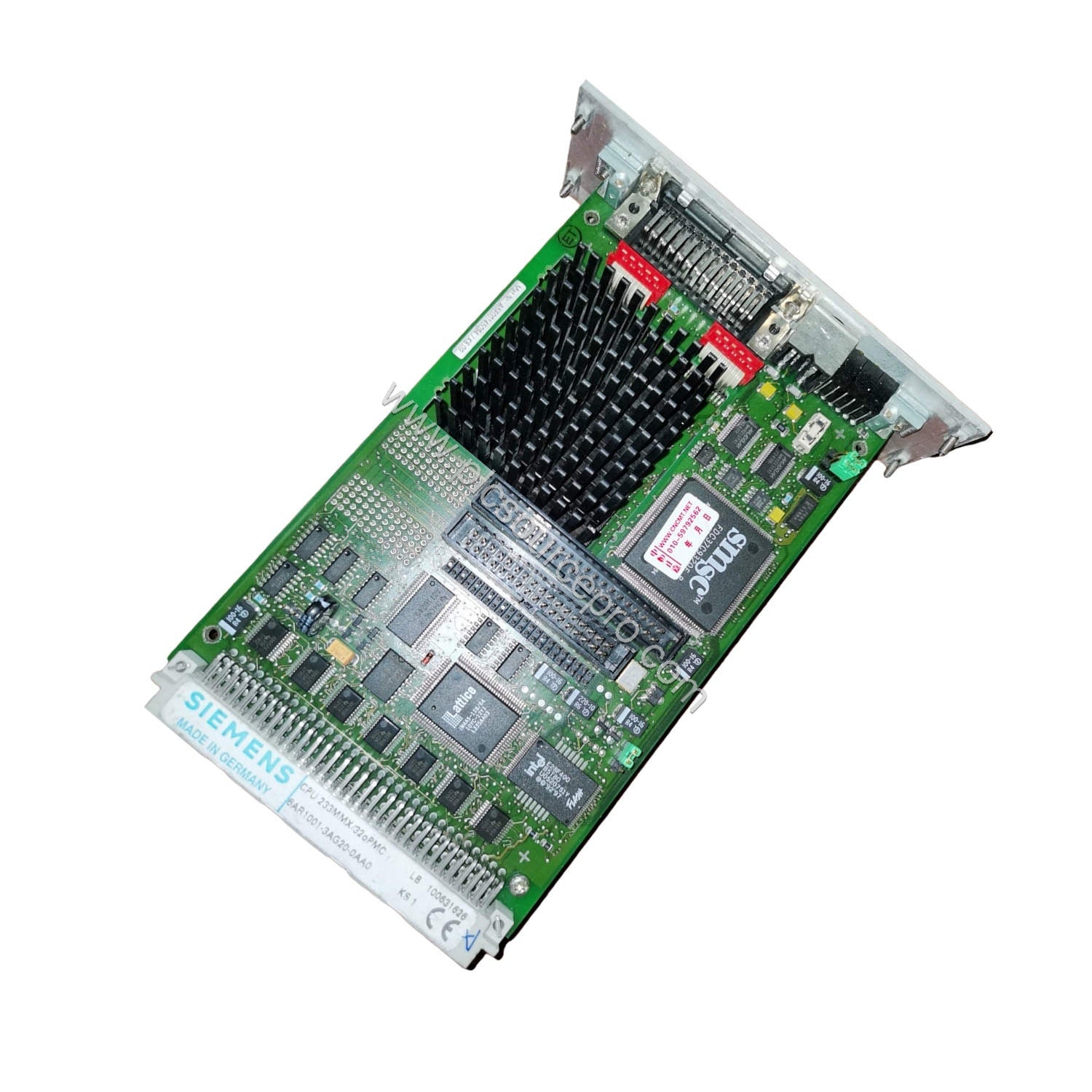

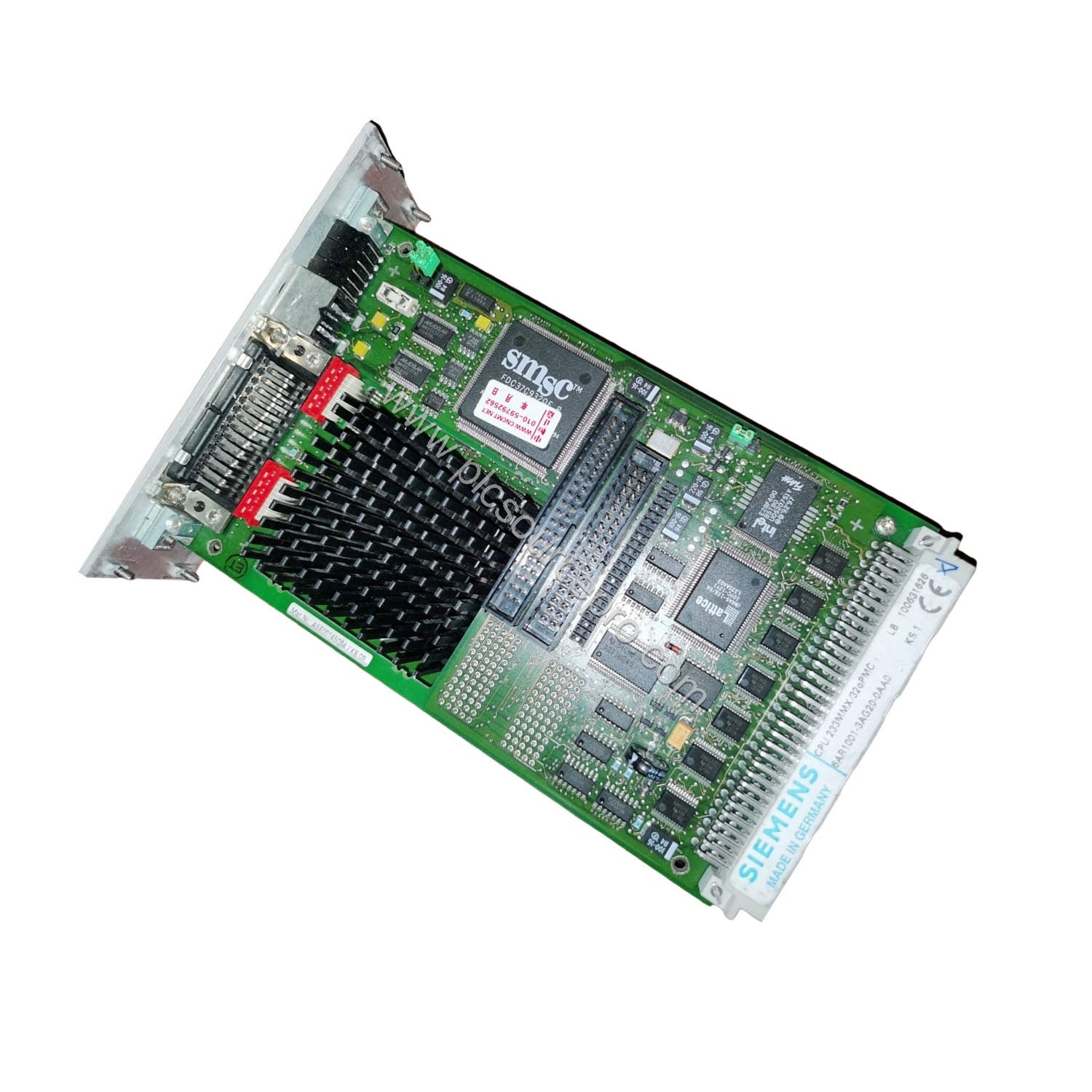

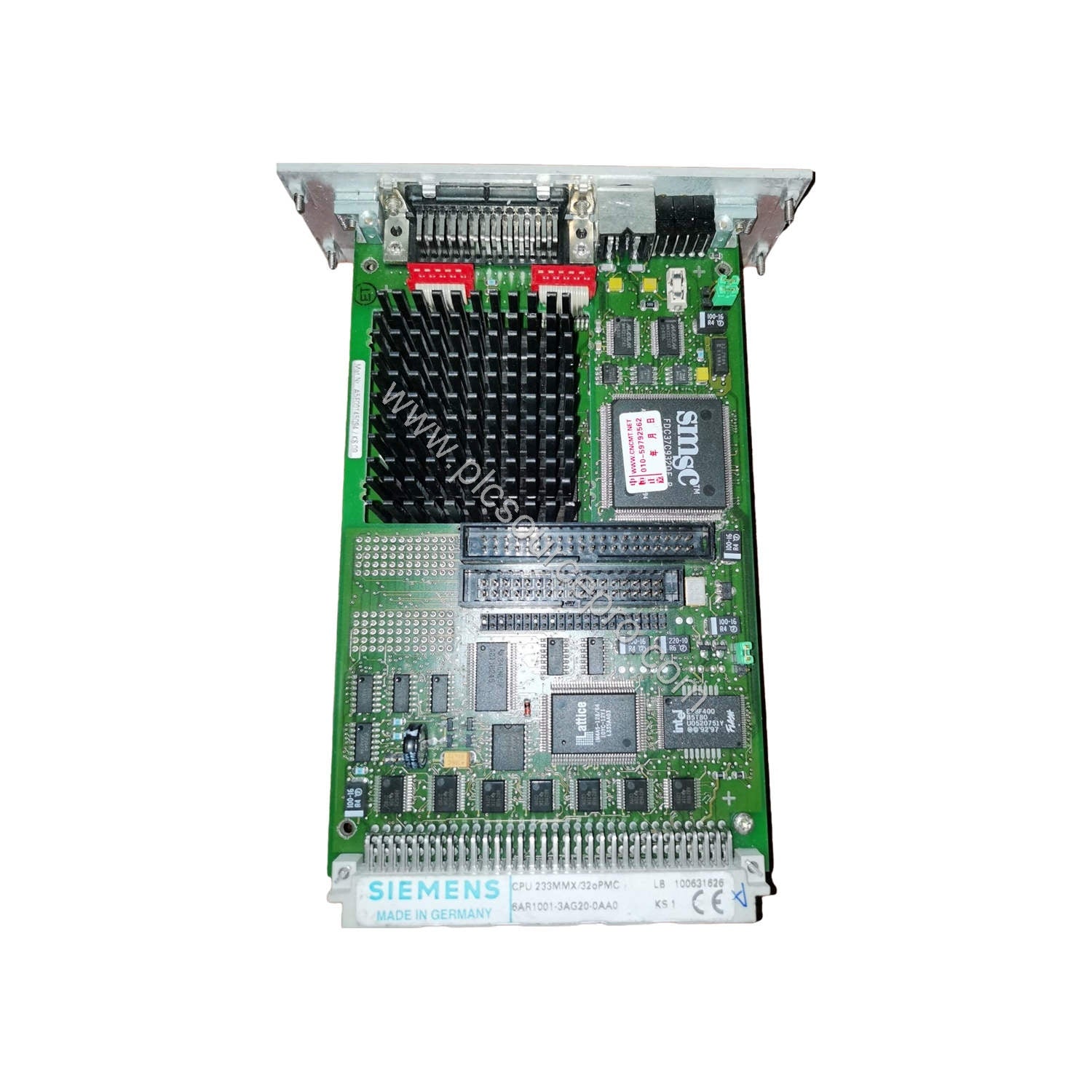

The Siemens 6AR1001-3AG20-0AA0 CPU module delivers reliable processing for demanding automation tasks. As part of the Siemens I/O Modules line, this unit is engineered for durability and efficiency. Its single-core architecture at 233 MHz provides sufficient performance for control logic, data handling, and communication in industrial environments. With 32 MB of DRAM, the 6AR1001-3AG20-0AA0 ensures quick data access and stable operation, making it an ideal upgrade for older CPU modules seeking improved performance.
Technical Specifications Breakdown
This section details the key parameters of the Siemens 6AR1001-3AG20-0AA0. All values are sourced from official specifications to ensure accuracy.
| Parameter |
Value |
| Number of CPU Cores |
1-core |
| Clock Speed |
233 MHz |
| User Memory Type |
RAM |
| RAM Capacity |
32 MB |
| RAM Type |
DRAM |
| PMC Slot |
No |
| Minimum Operating Temperature |
0°C |
| Maximum Operating Temperature |
55°C |
| Minimum Storage Temperature |
-20°C |
| Maximum Storage Temperature |
60°C |
| Relative Humidity |
95% or less |
| Environment |
No corrosive gases |
The Siemens 6AR1001-3AG20-0AA0 weighs only 0.6 kg, allowing easy installation in cabinets. Its robust environmental ratings support extended service life even in challenging conditions, reducing total cost of ownership.
Industry Applications
The 6AR1001-3AG20-0AA0 suits a variety of control applications, including production line monitoring, process automation, and material handling systems. Its moderate clock speed and reliable memory handle sequential logic and data logging effectively. For example, in a packaging plant, this CPU can manage sensor inputs and actuator outputs with consistent timing. In facilities with controlled climates (no corrosive gases, humidity ≤95%), the module maintains stable performance, minimizing unplanned downtime.
Installation & Setup Guidance
Mount the Siemens 6AR1001-3AG20-0AA0 in a clean, dry location within the control panel. Ensure adequate airflow for cooling; the module operates between 0°C and 55°C. Use standard DIN rail mounting if applicable. Connect power and I/O according to your system design. Verify that the environment is free of corrosive gases to protect the electronics. For guidance on wiring diagrams, consult your system documentation.
Maintenance & Reliability
To maximize the lifespan of the 6AR1001-3AG20-0AA0, perform periodic inspections. Check for dust accumulation on vents and connectors. Monitor ambient conditions – keep relative humidity below 95% and temperatures within the rated range. The module’s DRAM does not require refreshing, but ensure backup power or proper shutdown procedures to prevent data loss. With minimal moving parts, this CPU offers high reliability, contributing to reduced maintenance costs and longer intervals between replacements.
Selection Guide & Purchasing Advice
Before ordering a Siemens 6AR1001-3AG20-0AA0, verify your system’s compatibility with I/O modules from the same product line. Ensure your power supply can support the module’s requirements. For bulk or urgent needs, consider sourcing from reliable suppliers. You can find this CPU module at PLC Source PRO (ubest101) – a trusted distributor of industrial automation spares. Always confirm stock status and any applicable warranty terms.
