Product Overview

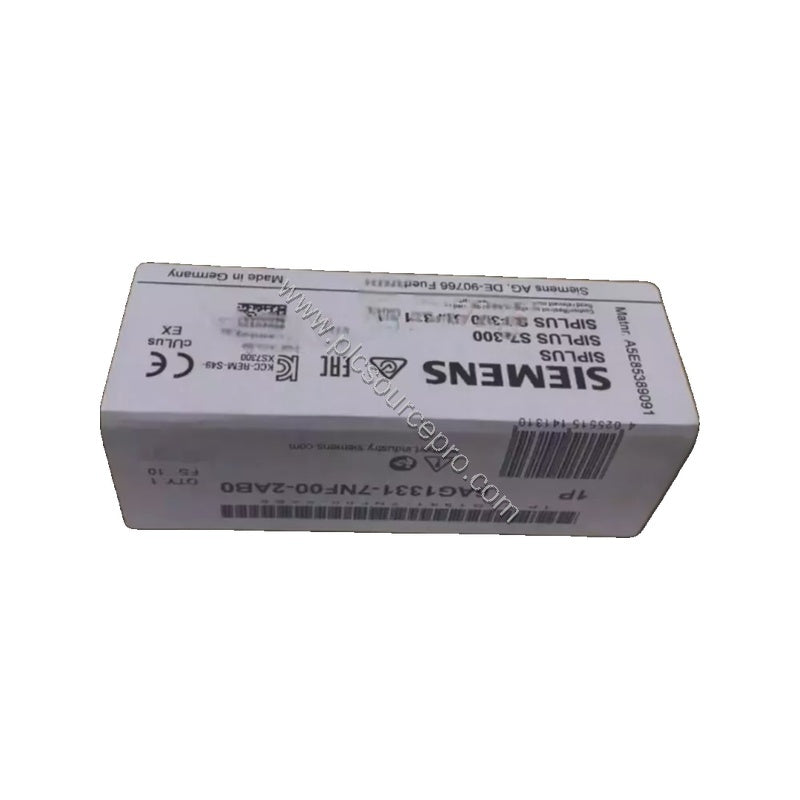

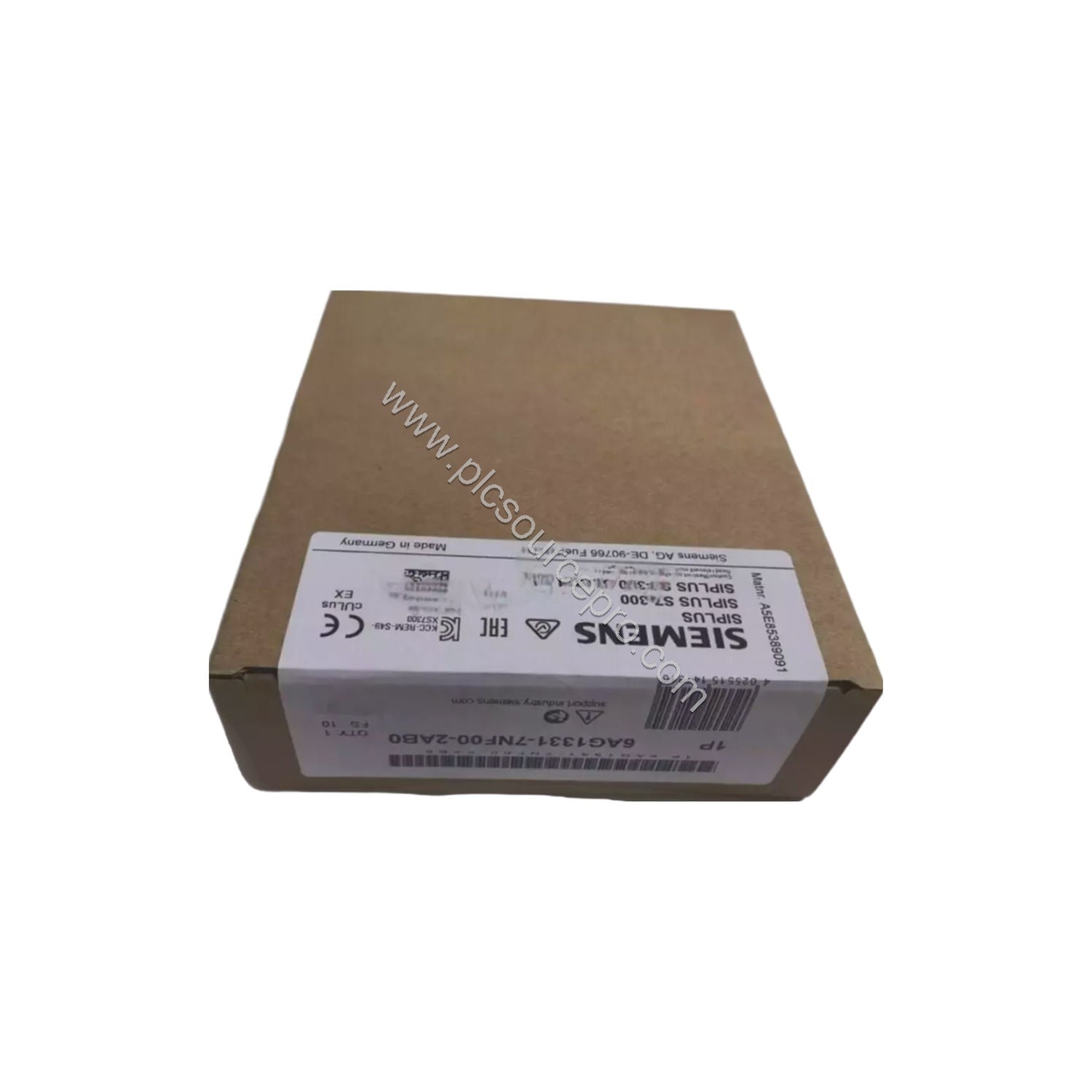

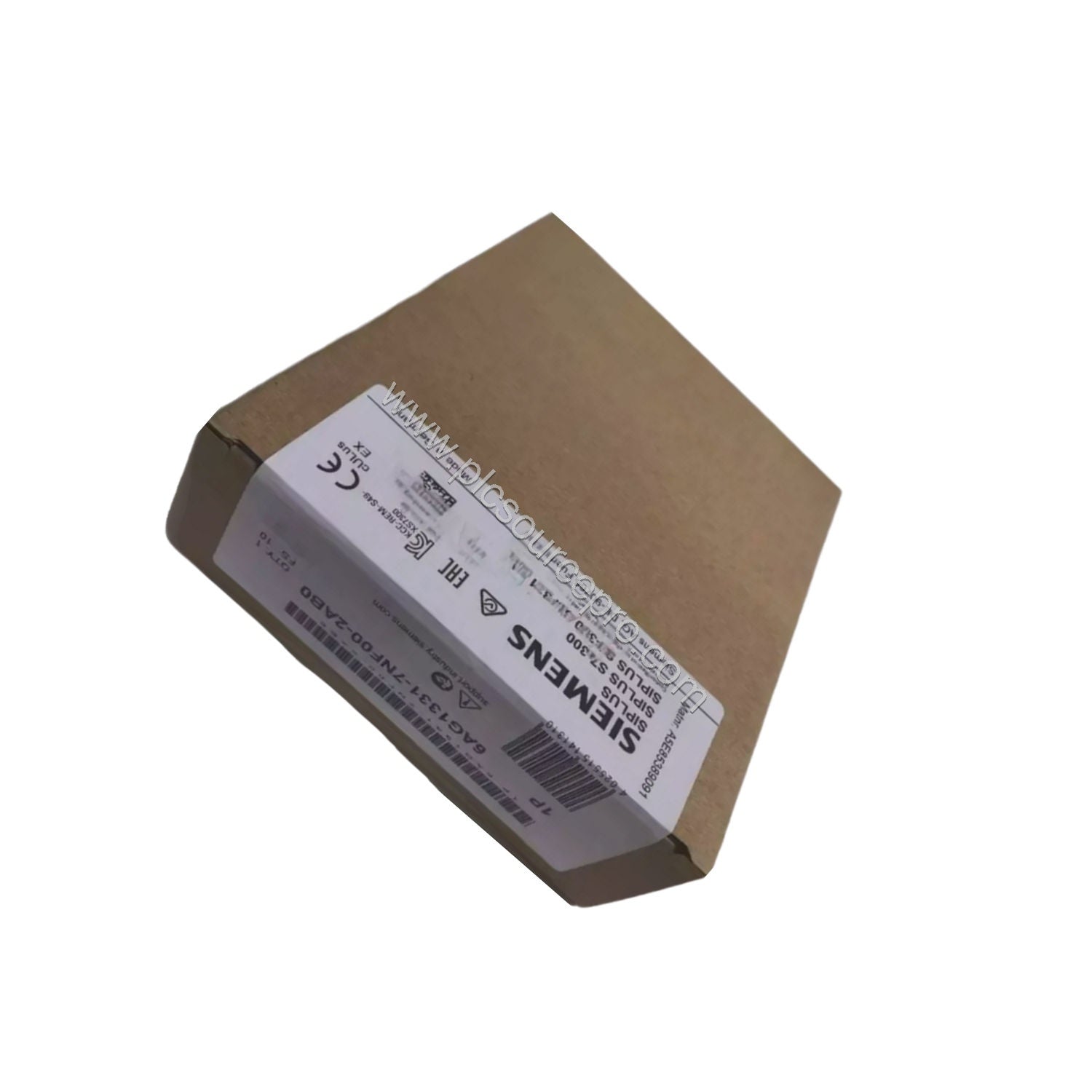

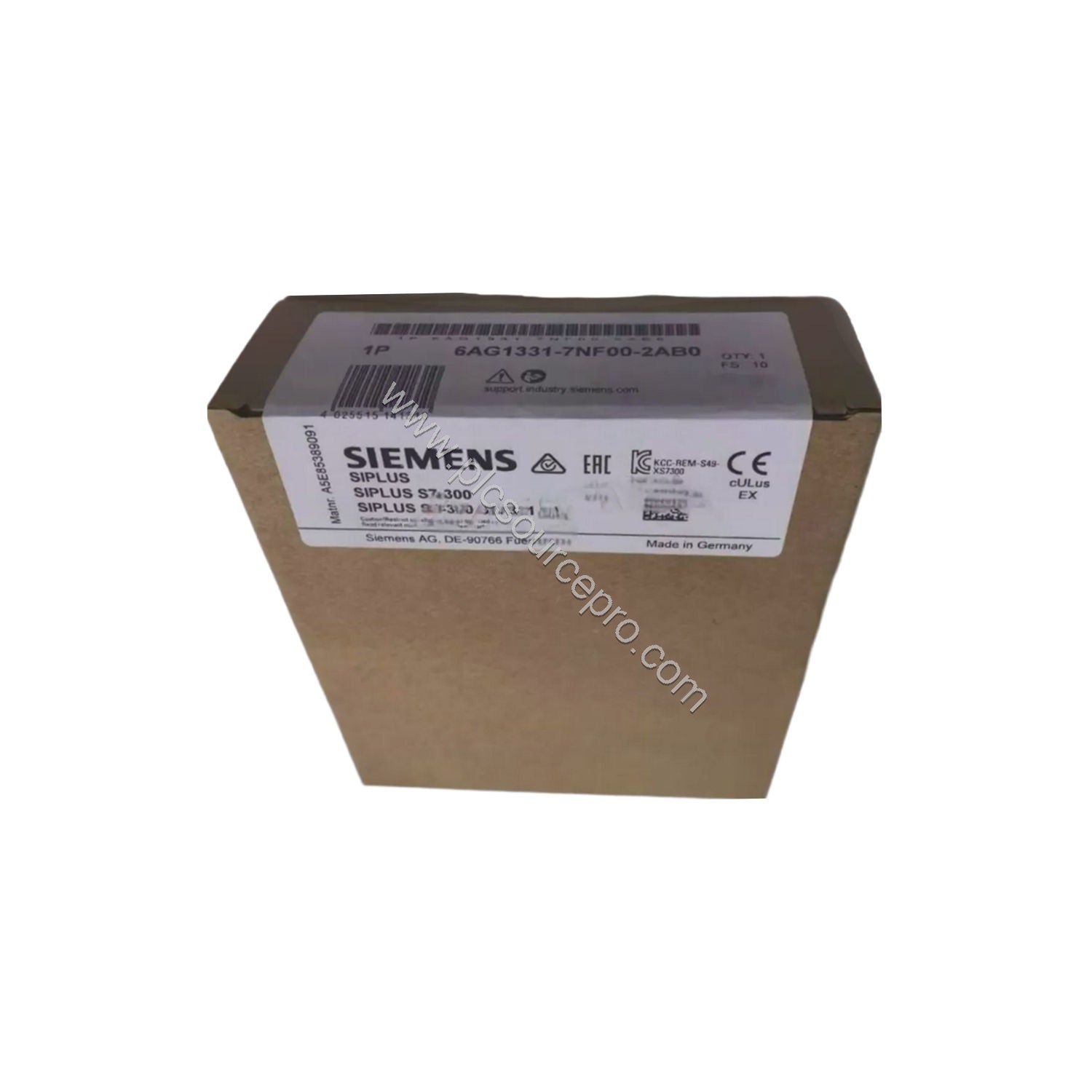

The Siemens 6AG1331-7NF00-2AB0 is a ruggedized SIPLUS S7-300 SM 331 analog input module built for extreme conditions. Based on the standard 6ES7331-7NF00-0AB0, it adds conformal coating and an extended temperature range of -25 to +70°C, making it ideal for railway, marine, and chemical applications. The 6AG1331-7NF00-2AB0 provides eight isolated analog inputs for voltage and current signals with 16-bit resolution.
Key Upgrades Over Standard Model
Replacing the standard 6ES7331-7NF00-0AB0 with the Siemens 6AG1331-7NF00-2AB0 brings significant reliability improvements in harsh environments. Conformal coating protects against moisture, dust, and chemical attack. The module operates reliably from -25°C to +70°C, exceeding the standard range. It meets rigorous railway standards (EN 50155) and carries UL, CE, KC, and EAC approvals.
Technical Specifications
| Parameter |
Value |
| Analog Inputs |
8 |
| Input ranges (voltage) |
1-5V, -10 to +10V, -5 to +5V |
| Input ranges (current) |
0-20mA, -20 to +20mA, 4-20mA |
| Resolution |
16 bit |
| Power loss |
0.6 W |
| Input current from backplane bus |
5 V DC, max. 130 mA |
| Operational error limit (voltage) |
±0.1% @ 0V common mode |
| Operational error limit (current) |
±0.3% @ 0V common mode |
| Isolation |
500 V DC tested |
| Front connector |
40-pin required |
| Dimensions (W×H×D) |
40 mm × 125 mm × 117 mm |
| Weight |
272 g |
Application Scenarios
The Siemens 6AG1331-7NF00-2AB0 excels in demanding environments. Use it in:
-
Railway rolling stock – meets EN 50155 T1 temperature class and supports vibration resistance.
-
Offshore platforms – conformal coating and salt spray resistance (EN 60068-2-52 severity 3) ensure longevity.
-
Chemical processing plants – resistance to Class 3C4 chemically active substances (EN 60721-3-3) prevents corrosion.
Installation & Setup
Mount the Siemens 6AG1331-7NF00-2AB0 on a standard S7-300 DIN rail. You need a 40-pin front connector (not included). Wire analog signals using shielded cables up to 200 m. Connect voltage sources (1-5V, ±10V, ±5V) or current sources (0/4-20mA, ±20mA) with appropriate input resistances (2 MΩ for voltage, 250 Ω for current). Configure integration time (10/16.67/20/100 ms) and diagnostic parameters via STEP 7. Ensure unused interfaces remain covered with the supplied plug covers during operation.
Maintenance & Reliability
The conformal coating on the Siemens 6AG1331-7NF00-2AB0 protects against condensation, fungal growth (Class 3B2), and salt spray. The module includes a red SF (group error) LED for quick diagnostics. Limit value alarms can be set on channels 0 and 2. With a wide operating temperature range and robust construction, this module minimizes downtime in critical processes.
Compatibility & Integration
The 6AG1331-7NF00-2AB0 integrates seamlessly into Siemens S7-300 automation systems. It uses the backplane bus for power and data exchange. It supports diagnostic alarms and limit value alarms. Use it with any S7-300 CPU that accommodates SM 331 modules. Programming and configuration require STEP 7 (TIA Portal or classic).
Selection Guide
Before purchasing the Siemens 6AG1331-7NF00-2AB0, verify your system requires analog input isolated modules with 40-pin connector. For standard environments, consider the 6ES7331-7NF00-0AB0. For harsh environments, this SIPLUS version is the right choice. For reliable supply, contact PLC Source PRO via ubest101.myshopify.com.
