Product Overview

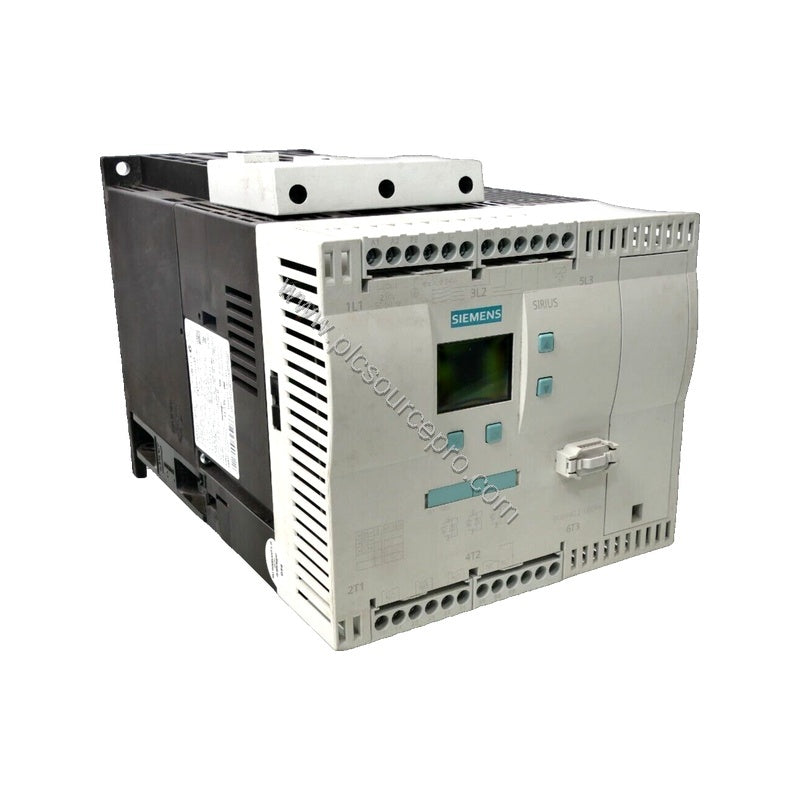

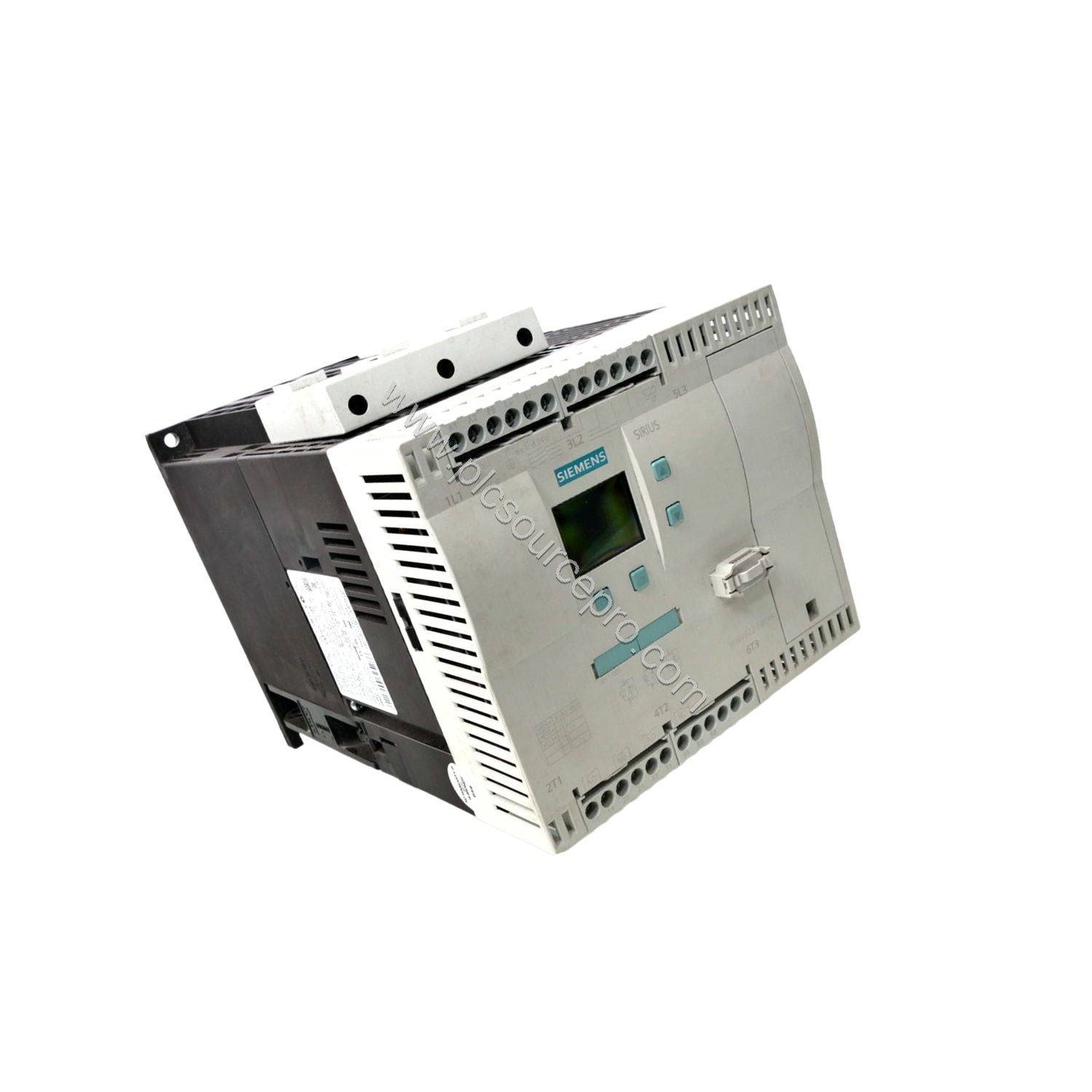

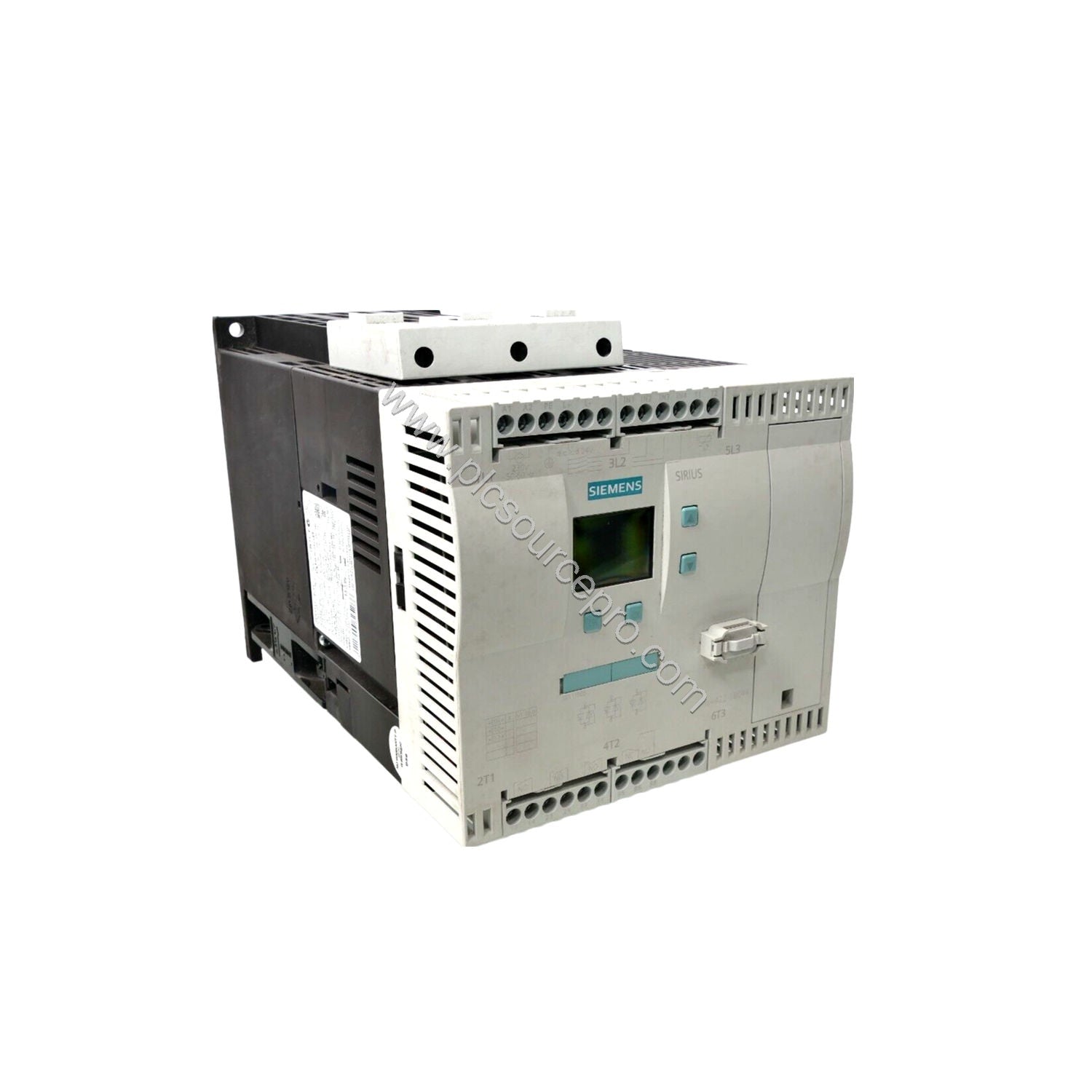

When industrial motors start, high inrush current can damage equipment and waste energy. The Siemens 3RW4454-6BC44 SIRIUS Soft Starter provides controlled acceleration, reducing mechanical stress and electrical surges. This Industrial Automation Module is designed for high-feature applications, integrating bridging contactors and thyristors for reliable operation.
Technical Specifications Breakdown
The Siemens 3RW4454-6BC44 offers robust performance parameters:
- Operating current at 40°C: 615 A (standard), 1065 A (inside-delta)
- Rated power: 355 kW at 400 V (standard), 630 kW at 400 V (inside-delta)
- Control supply voltage: 230 V AC at 50/60 Hz
- Dimensions: 510 x 640 x 290 mm (WxHxD)
- Protection class: IP00
These specs enable the 3RW4454-6BC44 to handle heavy-duty motors while maintaining efficiency.
Industry Applications
This soft starter excels in demanding environments such as conveyors, pumps, and compressors. For example, in a mining conveyor system, the 3RW4454-6BC44 reduces startup torque, preventing belt damage and extending motor life. The inside-delta configuration doubles current capacity for larger loads.
Installation & Setup Guidance
Mount the Siemens 3RW4454-6BC44 using screw fixing on a vertical surface. Maintain 100 mm clearance above, 5 mm sidewards, and 75 mm below for airflow. Use busbar connections for main current and screw terminals for control circuits. Ensure ambient temperature does not exceed 60°C during operation.
Maintenance & Reliability
The integrated diagnostics display fault signals, simplifying troubleshooting. With built-in motor overload protection and thermal resistor evaluation, the 3RW4454-6BC44 minimizes unplanned downtime. Regular inspection of connections and cooling paths ensures long service life.
Selection Guide & Purchasing Advice
Verify your motor's rated power and voltage. The 3RW4454-6BC44 suits 200-460 V AC systems. For inside-delta wiring, it delivers 1065 A. Contact PLC Source PRO (ubest101) for expert support in selecting the right soft starter for your application.
