Product Introduction

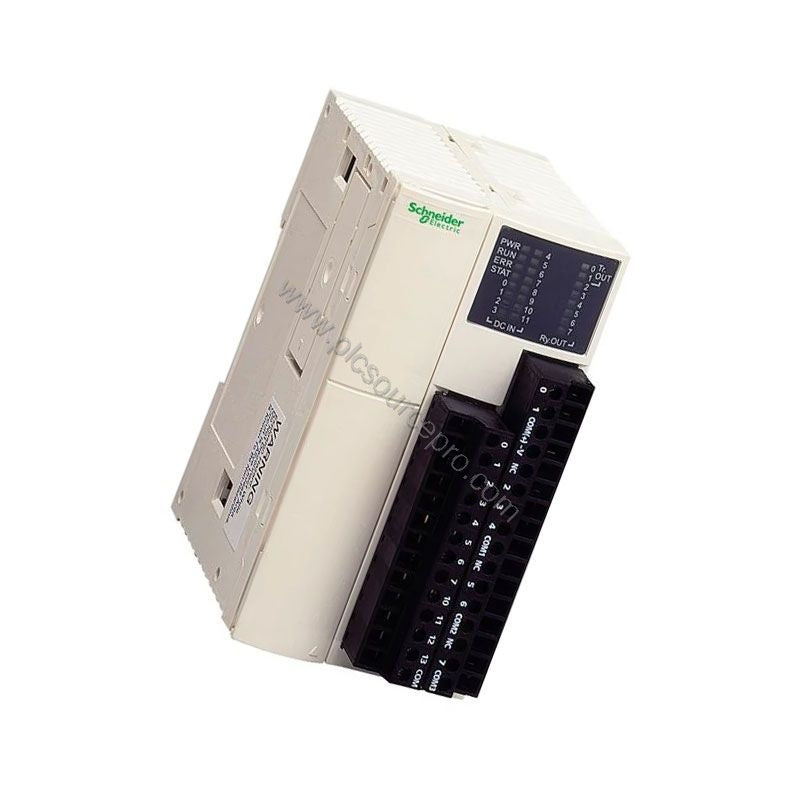

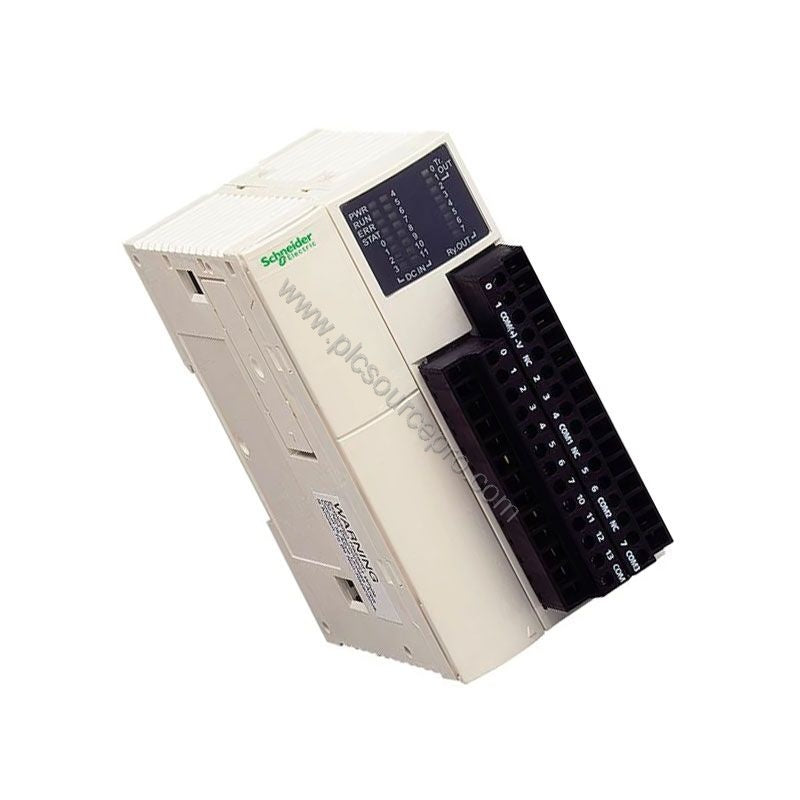

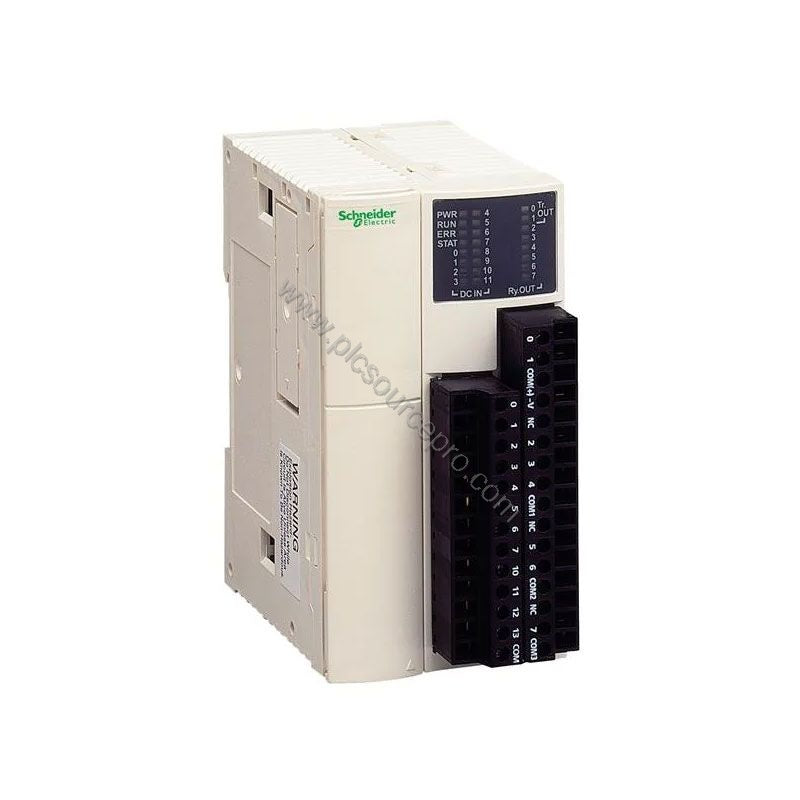

With 20 discrete I/O and 24 V DC operation, the Schneider TWDLMDA20DRT modular base controller delivers reliable performance in compact automation systems. Part of the Twido series, this extendable PLC base offers 12 inputs and 8 outputs (6 relay, 2 transistor) for flexible machine control.
Technical Specifications Breakdown
The Schneider TWDLMDA20DRT integrates key specifications that enhance its utility:
-
I/O Configuration: 12 sink/source inputs at 24 V DC and 8 outputs (6 relay at 2 A, 2 transistor at 0.36 A).
-
Power Supply: Rated 24 V DC with limits of 20.4…26.4 V, ensuring stable operation under voltage fluctuations.
-
Memory: 3000 instructions standard, expandable to 6000 using a 64 K memory cartridge, plus 128 timers and counters.
-
Communication: Non-isolated serial link (RS485) supporting Modbus RTU/ASCII at 38.4 kbit/s for seamless integration.
-
Counting Inputs: 2 channels at 5000 Hz (16 bits) and 2 channels at 20000 Hz (32 bits) for high-speed counting.
Real-World Applications
The Schneider TWDLMDA20DRT excels in small machine automation, packaging lines, and conveyor control. Its expandable architecture (up to 7 modules) allows scaling without replacing the base, reducing total cost of ownership. For example, in a packaging system, the 20 I/O handle sensors and actuators, while the Modbus link connects to a central HMI for monitoring.
Compatibility & Integration
This controller integrates via a built-in Modbus serial link, enabling connection to SCADA systems, HMIs, and other PLCs. It supports up to 244 I/O points when expanded with compatible Twido modules. The free slots accept memory cartridges or a real-time clock, enhancing functionality for time-stamped data logging.
Maintenance & Reliability
The Schneider TWDLMDA20DRT is built for long service life. Relay outputs offer electrical durability of ≥100,000 cycles and mechanical durability of ≥20,000,000 cycles. Operating temperature range (0…55 °C) and vibration resistance (up to 4 gn) ensure reliable operation in industrial environments. Power protection via internal fuse prevents damage from surges. These features minimize downtime and lower maintenance costs.
Selection Guide & Purchasing Advice
Before purchasing, verify your system’s supply voltage (24 V DC, 20.4…26.4 V) and I/O count. The base unit accepts up to 7 expansion modules; consider adding a memory cartridge for larger programs. For genuine Schneider TWDLMDA20DRT modules and fast delivery, visit UBEST Automation at ubest101.myshopify.com.
