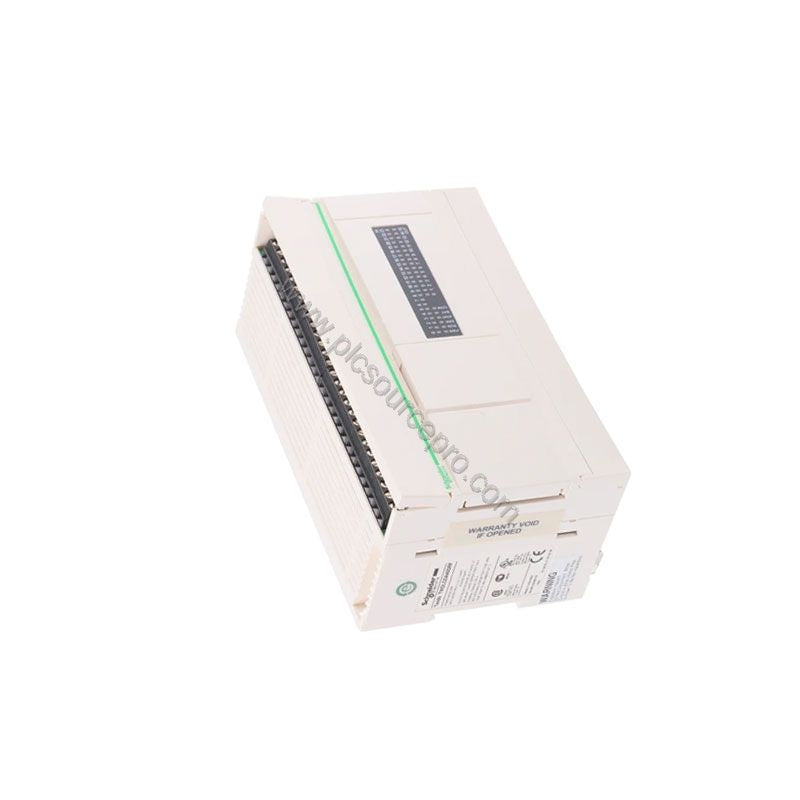

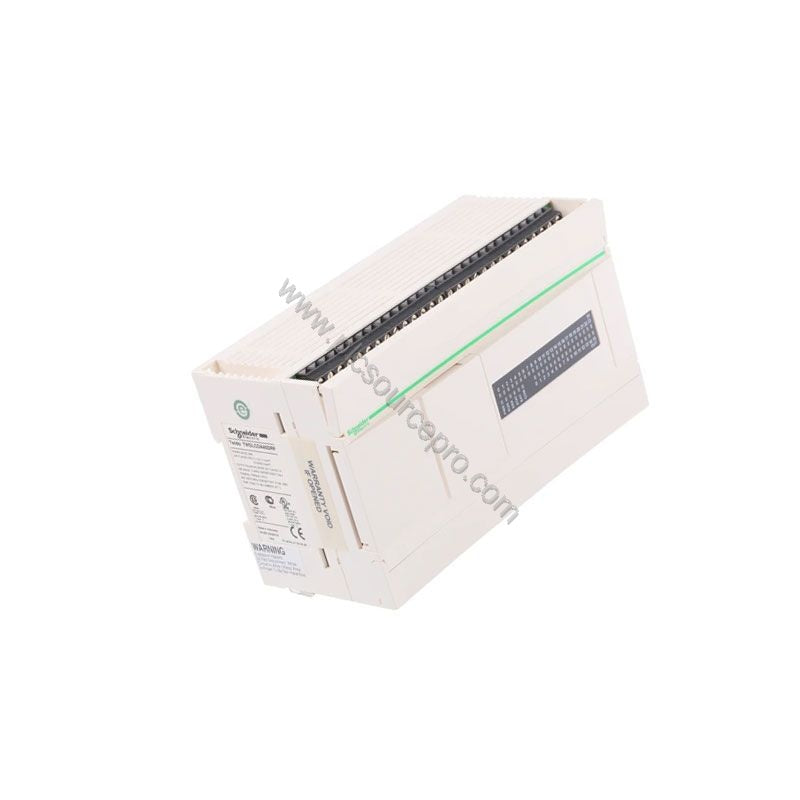

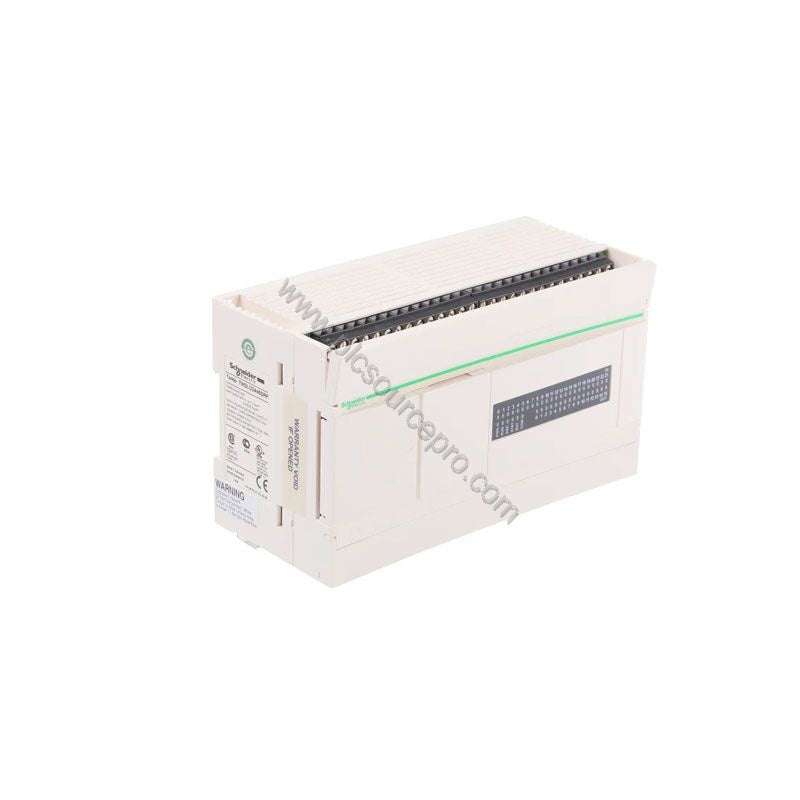

Overview of the Schneider TWDLCDA40DRF Compact Base Controller
The Schneider TWDLCDA40DRF is a compact base controller from the Twido family, designed for demanding industrial automation tasks. With 40 discrete I/O points (24 inputs, 16 outputs), it offers a balanced mix of digital control and relay outputs, making it ideal for applications requiring both sensing and switching. This controller operates on a 24 V DC supply and includes features like event processing, PID control, and a real-time clock with battery backup, ensuring reliable performance even during power interruptions.
Technical Specifications and Performance Metrics
The TWDLCDA40DRF comes with a comprehensive set of specifications that guarantee stable operation in various environments:
-
Power Supply: Rated 24 V DC with limits 20.4…28.8 V, inrush current ≤35 A, power consumption ≤17.2 W
-
Inputs: 24 discrete DC inputs, sink or source logic, voltage limits 20.4…26.4 V, with multiple current ranges (7 mA, 11 mA) and filter times
-
Outputs: 2 transistor outputs and 14 relay outputs, each capable of 2 A at 30 V DC or 240 V AC, with mechanical durability ≥20,000,000 cycles and electrical durability ≥100,000 cycles
-
Memory & Processing: 3000 instructions program memory, 1 ms per 1K instruction, 0.5 ms system overhead, with internal RAM for floating point and trigonometric functions
-
Communication: Non-isolated serial link (mini DIN) supporting Modbus/character mode master/slave RTU/ASCII (RS485) half duplex, up to 38.4 kbit/s
-
Environmental: Operating temperature 0…55 °C, storage -25…70 °C, IP20 protection, vibration and shock resistance per IEC standards
These parameters make the Schneider TWDLCDA40DRF a robust choice for continuous operation in industrial settings.
Real-World Applications and Use Cases
The TWDLCDA40DRF excels in automation projects where space is limited but performance is critical. Typical applications include:
-
Packaging Machinery: The 14 relay outputs can directly drive small motors or solenoid valves, while the PID functionality enables precise temperature control in heat sealing stations.
-
Conveyor Systems: With 24 inputs and event processing, the controller can handle multiple sensor feedback lines and trigger corrective actions within milliseconds.
-
Water Treatment: The Modbus RTU interface allows seamless integration with SCADA systems, and the battery-backed RAM retains process data during outages, reducing downtime.
In each scenario, the long battery life (10 years) and 30-day data retention ensure continuity, directly reducing operational costs over the product lifecycle.
Compatibility and Integration Options
The Schneider TWDLCDA40DRF offers flexible integration with existing automation architectures. Its non-isolated RS485 serial link supports Modbus RTU/ASCII, making it compatible with most programmable controllers, HMIs, and drives. You can expand I/O up to 264 points using HE-10 connectors or spring terminal blocks. The controller also accepts a memory cartridge for additional storage. For advanced control, the PID function and event processing allow standalone operation or as part of a distributed control system.
Selection Guide and Purchasing Advice
Before purchasing the Schneider TWDLCDA40DRF, verify that your application requires a 24 V DC supply and that the environmental conditions (0…55 °C, <95% humidity) are met. Ensure you have the necessary serial interface adapter for RS232C if connecting to older equipment. For reliable sourcing, UBEST Automation (available at ubest101) stocks this controller along with compatible expansion modules and accessories. Always confirm the exact part number TWDLCDA40DRF when ordering to avoid compatibility issues.
