Product Introduction

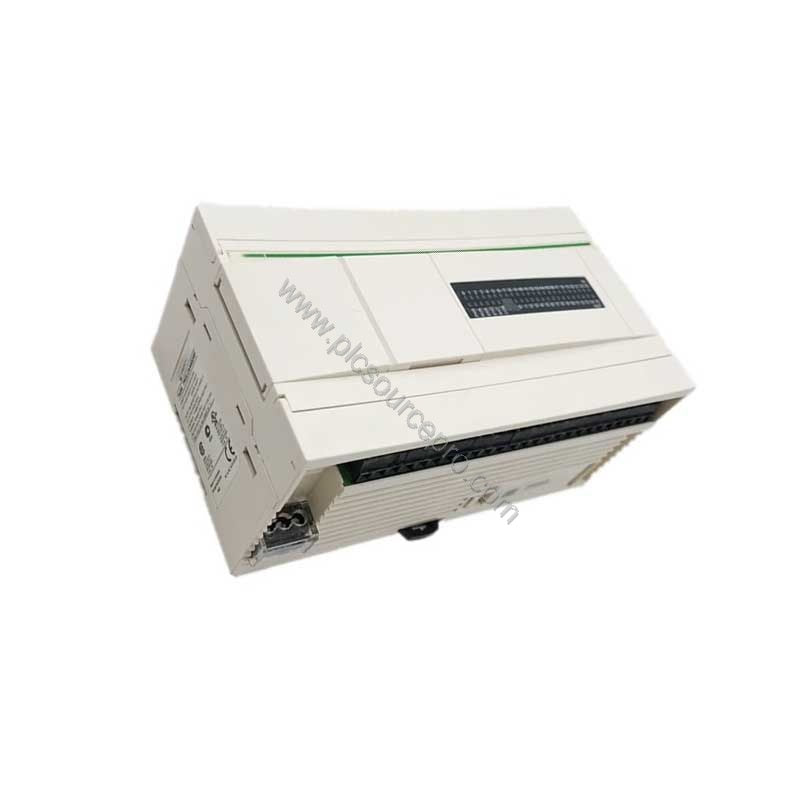

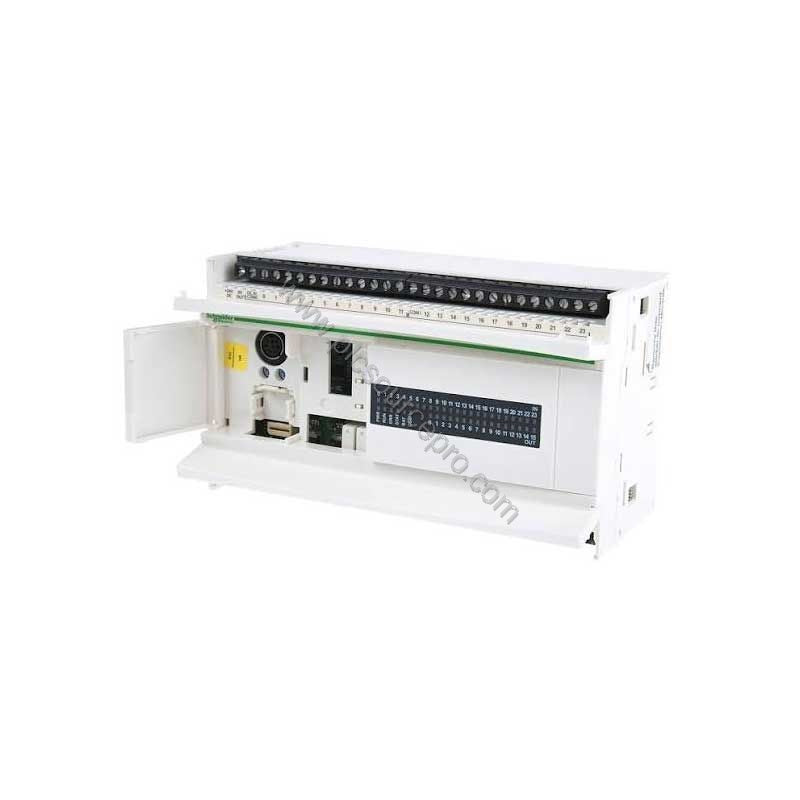

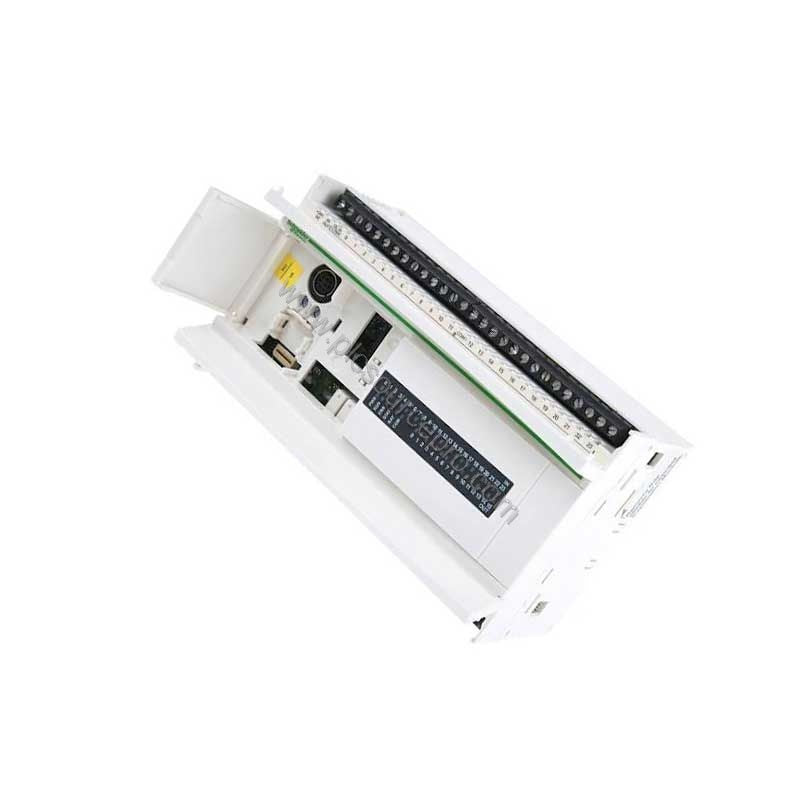

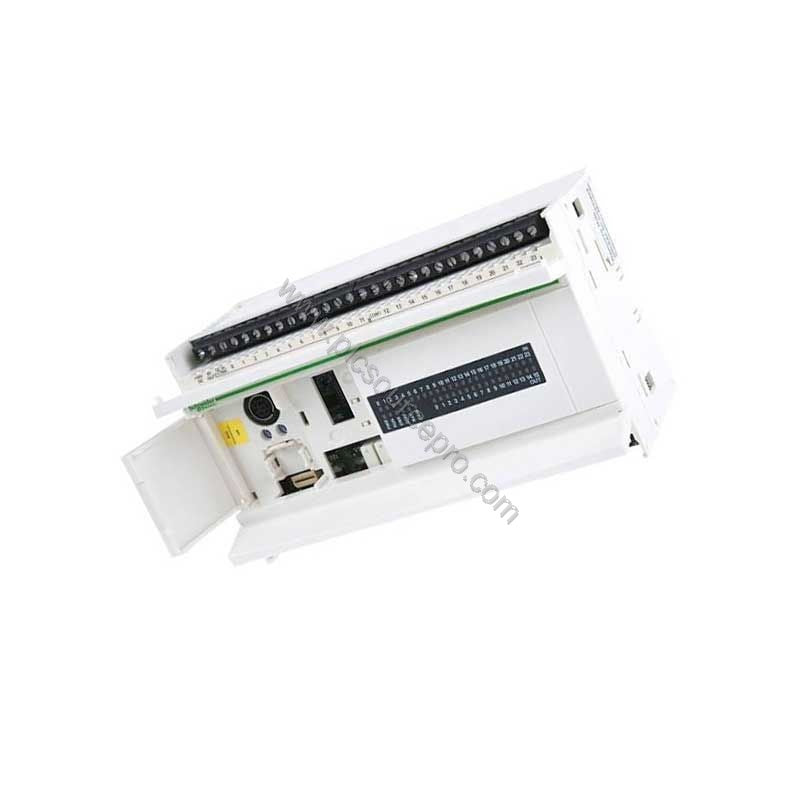

The Schneider TWDLCAA40DRF Compact Base Controller delivers a robust, all-in-one solution for small to medium-scale industrial automation. Part of the Twido family, it combines 40 discrete I/O points, a built-in power supply, and versatile communication interfaces in a compact form factor. This controller is engineered to simplify control system design while providing reliable performance and flexibility for diverse applications.
Technical Specifications Breakdown
The Schneider TWDLCAA40DRF offers a comprehensive set of specifications that ensure it meets demanding control requirements. Below is a detailed breakdown of its key parameters:
| Parameter |
Value |
| Discrete I/O Number |
40 |
| Discrete Inputs |
24 at 24 V DC, sink or source logic |
| Discrete Outputs |
14 relay + 2 transistor |
| Rated Supply Voltage |
100…240 V AC |
| Program Memory |
3000 instructions |
| Max I/O Expansion Modules |
7 |
| Communication |
Modbus master/slave (RS485), serial link |
| Power Consumption |
65 VA at 100 V, 77 VA at 264 V |
| Dimensions (L x W x H) |
7 cm x 9 cm x 9.5 cm |
| Weight |
0.525 kg |
The controller’s real-time clock and 30-day backup (via external battery) ensure data retention during power loss. With up to 264 total I/O points when expanded, the TWDLCAA40DRF scales to match growing system needs.
Industry Applications
The Schneider TWDLCAA40DRF excels in applications requiring reliable discrete control with moderate I/O count. Typical use cases include:
-
Packaging Machinery: Manage conveyor sequencing and product handling with 24 DC inputs and relay outputs for actuator control.
-
Material Handling Systems: Coordinate sorting and routing with integrated PID for speed regulation and event-driven logic.
-
Building Automation: Control lighting, HVAC dampers, and security interlocks using the built-in real-time clock for scheduled operations.
These applications benefit from the controller’s low power consumption and wide voltage range (85…264 V), reducing installation complexity and operational costs.
Compatibility & Integration
The Schneider TWDLCAA40DRF integrates seamlessly into existing Twido systems and supports Modbus RTU/ASCII communication via its isolated serial link (RS485). It can act as master or slave, enabling connection to HMI panels, drives, and remote I/O. The controller also features a memory cartridge slot for program backup and a mini DIN serial interface for programming. With up to 7 expansion modules, it accommodates additional discrete or analog I/O from the Twido range.
Selection Guide & Purchasing Advice
