Product Introduction

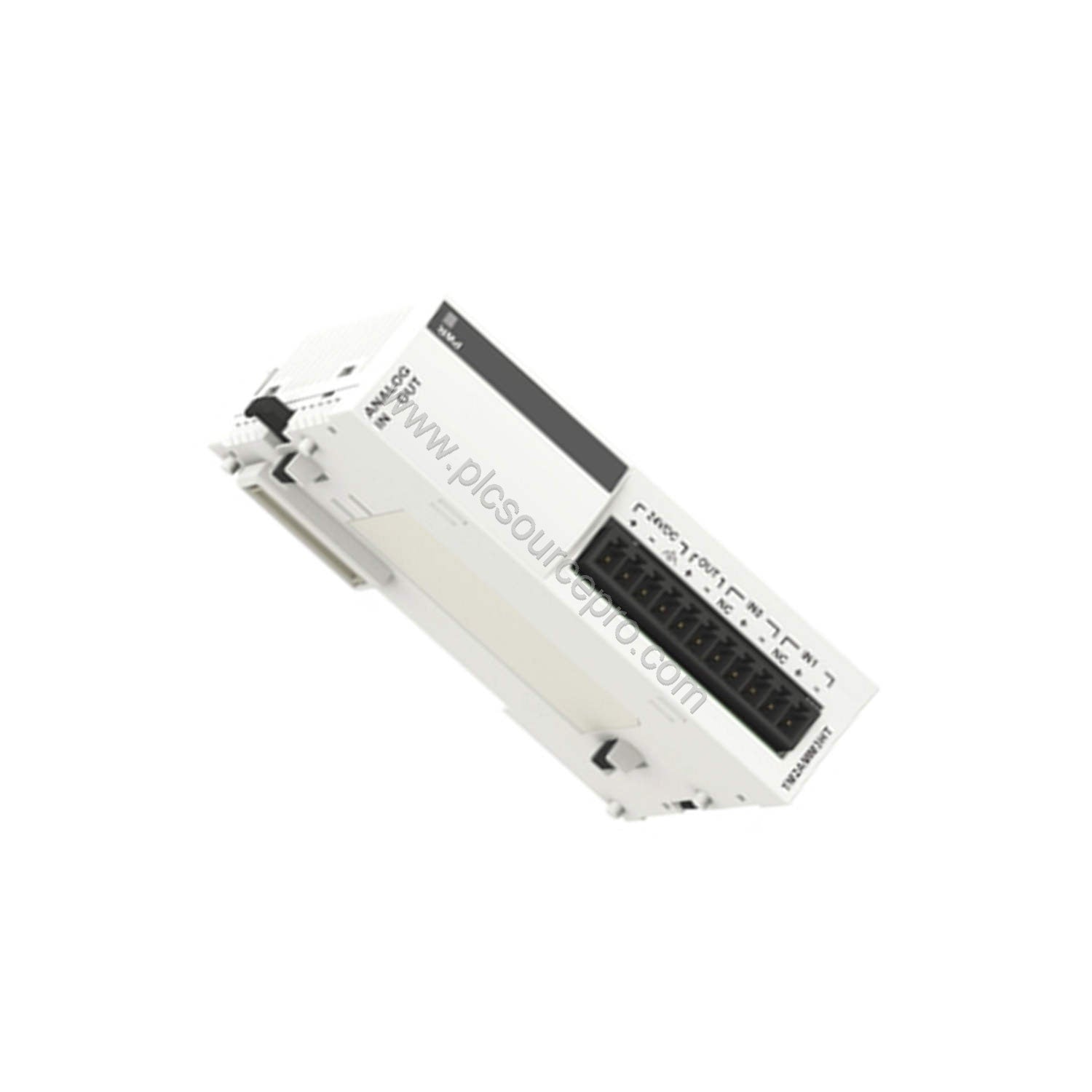

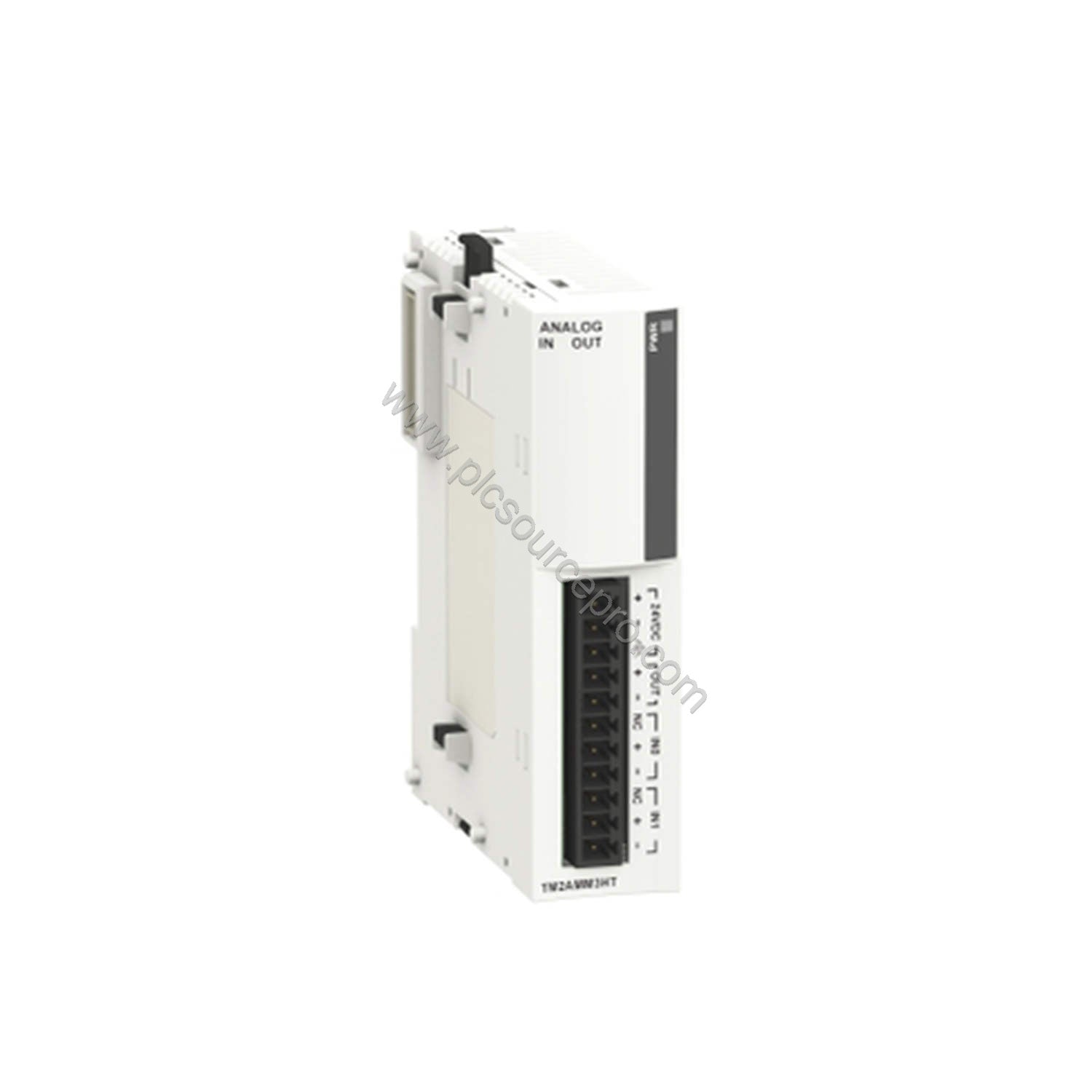

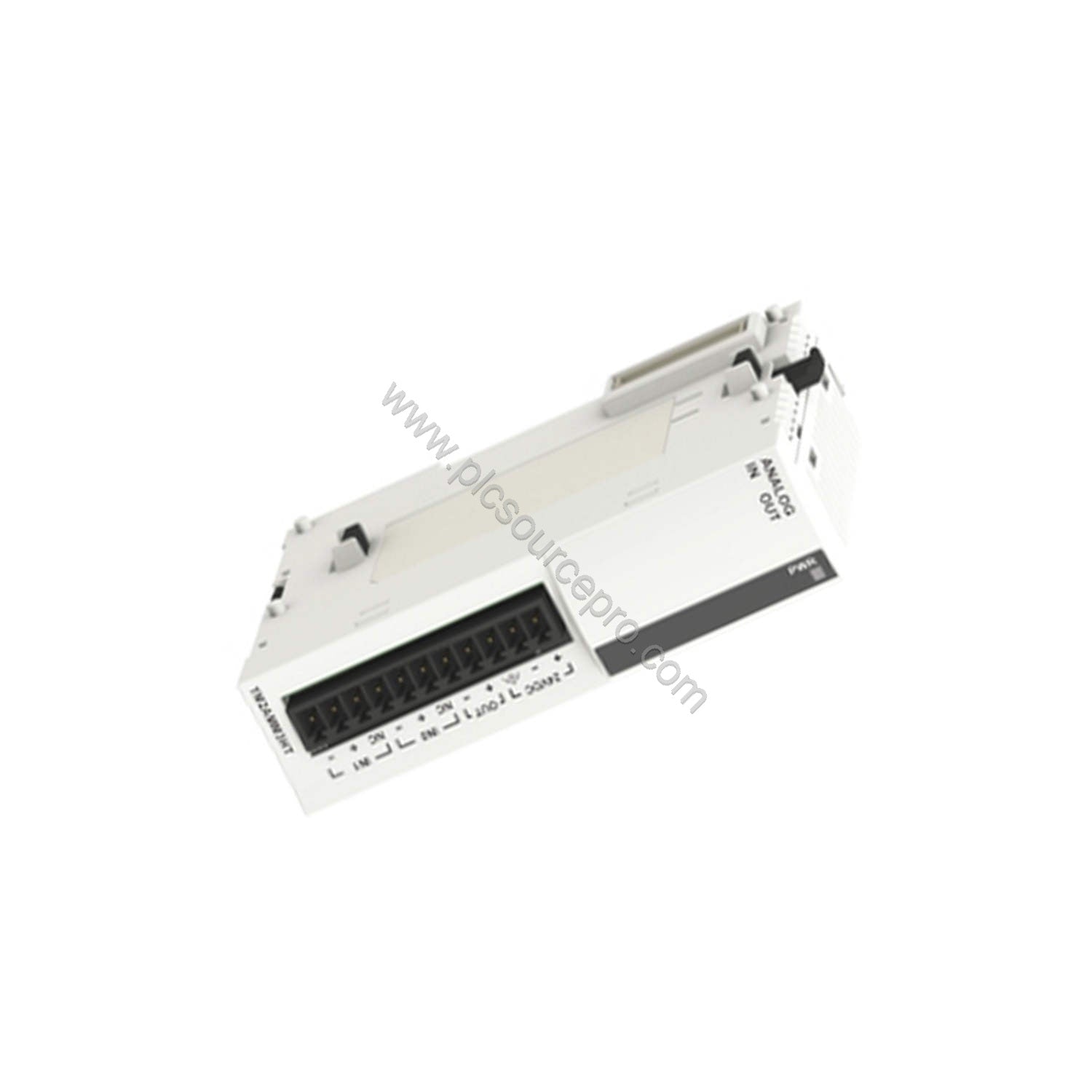

When you need to expand the analog I/O capabilities of your Schneider Twido PLC system, the Schneider TWDAMM3HT provides a reliable solution. This analog input/output module delivers 2 inputs and 1 output with 12-bit resolution, supporting 0-10V and 4-20mA signals. Designed as a screw terminal block (removable), it simplifies wiring and maintenance. Weighing only 0.41 lbs, the TWDAMM3HT is an ideal upgrade or replacement part for existing Twido base units.
Technical Specifications
| Parameter |
Value |
| Model |
TWDAMM3HT |
| Type |
Analog Input/Output |
| Inputs |
2 |
| Output |
1 |
| Resolution |
12 bits |
| Signal Range |
0-10V / 4-20mA |
| Connection |
Screw Terminal Block (Removable) |
| Weight |
0.41 lbs |
Industry Applications
The TWDAMM3HT excels in applications requiring precise analog signal processing. For example, in process control environments, you can connect temperature sensors or pressure transducers to the 2 inputs and use the output to drive analog actuators. In manufacturing lines, the module enables seamless integration of analog sensors for monitoring and control. When upgrading from older discrete modules, the TWDAMM3HT provides a straightforward path to higher precision.
Compatibility & Integration
The Schneider TWDAMM3HT is specifically designed for the Twido series. It connects directly to a Twido base unit, expanding its I/O count with 2 analog inputs and 1 analog output. The screw terminal block allows secure connections for field wiring. Ensure your base unit model supports analog expansion. The TWDAMM3HT integrates without complex configuration, making it a simple drop-in solution.
Troubleshooting & Common Issues
When replacing a faulty analog module, verify that the screw terminals are tightly secured to avoid intermittent signals. If the module does not respond, check the base unit's power supply and ensure the TWDAMM3HT is properly seated. For signal issues, confirm that the input/output ranges (0-10V or 4-20mA) match your sensor specifications. The module's compact design facilitates easy diagnostics.
Selection Guide & Purchasing Advice
Before purchasing the TWDAMM3HT, confirm that your Twido base unit supports this analog module. Review the number of required analog channels and resolution needs. The screw terminal block is removable, so you can pre-wire a replacement. For a reliable supply of genuine Schneider parts, including the TWDAMM3HT, consider UBEST Automation (ubest101). We stock this module and other Twido accessories.
