Product Introduction

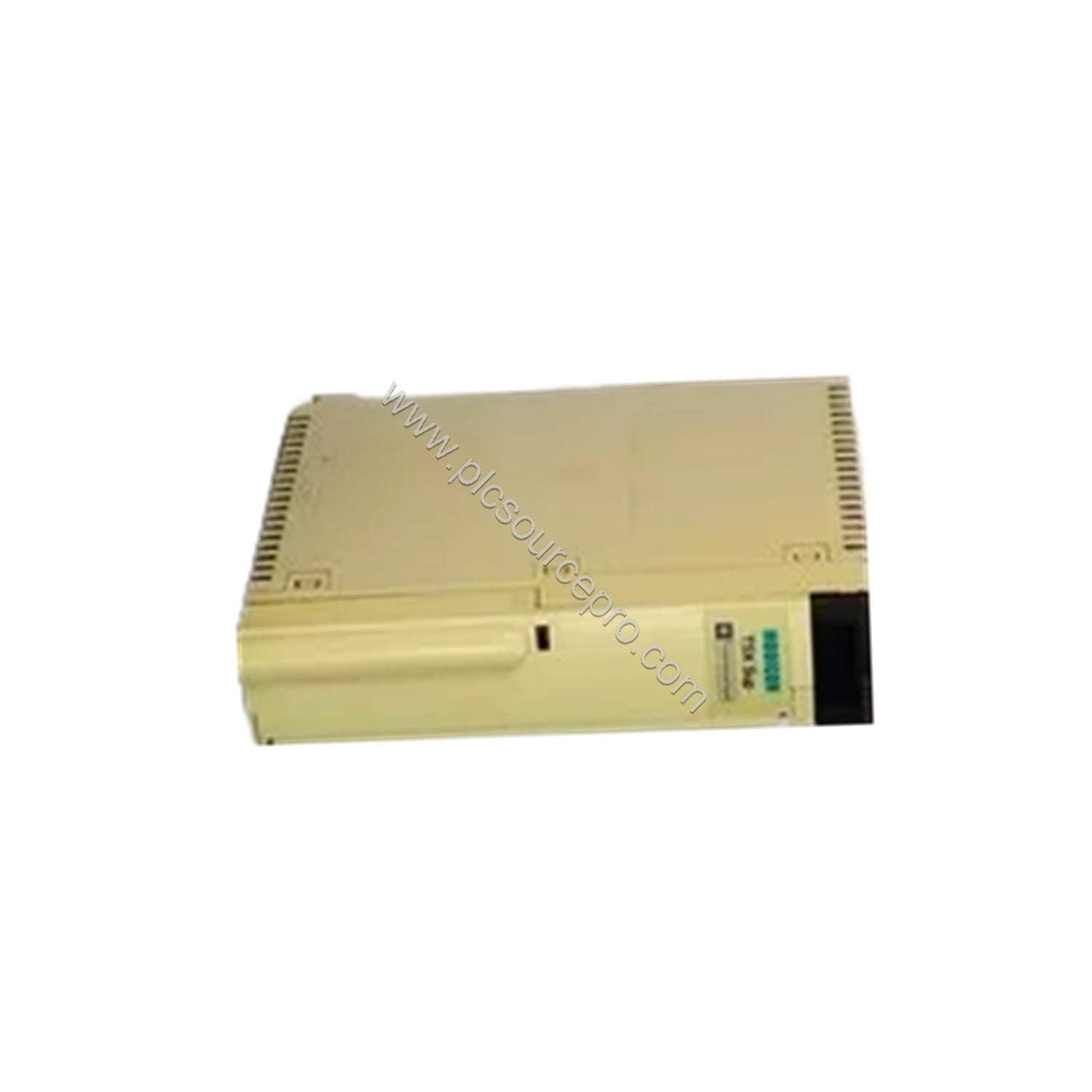

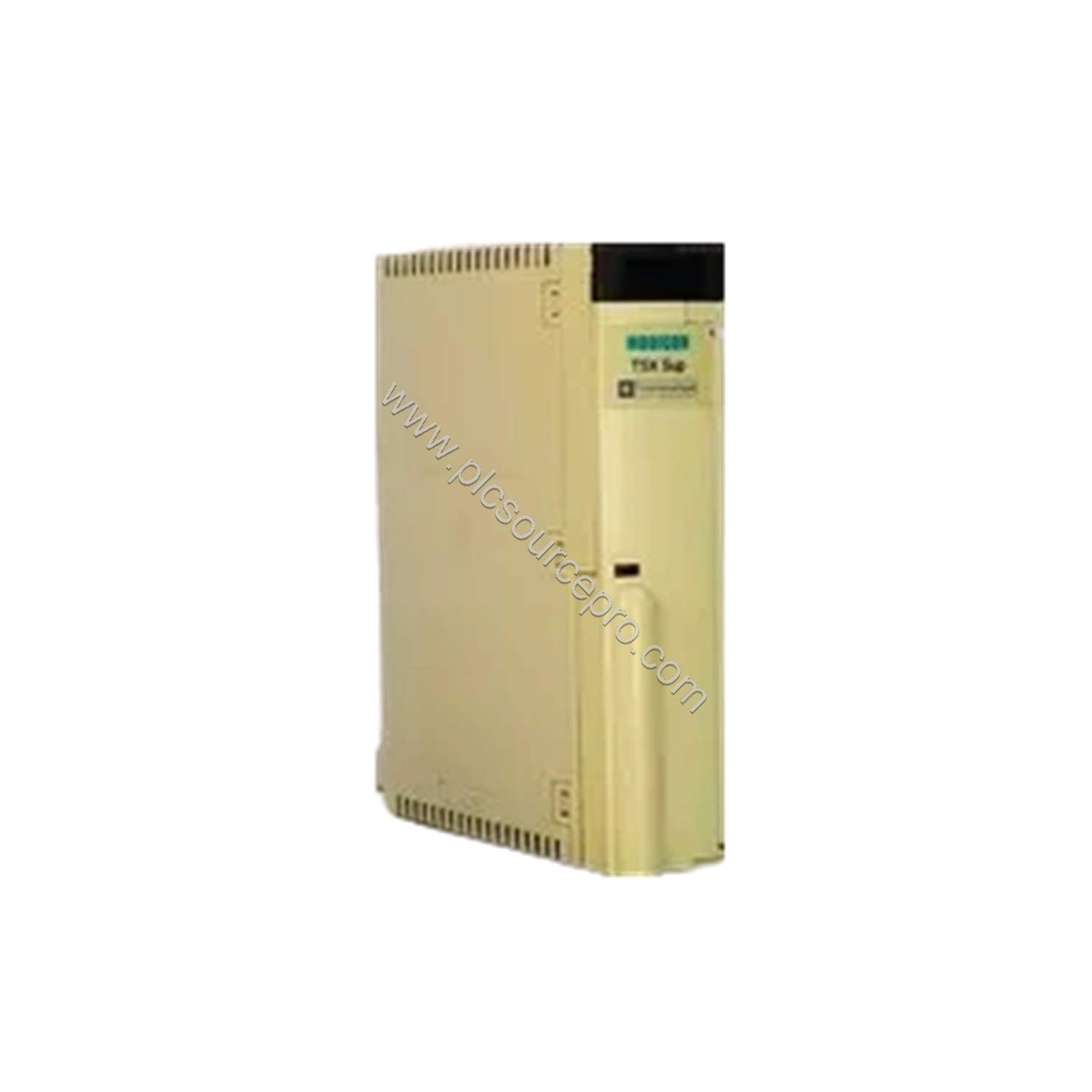

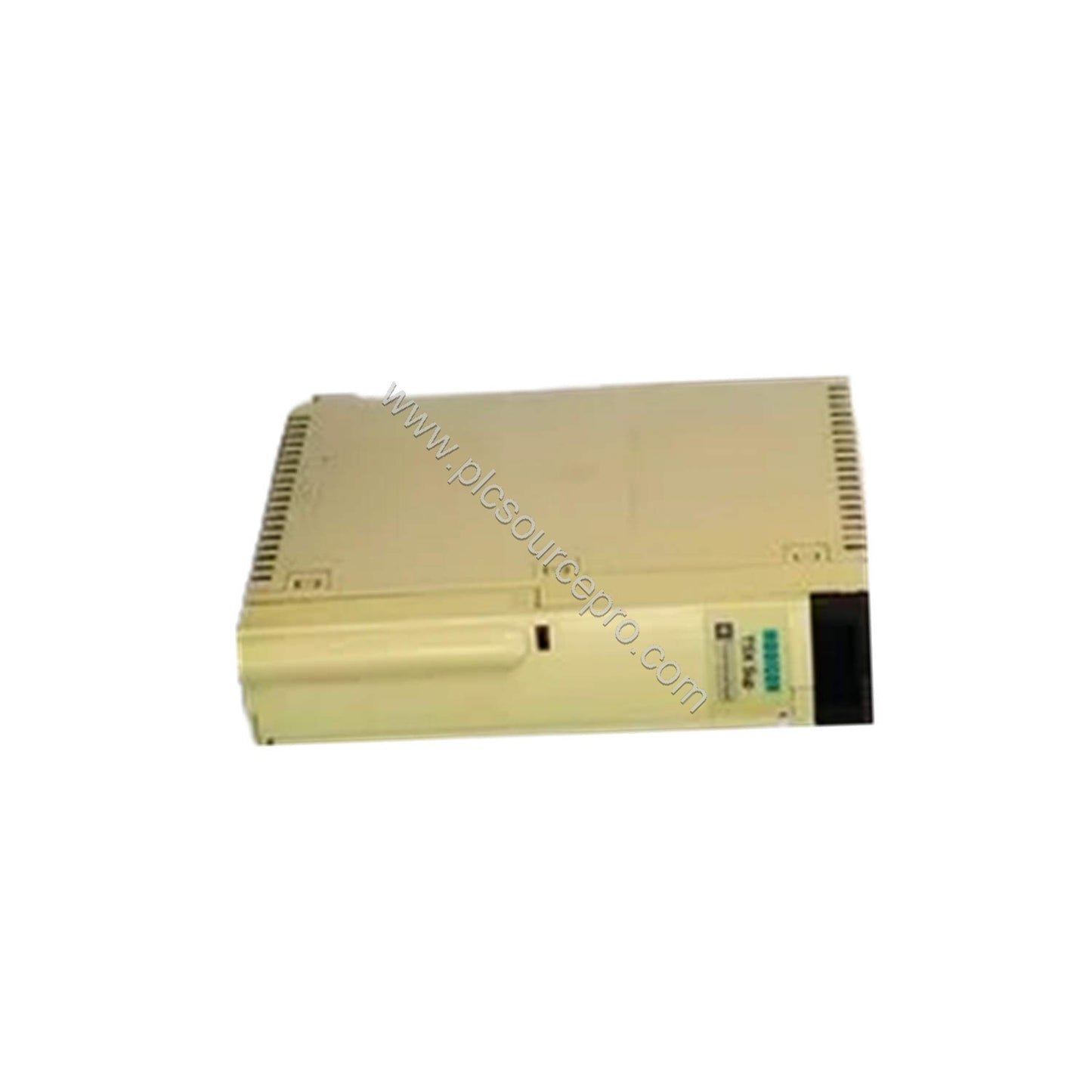

When power supply failures cause production downtime, the Schneider TSXSUP1011 provides robust protection. This power supply from Schneider (model TSXSUP1011) is designed for TSX Micro PLCs, delivering reliable 24 V DC output with integrated overload and short-circuit protection.
Technical Specifications Breakdown
Key specifications of the Schneider TSXSUP1011 include:
- Input Voltage: 24 V AC/DC
- Output Voltage: 24 V DC
- Output Current: 1 A
- Frequency Range: 50/60 Hz (AC input)
- Protection: Overload & short-circuit
- Operating Temperature: 0 to 60°C
- Storage Temperature: -25 to 85°C
- Mounting: DIN rail
- Weight: 1.88 lbs (0.85 kg)
- Power Type: Linear/regulated
- Configuration: Standalone

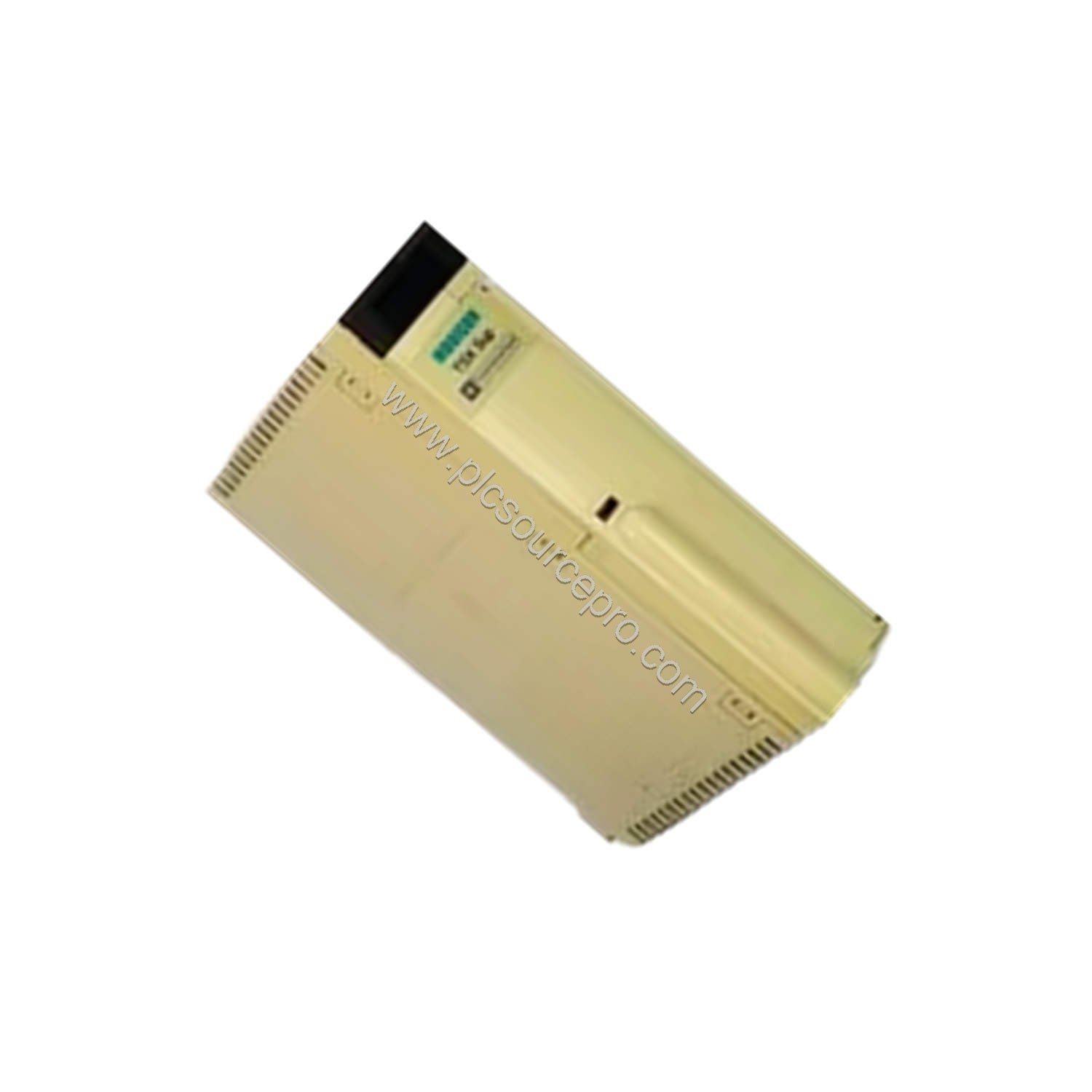

- LED Indicator: Power status
- Housing: Enclosed
- Marking: CE
The linear/regulated design ensures stable output, while the CE marking confirms compliance with European standards.
Real-World Applications
In industrial environments such as manufacturing lines and process control systems, the Schneider TSXSUP1011 powers TSX Micro PLCs reliably. Its wide operating temperature range (0 to 60°C) suits factory floors, and the overload protection prevents damage from fluctuating loads.
Installation & Setup Guidance
Mount the Schneider TSXSUP1011 on a DIN rail in a clean, dry enclosure. Connect input power (24 V AC/DC) ensuring correct polarity for DC. The output connects to the PLC power terminals. The LED indicator confirms power status. No special tools required.
Maintenance & Reliability
Regularly inspect the enclosure for dust accumulation. The overload and short-circuit protection reduce failure risks. With proper ventilation, the TSXSUP1011 can operate for years without maintenance. The CE certification ensures quality.
Selection Guide & Purchasing Advice
Before purchasing a Schneider TSXSUP1011, verify your system's voltage requirements. This model is compatible with TSX Micro PLCs. For reliable supply, order from PLC Source PRO (formerly ubest101) – your trusted source for industrial automation spares.
