Product Introduction

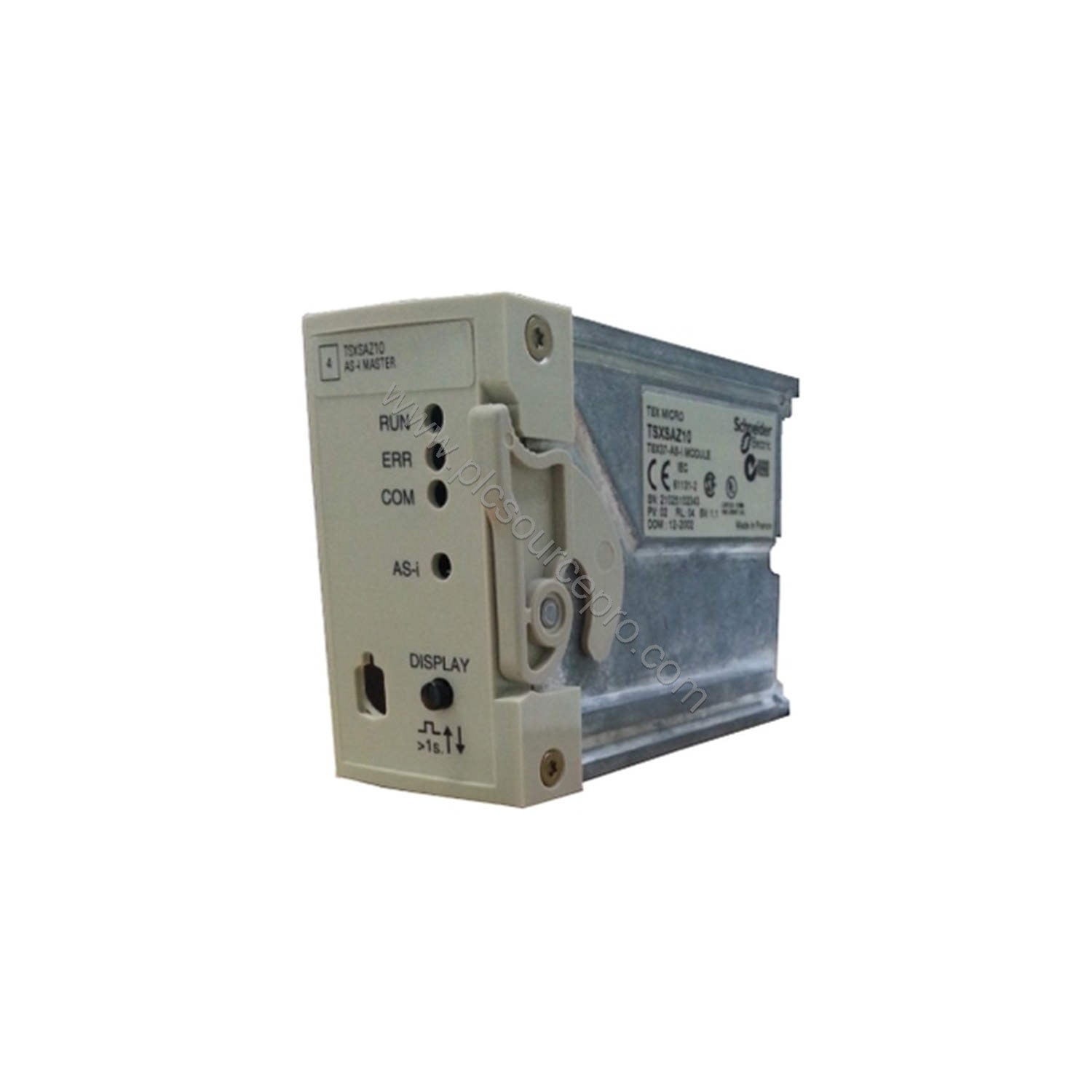

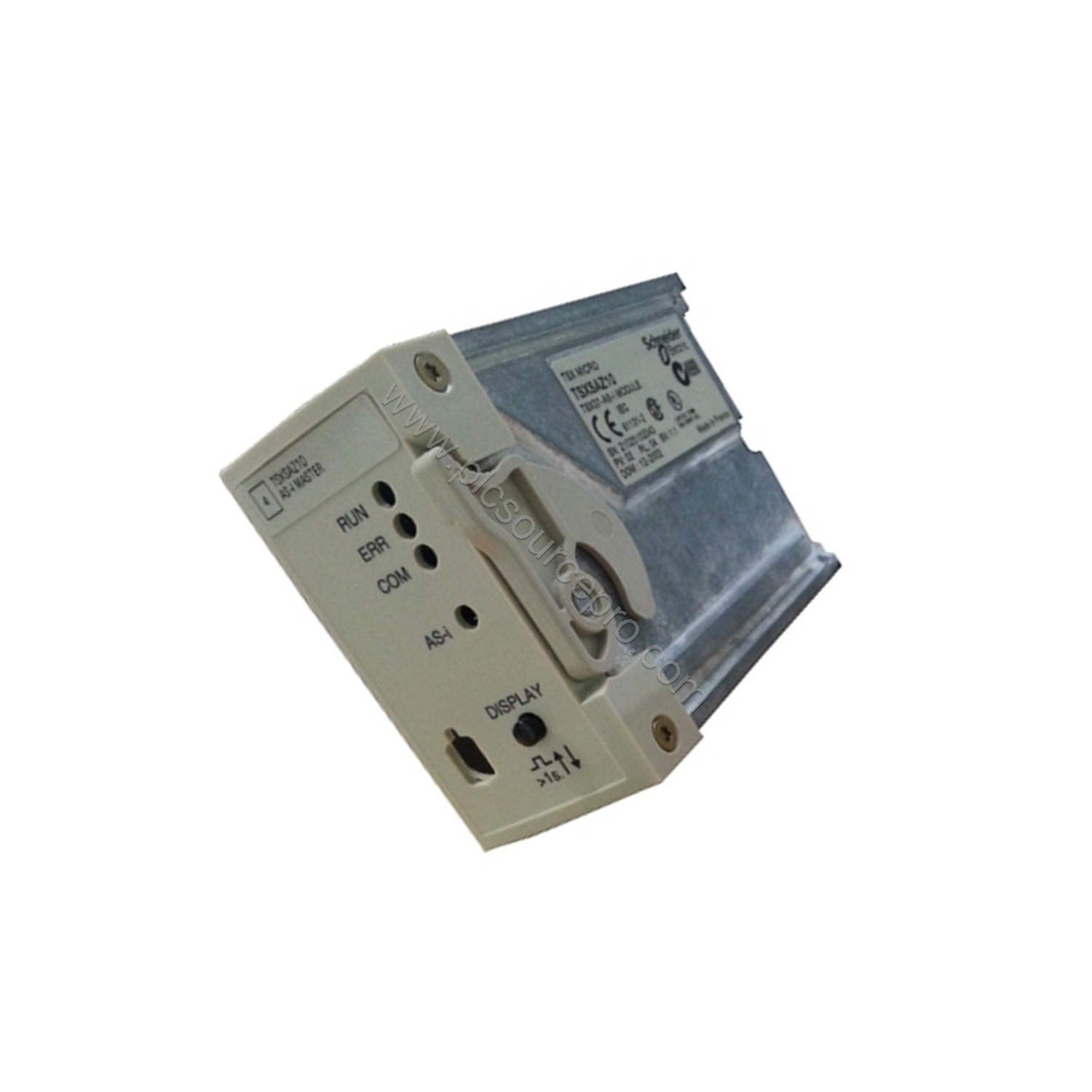

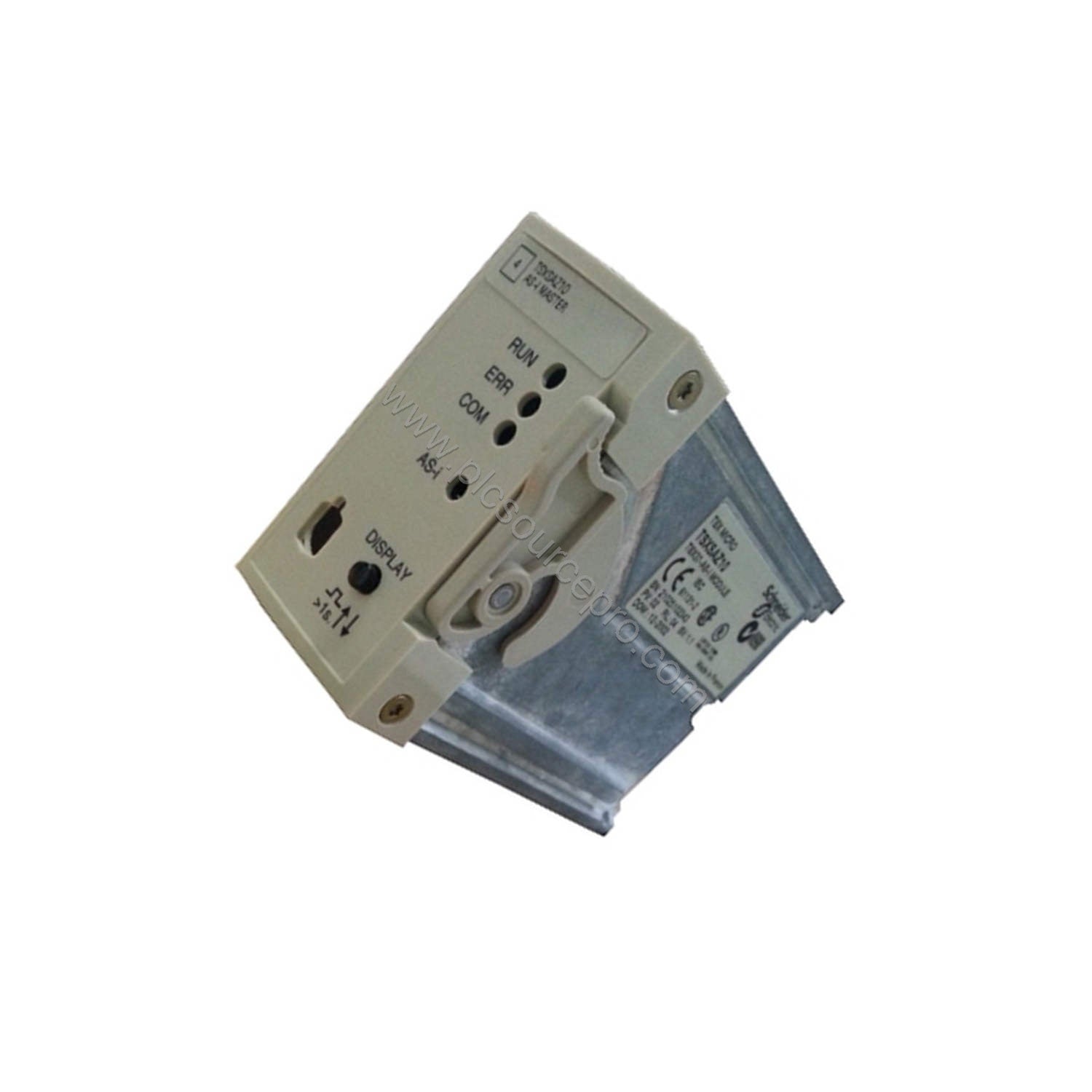

When your automation system requires dependable AS-Interface connectivity, the Schneider TSXSAZ10 provides a robust solution. As an AS-Interface master module, the TSXSAZ10 integrates seamlessly into the TSX Micro PLCs series. It manages up to 31 server devices and includes 4 discrete inputs plus 4 discrete outputs. This configuration simplifies I/O management and enhances communication in medium-sized automation setups.
Technical Specifications Breakdown
The TSXSAZ10 operates within a temperature range of 0 to 60 °C and has an IP20 rating. It requires power from the host platform, reducing external wiring. Below are key specifications:
| Parameter |
Value |
| Manufacturer |
Schneider Electric |
| Product Line |
TSX Micro PLCs |
| Number of Server Devices |
31 (standard) |
| Discrete Input Capacity |
4 inputs |
| Discrete Output Capacity |
4 outputs |
| IP Rating |
IP20 |
| Operating Temperature |
0 to 60 °C |
| Storage Temperature |
-25 to 70 °C |
| Weight |
0.45 kg (1.00 lbs) |
| Power Supply |
From host platform |
| AS-i Version |
V1 |
| Electrical Connection |
Terminal block AS-Interface line |
| Product Certifications |
AS-Interface No 12001, IEC 61131-2, IEC 60068-2-6, IEC 60068-2-27 |
The 4 discrete inputs and outputs allow direct connection to field devices such as sensors and actuators, eliminating the need for additional I/O modules. The IP20 enclosure makes the TSXSAZ10 suitable for clean indoor environments like control cabinets.
Application Scenarios
The Schneider TSXSAZ10 excels in applications requiring centralized control of distributed sensors and actuators. For example, in packaging lines, the module coordinates up to 31 devices via the AS-Interface cabling system. Its 4 discrete inputs capture status from limit switches, while 4 outputs drive solenoid valves. This reduces wiring complexity and cost. Another use is in material handling systems where the TSXSAZ10 interfaces with photoelectric sensors and motor starters, streamlining integration with the TSX Micro PLC.
Installation & Setup Guidance
Mount the TSXSAZ10 in a dry control cabinet with adequate clearance. Connect the AS-Interface line via the terminal block. The module draws power from the host PLC rack, so verify the platform provides sufficient capacity. Configure the addressing as standard per the manual. No external power supply is needed. Ensure the IP20 rating matches the environment—avoid dusty or wet locations.
Compatibility & Integration
The TSXSAZ10 is designed for the TSX Micro PLCs series and uses AS-Interface V1 protocol. As a Schneider TSXSAZ10 module, it integrates well with other Schneider components like the Modicon Premium automation platform. The AS-Interface cabling system is required for connectivity. The module supports standard addressing and works with discrete I/O devices.
Selection Guide & Purchasing Advice
Before purchasing the TSXSAZ10, confirm that your host platform is a TSX Micro PLC and that AS-Interface cabling infrastructure is in place. Ensure the total connected devices do not exceed 31. For reliable supply, consider UBEST Automation as a trusted source for Schneider automation spares. The TSXSAZ10 provides long-term value through reduced installation cost and robust performance.
