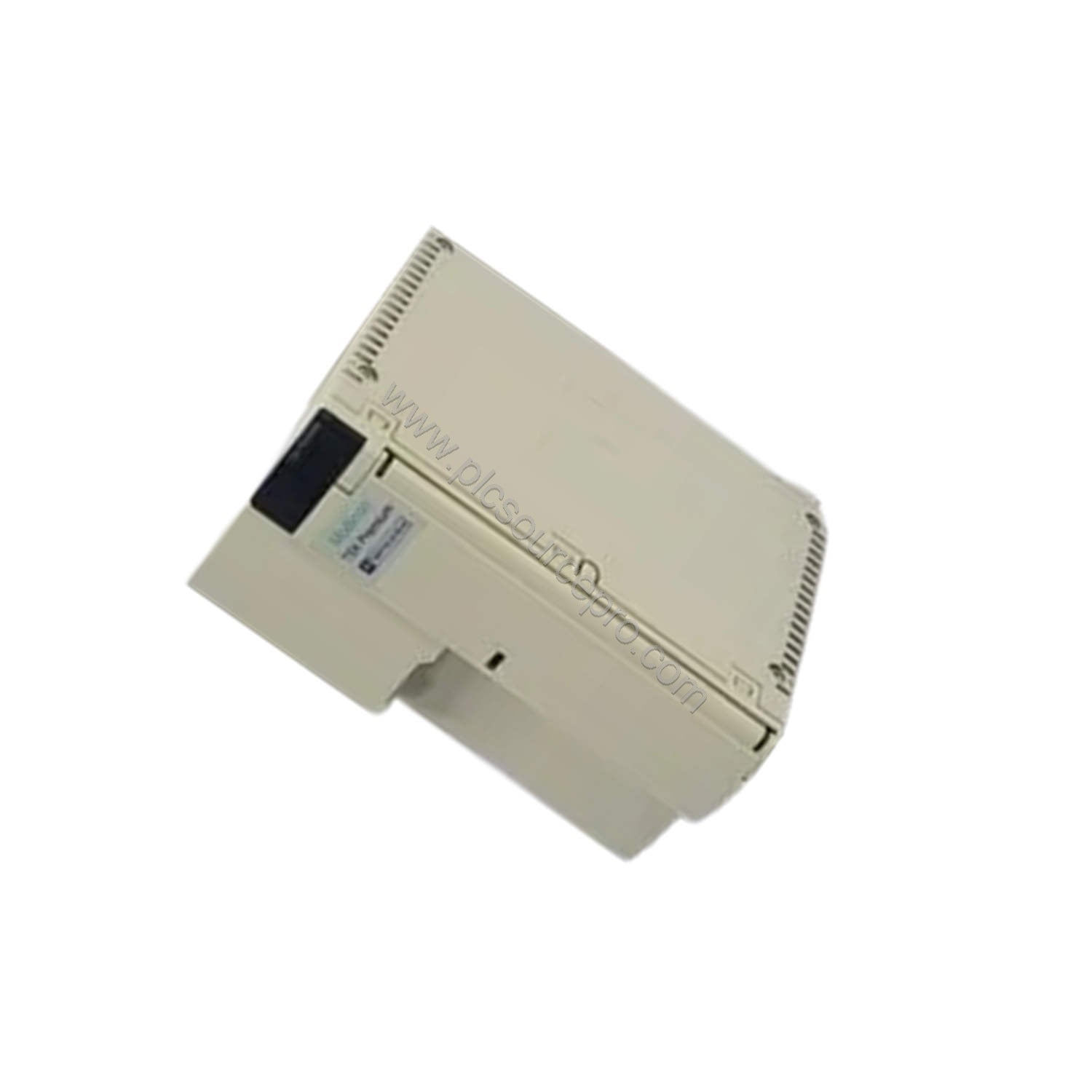

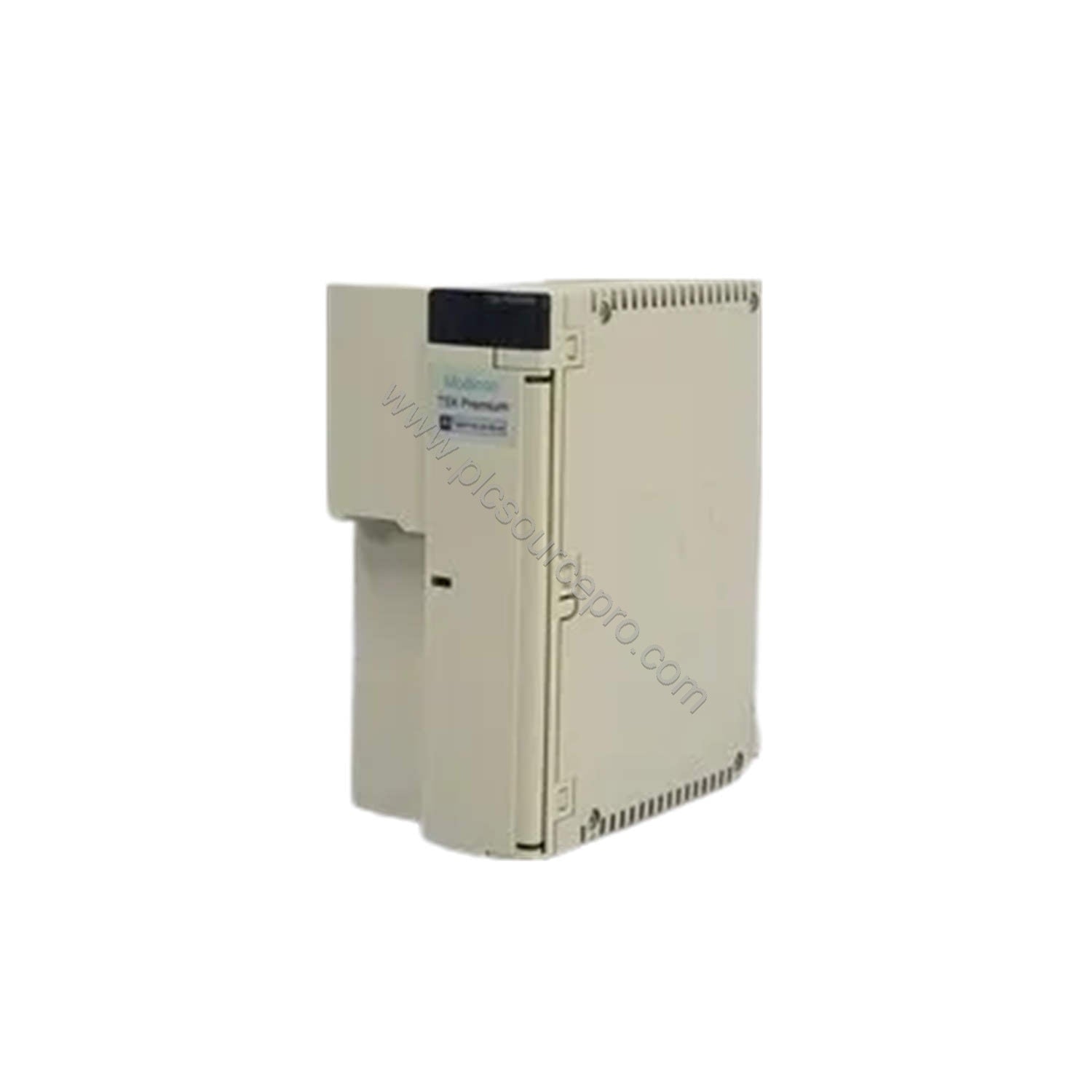

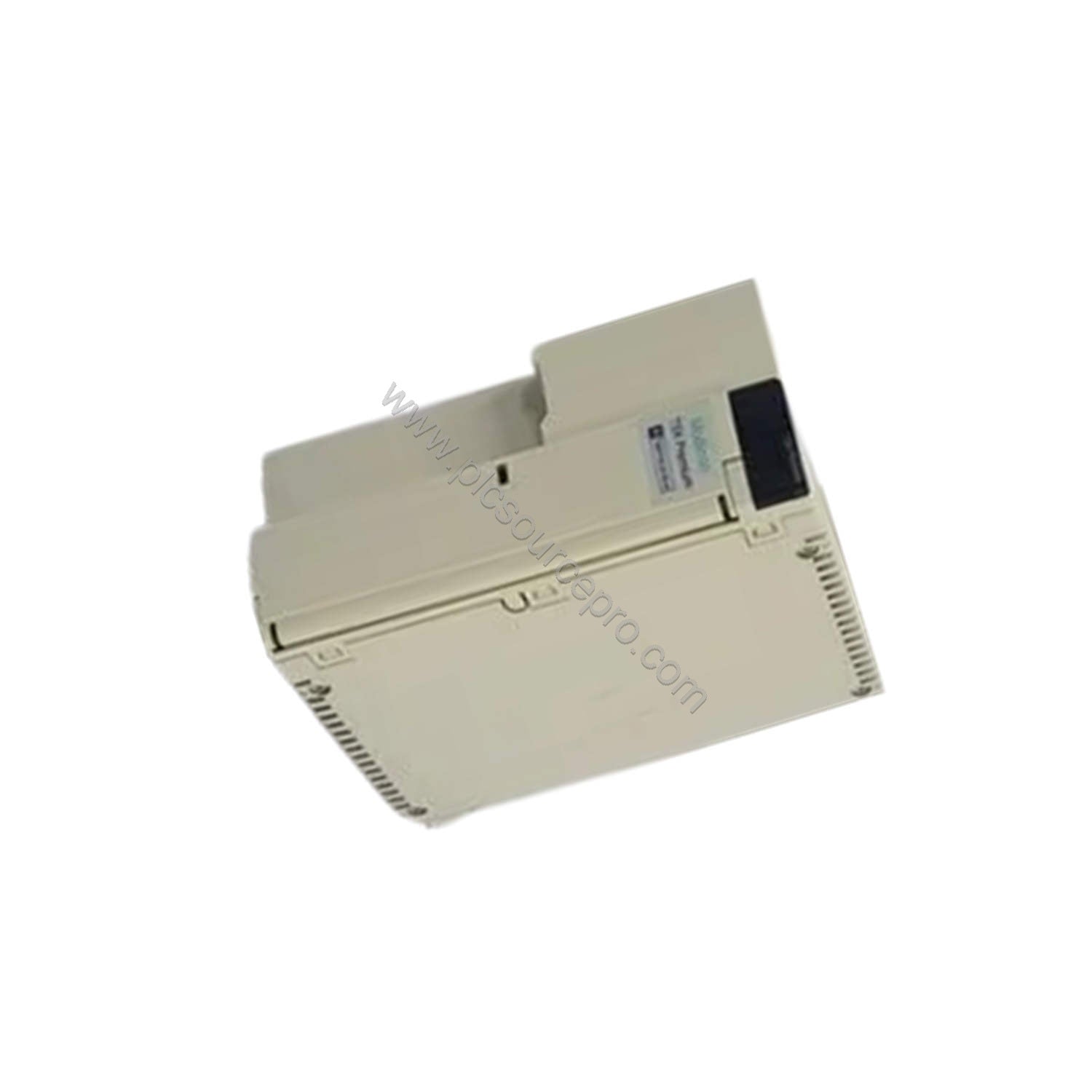

Product Overview: Schneider TSXPSY5500M Power Supply Module
When industrial power stability is critical, the Schneider TSXPSY5500M power supply module delivers versatile performance across both 200-240 V AC and 100-120 V AC input ranges. Designed for the TSX Micro PLCs series, this module supports network frequencies of 50/60 Hz with limits from 47 to 63 Hz. Its robust protection features—including overload, overvoltage, and short-circuit safeguards—minimize downtime and extend system life, offering a strong return on investment.
Technical Specifications and Key Parameters
-
Input Voltage: 200-240 V AC (190-264 V) / 100-120 V AC (85-140 V)
-
Network Frequency: 50/60 Hz (47-63 Hz range)
-
Input Current: 500 mA at 240 V / 1700 mA at 100 V
-
Total Useful Secondary Power: 50 W
-
Secondary Power: 35 W at 5 V DC / 19 W at 24 V DC
-
Current at Secondary Voltage: 7 A at 5 V DC, 0.8 A at 24 V DC (sensor/relay)
-
Protection Type: Internal 4 A time-delayed fuse, overload, overvoltage, short-circuit
-
Inrush Current: 38 A at both 100 V and 240 V
-
Operating Temperature: 0 to 60 °C; Storage: -25 to 70 °C
-
Humidity: 10-95% operation, 5-95% storage (non-condensing)
-
Altitude: 0 to 2000 m
-
Dielectric Strength: 2000 V primary/earth and primary/secondary
-
Insulation Resistance: ≥ 100 MOhm
-
Marking: CE
Industrial Applications
The Schneider TSXPSY5500M excels in automation environments requiring dependable power delivery. Typical applications include:
-
Manufacturing Lines: Provides clean, regulated power to TSX Micro PLCs controlling assembly robots and conveyor systems.
-
Process Control: Ensures stable 5 V DC and 24 V DC outputs for sensors and relays in chemical or food processing plants.
-
Utility Monitoring: Operates reliably at altitudes up to 2000 meters and in humid conditions, making it suitable for outdoor or remote installations.
By preventing voltage fluctuations and protecting against shorts, this module reduces unplanned downtime—directly improving operational ROI.
Compatibility and Integration
The Schneider TSXPSY5500M is specifically designed for the Modicon Premium automation platform and integrates seamlessly with TSX Micro PLC racks. It supports standard 50/60 Hz networks and works with both 100-120 V AC and 200-240 V AC supplies, simplifying global deployment. Its double module format fits standard backplanes without additional adapters. The three front-panel LEDs (green for OK and sensor voltage, red for battery fault) provide immediate status feedback, streamlining troubleshooting and integration.
Selection Guide and Purchasing Advice
Before purchasing the Schneider TSXPSY5500M, verify your PLC rack compatibility and input voltage configuration. Confirm that your system requires a 50 W total secondary power supply with dual 5 V DC (7 A) and 24 V DC (0.8 A) outputs. For reliable sourcing, ubest101 offers genuine units with full traceability. Ensure you have the correct mounting accessories and consider environmental factors like temperature and humidity to maximize service life.
