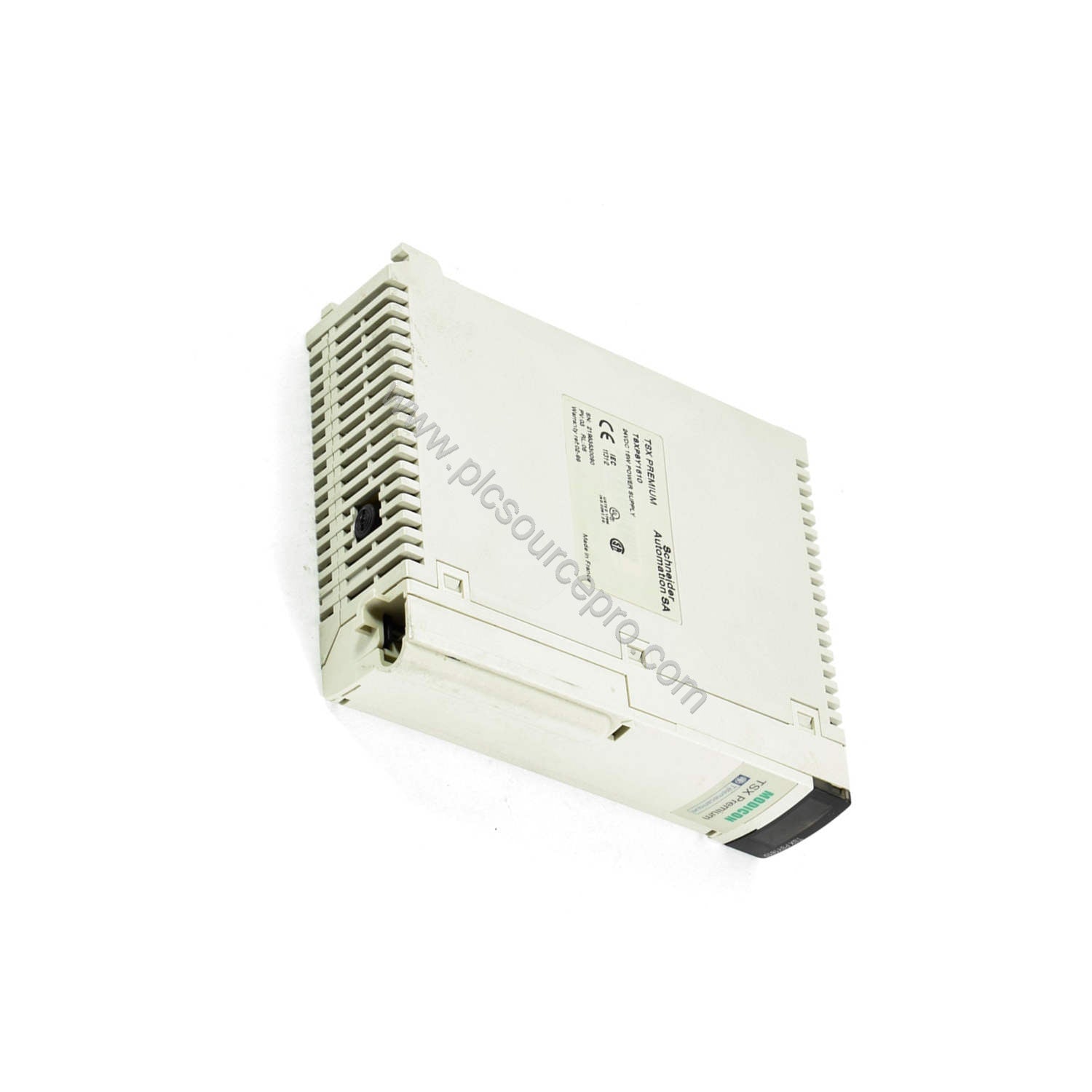

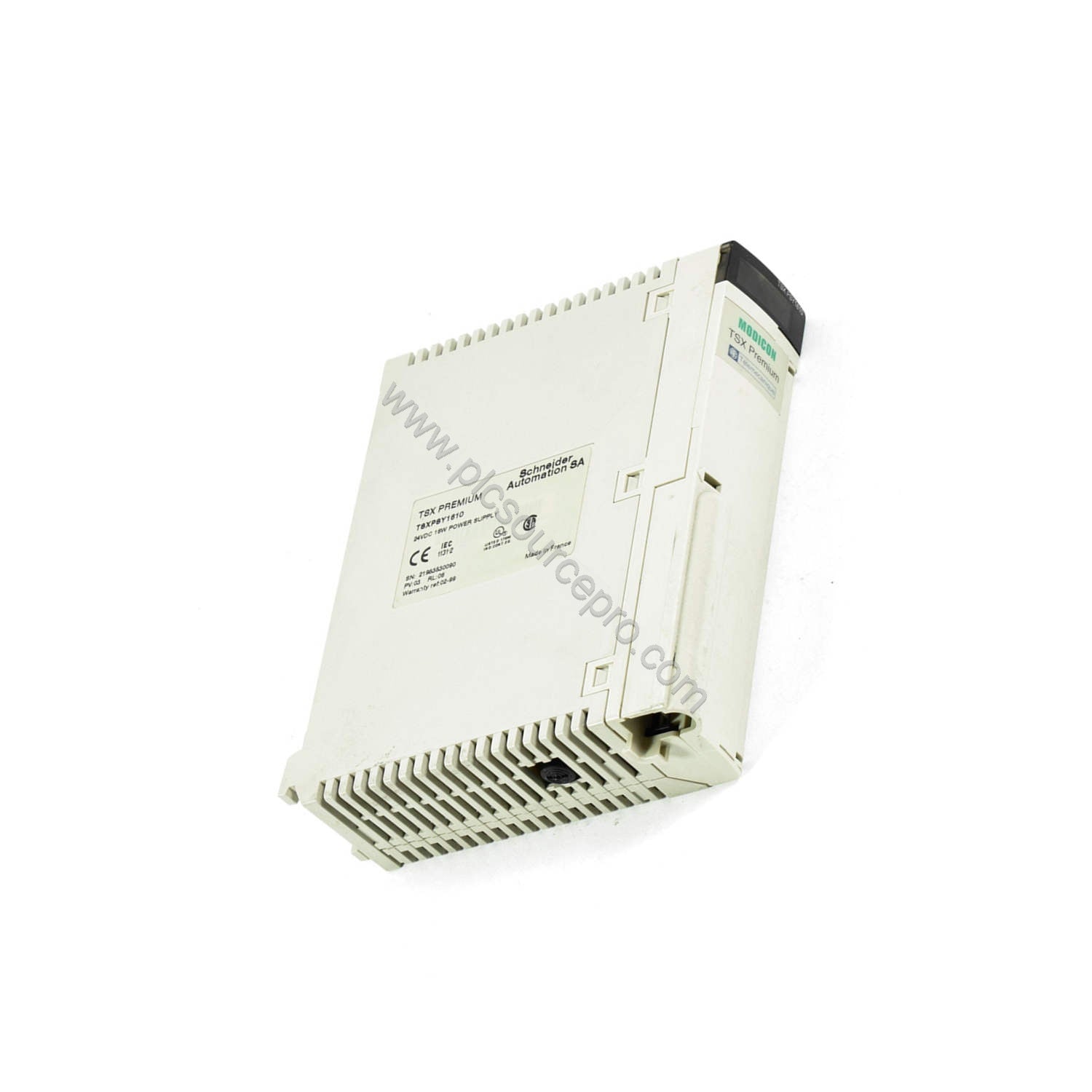

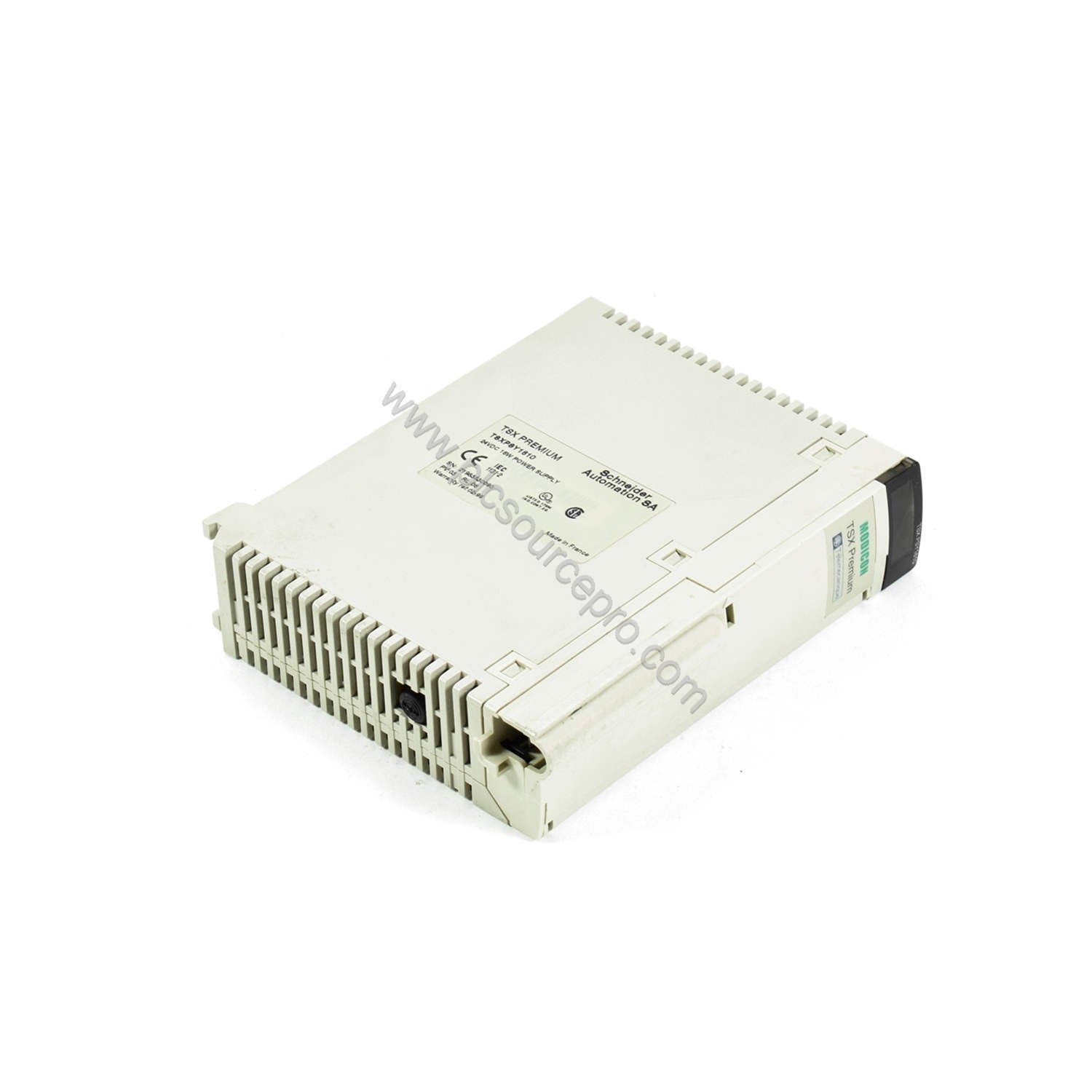

Overview of the Schneider TSXPSY1610M Power Supply Module
When industrial power supplies fail, downtime and equipment damage follow. The Schneider TSXPSY1610M power supply module is engineered to prevent such failures through multiple protection layers. Part of the Modicon Premium automation platform, this module supplies reliable secondary power for TSX Micro PLCs, ensuring uninterrupted operation even in harsh conditions.
With a total useful secondary power of 30 W, the TSXPSY1610M delivers 15 W at 24 V DC for relay power and 15 W at 5 V DC for logic circuits. Its primary voltage range of 19.2 to 30 V DC accepts fluctuating power sources, while the input current remains ≤1500 mA at 24 V. This flexibility makes the Schneider TSXPSY1610M suitable for diverse automation setups.
Technical Specifications Breakdown
The Schneider TSXPSY1610M incorporates several key parameters that ensure stable performance:
-
Protection Type: Internal fuse (3.5 A, 5 x 20 mm, time-delayed) on the primary circuit, plus overload, overvoltage, and short-circuit protection on secondary circuits. This multi-layer protection guards against common power faults.
-
Current at Secondary Voltage: 0.6 A at 24 V DC for relay power supply and 3 A at 5 V DC. These ratings match typical PLC load requirements.
-
Environmental Tolerance: Operating temperature from 0 to 60 °C, storage from -25 to 70 °C, and relative humidity up to 95% without condensation. The module withstands altitude up to 2000 m and has IP20 protection.
-
Local Signalling: One green LED indicates voltage presence (OK), and one red LED signals a battery fault. Visual diagnostics simplify troubleshooting.
-
Inrush Current: Limited to 100 A at 24 V, preventing circuit breaker tripping during startup.
Real-World Applications
In manufacturing lines where power quality is inconsistent, the Schneider TSXPSY1610M maintains stable output, reducing unplanned downtime. For example, in a conveyor control system using TSX Micro PLCs, this module’s overvoltage and short-circuit protection safeguard downstream components. In food processing plants with high humidity (up to 95%), the module’s protective treatment TC and IP20 enclosure ensure reliable operation. The TSXPSY1610M also suits remote pumping stations where altitude and temperature extremes are common.
Installation and Setup Tips
Mount the Schneider TSXPSY1610M in a clean, dry enclosure rated for the environment. Ensure the primary voltage stays within 19.2–30 V DC. Use a time-delay fuse rated 3.5 A (5 x 20 mm) as specified. Connect the secondary outputs (24 V DC for relays, 5 V DC for logic) according to the load requirements. Verify the green LED illuminates after power‑up; a red LED indicates battery fault. Do not exceed the total secondary power of 30 W. Provide adequate ventilation to keep ambient temperature below 60 °C.
Maintenance and Reliability Considerations
Regularly inspect the module for dust accumulation on ventilation slots and ensure the internal fuse is intact. The Schneider TSXPSY1610M’s protective treatment TC resists corrosion in humid or chemically aggressive environments. Verify that the relative humidity stays below 95% (non‑condensing) to prevent moisture ingress. Given the robust protection features, the module typically requires no scheduled calibration. However, checking LED indicators during routine system checks can pre‑empt failures.
Selection Guide and Purchasing Advice
Before purchasing a Schneider TSXPSY1610M, confirm compatibility with your TSX Micro PLC base and verify the primary voltage source matches 24 V DC. The module weight is 0.54 kg, and dimensions are 5.5 cm H × 18.0 cm W × 26.0 cm L (single unit packing). For bulk or urgent needs, contact UBEST Automation (ubest101) for availability and lead time. We stock this module ready to ship.
