Product Overview

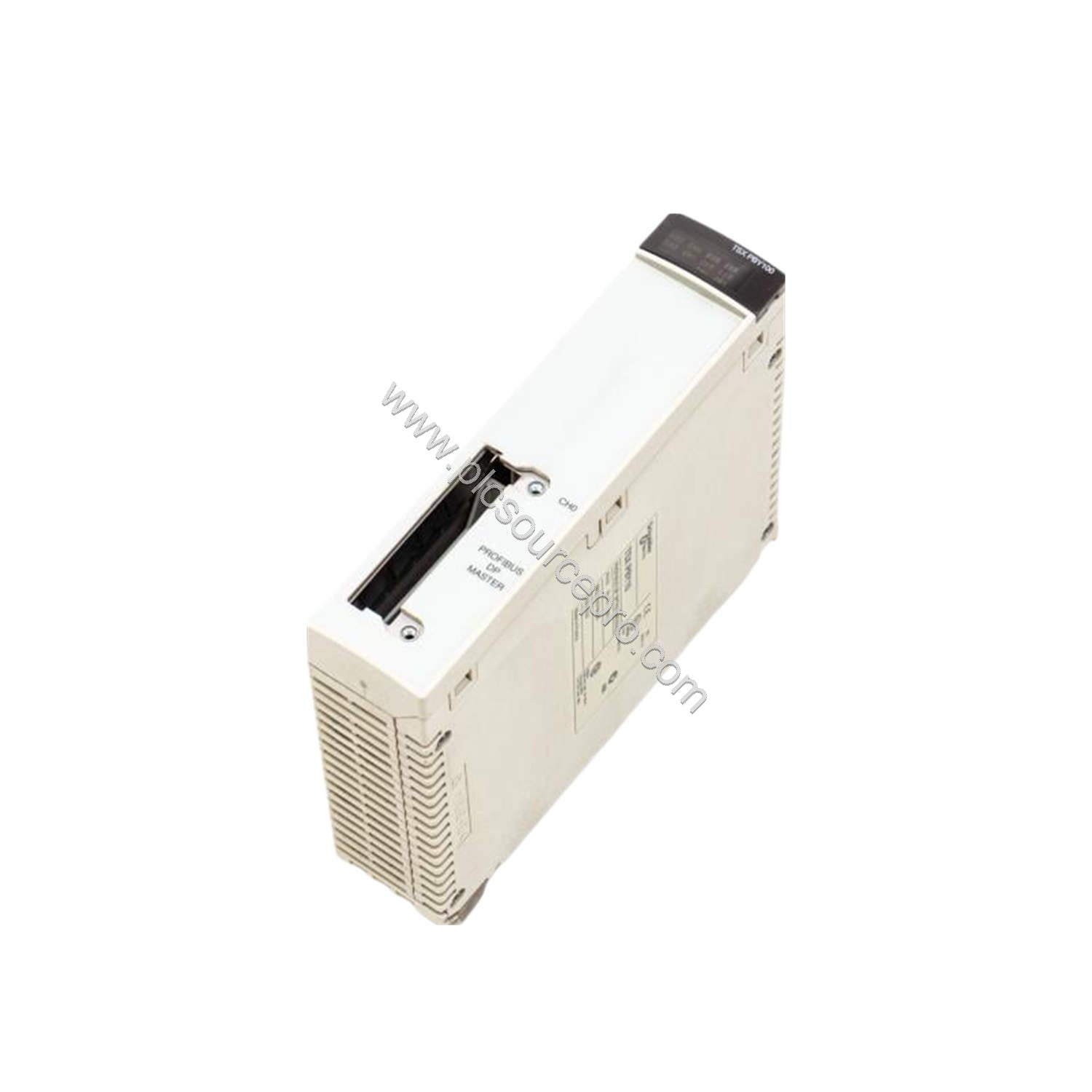

The Schneider TSXPBY10 Profibus-DP Option Module is crafted for seamless integration with Modicon Premium PLCs. As a high-performance communication module, it supports transmission rates from 9.6 Kbit/s to 12 Mbit/s, enabling efficient data handling in industrial networks. This module serves as an ideal upgrade or replacement for existing Profibus components, offering enhanced reliability and speed.

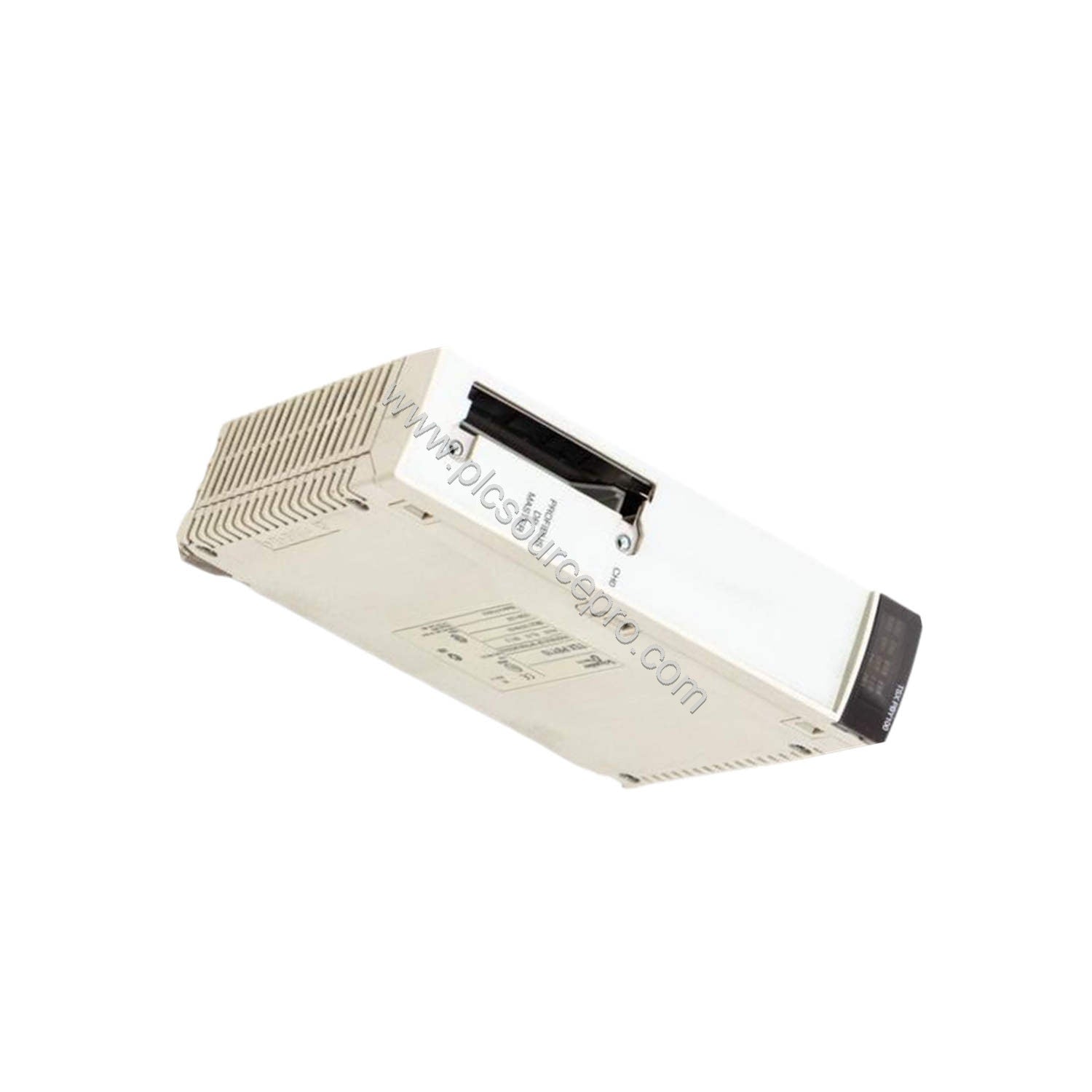

Technical Specifications
The Schneider TSXPBY10 module offers the following technical specifications:
| Parameter |
Value |
| Manufacturer |
Schneider Electric |
| Part Number |
TSXPBY10 |
| Product Line |
TSX Micro PLCs |
| Module Type |
Profibus-DP Option Module |
| Compatibility |
Modicon Premium PLCs |
| Transmission Rate |
9.6 Kbit/s to 12 Mbit/s |
| Maximum Segment Length |
Up to 1200 meters at 9.6 Kbit/s |
| Number of Slaves |
Up to 124 with repeaters |
| Input/Output Data Size |
4096 inputs / 4096 outputs |
| Operating Temperature |
0 °C to +60 °C |
| Storage Temperature |
-25 °C to +70 °C |
| Humidity |
30% to 95% (non-condensing) |
| Altitude |
0 to 2000 meters |
| Power Supply |
5 V DC from rack |
| Current Consumption |
400 mA on 5 V DC |
| Weight |
1.00 lbs (0.45 kg) |
| Vibration Immunity |
IEC 68-2-6 |
| Shock Immunity |
IEC 68-2-27 |
| ESD Immunity |
IEC 1000-4-2 |
The high transmission rate range allows fast data exchange, while the long segment length (up to 1200 m at 9.6 Kbit/s) supports large facility layouts. With repeaters, the TSXPBY10 can manage up to 124 slave devices, making it scalable for growing networks.
Real-World Applications
With its robust specifications, the Schneider TSXPBY10 module excels in various industrial settings:
-
Manufacturing Lines: Connect multiple remote I/O nodes over long distances using low baud rates, ensuring reliable control across large factory floors.
-
Process Automation: Handle high-speed data transfer at 12 Mbit/s for time-critical processes, integrating sensors and actuators into a Modicon Premium PLC system.
-
Upgraded Networks: Replace older Profibus modules to achieve higher slave capacity (124 devices) and improved data throughput, extending system lifespan without full redesign.

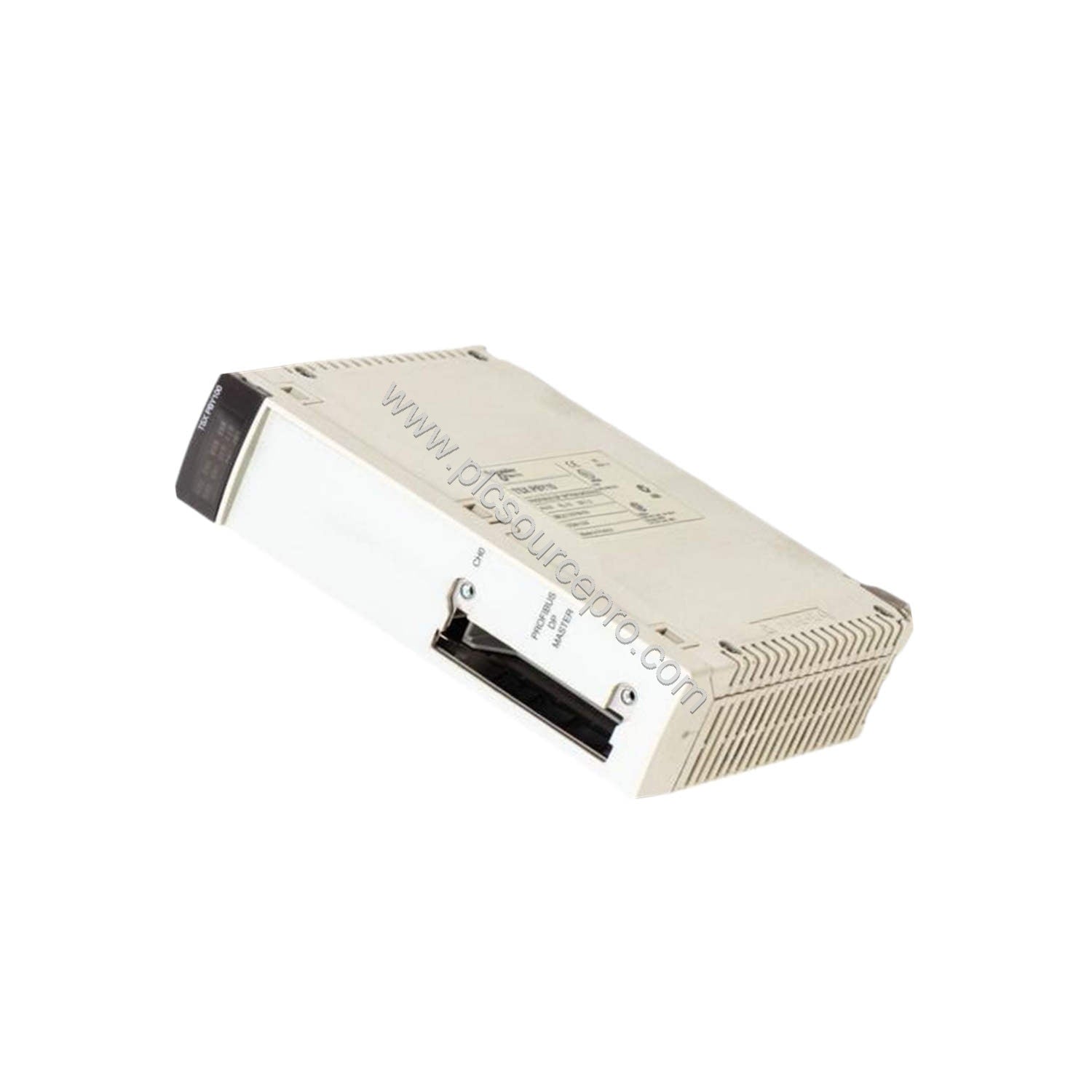

Compatibility and Integration
The TSXPBY10 is fully compatible with Modicon Premium PLCs from Schneider Electric. It integrates seamlessly into existing Profibus-DP networks. The module requires a 5 V DC power supply from the rack, simplifying installation. For expanded networks, repeaters can support up to 124 slave devices. The module complies with IEC standards for vibration, shock, and ESD, ensuring reliable operation in harsh industrial environments.
Selection Guide
When selecting the Schneider TSXPBY10 for your application, verify compatibility with your PLC rack and power supply. Ensure your network design accounts for segment length and baud rate trade-offs. For large-scale deployments, consider using repeaters to maximize slave count. PLC Source PRO (available at ubest101.myshopify.com) offers genuine Schneider TSXPBY10 modules with fast shipping and expert support. Contact our team for assistance with system integration.
