Product Overview

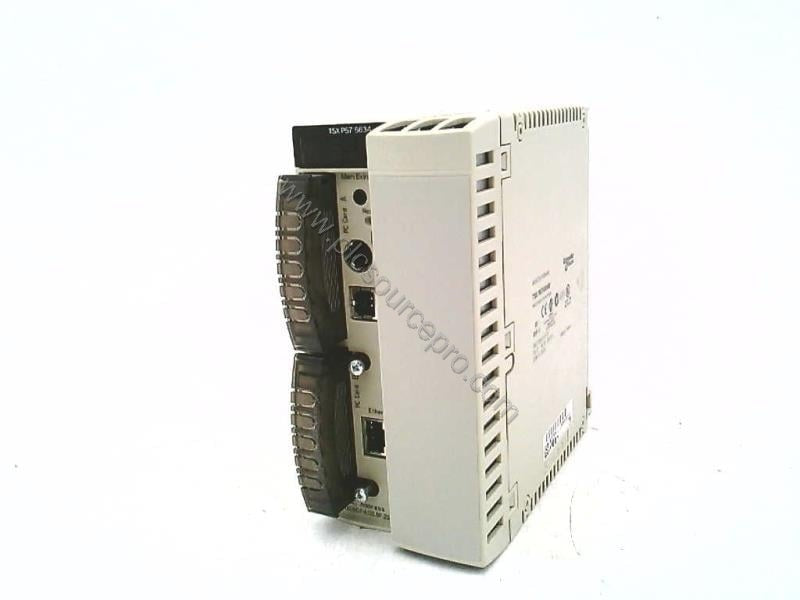

Upgrade your legacy TSX Micro PLC system with the Schneider TSXP575634M non-isolated serial link processor. This module serves as the brain of your automation network, offering 32 Kwords of internal RAM for both program and data storage. A PCMCIA card slot allows expansion up to 128 Kwords additional data and 64 Kwords program memory. With an execution time of 0.5 µs per Boolean instruction (without PCMCIA card) and a throughput of 1.05 Kinst/ms, the TSXP575634M delivers reliable performance for medium-scale discrete and analog I/O control. Its robust internal memory and modular design make it an ideal replacement for obsolete TSX Micro controllers or an upgrade to enhance processing capacity.
Technical Specifications
-
Memory: Internal RAM 32 Kwords data (with PCMCIA) / 32 Kwords program and data (without PCMCIA)
-
PCMCIA Expansion: 128 Kwords additional data storage, 64 Kwords program
-
Execution Time (Boolean): 0.5 µs without PCMCIA, 0.6 µs with PCMCIA
-
Throughput: 1.05 Kinst/ms (65% Boolean + 35% fixed arithmetic) without PCMCIA; 0.85 Kinst/ms with PCMCIA
-
Current Consumption: 440 mA at 5 V DC
-
Inrush Current: 38 A at 240 V / 38 A at 100 V
-
I/O Capacity: 512 discrete I/O, 24 analog I/O
-
Rack Configuration: 2 racks of 12 slots or 4 racks of 4/6/8 slots
-
Integrated Connection: Non-isolated serial link, 2 female mini DIN, 19.2 kbit/s
-
Communication Module Support: 1 network module, 2 AS-Interface bus modules, 1 CANopen
-
Local Signaling: 1 green RUN LED, 1 red I/O fault LED, 1 red ERR LED, 1 yellow TER activity LED
-
Weight: 1.00 lbs (0.45 kg)
Installation & Setup
Mount the Schneider TSXP575634M into a standard TSX Micro rack using the provided DIN rail clips. Ensure the power supply delivers 440 mA at 5 V DC to the module’s backplane connector. When adding a PCMCIA card, insert it gently into the slot until it clicks into place – the card can provide up to 128 Kwords additional data storage. The module supports up to 2 racks of 12 slots or 4 racks of 4/6/8 slots; verify your system configuration before wiring. Connect the serial link via the two female mini DIN ports at 19.2 kbit/s using shielded twisted-pair cable. For inrush protection, ensure the power supply can handle 38 A peaks at 240 V or 100 V.
Real-World Applications
In a packaging line, the Schneider TSXP575634M processes 512 discrete I/O signals for sensors and actuators, while the 24 analog I/O handle temperature and pressure transducers. Its fast Boolean execution (0.5 µs) ensures tight cycle times. For a water treatment plant, the PCMCIA expansion provides additional data logging memory, and the CANopen bus connects variable frequency drives. As a replacement for an older TSX Micro processor, the TSXP575634M offers a direct drop-in upgrade with enhanced memory and serial communication, minimizing downtime and reconfiguration costs.
Selection Guide & Purchasing Advice
Before ordering, confirm your existing rack type (2x12 slots or 4x4/6/8 slots) and verify the power supply capacity (440 mA at 5 V DC). If you require additional data storage, purchase a compatible PCMCIA card separately. The TSXP575634M is available from UBEST Automation – a trusted source for industrial automation spares. Contact our team to ensure compatibility with your current system. For bulk orders, inquire about volume discounts.
