Product Introduction

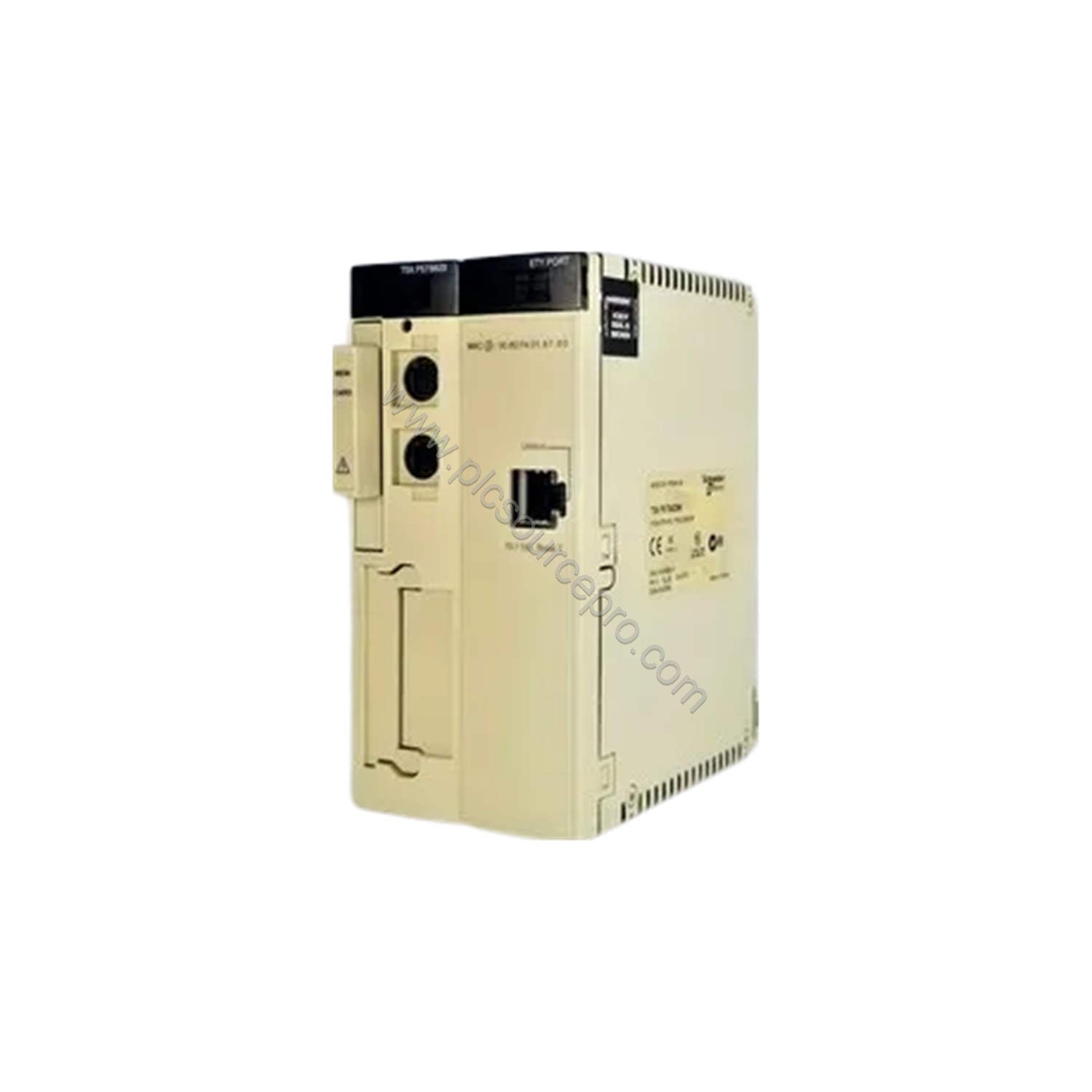

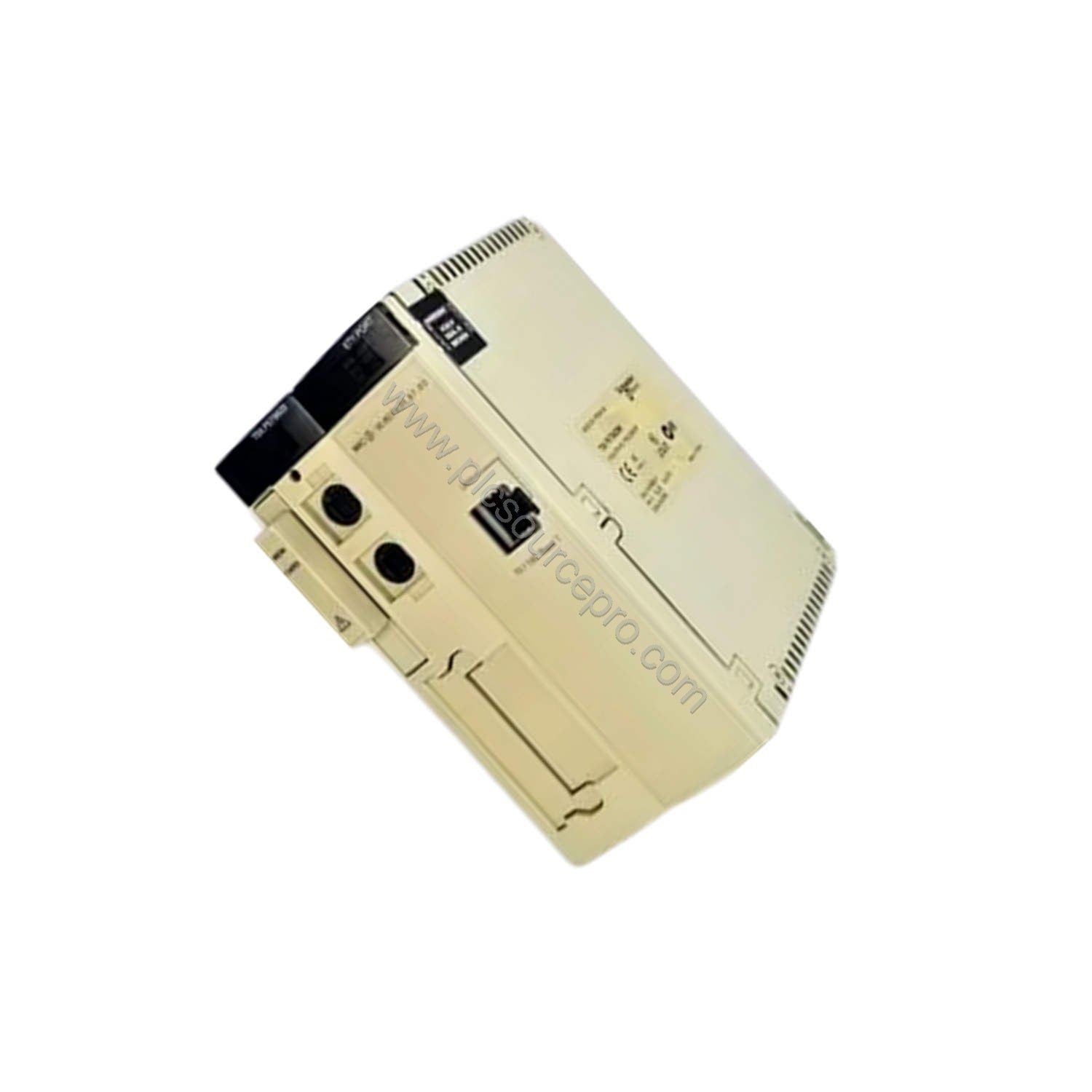

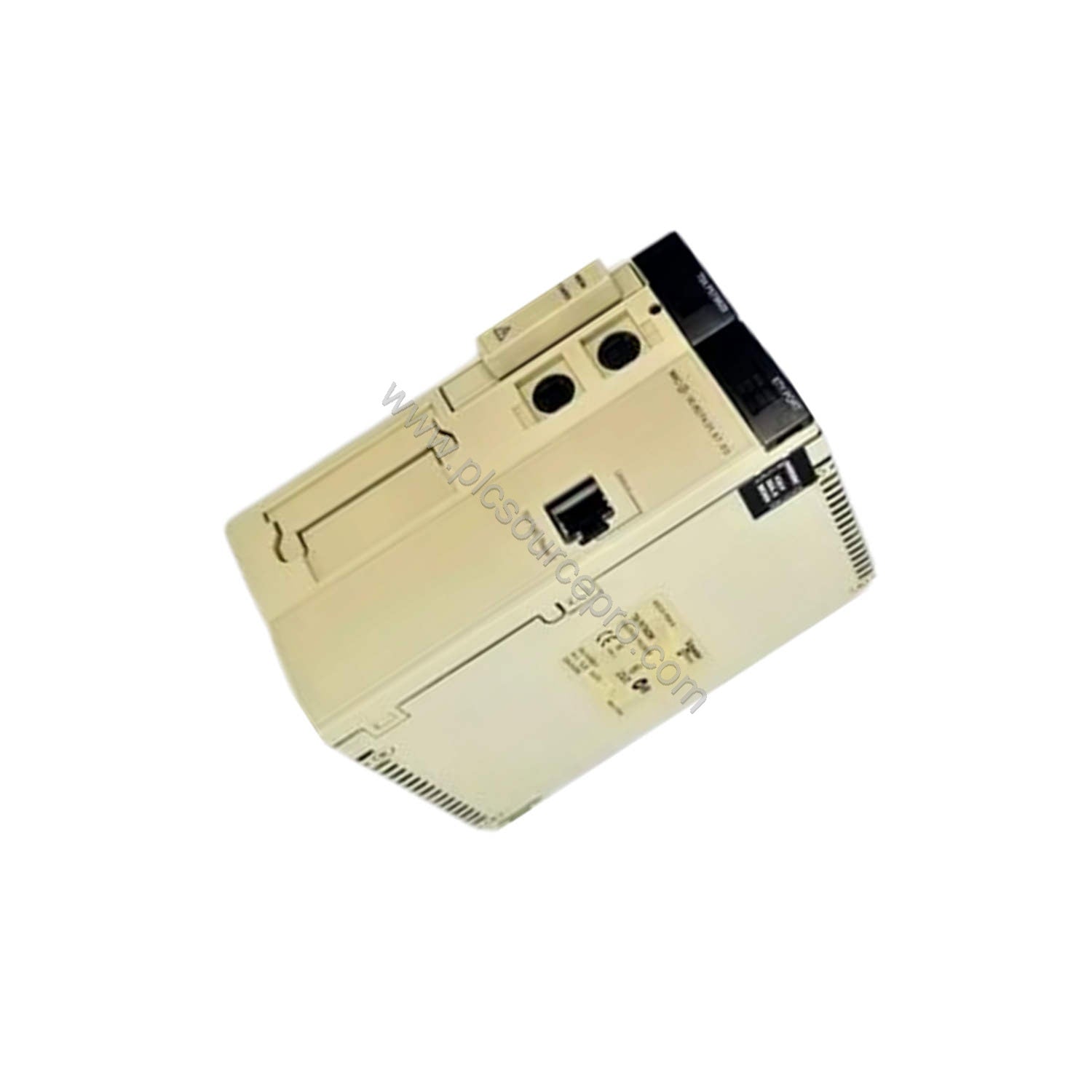

The Schneider TSXP573623M is a versatile PLC from the TSX Micro series, engineered for effective control and automation. With a discrete I/O processor capacity of 1024 I/O and an analog I/O processor capacity of 128 I/O, it handles diverse automation tasks efficiently. This module supports up to 64 Kwords of internal RAM without a PCMCIA card, expanding to 80 Kwords with the card, ensuring ample memory for complex programs.
Technical Specifications Breakdown
| Parameter |
Value |
| Manufacturer |
Schneider Electric |
| Product Line |
TSX Micro PLCs |
| Part Number |
TSXP573623M |
| Weight |
1.00 lbs (0.45 kg) |
| Discrete I/O Processor Capacity |
1024 I/O |
| Analogue I/O Processor Capacity |
128 I/O |
| Max. Size of Object Areas |
30.5% MWi internal words, 32% KWi constant words, 16384% Mi internal bits |
| Instructions per ms |
4.49 Kinst/ms with PCMCIA card (100% Boolean), 6.57 Kinst/ms without PCMCIA card |
| Execution Time per Instruction |
0.12 µs for Boolean without PCMCIA card |
| Integrated Connection Type |
Ethernet TCP/IP (RJ45, 10/100 Mbit/s) and non-isolated serial link (2 female mini DIN, 19.2/115 kbit/s) |
| Number of Racks |
Supports up to 16 racks |
Industry Applications
The Schneider TSXP573623M excels in manufacturing automation, where high discrete I/O counts monitor sensors and actuators on assembly lines. In process control applications, its 128 analog I/O channels manage temperature, pressure, and flow loops. With up to 16 racks and 64 event tasks, it suits large-scale systems needing fast responses, such as packaging or material handling.
Compatibility & Integration
The TSXP573623M integrates seamlessly via Ethernet TCP/IP for plant-wide networking and supports up to two fieldbus modules (or one if CANopen is used) and eight AS-Interface bus modules. It also features two PCMCIA slots for memory or communication extension cards. This flexibility allows easy connection to existing Schneider TSX systems and third-party devices.
Selection Guide & Purchasing Advice
Before purchasing the Schneider TSXP573623M, verify compatibility with your existing TSX Micro rack backplane and power supply. Confirm firmware versions for your application needs. For reliable sourcing, choose ubest101 as your trusted supplier of genuine industrial automation spares.
