Product Overview

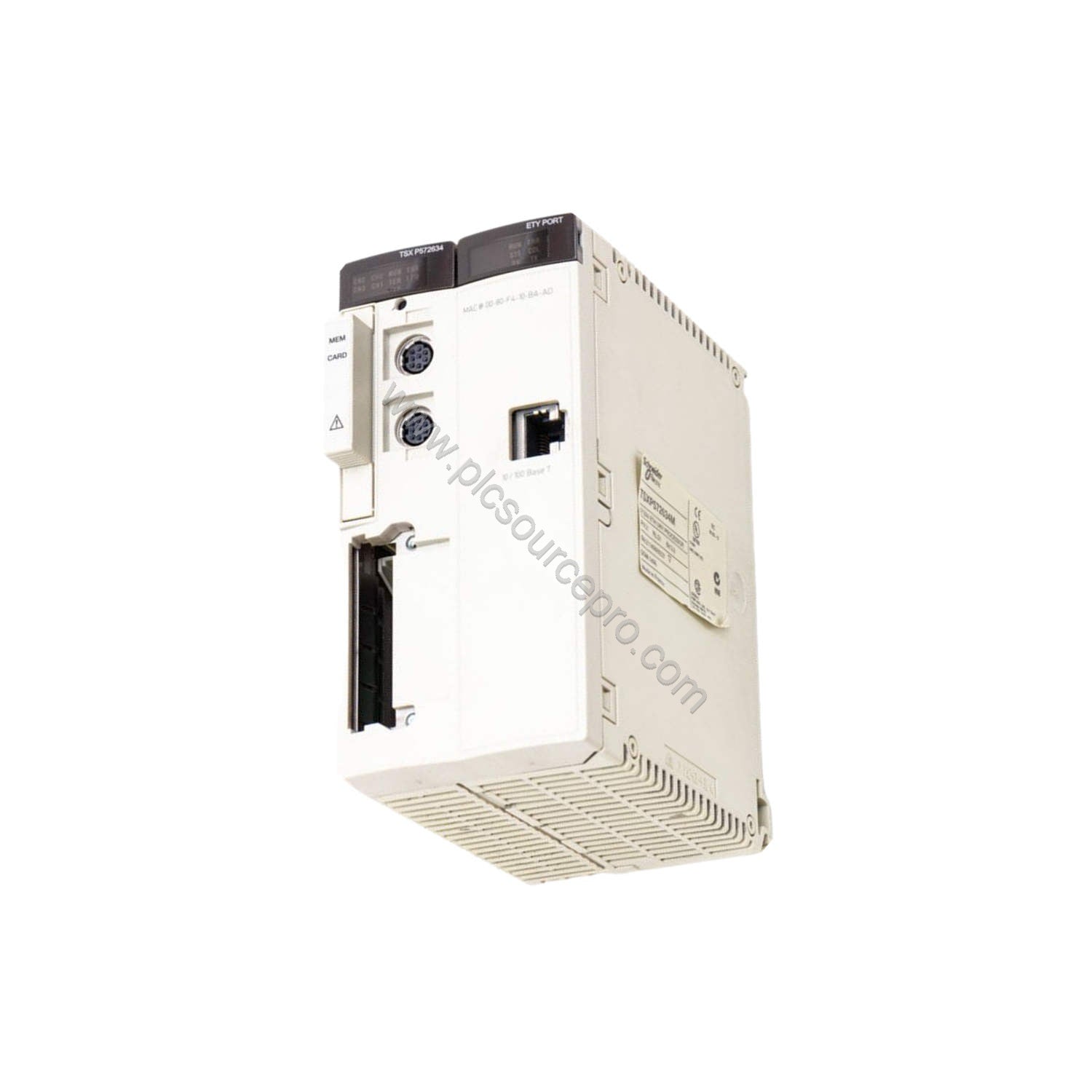

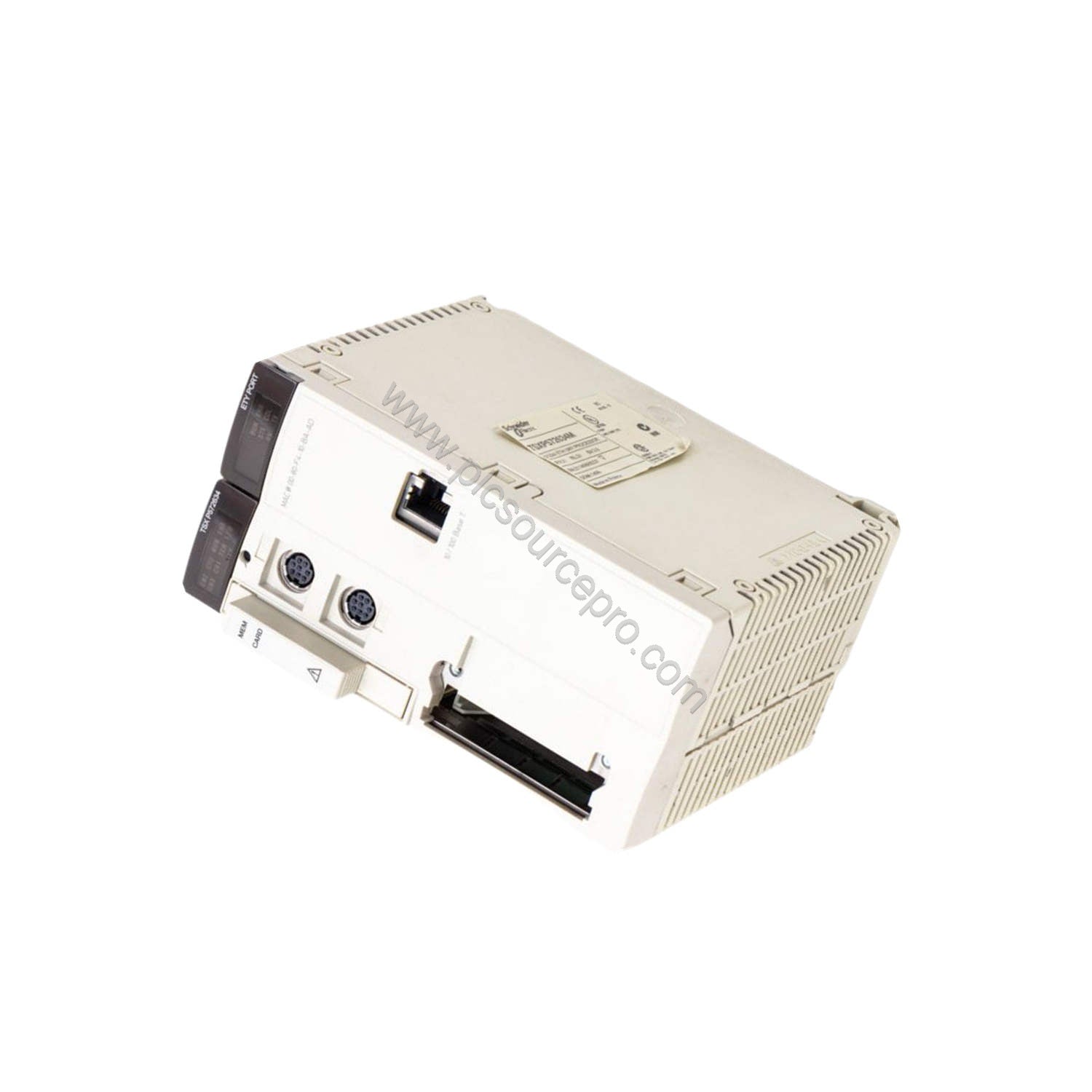

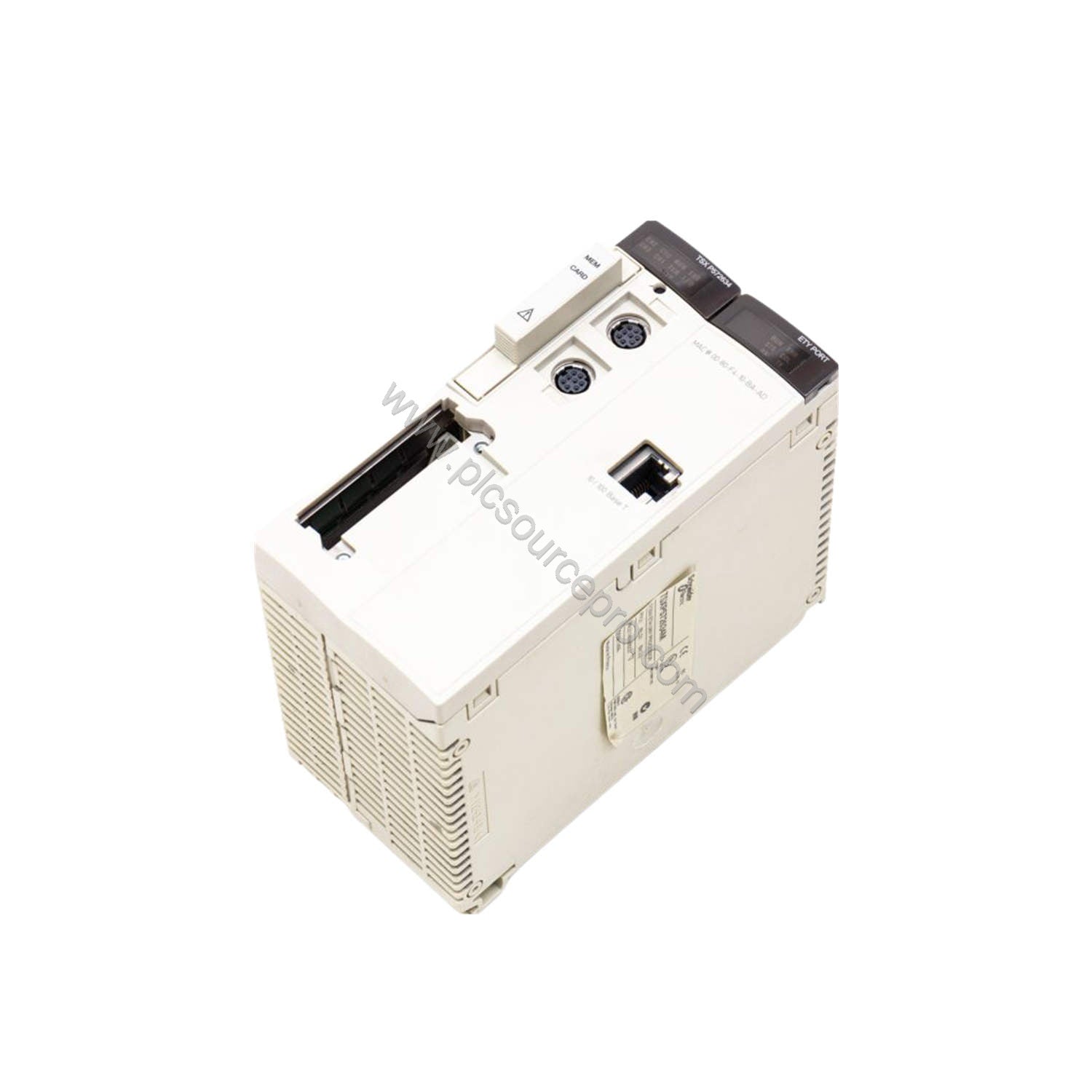

Upgrade your automation infrastructure with the Schneider TSXP572634M, a processor module built for the TSX Micro PLCs family. Designed to replace older controllers or expand existing systems, this unit integrates both non-isolated serial link (2 female mini DIN, 19.2 kbit/s) and Ethernet TCP/IP (RJ45, 10/100 Mbit/s) connectivity, enabling seamless communication across diverse industrial networks. The TSXP572634M delivers reliable, high-speed data exchange without requiring additional protocol converters, simplifying retrofits and new installations.
Application Scenarios
In discrete manufacturing lines, the Schneider TSXP572634M coordinates machine sequences and material handling with low-latency Ethernet communication. For process control environments, the dual-interface design allows it to act as a bridge between legacy serial devices and modern TCP/IP infrastructure. Whether you are modernizing a single machine or upgrading an entire assembly line, this module fits seamlessly into existing TSX Micro rack systems, reducing downtime and engineering effort.
Installation & Setup Guidance
To install the Schneider TSXP572634M, power down the rack, insert the module into the appropriate slot, and tighten the retaining screws. Connect the serial link using the two female mini-DIN connectors (RS485, 19.2 kbit/s) and the Ethernet cable to the RJ45 port (10/100 Mbit/s, auto-negotiating). The front panel LEDs provide immediate status feedback: the green RUN LED indicates processor activity, while the red ERR LED signals communication or configuration faults. A cold start can be triggered by pressing the RESET button. Always refer to the product manual for detailed wiring and addressing.
Maintenance & Reliability
Regular inspection of the TSXP572634M ensures long service life. Check that all connectors are secure and free from dust or moisture. Monitor the front panel LEDs for any fault indications. The module operates in 0–60 °C environments with IP20 protection, making it suitable for typical control cabinets. For critical applications, maintain a spare unit ready for immediate swap-out to minimize production interruptions.
Selection Guide & Purchasing Advice
Before ordering the Schneider TSXP572634M, confirm that your rack has a compatible slot and that your power supply provides adequate current (5 V DC, 1650 mA). Verify that the module matches your communication requirements — serial for legacy devices, Ethernet for modern control systems. For genuine, factory-tested parts and reliable support, choose UBEST Automation (ubest101). We stock a wide range of TSX Micro modules and accessories to ensure your upgrade project proceeds smoothly.
Troubleshooting & Common Issues
If the TSXP572634M does not respond, first check the power supply and rack connection. A lit I/O ERR LED indicates a configuration mismatch — verify that the module's settings match your system's master task or fast task parameters. For serial communication failures, confirm the baud rate (19.2 kbit/s) and cable wiring. Pressing the RESET button performs a cold start, which can clear temporary lockups. If Ethernet issues persist, ensure the network cable is intact and that the switch port is set to auto-negotiation.
