Product Introduction

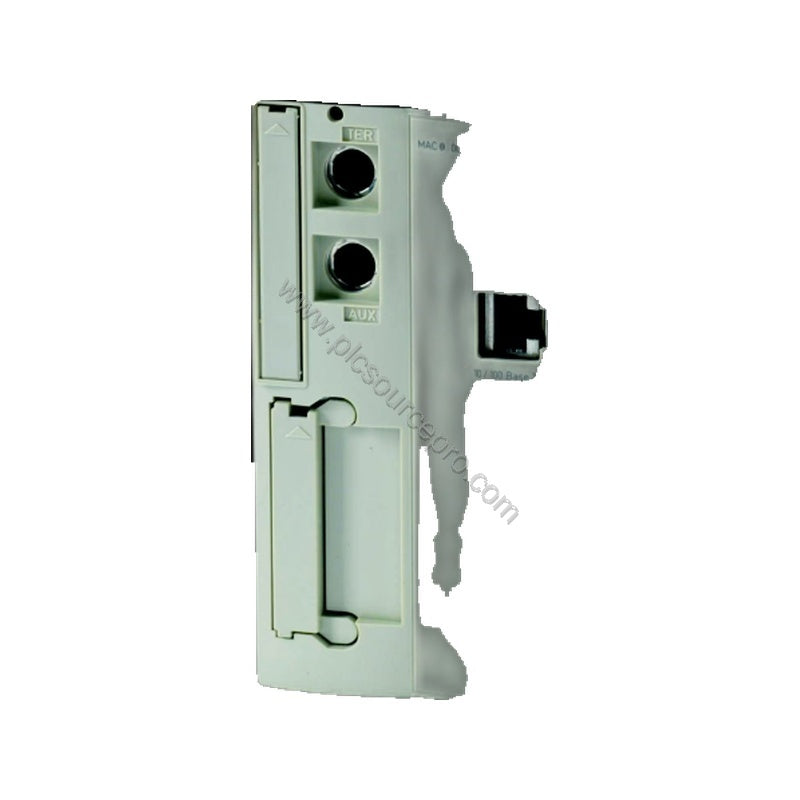

The Schneider Electric TSXP572623M is a double-format PL7 processor from the Modicon Premium platform. As part of the TSX Micro PLC series, it supports up to 30 simple process control loops and provides robust functionality for diverse automation tasks. This module is an ideal upgrade path for older Micro PLCs or for expanding existing systems.
Technical Specifications
Below are key technical parameters for the TSXP572623M:
-
Discrete I/O Capacity: 1024 I/O points
-
Analog I/O Capacity: 80 I/O points
-
Memory (without PCMCIA): 48 Kwords for program and data
-
Memory (with PCMCIA): 160 Kwords program / 2688 Kwords data storage
-
Integrated Connections: Non-isolated serial link (2 female mini DIN, 19.2 kbit/s) and Ethernet TCP/IP (RJ45, 10/100 Mbit/s)
-
Boolean Execution Time: 0.19 µs (without PCMCIA), 0.21 µs (with PCMCIA)
-
Application Structure: 1 master task, 1 fast task, 64 event tasks
-
Front Panel Indicators: 5 LEDs for status
For complete specifications, please contact UBEST Automation as detailed parameter lists are available on request.
Real-World Applications
The TSXP572623M excels in applications requiring moderate process control and extensive I/O. Typical uses include:
-
Packaging lines: Managing multiple conveyor segments with discrete and analog sensors.
-
HVAC systems: Controlling up to 30 simple loops for temperature, humidity, and pressure.
-
Water treatment: Handling PID loops and remote I/O via Ethernet TCP/IP and fieldbus modules.
When upgrading from an older Micro PLC, the TSXP572623M delivers faster execution (0.19 µs Boolean) and modern connectivity, reducing cycle times and enabling remote diagnostics.
Compatibility & Integration
The TSXP572623M integrates seamlessly with the Modicon Premium automation platform. It supports:
- Up to 16 racks with 4/6/8 or 12 slots
- 1 fieldbus module (unless CANopen is used)
- Up to 4 AS-Interface bus modules and 1 CANopen module
- 2 PCMCIA slots for memory or communication expansion
- Transparent Ready and Concept software
This makes it a versatile upgrade for existing TSX Micro or Premium systems.
Selection Guide & Purchasing Advice
Before purchasing the TSXP572623M, verify your system’s rack configuration and power supply capacity (5 V DC, 1110 mA). Consider whether you need a PCMCIA memory expansion for larger programs. UBEST Automation (ubest101) offers this module with fast shipping and technical support. Ensure compatibility with your existing I/O modules and fieldbus devices.
