Product Introduction

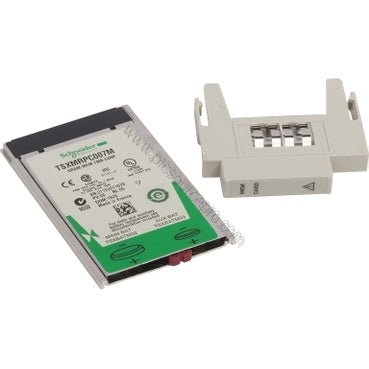

When a TSX Micro PLC requires expanded program storage or reliable parameter backup, the Schneider TSXMRPC007M provides a compact and durable flash memory solution. Designed specifically for the TSX Micro platform, this 512 KB memory module retains data for up to 10 years, ensuring critical automation logic and configuration remain intact across power cycles. Its low power consumption of 0.5 W and DIN rail mounting simplify integration into existing control panels.
Technical Specifications
Below are the key parameters for the Schneider TSXMRPC007M. Each value is taken directly from the manufacturer's specifications.
| Parameter |
Value |
| Memory Capacity |
512 KB |
| Memory Type |
Flash memory |
| Compatibility |
Schneider Electric TSX Micro PLCs |
| Operating Temperature |
0°C to 60°C |
| Storage Temperature |
-25°C to 70°C |
| Humidity |
5% to 95% non-condensing |
| Shock Resistance |
15 g for 11 ms |
| Vibration Resistance |
1.5 mm peak-to-peak, 3 Hz to 13 Hz |
| Mounting Type |
DIN rail |
| Power Consumption |
0.5 W |
| Data Retention |
10 years |
| Write Endurance |
100,000 cycles |
| Net Weight |
1.00 lbs (0.45 kg) |
| Certifications |
CE, UL, CSA |
These specifications confirm the Schneider TSXMRPC007M meets rigorous industrial standards for temperature, humidity, shock, and vibration.
Industry Applications
The Schneider TSXMRPC007M supports a wide range of automation tasks. In a packaging line, its fast write endurance (100,000 cycles) suits frequent recipe changes and batch logging. For remote material handling systems, the 10-year data retention ensures critical settings survive power outages without battery backup. In process control for water treatment, the wide operating temperature range (0°C to 60°C) allows operation in unconditioned enclosures. The 512 KB capacity handles moderate program sizes and data tables for medium-scale TSX Micro applications.
Installation & Setup Guidance
Mount the Schneider TSXMRPC007M on a standard DIN rail inside the control panel. Ensure the ambient temperature stays within 0°C to 60°C and that airflow is unobstructed. The module requires no external power supply—it draws power directly from the TSX Micro PLC backplane. After physical installation, configure the PLC software to recognize the additional memory. Always verify memory allocation in the programming tool before committing to production. The module is keyed to fit only slot 0 on compatible processors, simplifying assembly.
Maintenance & Reliability
With no moving parts and a solid-state design, the Schneider TSXMRPC007M requires minimal routine maintenance. Periodic visual inspections every six months should check for dust buildup or signs of corrosion. The 100,000 write cycles far exceed typical program update frequencies, making end-of-life wear unlikely under normal use. The 10-year data retention means backup schedules can be extended, reducing maintenance visits. For maximum reliability, avoid exposing the module to condensing humidity (the module handles 5% to 95% non-condensing) and mechanical shocks beyond 15 g. Over its lifespan, the low power consumption (0.5 W) translates to negligible energy costs.
Selection Guide & Purchasing Advice
Before purchasing, confirm your TSX Micro PLC model supports external flash memory expansion. The Schneider TSXMRPC007M is compatible with all TSX Micro processors that accept memory modules. Verify slot availability—the module occupies slot 0. No additional cables or adapters are required; the module plugs directly into the PLC backplane. If you need higher capacity or SRAM memory, consult the product family. For genuine, factory-tested parts, UBEST Automation stocks the TSXMRPC007M and other Schneider modules. Contact our team if you require further compatibility details.
