Product Introduction

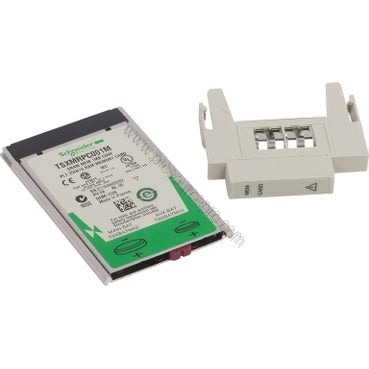

When your TSX Micro PLC requires additional memory for complex control logic or data logging, the Schneider TSXMRPC001M SRAM module delivers a reliable upgrade. This configurable memory extension fits seamlessly into Slot 0, offering an adjustable capacity from 192 kB to 1024 kB. Compact and lightweight at just 0.076 kg, the TSXMRPC001M is designed to handle demanding industrial environments with ease.
Technical Specifications Breakdown
The Schneider TSXMRPC001M is built to perform under harsh conditions. Key specifications from the product data include:
-
Memory Type: SRAM (static random-access memory)
-
Capacity: 192…1024 kB application memory (832…0 kB data storage)
-
Operating Temperature: 0 to 60 °C (32 to 140 °F)
-
Storage Temperature: -25 to 70 °C (-13 to 158 °F)
-
Relative Humidity: 5 to 95% non-condensing
-
Shock Resistance: 15 gn for 11 ms
-
Vibration Resistance: 1.5 mm peak to peak (f = 3…13 Hz)
-
Installation Slot: Slot 0
These specifications ensure the Schneider TSXMRPC001M maintains data integrity even in high-vibration and wide-temperature range applications.
Industry Applications
The Schneider TSXMRPC001M is ideal for upgrading TSX Micro PLCs in manufacturing lines, packaging machinery, and material handling systems. With its flexible capacity, you can optimize memory for larger programs or extended data logs without replacing the entire controller. For example, in a bottling plant, the TSXMRPC001M enables faster recipe changes by storing multiple production parameters directly on the PLC.
Compatibility & Integration
This SRAM module is fully compatible with TSX57C, TSX570 through TSX576, and TSXPCI572/3 processors. Installation is straightforward: insert the TSXMRPC001M into Slot 0 of your TSX Micro rack. No special tools or configuration software are required – the module is automatically recognized by the system. The Schneider TSXMRPC001M also serves as a configurable application/file memory extension, enhancing the capabilities of your existing automation platform.
Selection Guide & Purchasing Advice
Before ordering, confirm your PLC model matches the compatibility list above. The Schneider TSXMRPC001M is a compact separate part (not a kit) – just the module itself. For genuine parts and fast delivery, source your TSXMRPC001M from a trusted supplier. UBEST Automation stocks this memory module and can verify compatibility with your system upon request.
