Product Introduction

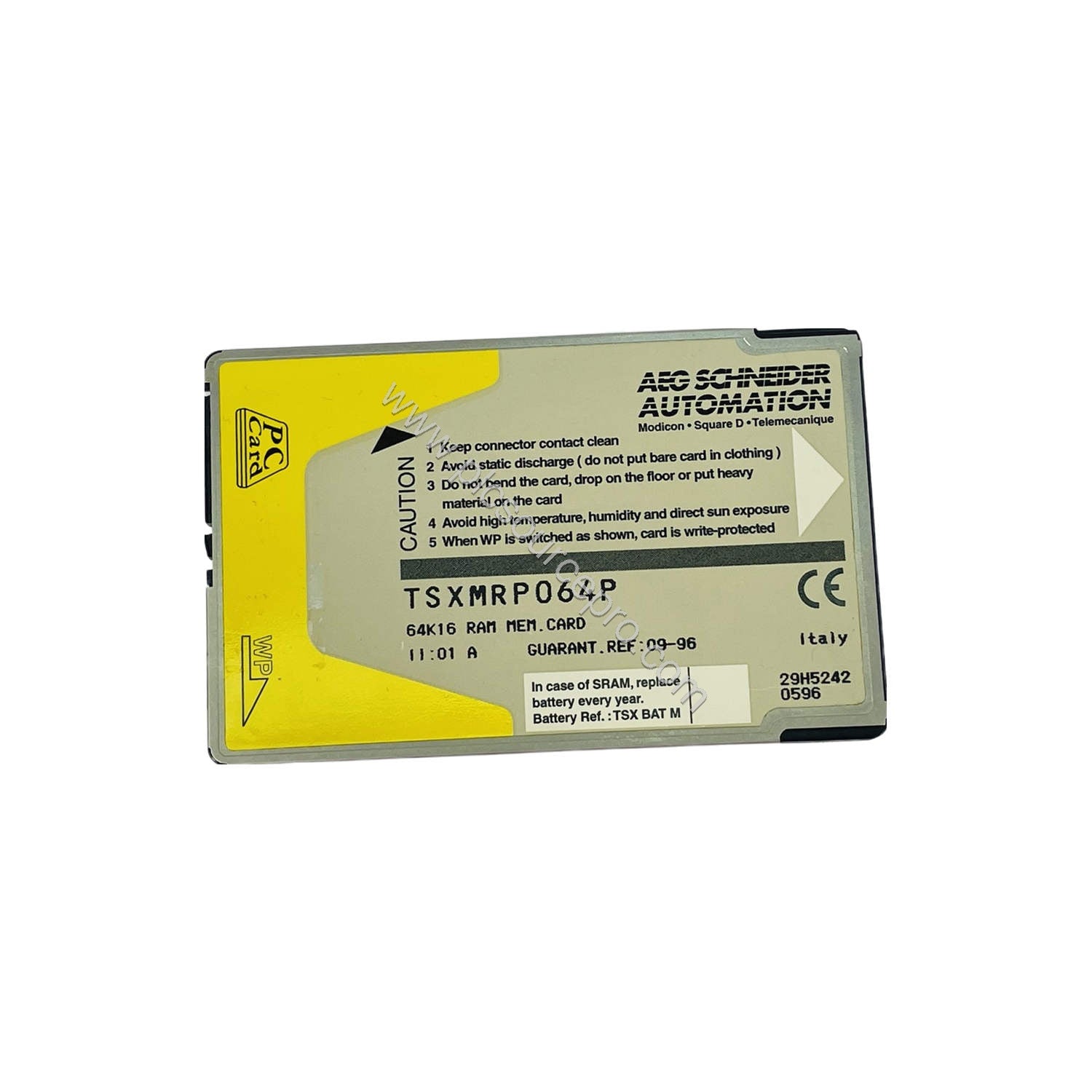

When your TSX Micro PLC requires additional memory capacity or a reliable replacement for an aging module, the Schneider TSXMRP064P flash memory module provides a direct solution. Designed specifically for the TSX Micro PLCs series, this module delivers 64 kilobytes of memory with 16-bit addressing, making it ideal for expanding data storage in automation tasks.
Technical Specifications Breakdown
The Schneider TSXMRP064P includes a set of critical specifications that ensure dependable performance in industrial environments:
-
Memory Type: Random Access Memory (RAM) with lithium battery backup for data retention during power loss.
-
Memory Capacity: 64 kilobytes — sufficient for storing program and data tables in small to medium automation applications.
-
Memory Addressing: 16-bit — allows efficient access to memory locations.
-
Protection: Battery backup ensures data integrity for approximately one year without power.
-
Vibration Resistance: 0.5G or less — suitable for environments with moderate mechanical disturbance.
-
Mounting Method: Slot mount — straightforward installation into compatible chassis.
-
Weight: Only 0.06 lbs (0.03 kg) — minimal impact on panel or cabinet loading.
The module dimensions are 2.5 inches in height, 4 inches in width, and 1 inch in thickness, allowing easy placement in tight spaces.
Industry Applications & Upgrade Scenarios
The Schneider TSXMRP064P excels in applications requiring stable non-volatile memory for machine control sequences, recipe storage, or data logging. In a typical upgrade scenario, replacing an older memory module with the TSXMRP064P immediately expands available memory and ensures data remains safe during power interruptions. Use it in packaging machinery, conveyor systems, or simple process control where the TSX Micro PLC forms the core controller.
Compatibility & Integration
This flash memory module is exclusively designed for the TSX Micro PLCs product line from Schneider Electric. It mounts directly into the dedicated slot within the PLC processor or expansion backplane. No additional hardware or cables are required — simply insert the TSXMRP064P into the slot. It integrates seamlessly with existing programming software and does not alter system behavior.
Maintenance & Reliability
The lithium backup battery in the Schneider TSXMRP064P maintains memory for up to one year without external power. To ensure long-term reliability, check battery status during routine PLC maintenance (typically every 2–3 years in continuous operation). If the battery fails, memory data may be lost unexpectedly. The module’s vibration tolerance of up to 0.5G reduces risk of connection issues in environments with constant low-level motion. No other periodic maintenance is required.
Selection Guide & Purchasing Advice
Before ordering the TSXMRP064P, verify that your TSX Micro PLC model supports this memory module. Check the PLC’s user manual for compatible memory module part numbers. The TSXMRP064P is a direct replacement and upgrade option — simply swap out the existing module if one is present. For a reliable source, consider ubest101 as your trusted supplier of genuine Schneider automation spares. Ensure you have a backup of your current program before installation.
