Product Introduction

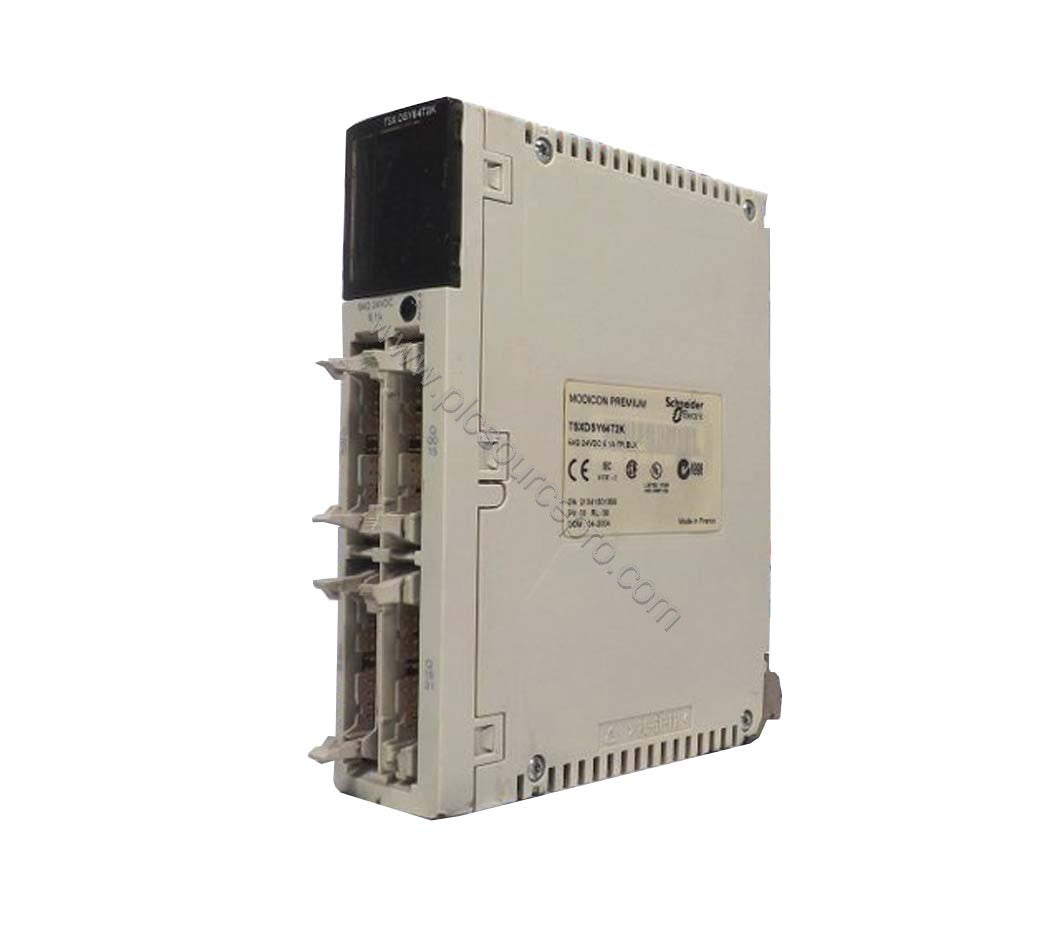

When industrial control systems face output failures due to overloads or short circuits, the Schneider TSXDSY64T2K solid state protected module provides robust protection. This discrete output module belongs to the TSX Micro PLC family and delivers 64 solid-state outputs designed for 24 V DC positive systems. Its built-in safeguards against short circuits, overloads, and reverse polarity ensure reliable operation in demanding automation environments.
Technical Specifications Breakdown
The Schneider TSXDSY64T2K module excels at protecting connected loads. Let us examine three critical specifications:
-
Discrete Output Voltage: 24 V DC positive (EN/IEC 61131-2 19...30 V). This wide input range tolerates voltage variations common in industrial settings.
-
Current per Channel: ≤ 0.1 A with a maximum module current of 5 A. Each channel safely drives small actuators, while the aggregate capacity supports up to 50 outputs at full load.
-
Protection Features: Short-circuit protection and output overload protection both use automatic trip mechanisms. Reverse polarity protection employs a reverse-mounted diode, and output overvoltage protection uses a transil diode. These layers prevent damage from common electrical faults.
Additional parameters include response time of 1.2 ms, leakage current < 0.1 mA at 30 V, and a residual voltage of < 1.5 V. The module also supports paralleling up to three outputs for higher current demands.
Industry Applications
In automated assembly lines, the Schneider TSXDSY64T2K module prevents unexpected downtime. For example, when controlling solenoid valves in a packaging machine, its short-circuit protection trips automatically if a valve coil fails, avoiding collateral damage to adjacent outputs. Similarly, in conveyor systems with multiple motor starters, the overload protection safeguards against continuous current draw beyond limits. The solid-state design also eliminates mechanical wear, making it ideal for high-cycle applications like pick-and-place robots.
Compatibility & Integration
The Schneider TSXDSY64T2K module integrates seamlessly with Schneider TSX Micro PLC racks. It connects via four HE-10 connectors and draws 155 mA from the 5 V DC bus. The module format is standard, fitting into any slot. It complies with UL 508, CSA C22.2 No 213 (Class I Division 2), and IEC 61131-2 standards, ensuring safe operation in hazardous locations. Certifications include CE, DNV, ABS, and others, confirming its suitability for marine and industrial applications.
Maintenance & Reliability
With an automatic trip protection scheme, the Schneider TSXDSY64T2K module requires minimal maintenance. The solid-state outputs have no moving parts, reducing wear over time. Operating temperature range of 0 to 60 °C and relative humidity up to 95% (non-condensing) allow deployment in harsh factory floors. The IP20 enclosure protects against solid objects but requires enclosure for dust or moisture. Periodic inspection of connector tightness and load impedance (minimum 220 Ω at state 1) ensures sustained performance. The low power dissipation (2.4 W + 0.1 W per active output) keeps thermal stress low, extending lifespan.
Selection Guide & Purchasing Advice
Before purchasing the Schneider TSXDSY64T2K module, verify your rack supply voltage (5 V DC) and connector type (HE-10). This module suits applications requiring 64 discrete outputs with individual protection. For higher current needs, consider paralleling outputs up to three channels. UBEST Automation stocks genuine units with full traceability. Contact us for competitive pricing and fast shipping.
