Product Introduction

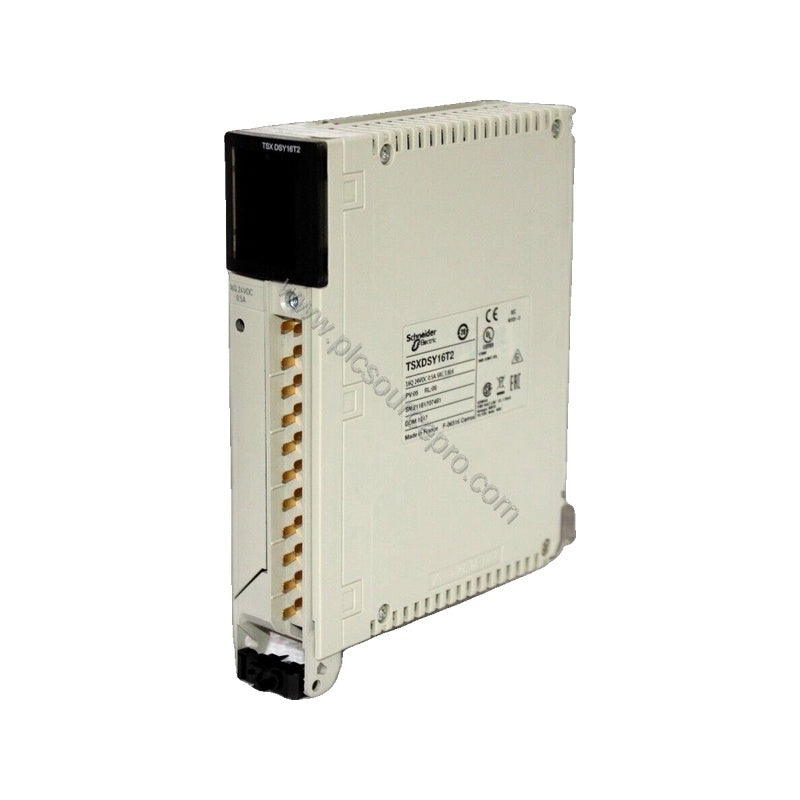

The Schneider TSXDSY16T2 discrete output module is engineered to prevent common failure modes in industrial automation. Part of the TSX Micro PLCs series, it integrates comprehensive protection against short circuits, overloads, reverse polarity, and overvoltages—ensuring uptime in demanding environments.
Technical Specifications Breakdown
The TSXDSY16T2 delivers precise performance with these key parameters:
| Parameter |
Value |
| Discrete Output Voltage |
24 V DC positive (19...30 V) per EN/IEC 61131-2 |
| Discrete Output Current per Channel |
0.5 A |
| Maximum Current per Module |
7 A |
| Response Time |
1.2 ms |
| Leakage Current at State 0 |
< 0.5 mA |
| Residual Voltage |
< 1.2 V |
| Switching Frequency |
0.5/LI² Hz |
| Short-Circuit Protection |
Electronic tripping on reactivation |
| Output Overload Protection |
Electronic tripping on reactivation |
| Reverse Polarity Protection |
Reverse mounted diode |
| Output Overvoltage Protection |
By transil diode |
These specs show the TSXDSY16T2 is built to avoid faults: electronic tripping prevents damage during overloads, while the transil diode clamps overvoltages.
Real-World Applications
In packaging lines, the TSXDSY16T2 reliably drives solenoid valves and actuators, with its 16 outputs handling high-density control. Its fast 1.2 ms response suits high-speed sorting systems. Thanks to integrated protection, the module resists typical failure causes like miswired connections or transient spikes, reducing downtime.
Maintenance & Reliability
Minimal maintenance is needed because the TSXDSY16T2 self-protects. No fuses to replace; electronic tripping resets automatically. Operate within 0…60°C and 10…95% RH (non-condensing) for reliable service. The IP20 enclosure suits cabinet installation.
Selection Guide & Purchasing Advice
Before purchasing, verify your PLC rack compatibility: the TSXDSY16T2 fits TSX Micro bases. Ensure 24 V DC supply within 19…30 V. For OEM replacements or upgrades, this module offers drop-in convenience. Trust UBEST Automation (ubest101) for genuine Schneider TSXDSY16T2 modules with fast delivery.
