Product Overview – Replacement & Upgrade Guide

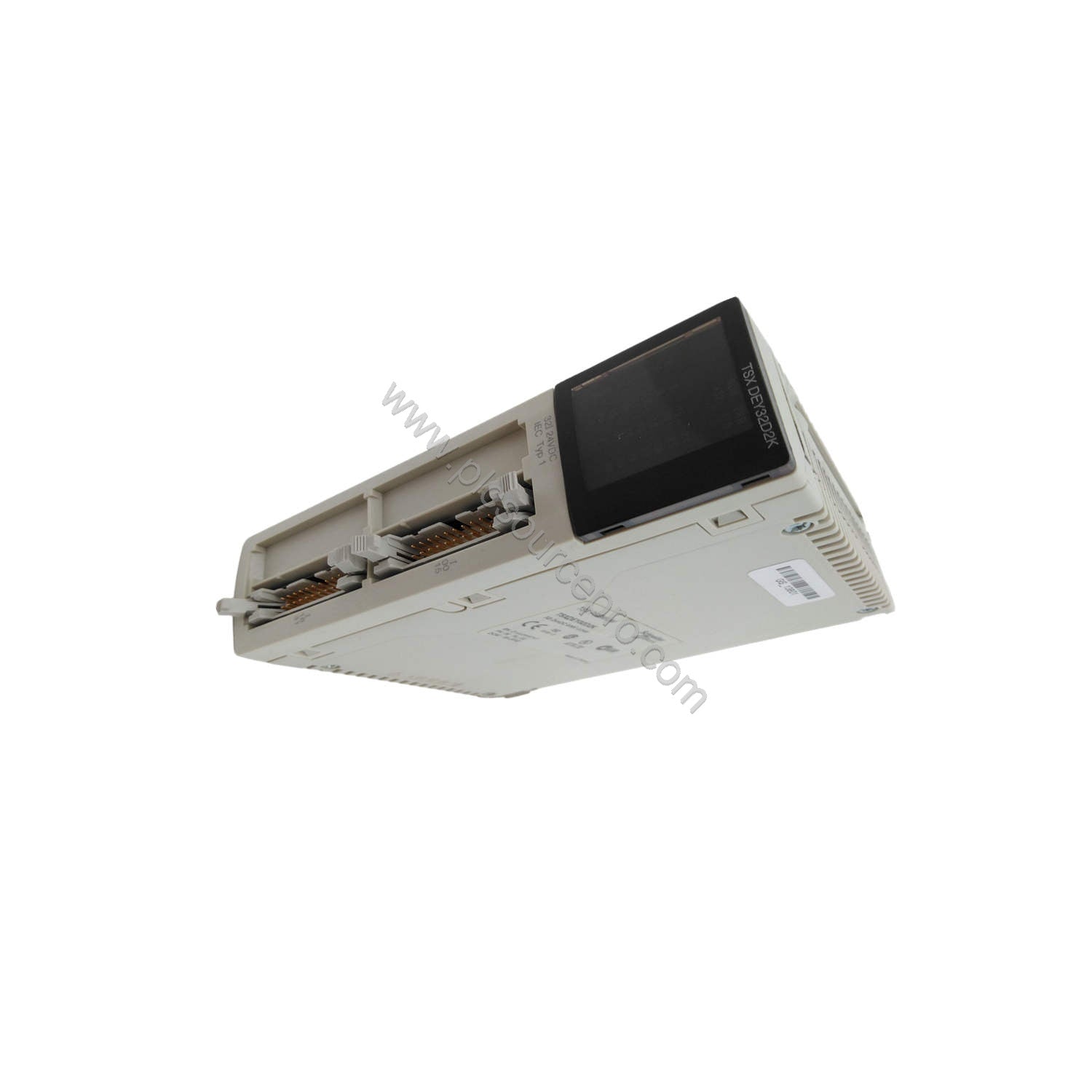

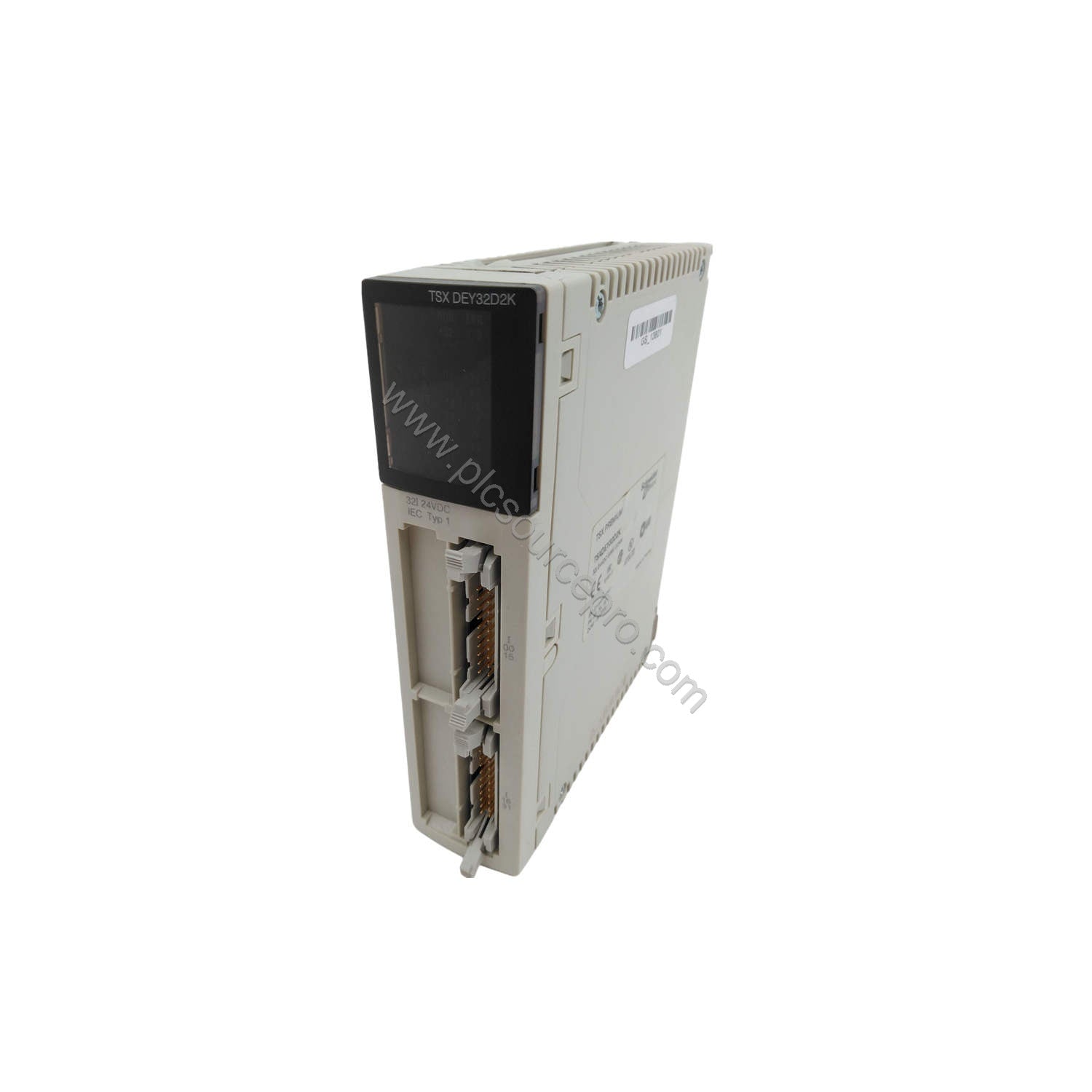

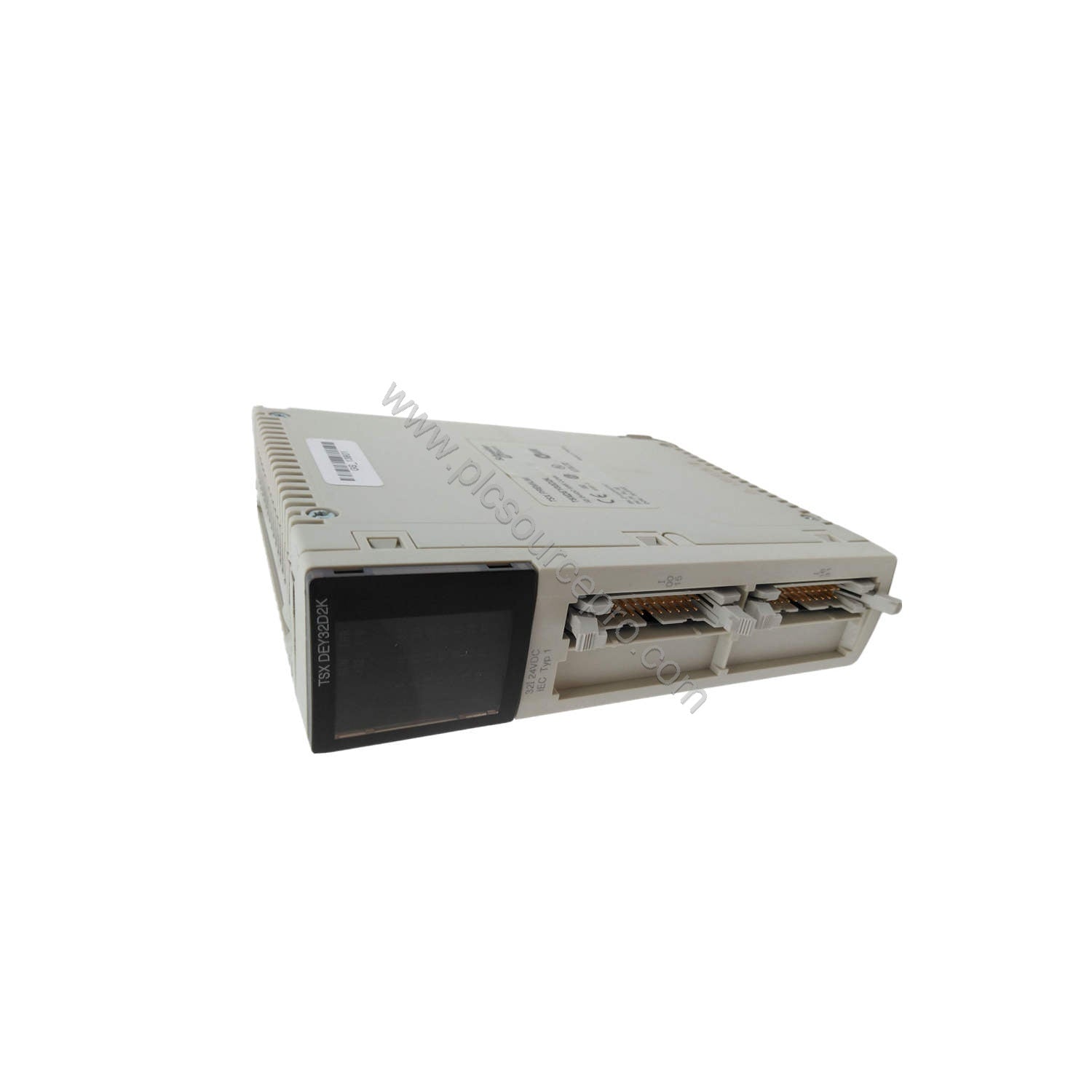

Upgrading your TSX Micro PLC system? The Schneider TSXDEY32D2K digital input module offers a direct, drop-in replacement for older 32-channel input modules. Designed by Schneider Electric for the TSX Micro series, the TSXDEY32D2K provides 32 discrete inputs at 24 VDC with a fast 1 ms response time. This module delivers reliable signal acquisition for industrial automation, making it an ideal upgrade path for legacy systems.
Technical Specifications Breakdown
Key parameters from the TSXDEY32D2K datasheet enable precise integration:
-
Number of Inputs: 32 (current sink, EN/IEC 61131-2 Type 1)
-
Input Voltage: 24 VDC positive (19…30 V supply)
-
Input Current: 7 mA per channel (3.5 mA per datasheet note)
-
Input Impedance: 3.4 kΩ (6.3 kΩ at state 1 per different data)
-
Response Time: 1 ms (≤7 ms per alternate spec)
-
Isolation: 500 VAC between channels and logic
-
Power Consumption: 2.5 W typical
-
Operating Temperature: -25°C to +70°C
-
Certifications: CE, UL, CSA
These specifications ensure the TSXDEY32D2K handles demanding environments with reliable performance.
Industry Applications
The Schneider TSXDEY32D2K excels in applications requiring high-density digital input monitoring. Typical use cases include:
- Conveyor system status monitoring – each input captures sensor signals from proximity or limit switches.
- Machine control panels – integrates directly with TSX Micro CPUs for real-time logic.
- Building automation – monitors door contacts, pushbuttons, and alarm signals.
For system upgrades, replacing older 16-input modules with the TSXDEY32D2K doubles input capacity without expanding rack space.
Installation & Setup Guidance
Mount the TSXDEY32D2K on a standard DIN rail (EN 60715). Use the HE-10 connector for wiring inputs. Ensure the 24 VDC supply is within 19…30 V. Connect the positive side to each input; the module’s current sink architecture requires a common negative. Confirm that the total current per channel does not exceed 7 mA. The module has a 1 ms response time, suitable for most discrete signals. Do not mix voltage types – use only 24 VDC sensor supplies.
Selection Guide & Purchasing Advice
Before purchasing a TSXDEY32D2K, verify your existing TSX Micro PLC compatibility. This module works with TSX Micro processors (e.g., TSX 37-22) and uses the standard backplane. No additional adapter needed. Order from UBEST Automation (ubest101) for genuine parts with fast shipping. Always confirm your system voltage and input type (sink/source) – the TSXDEY32D2K is current sink. For assistance, contact UBEST Automation with your part number and application details.
