Product Overview

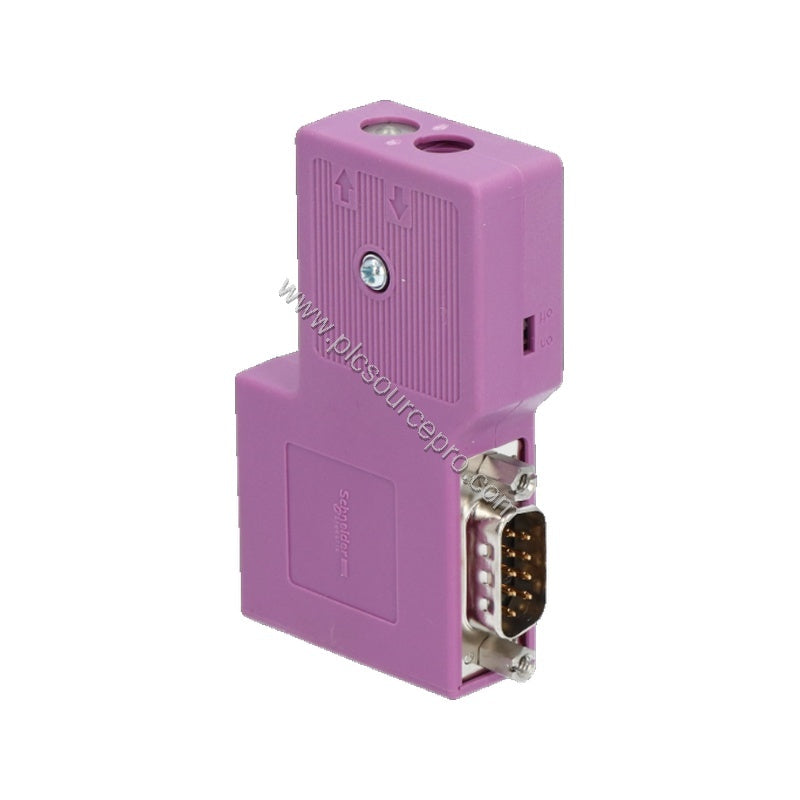

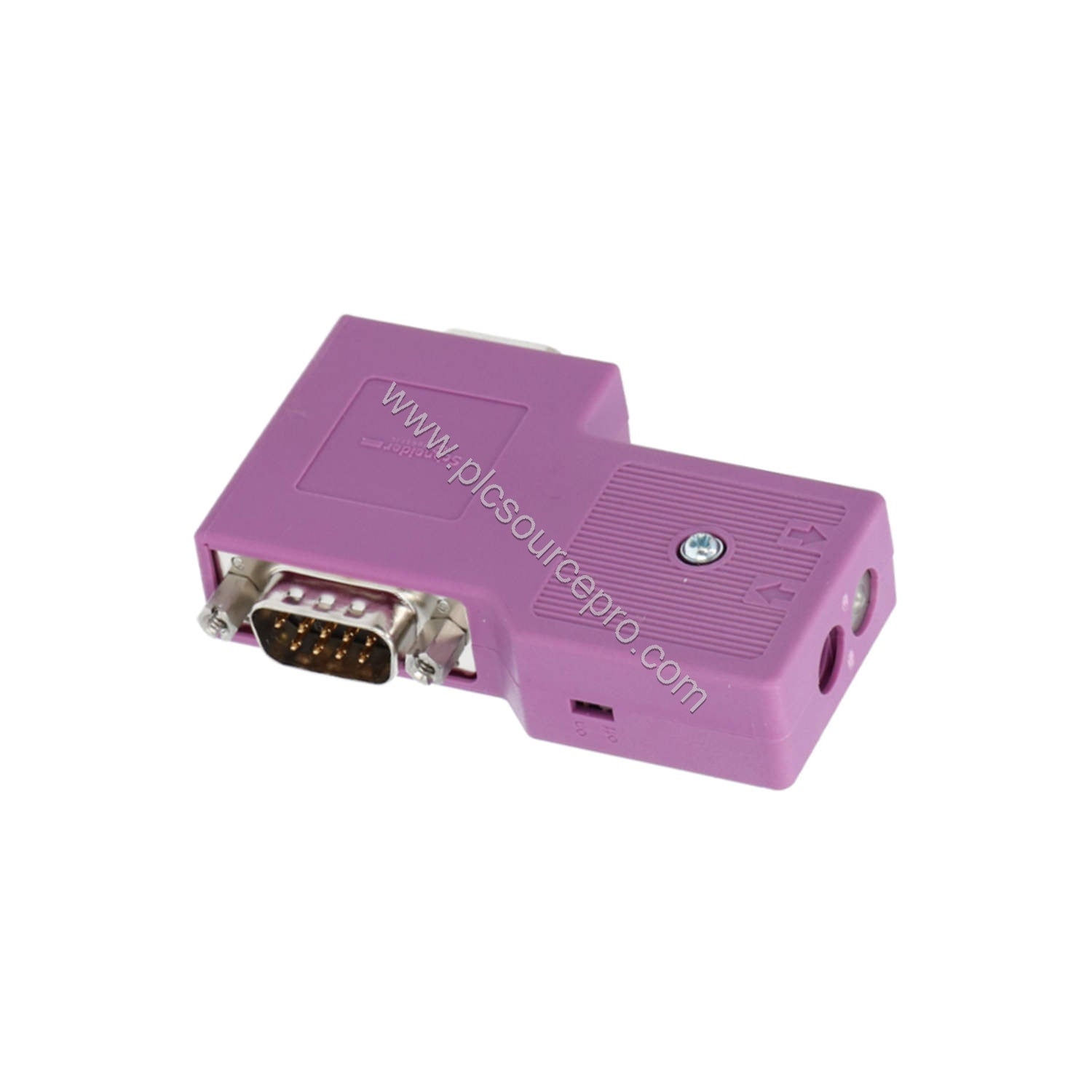

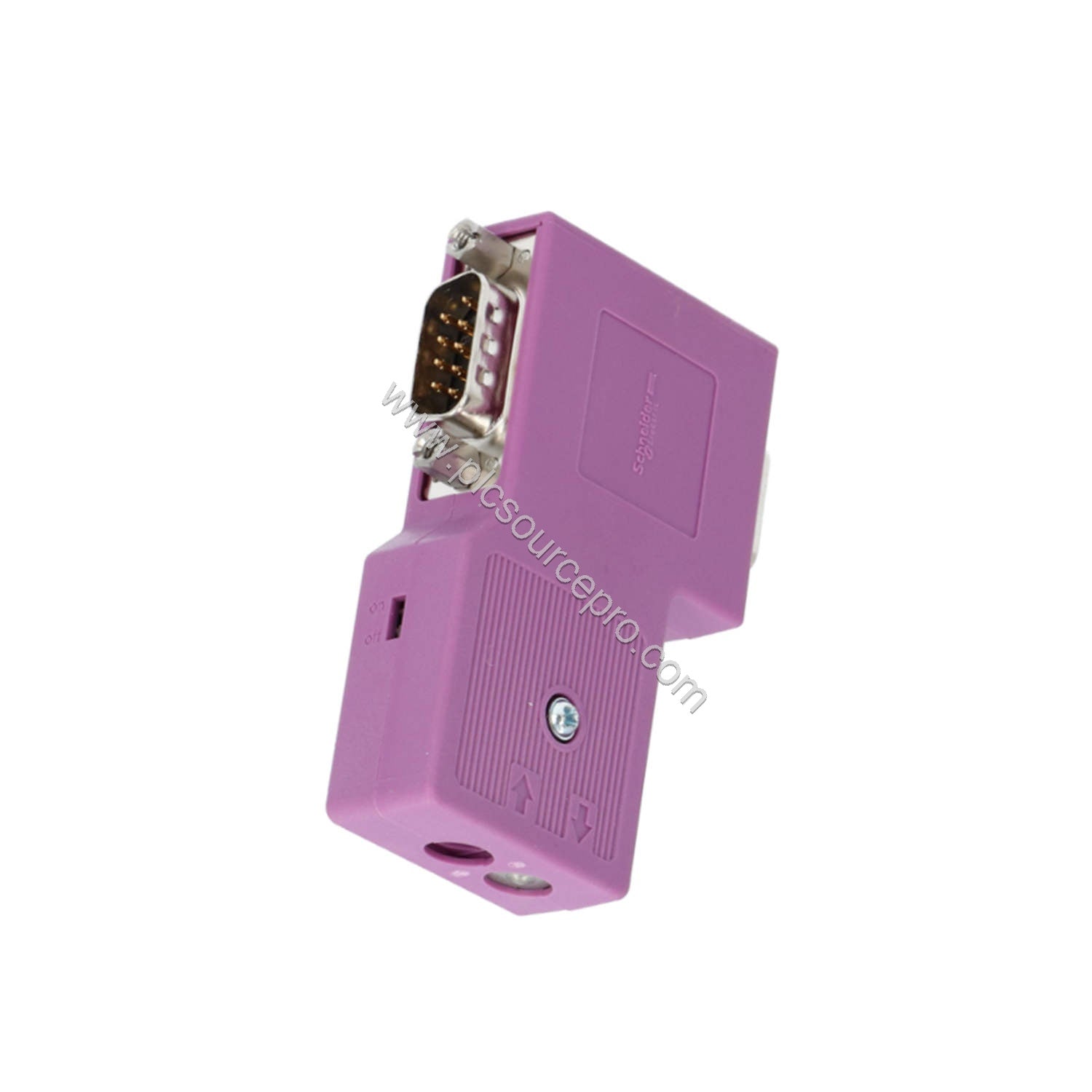

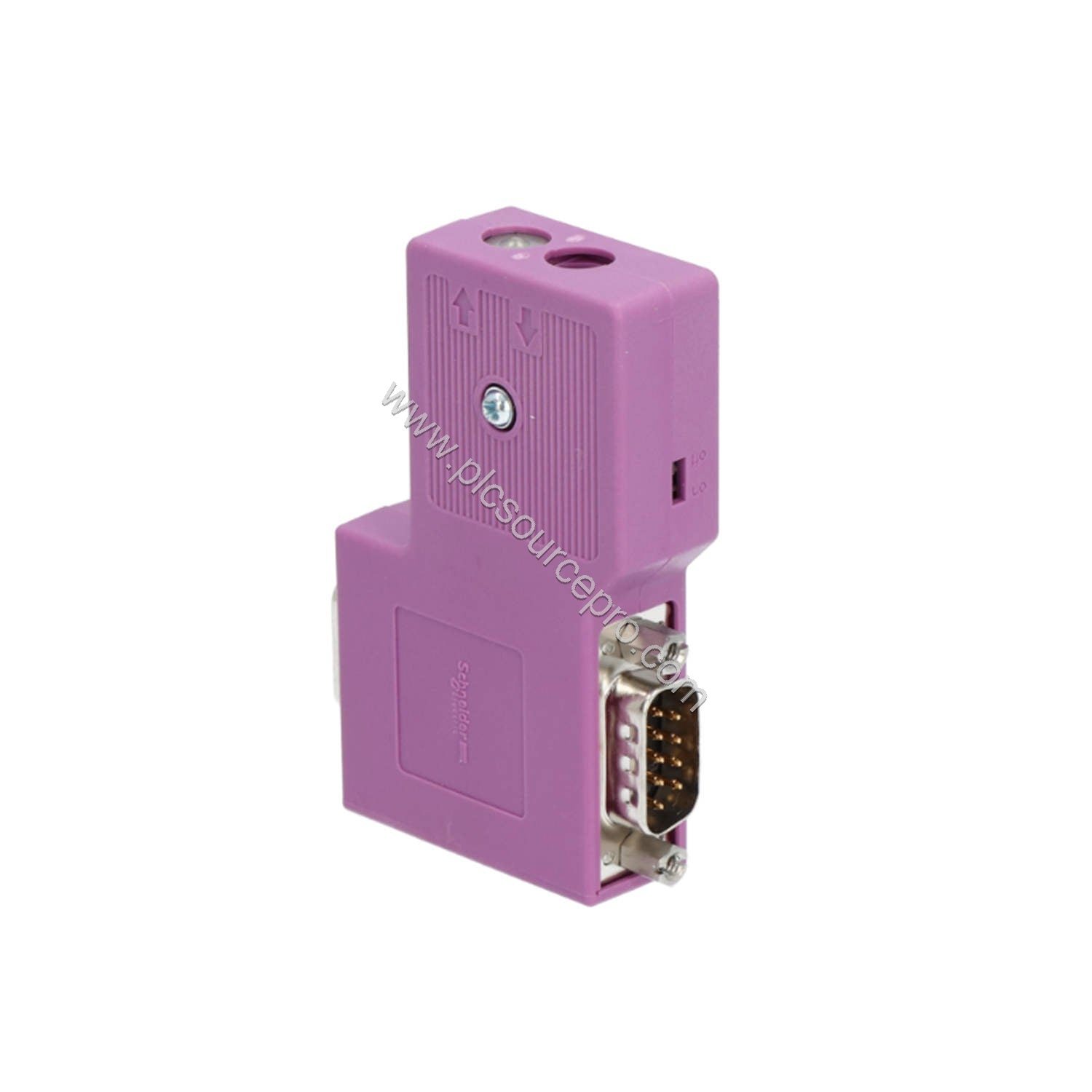

The Schneider TSXCANKCDF90TP is a CANopen connection accessory designed for industrial automation networks. This connector with line terminator ensures reliable termination on CANopen buses, minimizing signal reflections and improving communication integrity. Part of the Schneider CANopen range, the TSXCANKCDF90TP provides a robust IP20 rated interface. Its integrated line terminator simplifies installation and reduces component count, offering a cost-effective solution for network reliability.
Technical Specifications
-
Bus Type: CANopen
-
IP Degree of Protection: IP20
-
Electrical Connection: 1 female connector SUB-D 9 elbowed, 1 male connector SUB-D 9
-
Product Weight: 0.11 lb (US) (0.051 kg)
-
Accessory Type: Connector with line terminator
Industry Applications
The TSXCANKCDF90TP is ideal for terminating CANopen bus lines in factory automation, process control, and material handling systems. Its integrated line terminator eliminates the need for external termination, saving installation time and reducing component count. In high-noise environments, the Schneider TSXCANKCDF90TP ensures stable data transmission. This module is commonly used in packaging, conveyor, and robotic applications where reliable CANopen communication is critical.
Installation and Setup Guidance
To install the TSXCANKCDF90TP, connect the 90-degree elbowed female SUB-D 9 connector to the CANopen device and the male SUB-D 9 connector to the bus cable. Ensure the line terminator is enabled for end-of-network nodes. The IP20 rating allows use in clean, dry environments. No additional tools are required for installation. Secure the connector using the screw locks provided on the SUB-D housing.
Compatibility and Integration
The Schneider TSXCANKCDF90TP is designed for CANopen networks and works with any CANopen-compatible controller or device. It is suitable for use with other Schneider Electric PLCs and third-party CANopen systems. Verify network topology before installation to confirm the terminator placement. This connector supports standard CANopen baud rates and is compatible with DS-301 profile devices.
Common Issues and Troubleshooting
A common issue on CANopen networks is unterminated bus ends causing communication errors. The Schneider TSXCANKCDF90TP eliminates this problem with its integrated line terminator. If network issues persist, check that the connector is properly seated and that the terminator is active. The IP20 housing protects against dust ingress but use caution in wet environments. For extended troubleshooting, consult the CANopen network design guidelines.
Selection Guide and Purchasing Advice
When selecting the TSXCANKCDF90TP, verify your CANopen bus requires a line terminator and that the connector orientation fits your panel layout. For quantity discounts or bulk orders, contact ubest101 for pricing. Each unit is individually packaged with GTIN 00785901658795. The product is manufactured in Germany and ships with a 0.11 lb package weight.
