Product Introduction

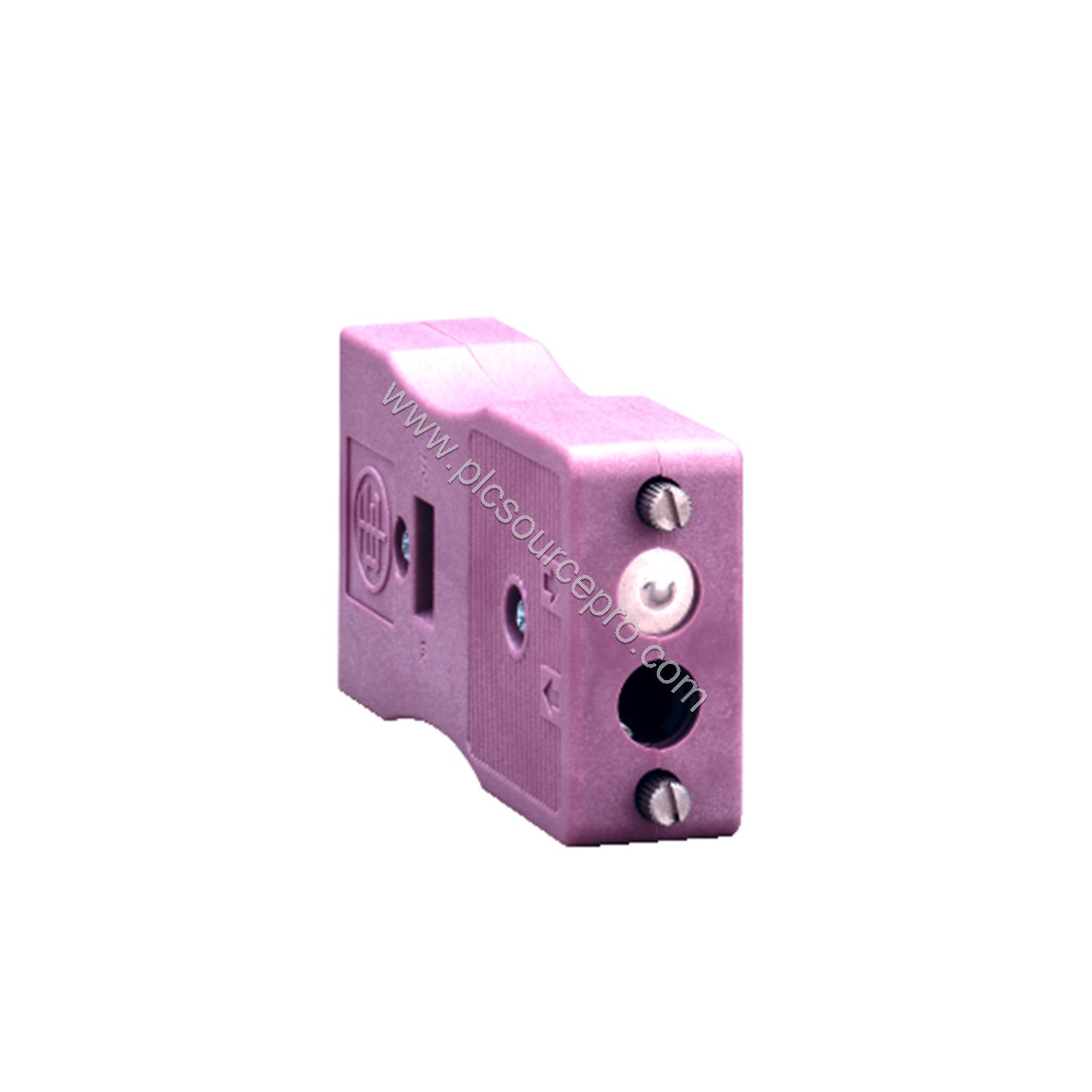

When CANopen network communication errors arise due to improper bus termination, the Schneider TSXCANKCDF180T provides a reliable solution. This CANopen SUB-D 9-pin connector with built-in termination resistor ensures signal integrity and prevents reflections on the CANopen bus. Part of Schneider's CANopen accessory family, the TSXCANKCDF180T is designed for industrial automation environments where network reliability is critical. With an IP20 rating, it suits clean, dry control cabinets and panel installations.
Technical Specifications
The Schneider TSXCANKCDF180T is a CANopen cable accessory classified as a wiring accessory and specifically a connector with termination resistor. Key specifications from the product database include:
-
Bus/Network Type: CANopen
-
Product Type: CANopen Cable
-
Accessory Category: Wiring Accessories
-
Accessory Type: Connector with Termination Resistor
-
IP Rating: IP20
-

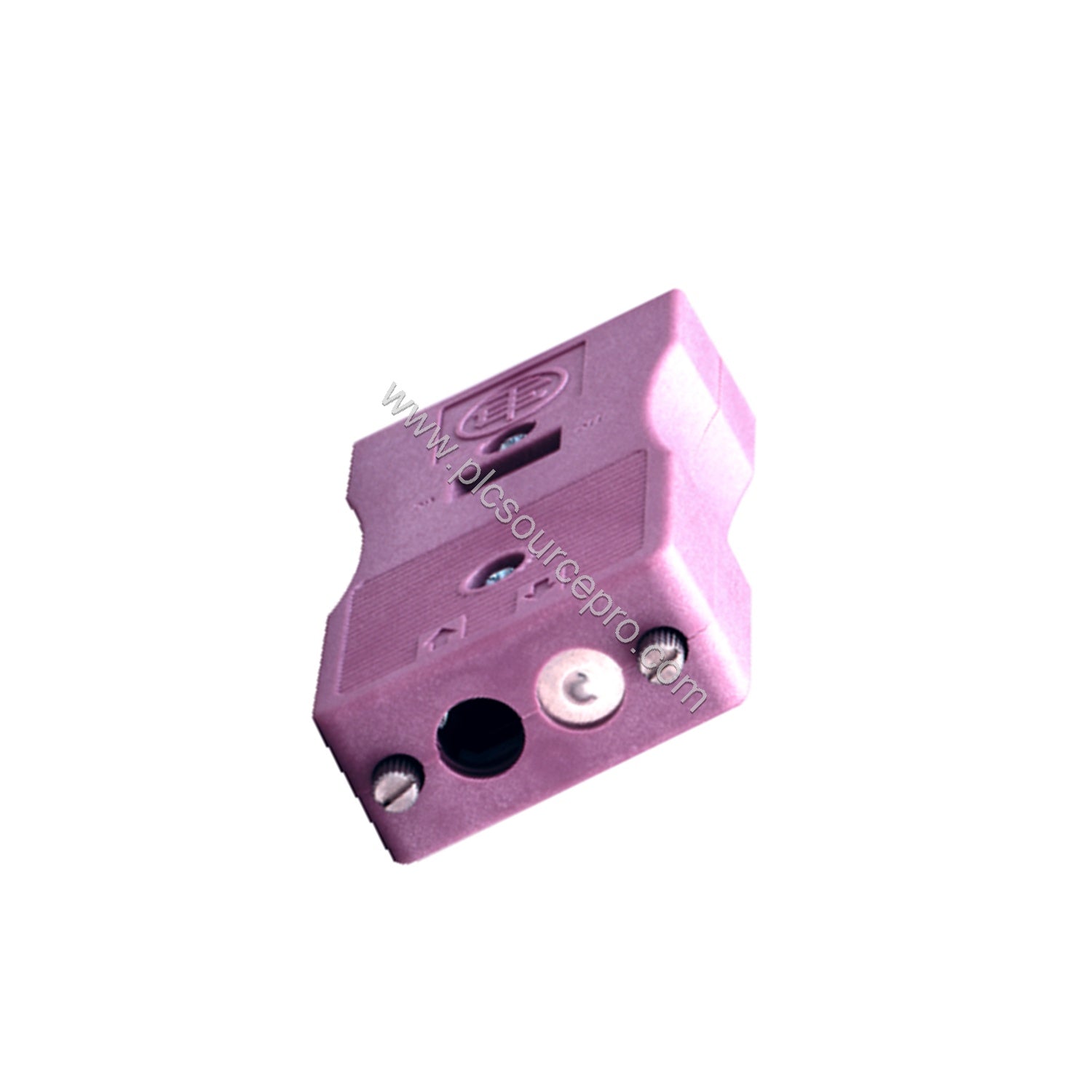

Electrical Connection: 1 Female Terminal Block, 9 Straight (SUB-D 9-pin)
-
Product Weight: 0.049 kg
-
Packing Unit Type: PCE (piece)
Please note that further technical parameters are not available in our records. For detailed specifications, contact PLC Source PRO.
Industry Applications
In manufacturing lines and process automation, the Schneider TSXCANKCDF180T ensures proper termination of CANopen segments, reducing data collision and signal degradation. For example, in a multi-axis servo drive system using CANopen, improper termination can cause intermittent communication dropouts. This connector resolves that issue. Another common scenario is in conveyor control networks, where the TSXCANKCDF180T provides a simple, plug-and-play solution for end-of-line termination.
Installation & Setup Guidance
Installing the Schneider TSXCANKCDF180T is straightforward. Connect the female SUB-D 9-pin connector to the CANopen device's male port. The integrated termination resistor is already present, so no additional components are needed. Ensure the connector is at the physical end of the CANopen bus segment. The IP20 rating means it should be placed inside an enclosure protected from moisture and dust. Tighten the screw locks for a secure connection.
Maintenance & Reliability
Regularly inspect the Schneider TSXCANKCDF180T connector for signs of corrosion or damage to the pins. Check that the screw locks remain tight. Since the termination resistor is built-in, there is no separate component to maintain. The lightweight design (0.049 kg) minimizes mechanical stress. By ensuring proper termination, the TSXCANKCDF180T reduces network downtime and improves overall system reliability.
Selection Guide & Purchasing Advice
Before purchasing, verify that your CANopen network requires a termination resistor at the end node. The Schneider TSXCANKCDF180T is a female SUB-D 9 connector; ensure compatibility with your device's male port. For bulk orders or technical assistance, visit ubest101.myshopify.com or contact PLC Source PRO.
