Product Overview

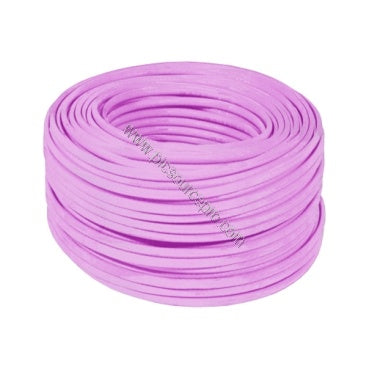

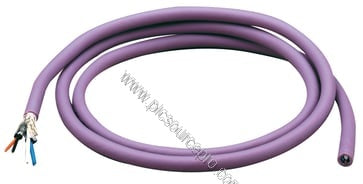

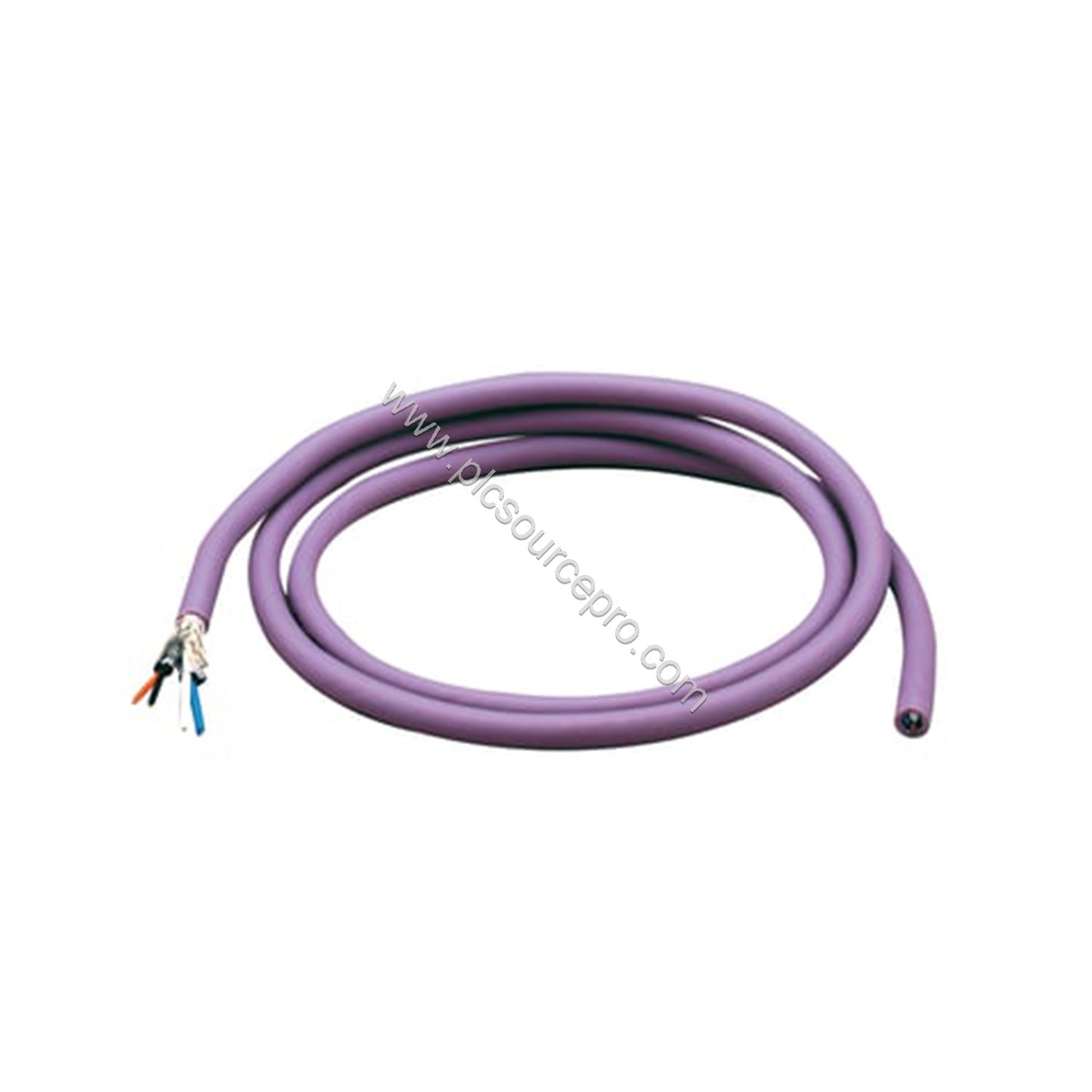

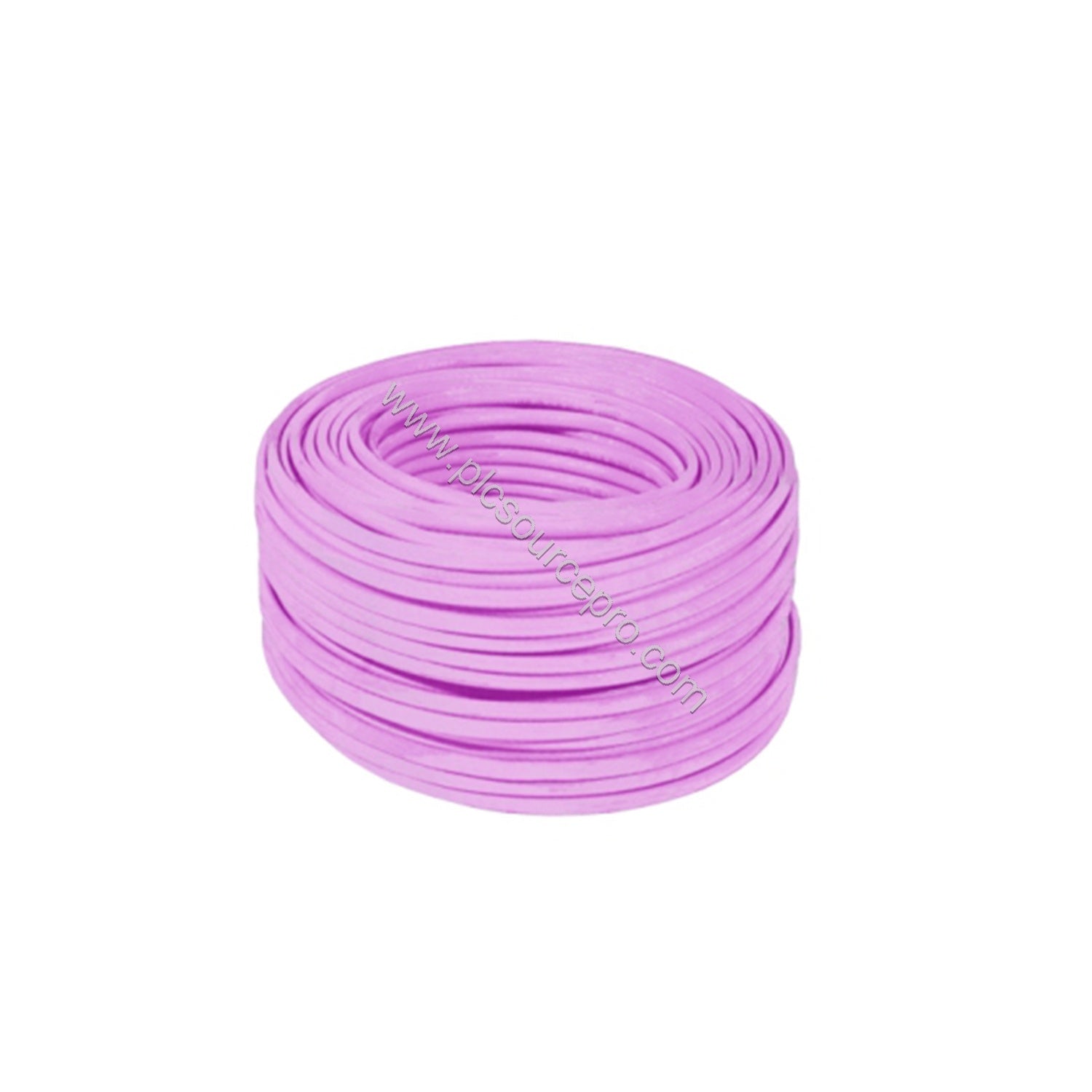

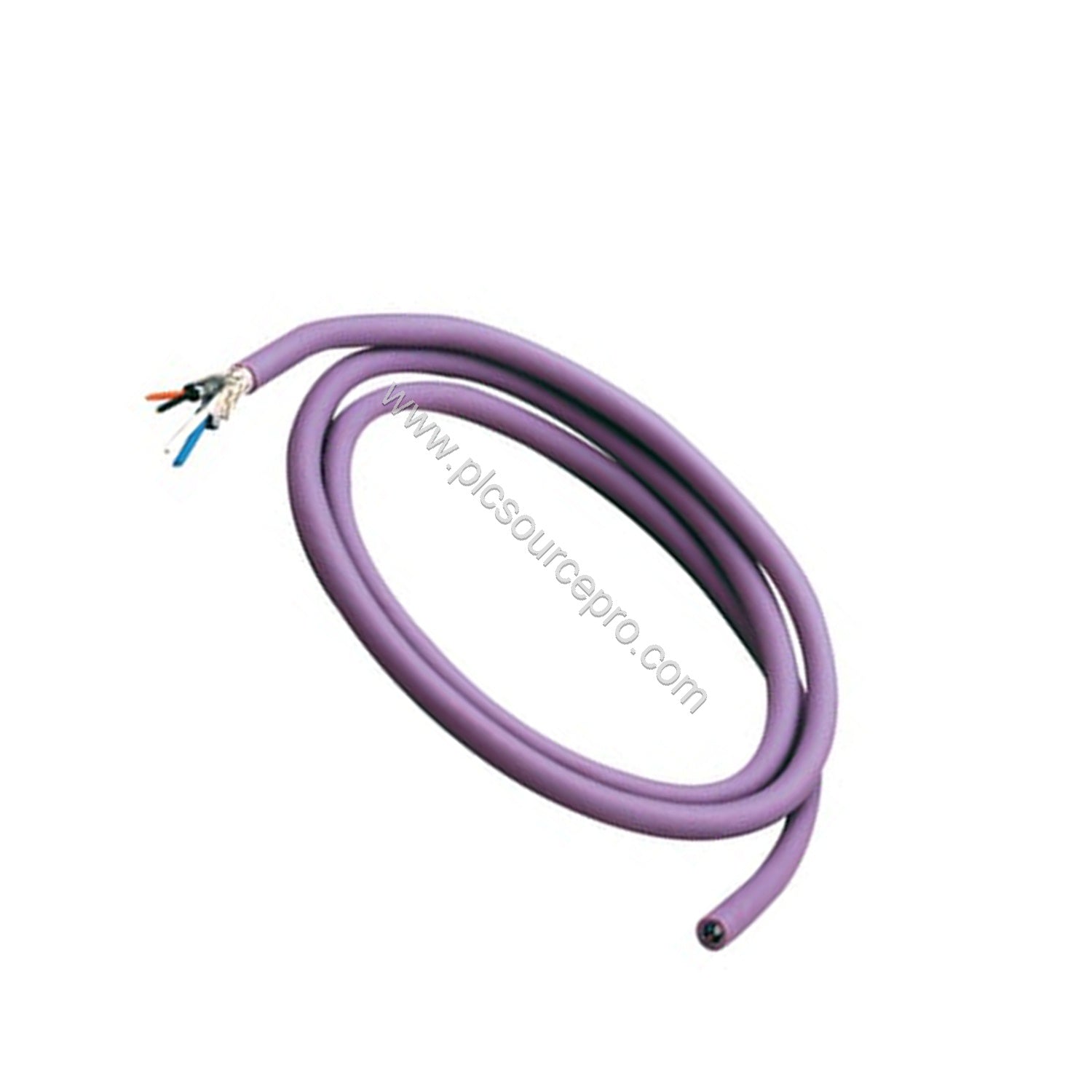

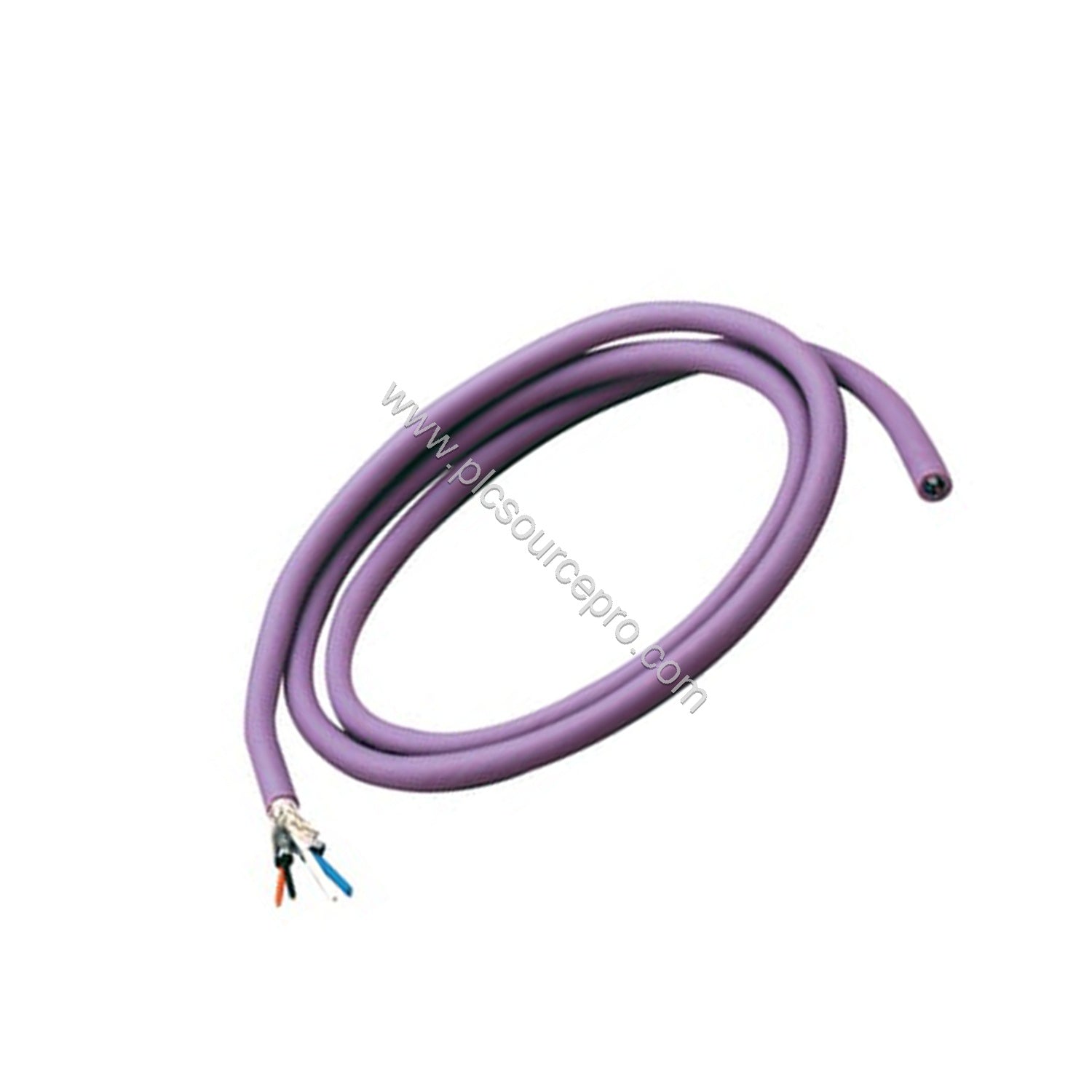

The Schneider TSXCANCB300 is a high-performance CANopen standard cable designed for industrial automation networks. With a length of 300 meters and IP20 protection, this cable ensures reliable data transmission in control systems. Part of the CANopen bus family, the TSXCANCB300 is ideal for connecting PLCs, drives, and sensors in harsh environments.
When downtime costs thousands per minute, the TSXCANCB300 delivers long-term value through robust construction and compliance with UL and CE standards. Its durable design reduces replacement frequency, directly improving your ROI.
Technical Specifications
| Parameter |
Value |
| Product Type |
CANopen standard cable |
| Bus Type |
CANopen |
| Cable Length |
300 m |
| IP Degree of Protection |
IP20 |
| Product Weight |
21.87 kg |
| Product Certifications |
UL, CE |
| Marking |
CE |
| Package 1 Weight |
21.870 kg |
| Package 1 Dimensions |
33.5 x 40 x 40 cm |
The Schneider TSXCANCB300 cable meets IEC 60332-2 flame retardance standards, ensuring safety in industrial settings.
Industry Applications
The TSXCANCB300 is widely used in:
-
Automotive Assembly Lines: With 300 m length, it connects remote I/O stations to main controllers, reducing network segmentation costs.
-
Warehouse Automation: The IP20 rating suits dry indoor environments, supporting conveyor systems and sortation equipment.
-
Machine Tool Control: UL certification ensures compliance in North American facilities, while the robust jacket resists oil and vibration.
By investing in the Schneider TSXCANCB300, you minimize signal degradation over long distances, lowering maintenance and replacement expenses.
Installation Guide
Mount the cable using proper strain relief at both ends. Avoid sharp bends and keep the cable away from high-voltage lines to prevent interference. The maximum cable length is 300 m, so plan routing accordingly. Terminate the CANopen bus with appropriate connectors (not included) to maintain signal integrity.
Maintenance & Reliability
The TSXCANCB300 requires minimal maintenance. Inspect the cable quarterly for cuts, abrasions, or loose connections in high-motion areas. Its heavy-duty construction (21.87 kg per reel) indicates thick insulation that withstands industrial wear. Replacing worn cables promptly prevents intermittent network faults, maximizing uptime.
Selection Guide & Purchasing Advice
When selecting the Schneider TSXCANCB300, verify your CANopen node count and total bus length. This cable supports standard CANopen baud rates up to 1 Mbit/s over appropriate distances. For longer runs, consider repeaters. Purchase from a reliable supplier like ubest101 to ensure genuine parts and fast delivery. Always check your system's voltage and connector requirements before ordering.
