Product Introduction

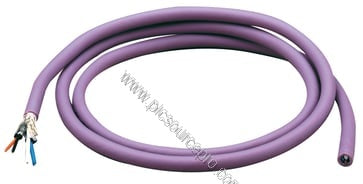

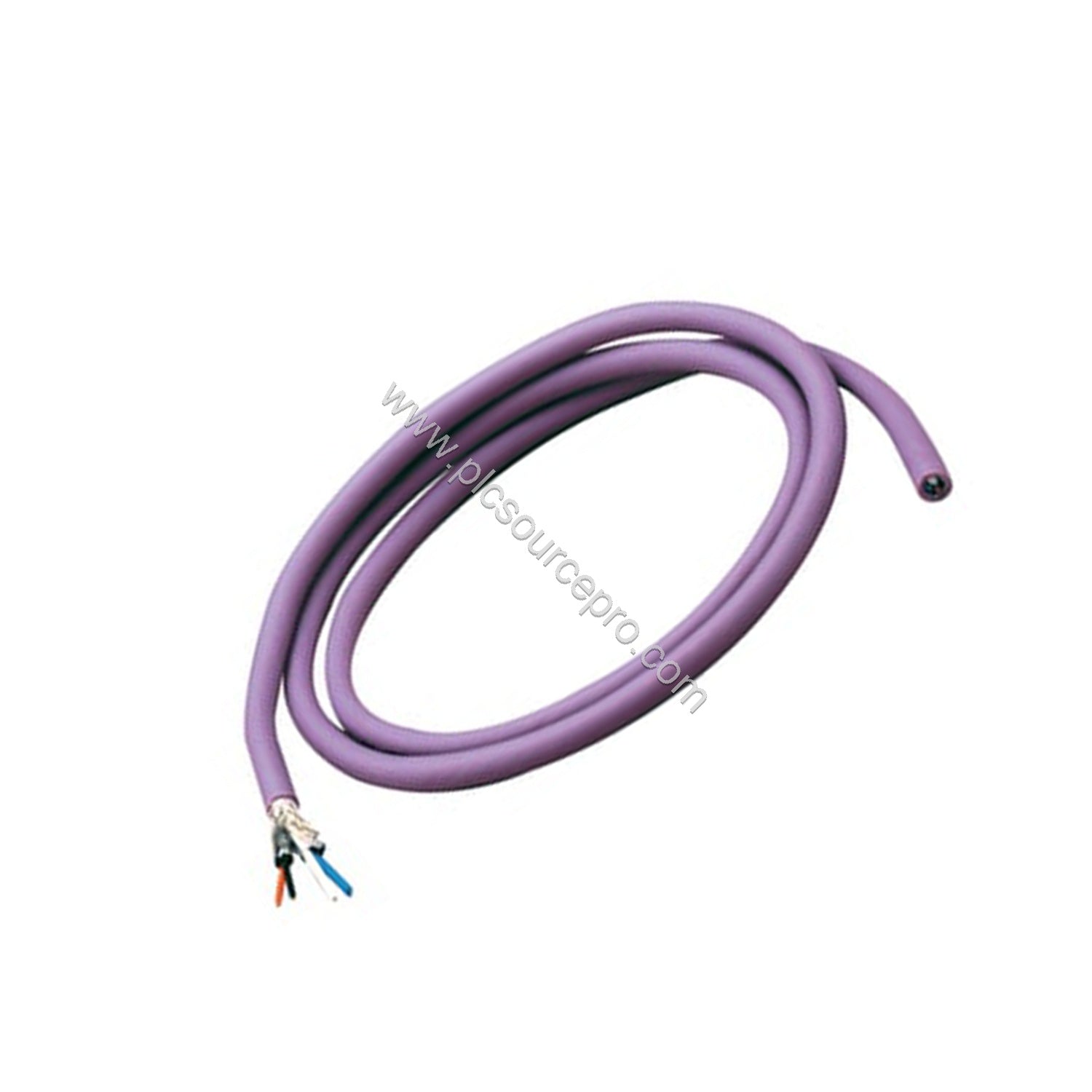

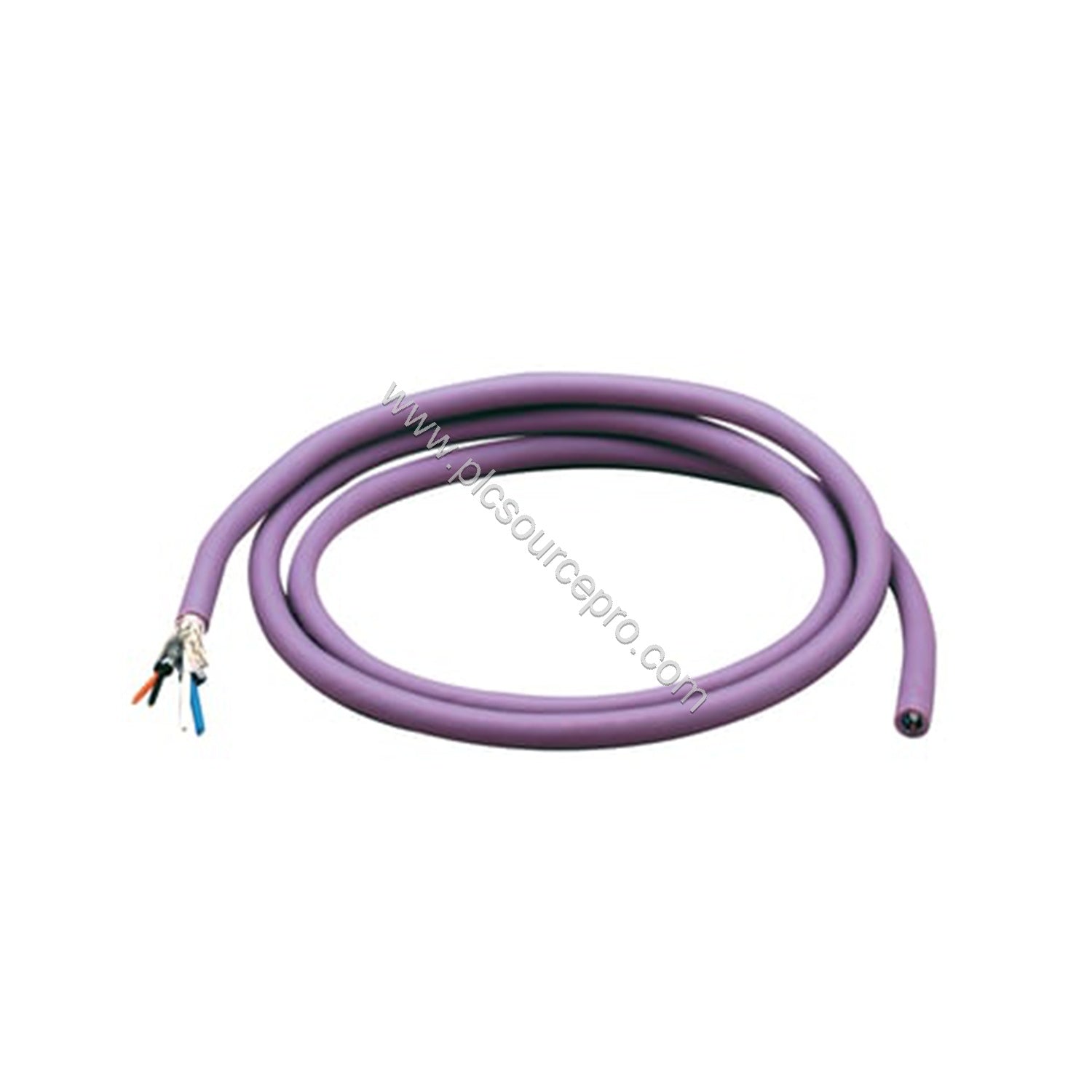

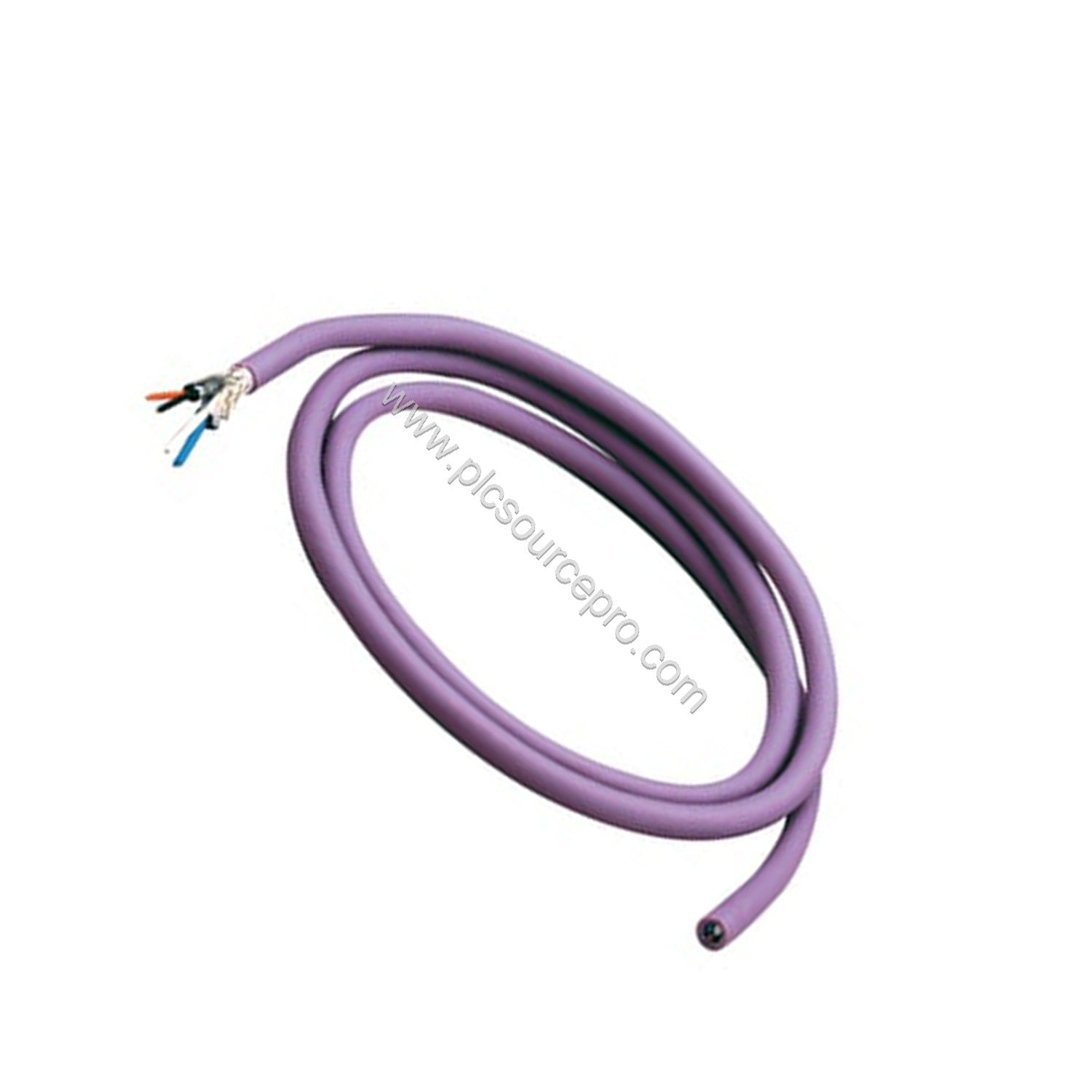

With a 100-meter length and IP20 protection, the Schneider TSXCANCB100 CANopen standard cable delivers a robust connection for demanding industrial automation environments. Designed as a connecting cable for CANopen bus systems, this accessory ensures signal integrity and mechanical durability. The TSXCANCB100 supports UL certification and meets IEC 60332-2 flame retardance standards, making it suitable for a wide range of factory and process automation applications.
Technical Specifications
| Parameter |
Value |
| Cable Length |
328.08 ft (100 m) |
| Product Weight |
17.28 lb (7.84 kg) |
| IP Degree of Protection |
IP20 |
| Marking |
CE |
| Product Certifications |
UL |
| Bus Type |
CANopen |
| Accessory / Separate Part Type |
Connecting cable |
| Accessory / separate part destination |
CANopen bus |
Industry Applications
The Schneider TSXCANCB100 is ideal for connecting devices in CANopen networks within packaging, material handling, and assembly lines. Its 100-meter reach supports distributed I/O and drive systems without signal degradation. In machine tool applications, the IP20-rated TSXCANCB100 resists dust ingress and accidental contact, reducing maintenance interventions. For system integrators, choosing the TSXCANCB100 means fewer cable runs and lower installation cost per node.
Installation & Setup Guidance
When installing the Schneider TSXCANCB100, ensure the routing path avoids sharp edges and excessive bending radii to maintain signal quality. The IP20 protection requires the cable to be used in a clean, dry environment or within an enclosure that provides additional splash protection. Terminate the cable with appropriate CANopen connectors per your network topology. Always verify continuity and terminating resistors after installation.
Selection Guide & Purchasing Advice
Before purchasing, confirm that your CANopen master and slave devices support the TSXCANCB100's standard cable specifications. This cable is part of the CANopen range and is intended for fixed installation rather than continuous flexing. For bulk requirements, the unit is available in a single-piece package (PCE) or in a case of 24 units (P12). For reliable sourcing and competitive pricing, consider ubest101 as your supplier for the Schneider TSXCANCB100 and other automation spares.
