Product Introduction

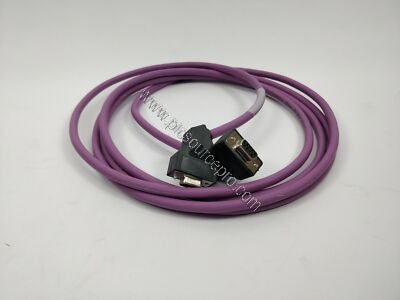

The Schneider TSXCANCADD3 is a CANopen cordset designed as a replacement or upgrade for existing CANopen bus connections in industrial automation systems. This molded cable assembly features two female SUB-D9 connectors, a standard 3-meter length, and IP20 protection, making it a reliable choice for control cabinets and machinery. Part of the CANopen range, the TSXCANCADD3 ensures seamless integration with compatible devices.
Technical Specifications
-
Cable Length: 9.8 ft (3 m)
-
Electrical Connection: 2 female connectors SUB-D 9
-

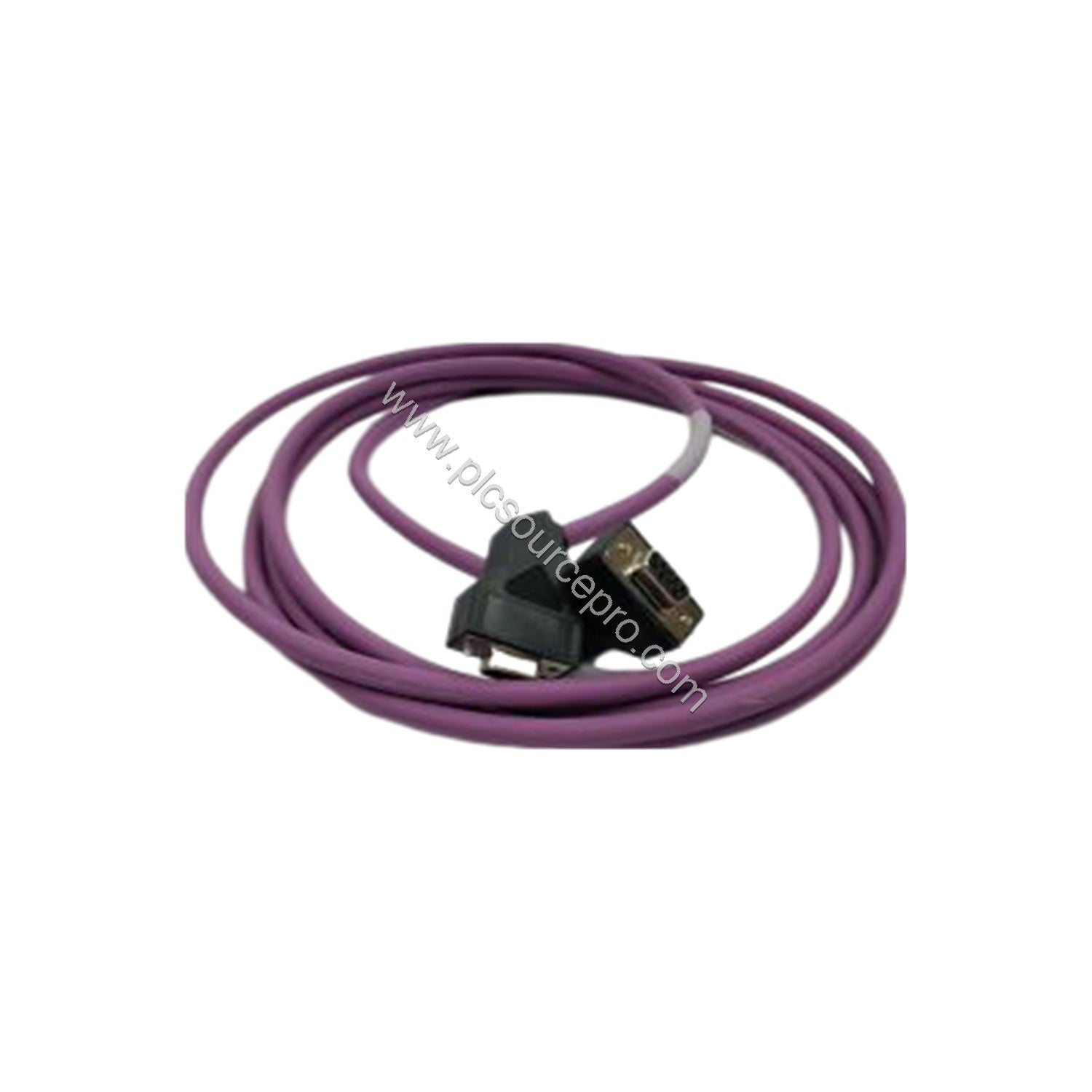

Protection Degree: IP20
-
Product Weight: 0.650 lb (0.295 kg)
-
Marking: CE
Industry Applications
The Schneider TSXCANCADD3 is ideal for upgrading CANopen fieldbus networks in manufacturing lines, packaging machinery, and material handling systems. Its standard 3-meter length suits typical cabinet-to-device distances, while the IP20 rating protects against dust and incidental contact in indoor installations. When replacing older cordsets, this model ensures backward compatibility with existing CANopen nodes.
Installation & Setup Guidance
To install the TSXCANCADD3, connect the female SUB-D9 connectors to matching male ports on your CANopen master and slave devices. Ensure the connectors are fully seated and the locking screws are tightened to maintain a reliable connection. The cordset is plug-and-play; no additional termination or configuration is required for standard CANopen networks. For best results, route the cable away from high-voltage lines to avoid interference.
Compatibility & Integration
The Schneider TSXCANCADD3 is designed for CANopen bus systems and works with any CANopen-compatible device, such as drives, I/O modules, and sensors. It can replace any generic CANopen cordset with female SUB-D9 connectors, but always verify the required cable length and connector pinout for your specific application. This accessory is categorized as a connecting cable for connection accessories within the CANopen range.
Selection Guide & Purchasing Advice
Before ordering the TSXCANCADD3, confirm your system requires a 3-meter CANopen cable with two female SUB-D9 connectors. This model is CE marked and packed individually or in bulk (25 units per case). For reliable supply, source from PLC Source PRO (visit ubest101.myshopify.com). Ensure your bus topology and number of nodes are compatible with standard CANopen cabling practices.
