Product Overview

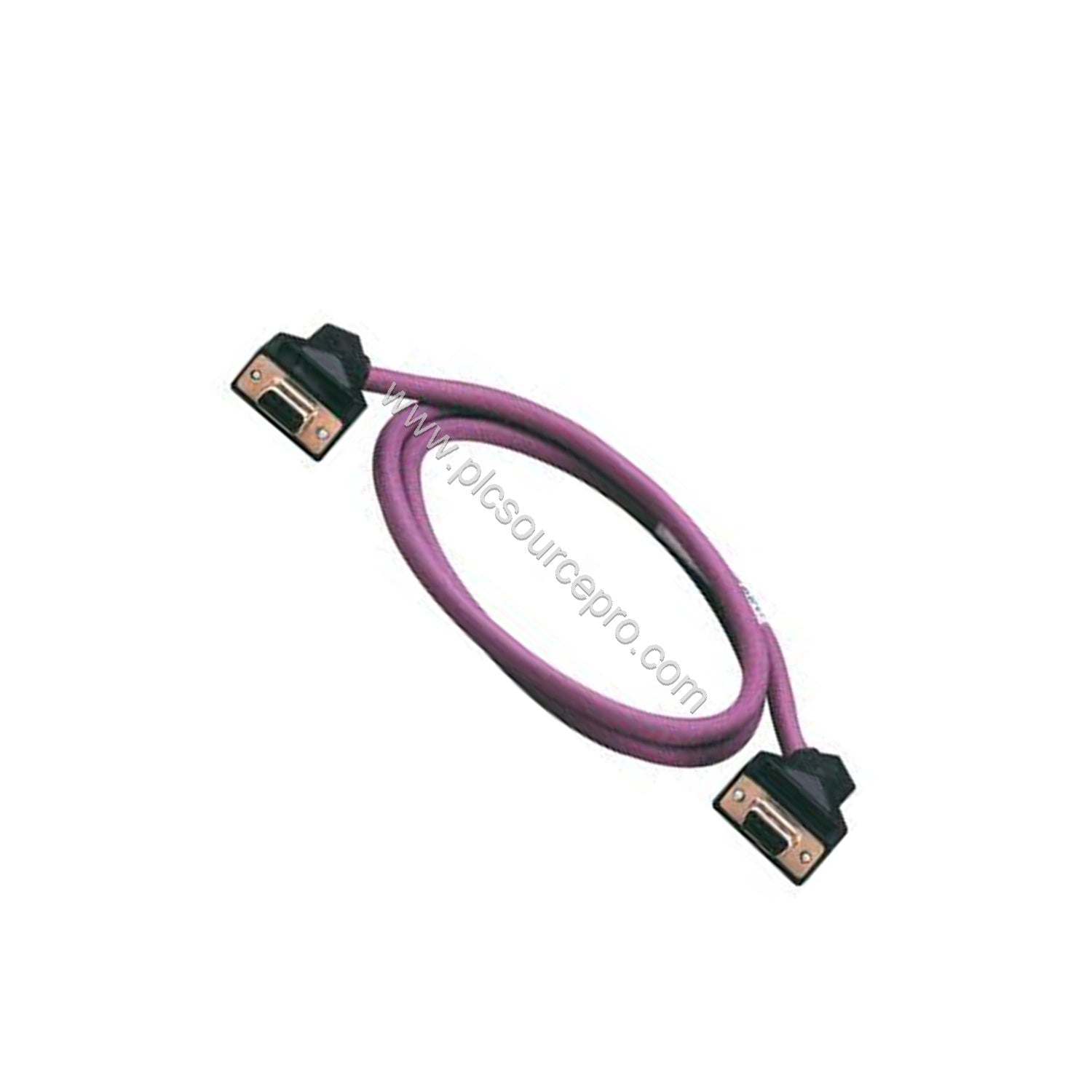

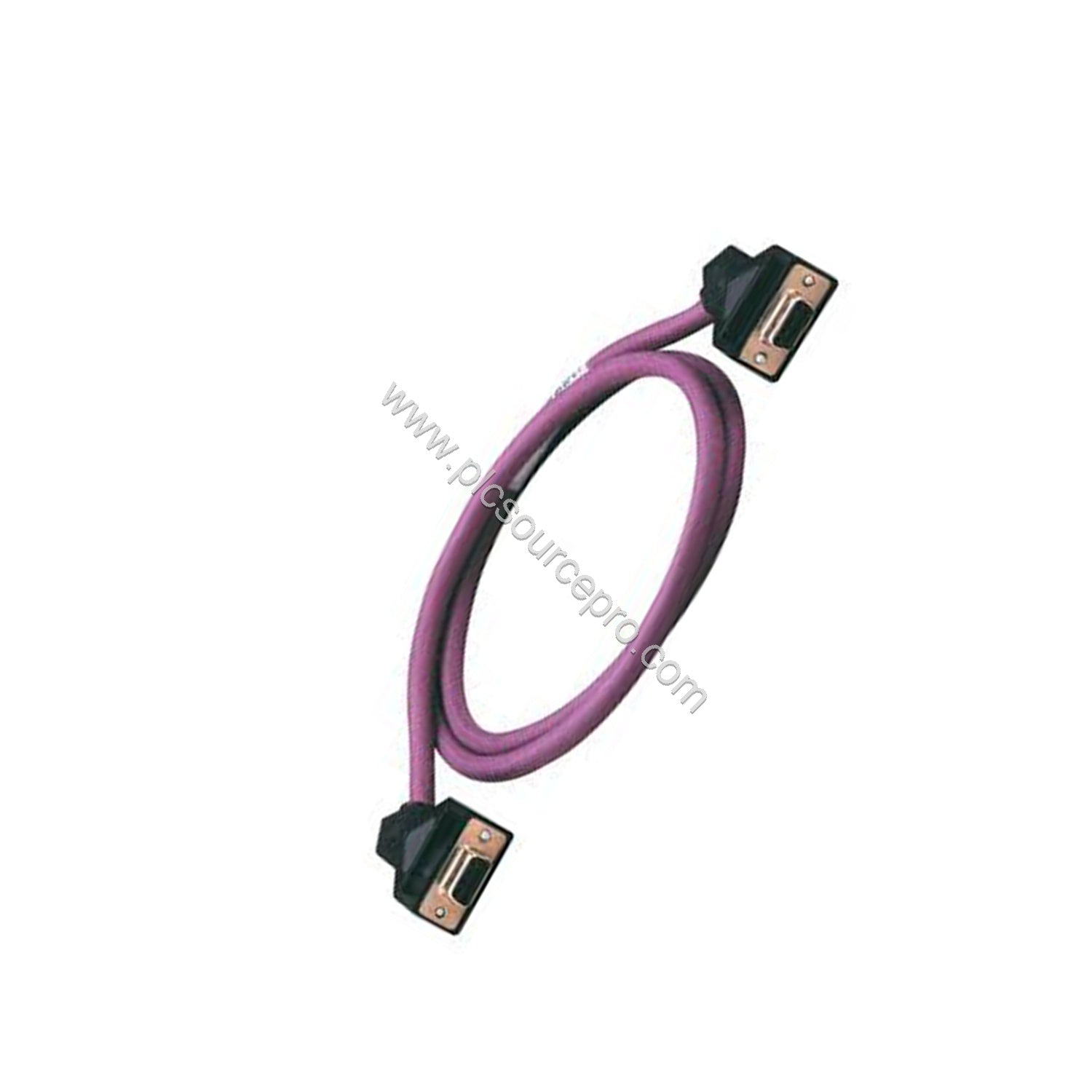

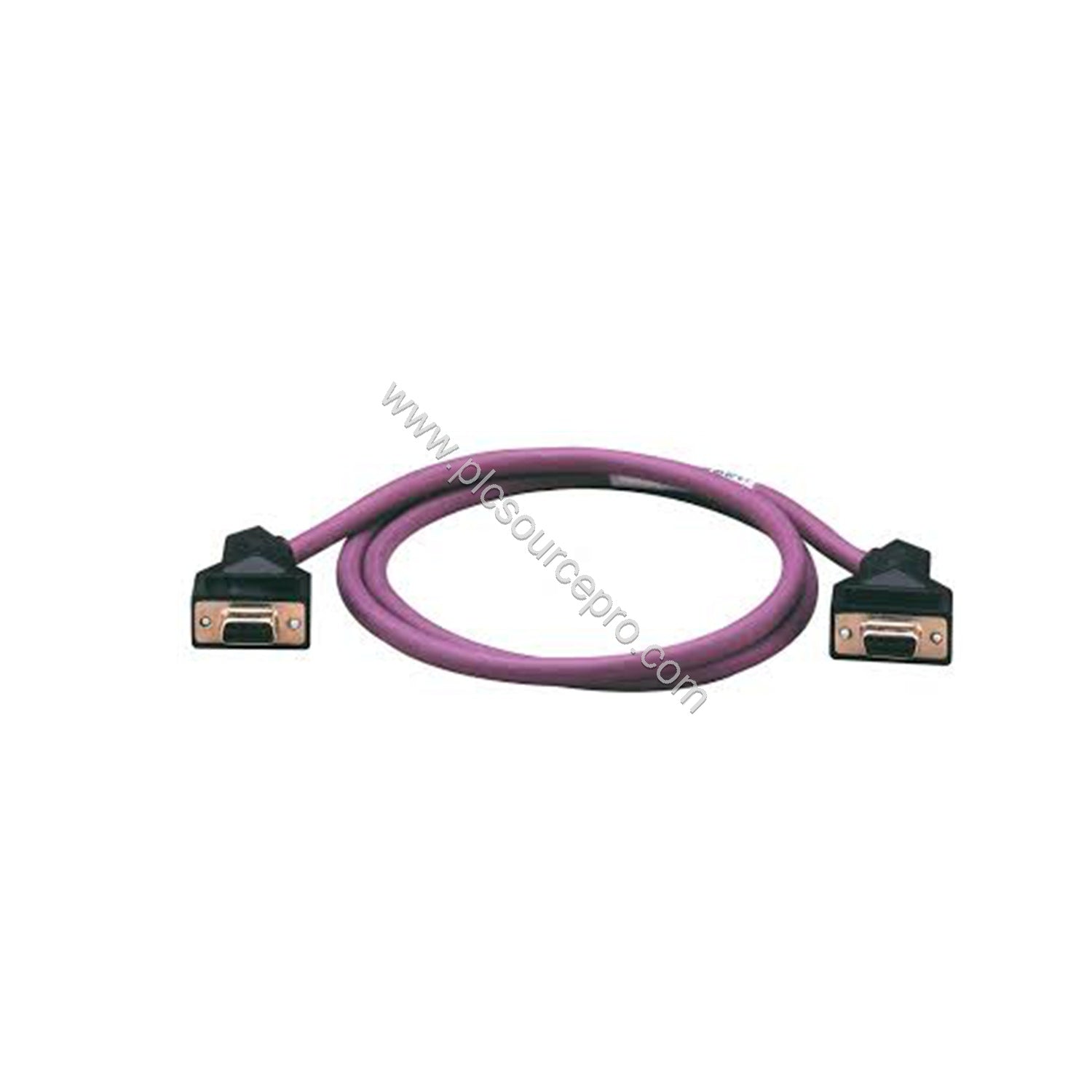

With a precise 1-meter length and rugged molded female SUB-D9 connectors, the Schneider TSXCANCADD1 CANopen cordset delivers a dependable connection for industrial CANopen buses. Designed as a standard IP20 connecting cable, this accessory ensures minimal signal loss and mechanical strain relief, directly contributing to system uptime and reduced maintenance costs. The TSXCANCADD1 is CE marked, confirming compliance with European safety and electromagnetic compatibility standards.
Technical Specifications
| Parameter |
Value |
| Product Type |
CANopen cordset |
| Bus Type |
CANopen |
| Cable Length |
3.3 ft (1 m) |
| Electrical Connection |
2 female connectors SUB-D 9 |
| IP Degree of Protection |
IP20 |
| Product Weight |
0.315 lb (0.143 kg) |
| Marking |
CE |
Application Scenarios
-
Automotive Assembly Lines: Use the TSXCANCADD1 to connect CANopen sensors and actuators in high‑speed robotic cells. The 1‑m reach fits tight cable trays, while the molded connectors resist vibration.
-
Packaging Machinery: Integrate the TSXCANCADD1 between a PLC and remote I/O nodes. The IP20 rating suits clean, dry environments, and the standard connector ensures tool‑free installation.
-
Material Handling Systems: Deploy the cordset to link CANopen drives and encoders. Its reliable mechanical design reduces replacement frequency, lowering total cost of ownership.
Compatibility and Integration
The Schneider TSXCANCADD1 is purpose‑built for CANopen networks, a widely adopted fieldbus in industrial automation. It directly interfaces with Schneider Electric PLCs, drives, and I/O modules that feature female SUB‑D9 ports. The cordset also works with third‑party CANopen devices equipped with compatible connectors, making it a versatile spare or replacement component.
Selection Guide
Before purchasing, confirm that your bus device has a male SUB‑D9 port to mate with the TSXCANCADD1's female connectors. Verify the cable length (1 m) suits your cabinet layout. For larger quantities or bulk orders, contact ubest101 to ensure availability. PLC Source PRO stocks this genuine Schneider TSXCANCADD1 cordset with fast shipping.
