Product Overview

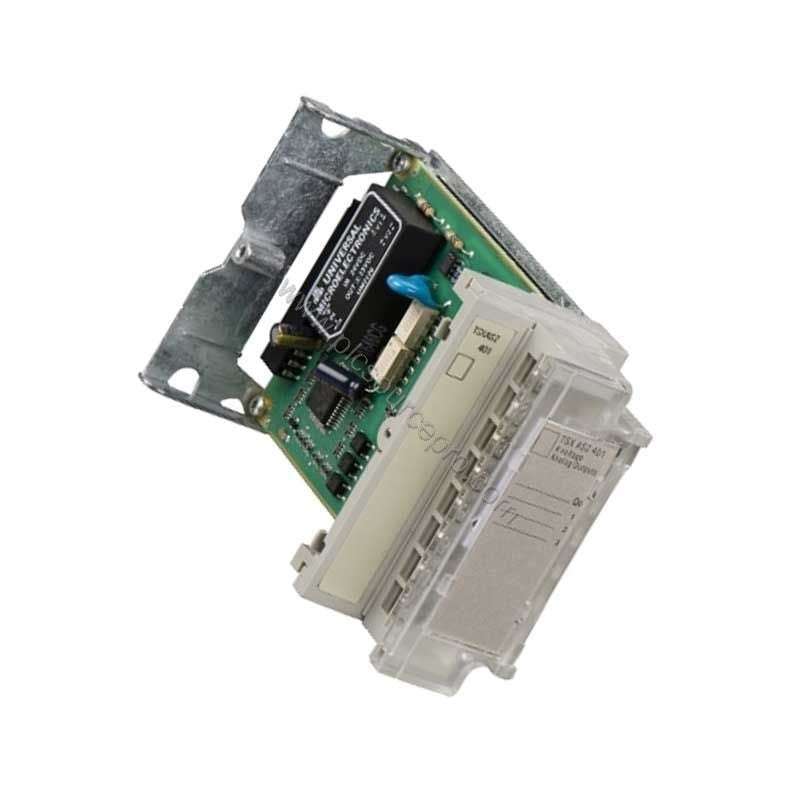

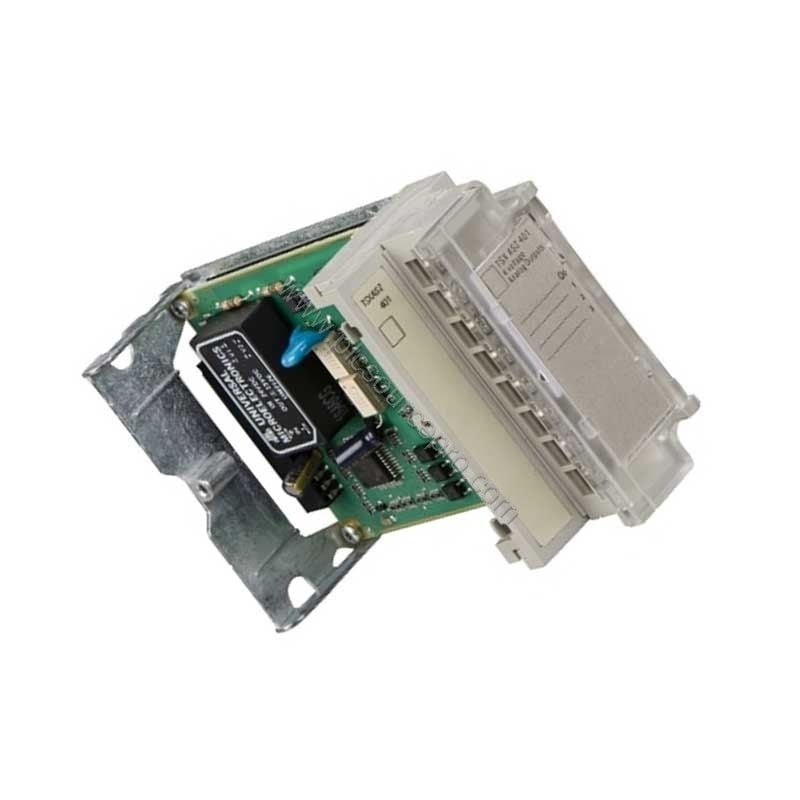

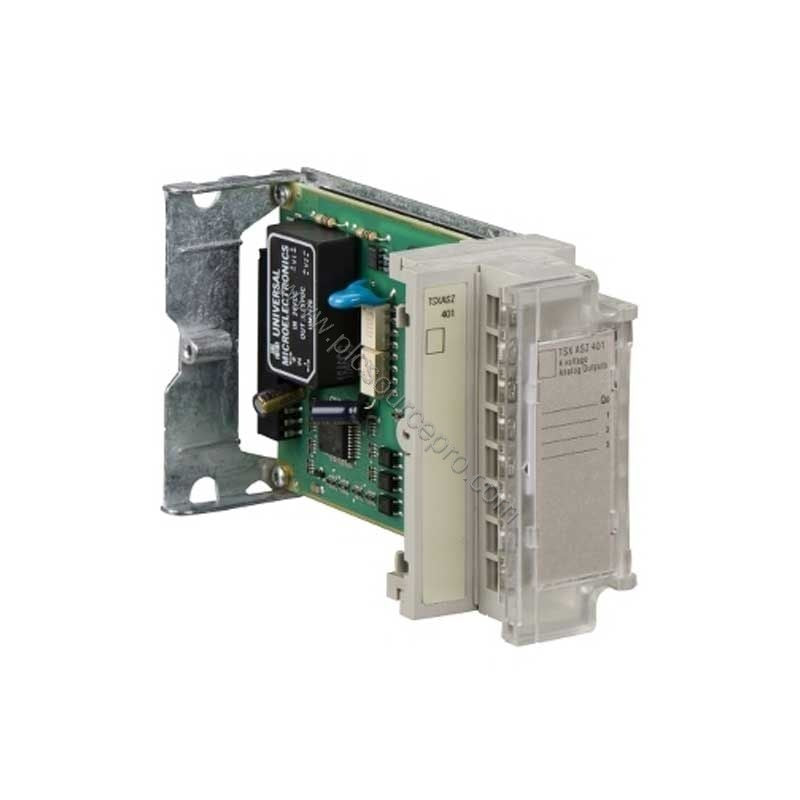

When your existing analog output module cannot keep up with the demands of precision control, the Schneider TSXASZ401 provides a reliable and efficient upgrade. This analog output module from Schneider Electric is part of the TSX Micro PLCs series, offering four channels with a swift 400-microsecond response time. Whether you choose the 0 to 10 V or +/- 10 V output type, the TSXASZ401 delivers consistent performance for critical automation tasks.
Technical Specifications
The Schneider TSXASZ401 integrates key parameters that ensure stable and protected operation. Below is a breakdown of its core specifications:
| Specification |
Value |
| Manufacturer |
Schneider Electric - TSXASZ401 |
| Number of Channels |
4 |
| Response Time |
400 µs |
| Output Type |
0...10 V, +/- 10 V |
| Analog/Digital Conversion |
11 bits (0...10 V), 11 bits (+/- 10 V) |
| Output Load |
≥ 2 Ohms |
| Protection Type |
Short-circuit protection |
| Isolation Voltage |
1000 V AC |
| Current Consumption |
90 mA |
| Temperature Drift |
0.096%/10 °C |
| Weight |
0.2 kg (0.45 lbs) |
| Compliance |
RoHS |
The 11-bit resolution ensures accurate signal reproduction, while the short-circuit protection adds reliability in industrial environments. The isolation voltage of 1000 V AC further supports safe operation in electrically noisy settings.
Industry Applications
The Schneider TSXASZ401 excels in scenarios where precise analog voltage control is mandatory. Typical applications include:
- Process control in chemical and pharmaceutical plants, where consistent output to actuators is critical.
- Automated manufacturing systems requiring rapid signal updates for servo drives and proportional valves.
- Building management systems for modulating HVAC dampers and pumps.
As a replacement or upgrade, the TSXASZ401 directly enhances the control loop performance in existing TSX Micro setups.
Compatibility and Integration
The Schneider TSXASZ401 is designed for the Modicon TSX Micro automation platform. It fits seamlessly into the rack-based system, using the standard backplane for communication and power. When upgrading from an older module, ensure your TSX Micro CPU supports the new functions; the TSXASZ401 is a drop-in replacement for many 4-channel analog output modules in the series. No additional wiring changes are needed if the output type matches your application.
Selection Guide and Purchasing Advice
Before purchasing the Schneider TSXASZ401, verify that your TSX Micro rack has a free slot and that the output voltage range (0-10 V or +/- 10 V) suits your field devices. The module accepts a load of at least 2 Ohms, ensuring wide compatibility. For expert guidance and competitive pricing, visit UBEST Automation (ubest101). Our inventory includes this module along with other TSX Micro spares and accessories.
