Product Introduction

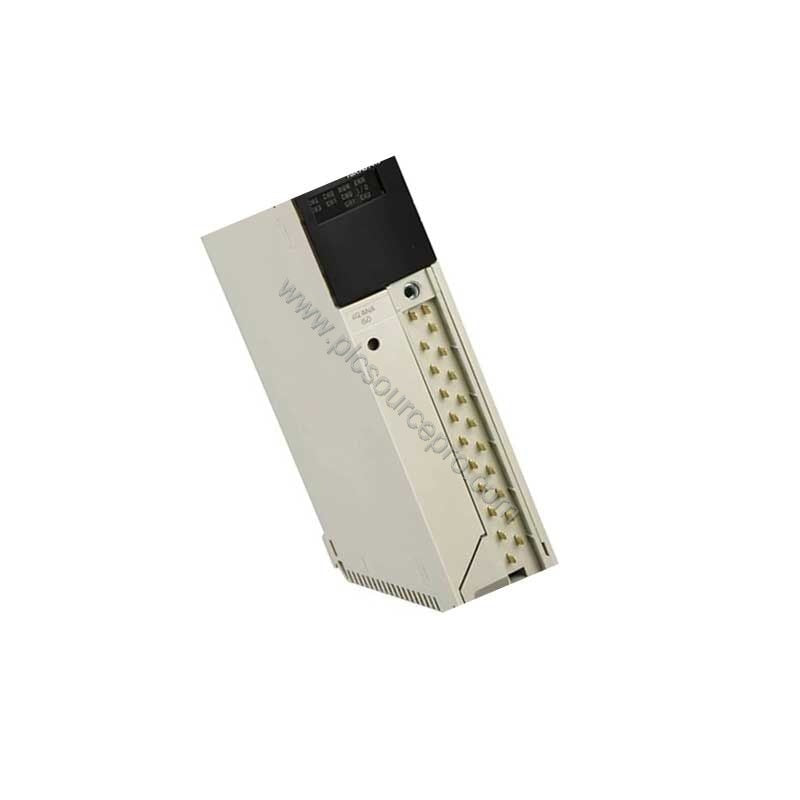

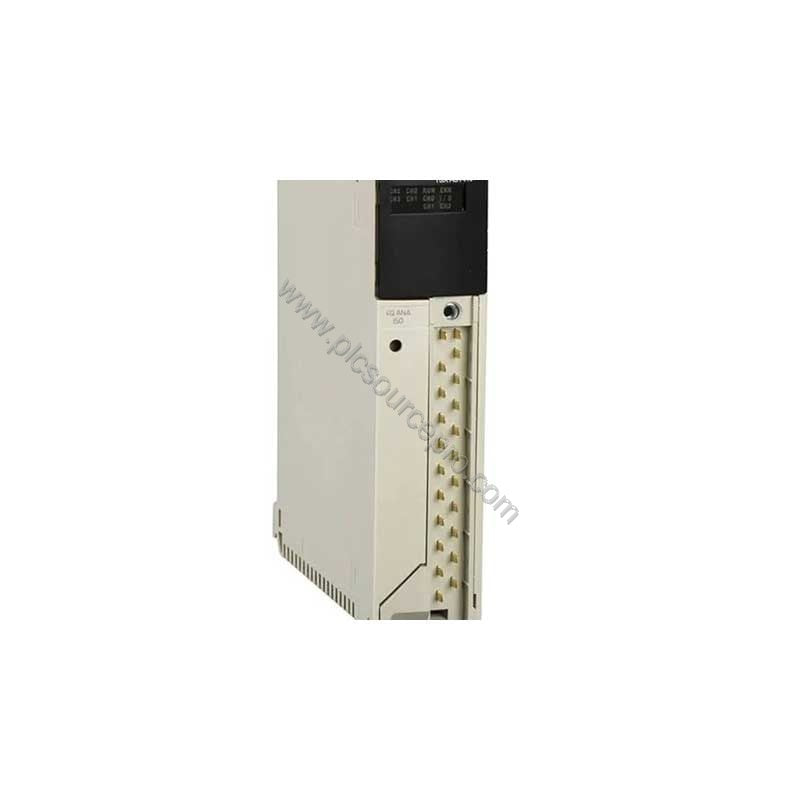

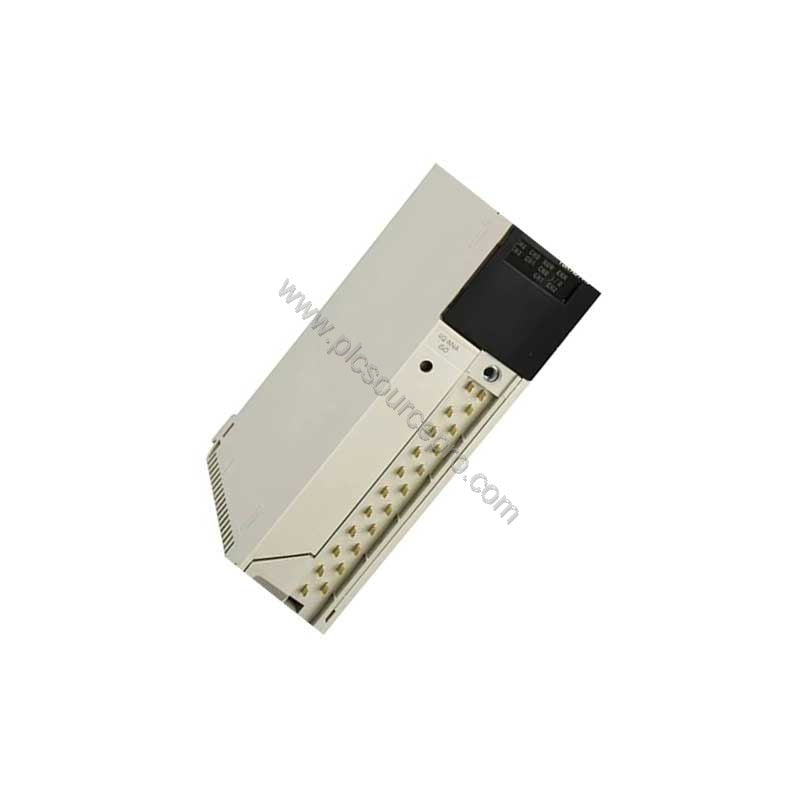

With 12-bit resolution and ±0.2% accuracy, the Schneider TSXASY410 delivers reliable analog output for demanding industrial automation tasks. This module is part of the TSX Micro PLCs series and offers both voltage and current outputs, making it versatile for various control applications. Weighing just 200 grams and measuring 125 x 100 x 40 mm, the TSXASY410 fits compactly into control cabinets while providing robust performance.
Technical Specifications Breakdown
The TSXASY410 operates on a 24 V DC supply with a low power consumption of only 3 W, contributing to energy efficiency. Key performance metrics include:
-
Response Time: 1 ms per channel, enabling rapid feedback in control loops.
-
Accuracy: ±0.2% of full scale, ensuring precise output regulation.
-
Resolution: 12-bit for fine granularity in output values.
-
Output Ranges: Voltage 0 to 10 V, Current 0 to 20 mA (including 4 to 20 mA).
-
Isolation: 1500 Vrms between channels and bus, 500 V between channels and ground, protecting against surges.
These specifications make the TSXASY410 suitable for high-precision applications where signal integrity is critical.
Industry Applications
The Schneider TSXASY410 is ideal for process control, manufacturing automation, and building management systems. For example, in a chemical processing plant, it can regulate valve positions with current output for accurate flow control. In a packaging line, voltage output drives servo motors for precise positioning. The module's rapid response time also supports real-time monitoring in high-speed sorting systems.
Installation & Setup Guidance
Mount the TSXASY410 on a DIN rail within a TSX Micro PLC rack. Connect the screw terminal block per the pinout diagram provided in the manual. Ensure the 24 V DC supply is stable and within tolerance. For voltage outputs, maintain a minimum load impedance of 2 kΩ; for current outputs, keep load impedance below 600 Ω to avoid signal degradation. The module includes overload and short-circuit protection, but verify wiring before power-on to prevent damage.
Compatibility & Integration
The TSXASY410 is designed for integration with Schneider's TSX Micro PLCs and Modicon Premium automation platform. It communicates over the backplane bus, requiring no additional configuration for basic analog output functions. The module is CE marked and meets standards such as IEC 61131-2, ensuring compatibility with industrial control systems worldwide.
Selection Guide & Purchasing Advice
Before purchasing, verify that your PLC rack has an available slot for a standard-format module and that your power supply can deliver the required 900 mA at 5 V DC (internal bus consumption). The TSXASY410 is available from UBEST Automation, your trusted source for genuine industrial automation spares. Ensure compatibility with your existing TSX Micro system by consulting the user manual for proper pin assignments.
