Product Overview

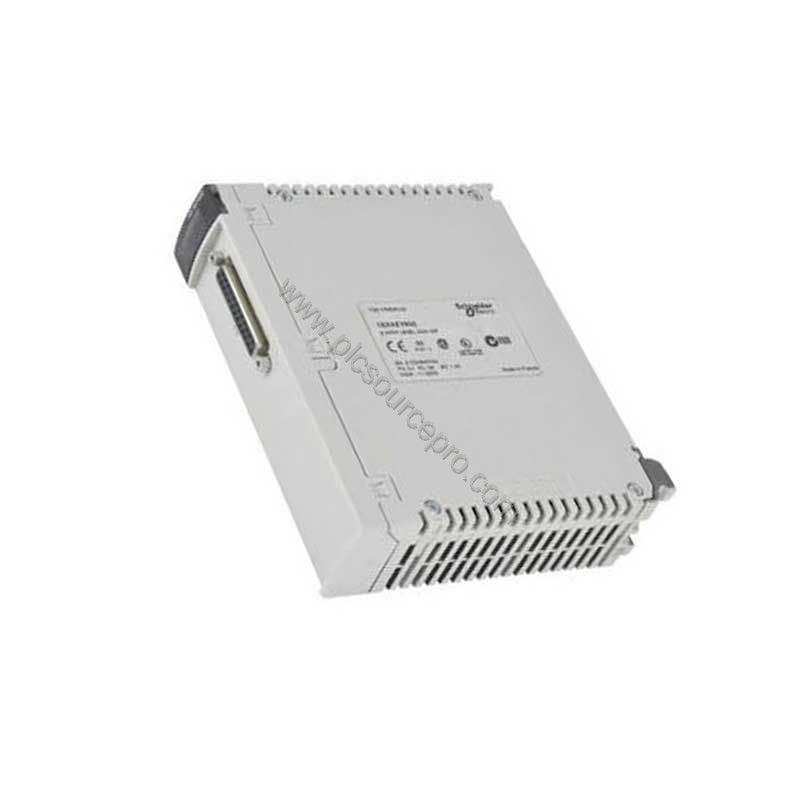

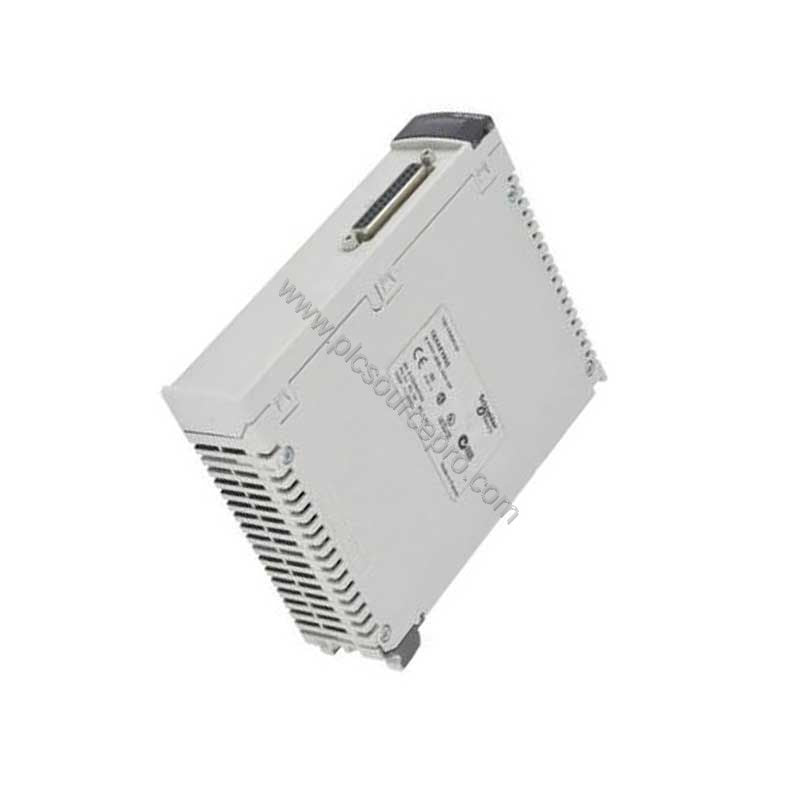

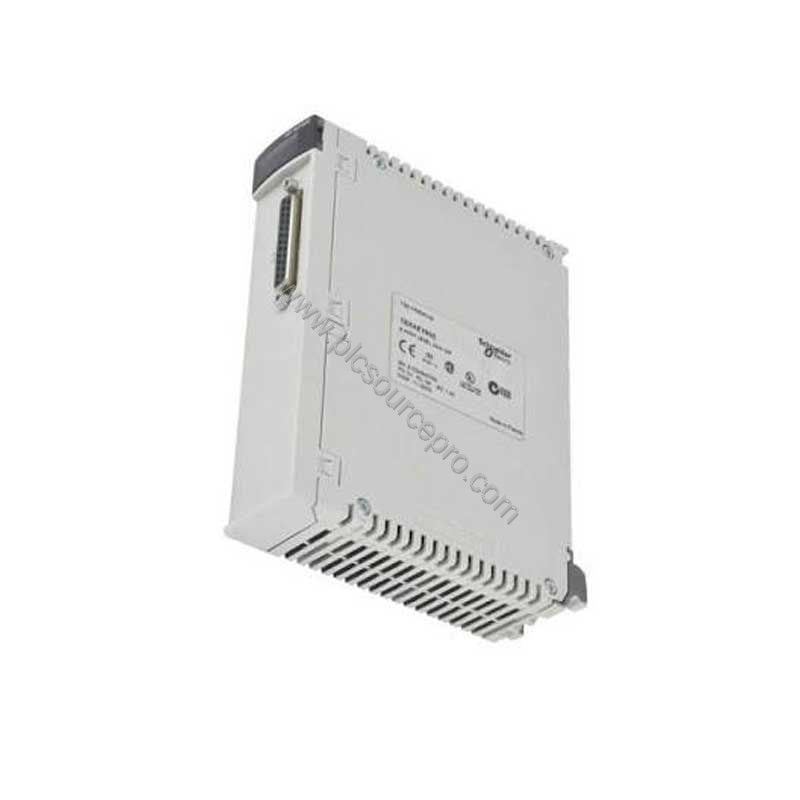

The Schneider TSXAEY800 is a high-level analog input module designed for the TSX Micro PLCs series. It handles multiple input types, including current (0-20 mA, 4-20 mA) and voltage (+/- 10 V, 0-10 V, 0-5 V, 1-5 V), providing flexibility for diverse measurement applications. With 8 high-level inputs and 12-bit analog-to-digital conversion, the TSXAEY800 ensures precise data acquisition. Its IP20 protection rating makes it suitable for indoor industrial environments.
Technical Specifications
| Parameter |
Value |
| Number of Inputs |
8 high-level |
| Input Types |
Current (0-20 mA, 4-20 mA), Voltage (+/- 10 V, 0-10 V, 0-5 V, 1-5 V) |
| Analog/Digital Conversion |
12 bits |
| Measurement Error |
0.15% to 0.41% of full scale, depending on input type and temperature |
| Isolation |
1000 Vrms between channels and bus, 1000 Vrms between channels and ground |
| Current Consumption |
270 mA at 5 V DC |
| Fast Read Cycle Time |
3 ms + 3 ms per channel used |
| Nominal Read Cycle Time |
27 ms |
| Input Overvoltage Protection |
-15 to +15 V at state 0, -30 to +30 V at state 1 |
| Operating Temperature |
0 to 60 °C |
| Storage Temperature |
-25 to 70 °C |
| IP Degree of Protection |
IP20 |
| Electrical Connection |
1 connector SUB-D 25 |
| Weight |
0.45 kg (1.00 lbs) |
Installation & Setup Guidance
Mount the TSXAEY800 module securely on a DIN rail within an appropriate enclosure. Ensure proper grounding and use the SUB-D 25 connector for wiring inputs. Follow the manufacturer's manual for channel configuration and input type selection. Verify that the module is powered by a 5 V DC supply capable of delivering 270 mA. For optimal performance, keep wiring away from high-voltage lines to minimize interference.
Maintenance & Reliability
The TSXAEY800 is built for long service life with robust isolation (1000 Vrms) and overvoltage protection. Periodically inspect the module for dust accumulation and ensure the IP20 enclosure remains sealed. Operating within the 0 to 60 °C temperature range reduces thermal stress. The module's low current consumption (270 mA) contributes to energy efficiency, lowering total cost of ownership.
Selection Guide & Purchasing Advice
When selecting the TSXAEY800, verify compatibility with your TSX Micro PLC system. Ensure your application requires 8 high-level analog input channels and supports the input types listed. For procurement, consider UBEST Automation as a reliable supplier for genuine Schneider parts. Visit ubest101.myshopify.com for current pricing and availability.
