Product Introduction

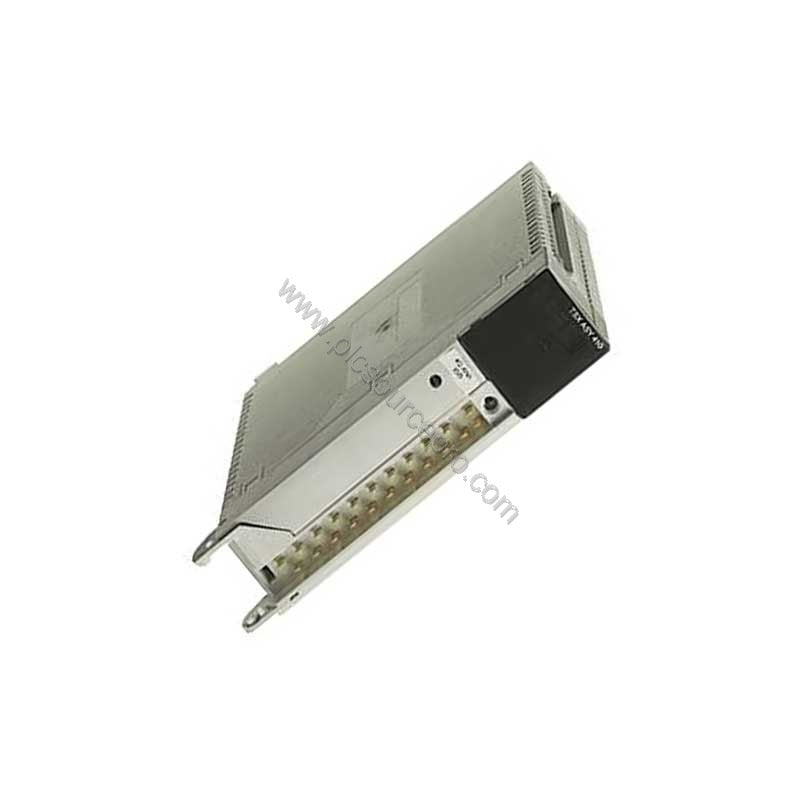

When precise analog measurements are critical in industrial automation, the Schneider TSXAEY414 provides a reliable 4-channel analog input solution for TSX Micro PLCs. The Schneider TSXAEY414 supports a wide variety of input types including current (4–20 mA), voltage (±10 V, 0–10 V, 0–5 V, 1–5 V), thermocouples (B, E, J, K, L, N, R, S, T, U), resistors (0–400 Ω, 0–3850 Ω), and temperature probes (Pt100, Pt1000, Ni1000). Its comprehensive voltage isolation (2830 Vrms between channels and bus, 1780 Vrms to ground) ensures operational integrity in noisy environments.
Technical Specifications Breakdown
The Schneider TSXAEY414 delivers a nominal read cycle time of 550 ms and uses 16-bit analog-to-digital conversion for accurate measurements. Key specifications from the manufacturer include:
| Parameter |
Value |
| Part Number |
TSXAEY414 |
| Analog Input Channels |
4 high-level |
| Analog/Digital Conversion |
16 bits |
| Nominal Read Cycle Time |
550 ms |
| Common Mode Voltage (between channels) |
415 V AC or 200 V DC |
| Isolation (channels to bus) |
2830 Vrms |
| Isolation (channels to ground) |
1780 Vrms |
| Current Consumption |
660 mA at 5 V DC |
| Operating Temperature |
0 to 60 °C |
| Storage Temperature |
-25 to 70 °C |
| Relative Humidity (operation) |
10 to 95% without condensation |
| Electrical Connection |
Screw terminal block |
| Input Overvoltage Protection |
-30 to 30 V (state 1), -15 to 15 V (state 0) |
| Weight |
0.45 kg (1.00 lbs) |
Industry Applications
The Schneider TSXAEY414 excels in process control environments requiring accurate temperature, pressure, and flow measurements. For example, in a chemical plant, the module can read multiple thermocouple types (e.g., Type K or J) to monitor reactor temperatures, while its 550 ms cycle time provides timely data for control loops. In HVAC systems, the module handles 4–20 mA transmitters for pressure and humidity sensing, and its built-in overvoltage protection safeguards against spikes.
Installation & Setup Guidance
Install the Schneider TSXAEY414 in a standard slot of a TSX Micro PLC rack. Connect field wiring using the screw terminal block, ensuring proper polarity for current and voltage inputs. For thermocouple connections, use appropriate extension wire and maintain cold-junction compensation if required. The module draws 660 mA from the 5 V DC bus, so verify the power supply capacity. No special software configuration is needed beyond standard PLC programming tools.
Selection Guide & Purchasing Advice
Before purchasing the Schneider TSXAEY414, verify that your TSX Micro PLC backplane has an available slot and can supply sufficient 5 V current. This module is ideal for upgrading older analog input modules with limited input type support. UBEST Automation, your trusted industrial automation parts supplier, offers this module with fast shipping and genuine Schneider quality. Contact us to confirm compatibility with your specific system.
